51502 - NLR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

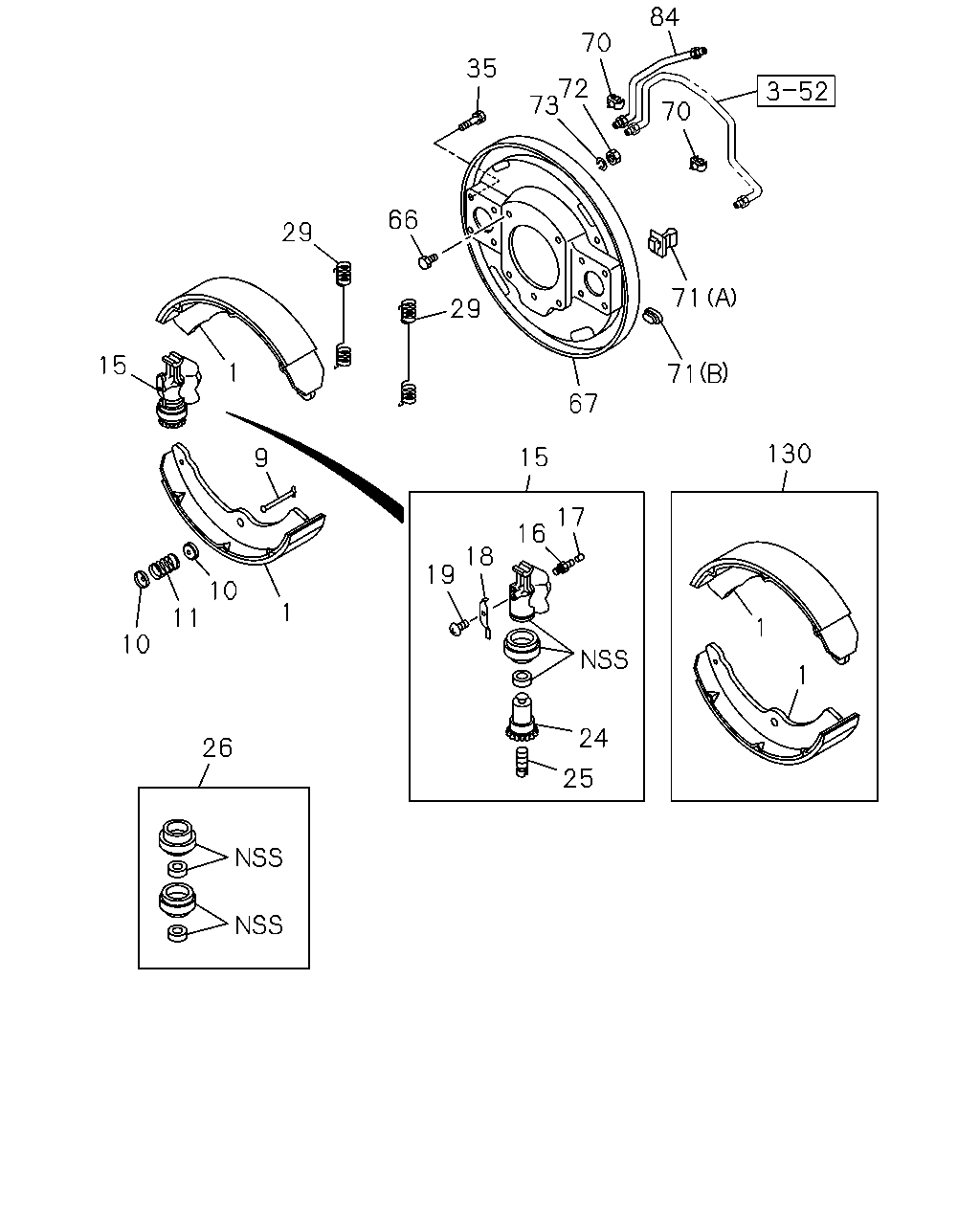

3-01 — FRONT WHEEL BRAKE
(#132465) — 29 parça
84
70
70
72
73
35
66
29
29
67
71
71
130
15
16
17
18
19
24
25
26
10
11
10
1
9
1
15
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
8-97035-085-1
04
1
1401-
1
SHOE; BRK,FRT
BEST VALUE PARTS
5-87610-123-0
04
1
1401-
9
PIN; SHOE HOLDER
9-47162-607-0
04
1
1401-
10
CUP; SHOE HOLDING
9-47162-033-0
08
1
1401-
11
SPRING; SHOE HOLDING
9-09940-989-1
04
1
1401-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97179-357-0
01
1
1401-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97179-358-0
01
1
1401-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97179-359-0
01
1
1401-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97179-360-0
01
1
1401-
16
SCREW; BLEEDER,FRT BRK
8-98050-476-0
02
1
1401-
17
CAP; BLEEDER,FRT WHEEL CYL
8-98050-479-0
02
1
1401-
18
STOPPER; ADJ SCREW
8-94128-486-0
04
1
1401-
19
SCREW; STOPPER SETTING
8-94128-727-0
04
1
1401-
24
PISTON; FRT WHEEL CYL
8-97078-621-0
04
1
1401-
25
SCREW; ADJ,FRT WHEEL CYL
8-97078-623-0
04
1
1401-
26
CUP SET; FRT WHEEL CYL
5-87831-602-0
01
1
1401-
29
SPRING; RETURN,FRT BRK SHOE
8-97078-739-0
04
1
1401-
35
BOLT; FRT WHEEL CYL
5-09030-036-1
16
1
1401-
66
BOLT; OIL SHIELD COVER
M12X33
8-98009-493-2
08
1
1401-
67
PLATE; BACK,FRT BRK
8-97302-584-0
01
1
1401-
67
PLATE; BACK,FRT BRK
8-97302-585-0
01
1
1401-
70
CLIP; PIPE HOLD
8-94128-306-0
04
1
1401-
71
GROMMET; CHECK HOLE
(B)
8-94171-287-0
02
1
1401-
71
GROMMET; CHECK HOLE
(A) MAL
9-09756-034-0
04
1
1401-
72
NUT; OIL SHIELD COVER
M12 MAL
0-91110-512-0
08
1
1401-
73
WASHER; LK,OIL SHIELD COVER
ID=12.2 MAL
0-91510-812-0
08
1
1401-
84
PIPE; BRK,WHEEL CYL TO HOSE
MAL
8-97019-224-0
01
1
1401-
84
PIPE; BRK,WHEEL CYL TO HOSE
MAL
8-97019-225-0
01
1
1401-
130
SHOE KIT; BRK,FRT
5-87832-045-0
01
1
1401-
