2-85 — POWER TAKE OFF CONTROL (#132464) — 91 parça

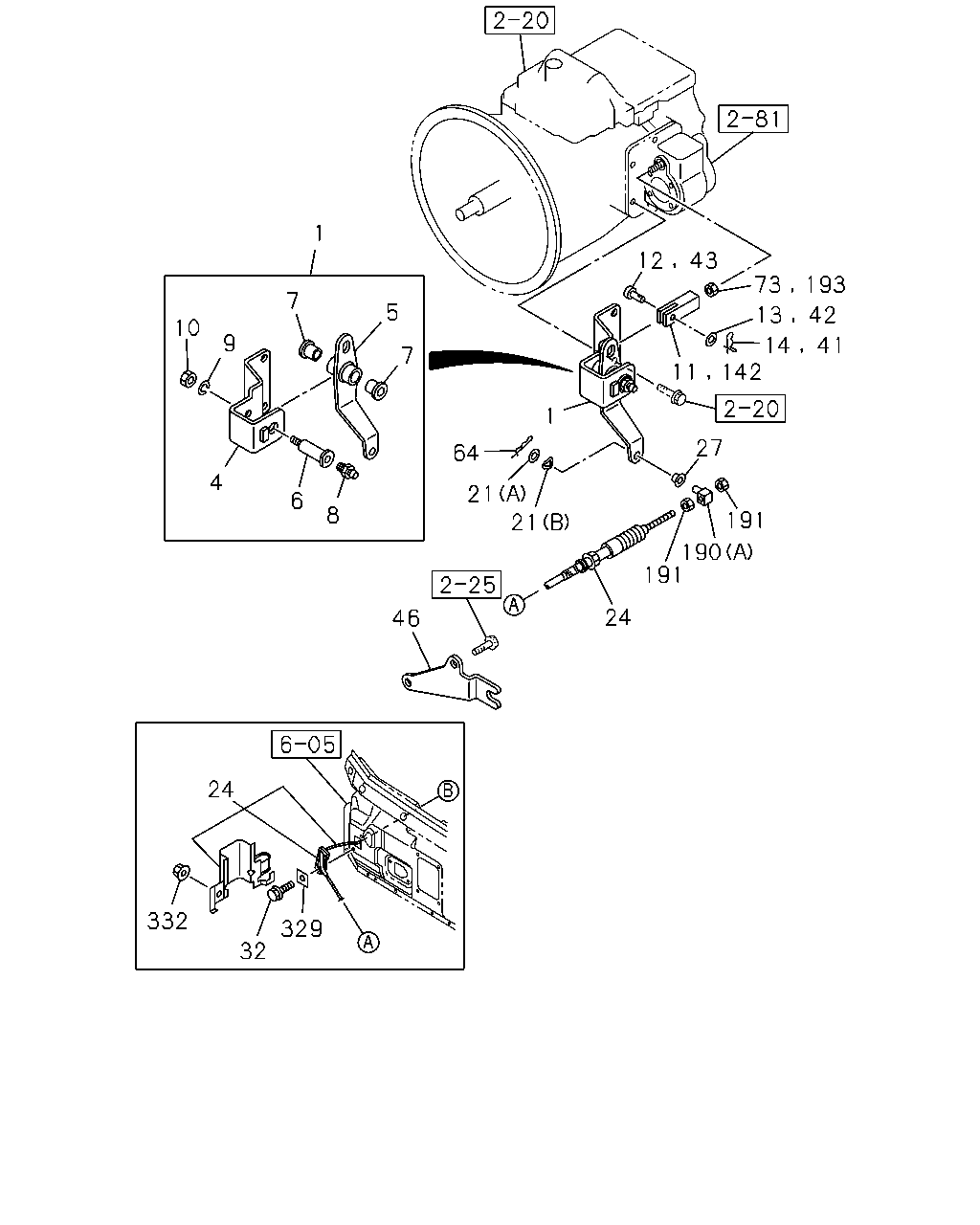

12 43 1 73 193 13 42 14 41 11 142 64 21 27 21 191 190 191 24 46 1 10 7 9 5 4 7 6 8 24 332 32 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-090-0	01	1	1401-	●
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1402-		●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-100-0	01	1	1401-	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1402-		●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1401-1401	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1402-	●	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1401-1401	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1402-	●	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1401-1401	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1402-	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT	0-90301-406-0	01	1	1401-1401	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT	0-90301-406-0	01	1	1402-	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1401-1401	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1402-	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	0-91110-508-0	01	1	1401-1401	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	0-91110-508-0	01	1	1402-	●	●
11	JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1401-	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1402-		●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22 MAL	0-91610-512-0	01	1	1402-		●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1402-		●
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	1401-	●	●
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1401-	●	●
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1401-	●
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1402-		●
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1402-		●
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	1401-	●	●
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1401-	●	●
41	PIN; SPLIT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1401-	●
42	WASHER; PL,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22 MAL	0-91610-512-0	01	1	1401-	●
43	PIN; JOINT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1401-	●
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98086-418-0	01	1	1401-	●
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	1402-		●
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7	8-94111-137-0	01	1	1401-	●	●
73	NUT; LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1401-	●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1402-		●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1401-	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1401-	●	●
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	02	1	1401-	●	●
193	NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1402-		●
329	SEAL PTO MANUAL CONTROL(6WC) MAL	8-97856-616-0	02	1	1401-	●	●
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) M6 FLANGE MAL	0-91180-106-0	01	1	1401-	●	●

15 24 16 222 261 300 80 219 74 262 259 260 258 330 287 190 121 222 264 287 225 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1401-	●	●
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1401-	●	●
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1401-	●
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1402-		●
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1402-		●
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1401-	●	●
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1401-	●	●
96	NUT PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	01	1	1401-	●	●
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4 MAL	0-91805-504-0	01	1	1401-	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1401-	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1401-	●	●
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1401-	●	●
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1401-	●	●
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE MAL	0-28650-820-0	03	1	1401-	●	●
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1401-	●	●
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1401-	●	●
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1401-	●	●
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1401-	●	●
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1401-	●	●
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1401-	●	●
264	PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1401-	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6	0-91110-506-0	01	1	1401-	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE	0-91180-208-0	01	1	1401-	●	●
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1401-	●	●
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1401-	●	●

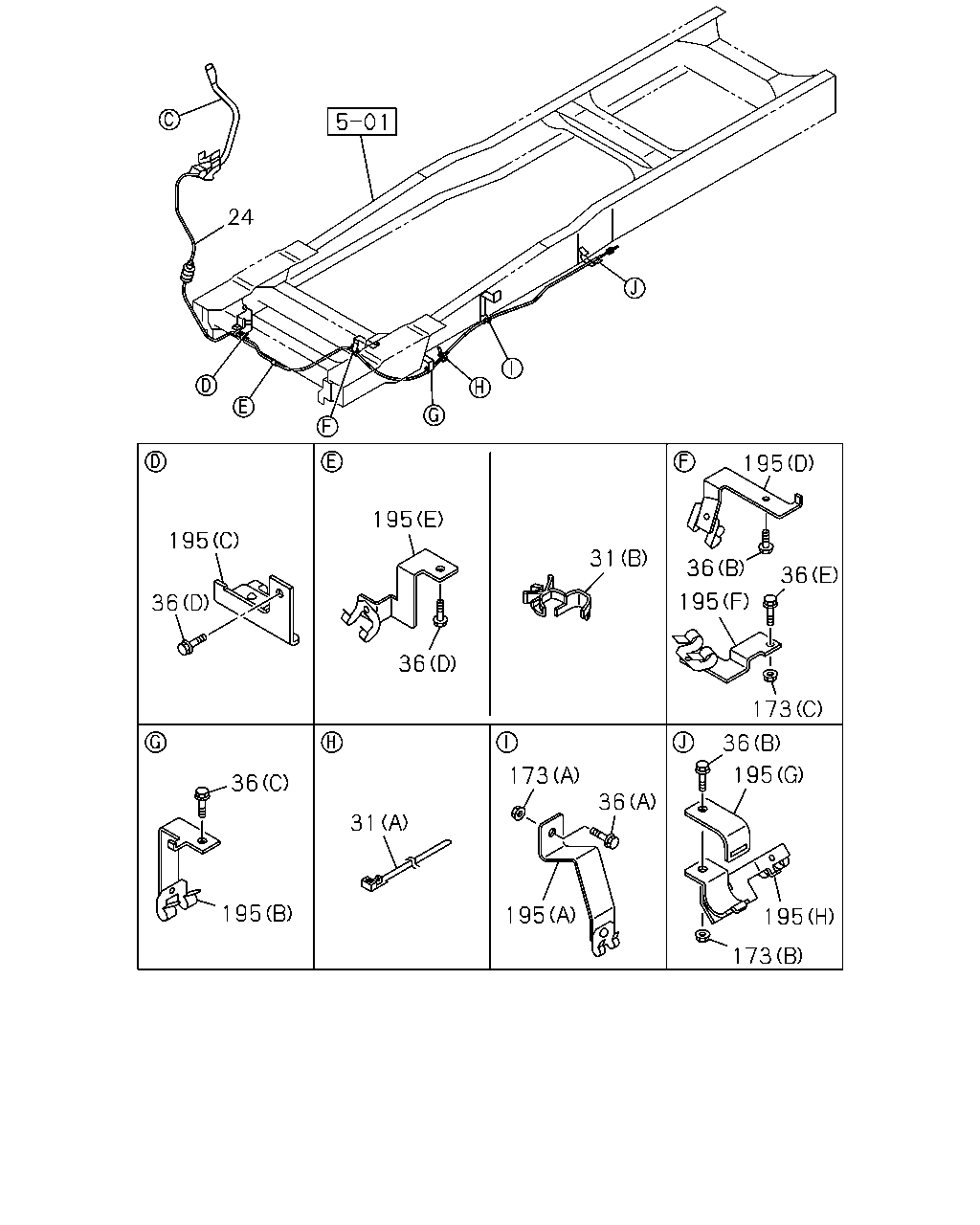

24 195 36 195 36 31 195 36 195 36 173 36 195 31 173 36 195 36 195 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1401-	●
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1402-		●
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1402-		●
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (A) L=250	5-09707-030-1	01	1	1401-1401	●
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (A) L=250	5-09707-030-1	01	1	1402-	●	●
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (B) ID=16	8-97040-812-0	01	1	1402-		●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (C) M12X30 FLANGE	0-28651-230-0	01	1	1401-	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (D) M10X20 FLANGE MAL	0-28651-020-0	02	1	1401-	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-		●
36	BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) (E) M6X20 FLANGE MAL	0-28650-620-0	01	1	1402-		●
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (A) M10 FLANGE MAL	0-91180-110-0	01	1	1401-	●
173	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) (C) M6 FLANGE MAL	0-91180-106-0	01	1	1402-		●
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1402-		●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98108-504-1	01	1	1401-	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98142-565-0	01	1	1401-	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98101-143-0	01	1	1401-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98152-321-0	01	1	1401-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98086-264-0	01	1	1401-1401	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98086-264-0	01	1	1402-	●	●
195	BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) (F)	8-98032-856-1	01	1	1402-		●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (H)	8-98117-131-0	01	1	1402-		●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (G)	8-98117-132-0	01	1	1402-		●
