Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#132463) — 141 parça

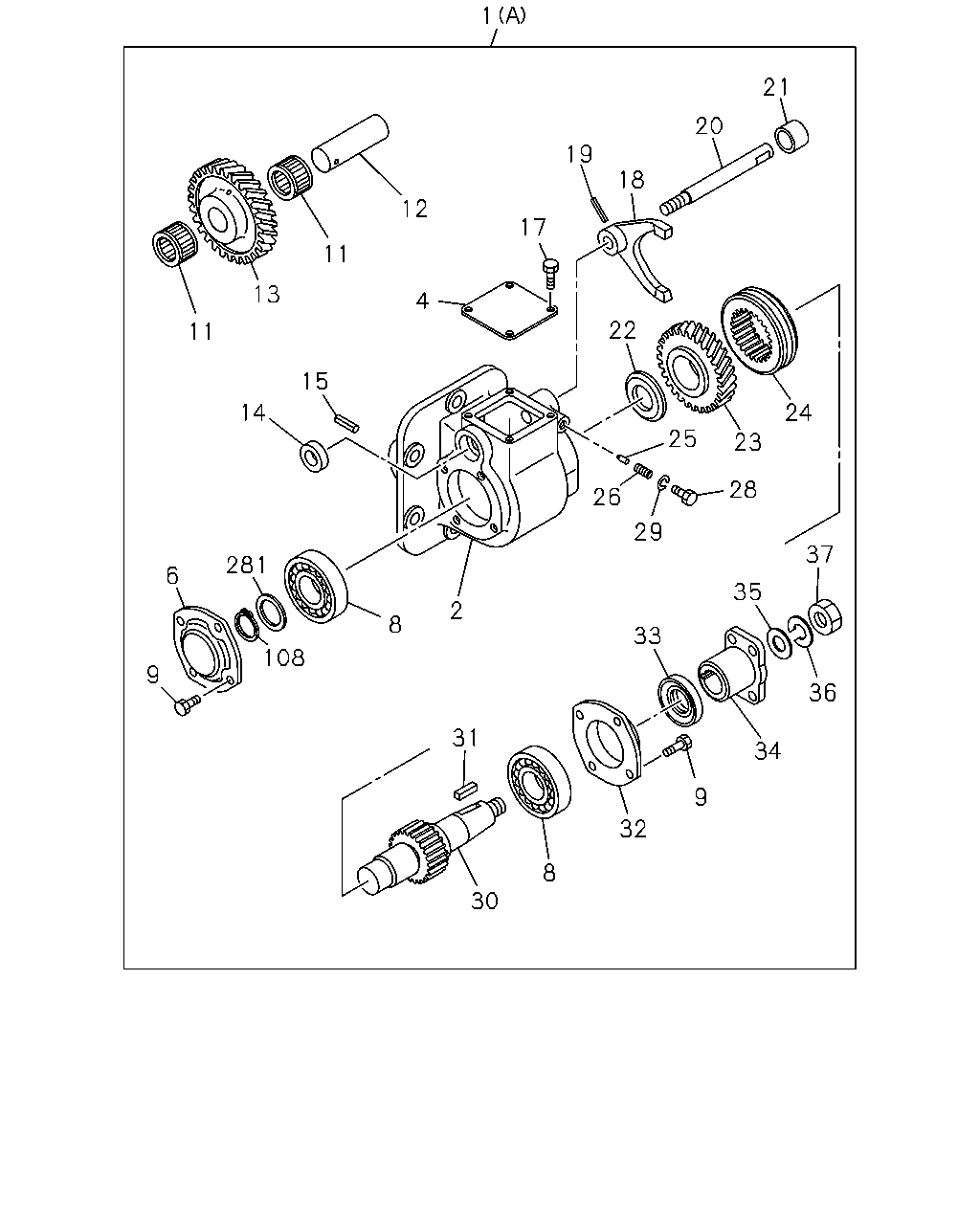

21 20 18 19 1 17 12 11 13 11 14 15 4 22 24 23 25 26 29 28 37 35 36 34 33 9 32 8 30 31 2 8 108 281 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=B	8-98233-782-1	01	1	1401-	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) IDENTIFICATION=YG	8-98233-783-1	01	1	1402-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97319-357-1	01	1	1401-1409	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-380-0	01	1	1410-	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1402-1409		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1401-1401	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1402-	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1401-1401	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1402-	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1401-1401	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1402-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X16 FLANGE MAL	0-28050-816-0	08	1	1401-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL	0-28050-820-0	08	1	1402-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	9-00096-646-0	02	1	1401-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1402-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1401-1401	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1402-	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=34	9-38241-614-1	01	1	1401-	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1402-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1401-1401	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1402-	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1401-1401	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1402-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X16 FLANGE MAL	0-28050-816-0	04	1	1401-	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL	0-28050-820-0	04	1	1402-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1401-1401	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1402-	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1401-1401	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1402-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-622-0	01	1	1401-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-623-0	01	1	1402-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-617-0	01	1	1401-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1401-1401	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1402-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=22	8-98120-612-0	01	1	1401-	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1402-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1401-1401	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1402-	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1401-1401	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1402-	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1401-1401	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1402-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1401-1401	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1402-	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1401-1401	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1402-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-777-0	01	1	1401-1401	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-777-0	01	1	1402-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1401-1401	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1402-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-610-0	01	1	1401-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97305-794-0	01	1	1402-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1401-1401	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1402-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1401-1401	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1402-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15	0-91610-514-0	01	1	1401-1401	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15	0-91610-514-0	01	1	1402-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL	0-91510-814-0	01	1	1401-1401	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL	0-91510-814-0	01	1	1402-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14	0-91111-514-0	01	1	1401-1401	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14	0-91111-514-0	01	1	1402-	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2	9-09180-025-0	01	1	1401-1401	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2	9-09180-025-0	01	1	1402-	●	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1401-1401	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1402-	●	●

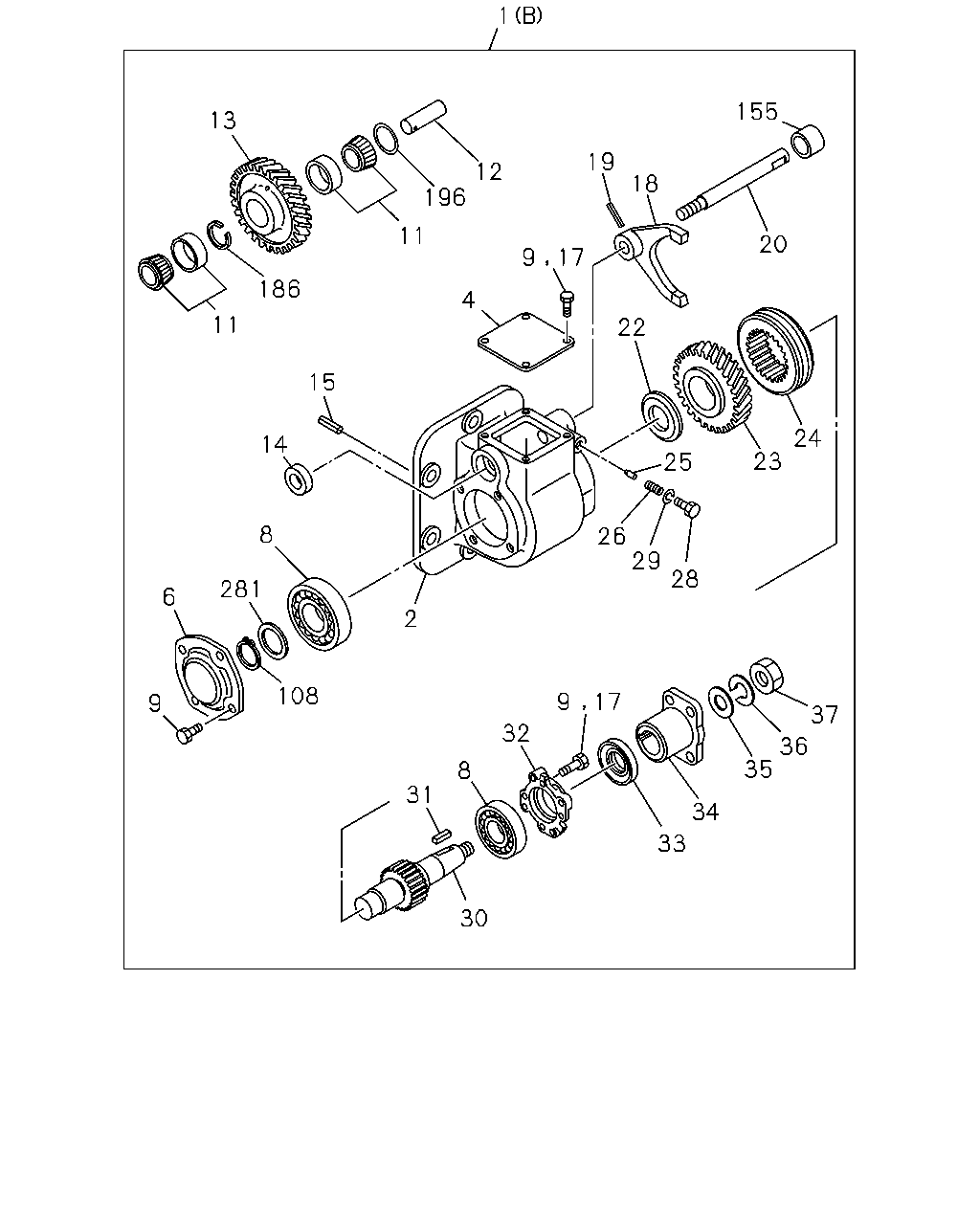

1 155 18 19 12 196 11 4 9 17 22 25 23 24 20 28 29 26 13 186 11 14 15 8 281 6 9 108 2 31 30 8 32 9 17 33 34 35 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=B	8-98233-782-1	01	1	1401-	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) IDENTIFICATION=YG	8-98233-783-1	01	1	1402-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97319-357-1	01	1	1401-1409	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-380-0	01	1	1410-	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1402-1409		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1401-1401	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1402-	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1401-1401	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1402-	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1401-1401	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1402-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X16 FLANGE MAL	0-28050-816-0	08	1	1401-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL	0-28050-820-0	08	1	1402-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	9-00096-646-0	02	1	1401-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1402-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1401-1401	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1402-	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=34	9-38241-614-1	01	1	1401-	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1402-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1401-1401	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1402-	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1401-1401	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1402-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X16 FLANGE MAL	0-28050-816-0	04	1	1401-	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL	0-28050-820-0	04	1	1402-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1401-1401	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1402-	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1401-1401	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1402-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-622-0	01	1	1401-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-623-0	01	1	1402-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1401-1401	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1402-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=22	8-98120-612-0	01	1	1401-	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1402-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1401-1401	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1402-	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1401-1401	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1402-	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1401-1401	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1402-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1401-1401	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1402-	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1401-1401	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1402-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-777-0	01	1	1401-1401	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-777-0	01	1	1402-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1401-1401	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1402-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-610-0	01	1	1401-	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97305-794-0	01	1	1402-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1401-1401	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1402-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1401-1401	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1402-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15	0-91610-514-0	01	1	1401-1401	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15	0-91610-514-0	01	1	1402-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL	0-91510-814-0	01	1	1401-1401	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL	0-91510-814-0	01	1	1402-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14	0-91111-514-0	01	1	1401-1401	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14	0-91111-514-0	01	1	1402-	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2	9-09180-025-0	01	1	1401-1401	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2	9-09180-025-0	01	1	1402-	●	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98037-770-0	01	1	1402-		●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97106-730-0	01	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50	8-97106-724-0	02	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60	8-97106-725-0	02	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65	8-97106-726-0	02	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70	8-97106-727-0	02	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80	8-97106-728-0	02	1	1402-		●
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	02	1	1402-		●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1401-1401	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1402-	●	●
