◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#132460) — 102 parça

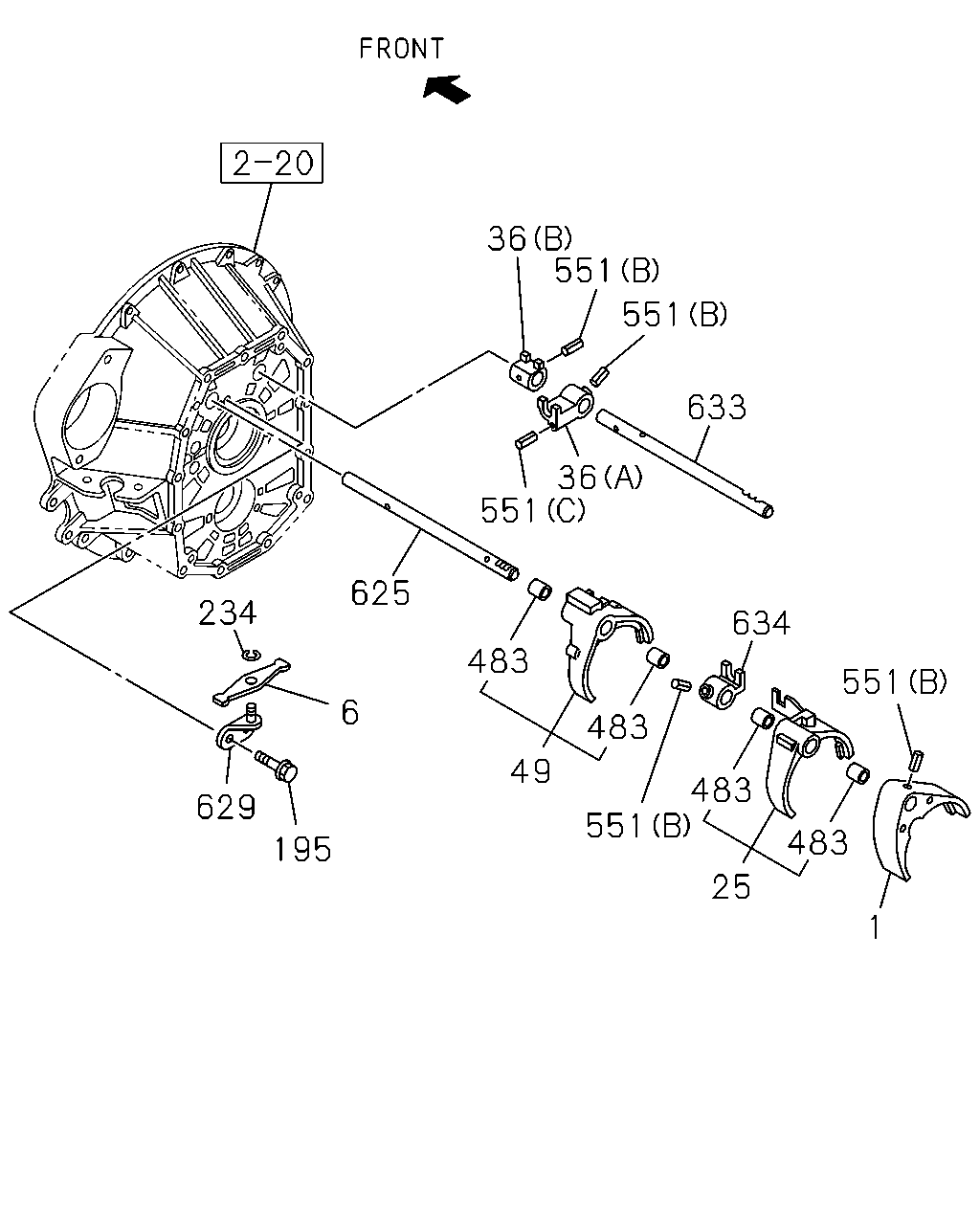

çizim 401379
1 551 483 483 25 551 483 49 634 551 625 6 195 629 234 36 633 551 551 36 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1402- ●
6 LEVER; RELAY 8-97241-344-0 01 1 1402- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1402-1407 ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1402- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1402- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1402- ●
174 SPRING; REV 8-98190-419-0 01 1 1401- ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1402- ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1402- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 1402- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1402- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1402- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1402- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1402- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1402- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1402- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1402- ●

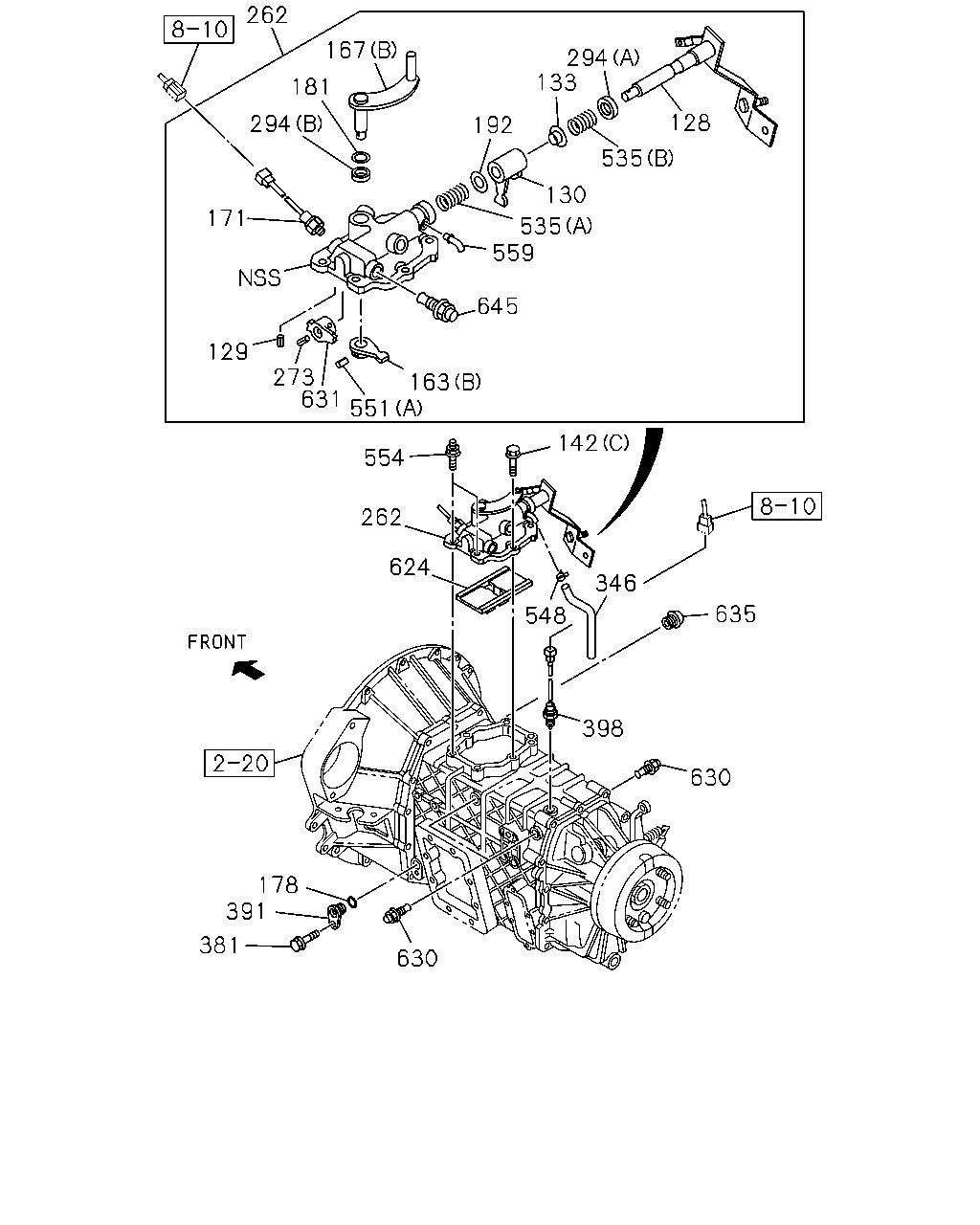

çizim 401381
262 181 167 294 171 129 273 631 551 163 645 559 535 130 535 128 142 554 262 624 548 398 635 346 630 178 391 381 630 192 133 294
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1402- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1402- ●
130 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1401- ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1402- ●
133 SEAT; SPR 8-97305-667-0 01 1 1402- ●
142 BOLT; QUAD BOX
(A) M8X25 FLANGE 		0-28050-825-0 08 1 1401- ●
142 BOLT; QUAD BOX
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1401- ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-97365-376-0 04 1 1402- ●
163 LEVER; SELECT,INTERNAL
(A) 		8-98190-302-0 01 1 1401- ●
163 LEVER; SELECT,INTERNAL
(B) 		8-97305-663-0 01 1 1402- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98190-276-0 01 1 1401- ●
167 LEVER; SELECT,EXTERNAL
(B) 		8-98039-436-0 01 1 1402- ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1402-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
171 SWITCH; NEUTRAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1401- ●
174 SPRING; REV 8-98190-419-0 01 1 1401- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1402- ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1402- ●
192 WASHER; PL 8-97305-661-0 01 1 1402- ●
262 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1402- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1402- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1402- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1402- ●
346 HOSE; AIR 8-97309-855-0 01 1 1402- ●
381 BOLT
M6X16 FLANGE MAL 		0-28650-616-0 01 1 1402- ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 1402- ●
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1402- ●
398 SWITCH; REV LAMP 8-98190-417-0 01 1 1401- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1402- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1402- ●
548 CLIP; HOSE 8-97031-674-0 01 1 1402- ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1402- ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1402- ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1402- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1402- ●
559 PIPE; BREATHER 8-97358-318-0 01 1 1402- ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1402- ●
630 DETENT ASM 8-98019-536-0 03 1 1402- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 1402- ●
635 PLUG; DETENT 8-97380-892-0 01 1 1402- ●
645 DETENT ASM 8-98019-536-0 01 1 1402- ●

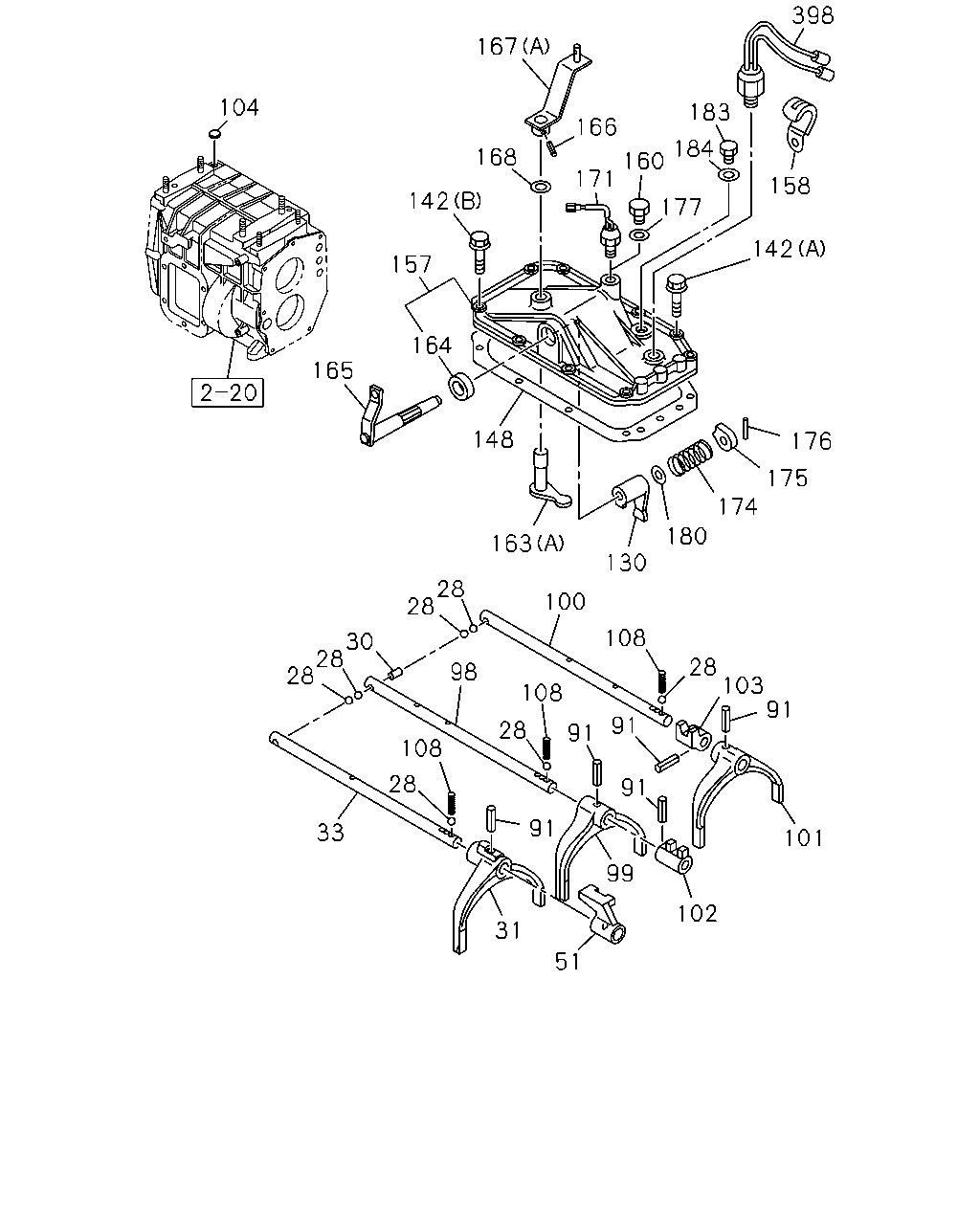

çizim 402649
398 183 160 184 158 142 177 171 166 168 167 142 157 164 148 165 163 130 180 74 175 176 104 100 108 28 103 91 101 102 99 91 91 91 108 28 98 91 31 51 33 28 108 28 28 30 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-010-0 07 1 1401- ●
30 PIN; INTER LK 8-98189-971-0 01 1 1401- ●
31 ARM; SHIFT,LOW & 2ND 8-98190-300-0 01 1 1401- ●
33 ROD; SHIFT,LOW & 2ND 8-98188-591-0 01 1 1401- ●
51 BLOCK; SHIFT,1ST & 2ND 8-98188-589-0 01 1 1401- ●
91 PIN; SPR,SHIFT ARM
L=25 OD=5 		1-09748-032-0 06 1 1401- ●
98 ROD; SHIFT,TOP & 3RD 8-98188-590-0 01 1 1401- ●
99 ARM; SHIFT,4TH & 3RD 8-98190-301-0 01 1 1401- ●
100 ROD; SHIFT,REV & 5TH 8-98188-592-0 01 1 1401- ●
101 ARM; SHIFT,REV & 5TH 8-98190-303-0 01 1 1401- ●
102 BLOCK; SHIFT,3RD & 4TH 8-98188-588-0 01 1 1401- ●
103 BLOCK; SHIFT,REV TO OD 8-98188-587-0 01 1 1401- ●
104 PLUG; PLATE
OD=16 		0-92001-416-0 01 1 1401- ●
108 SPRING; LOCK BALL
OD=6.8 L=31.6 		8-98188-917-0 03 1 1401- ●
130 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1401- ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1402- ●
142 BOLT; QUAD BOX
(A) M8X25 FLANGE 		0-28050-825-0 08 1 1401- ●
142 BOLT; QUAD BOX
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1401- ●
142 BOLT; QUAD BOX
(C) M8X22 FLANGE 		8-97365-376-0 04 1 1402- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98189-273-0 01 1 1401- ●
157 BOX; QUAD,TRANS 8-98190-265-0 01 1 1401- ●
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1401- ●
160 PLUG; BLIND
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M14X9 		8-98042-944-0 01 1 1401- ●
163 LEVER; SELECT,INTERNAL
(A) 		8-98190-302-0 01 1 1401- ●
163 LEVER; SELECT,INTERNAL
(B) 		8-97305-663-0 01 1 1402- ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 1401- ●
165 LEVER; SHIFT 8-98190-282-0 01 1 1401- ●
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		1-09748-032-0 01 1 1401- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98190-276-0 01 1 1401- ●
167 LEVER; SELECT,EXTERNAL
(B) 		8-98039-436-0 01 1 1402- ●
168 WASHER; LK,SELECT LEVER 8-98190-433-0 01 1 1401- ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1402-1509 ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ●
171 SWITCH; NEUTRAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1401- ●
174 SPRING; REV 8-98190-419-0 01 1 1401- ●
175 RING; STOPPER,SHIFT LEVER 8-98190-338-0 01 1 1401- ●
176 PIN; SPR,STOPPER
L=30 OD=4 		1-09748-031-0 02 1 1401- ●
177 GASKET; CONT BOX
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0 		9-09571-414-0 01 1 1401- ●
180 WASHER; REV STOP SPRING 8-98190-423-0 01 1 1401- ●
183 PLUG; SCREW,OIL FILTER
M18 		8-98190-432-0 01 1 1401- ●
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.5 		8-98189-969-0 01 1 1401- ●
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1402- ●
398 SWITCH; REV LAMP 8-98190-417-0 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
