2-26 — MANUAL TRANSMISSION GEAR (#132459) — 163 parça

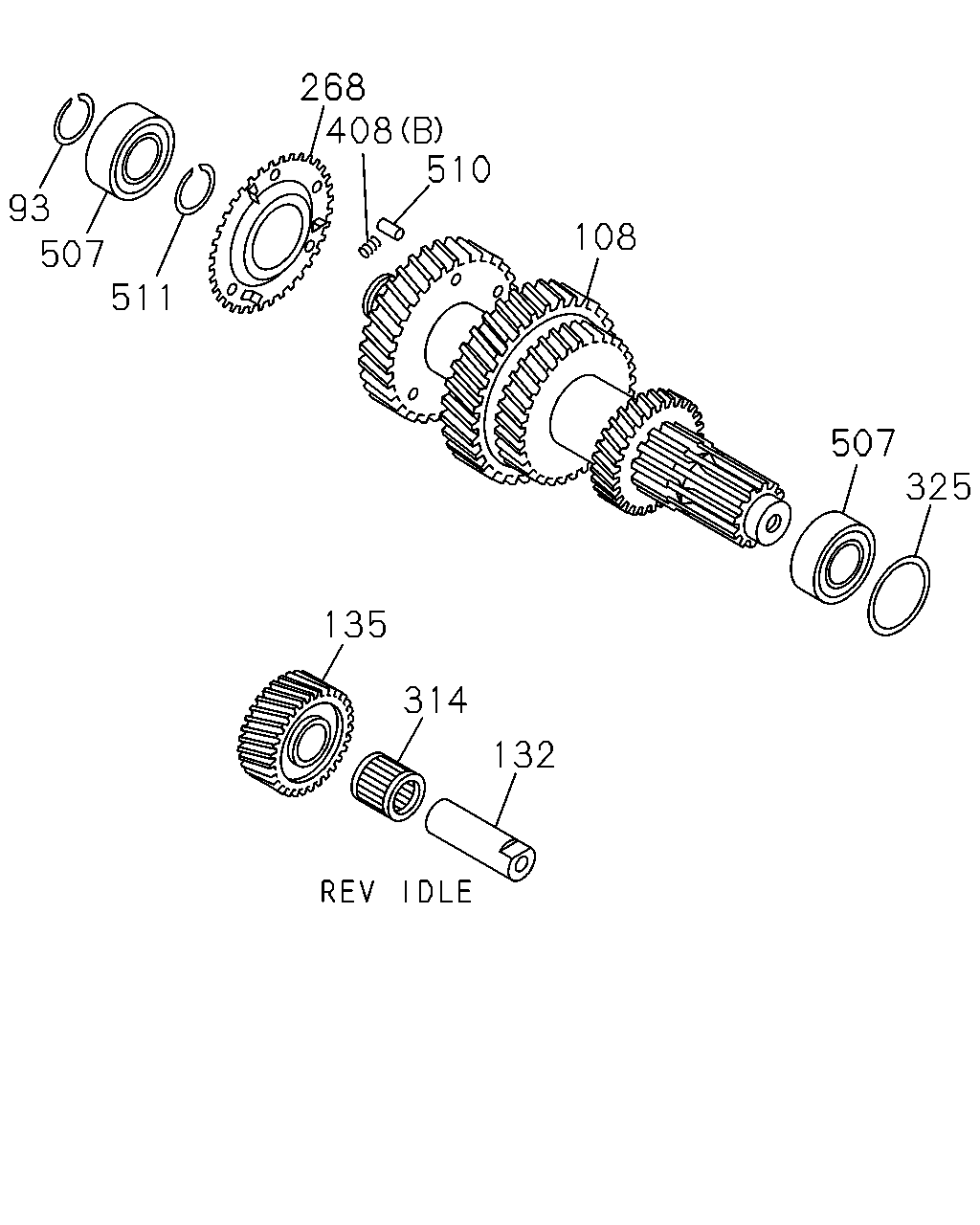

135 314 132 325 507 108 510 408 268 511 507 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1402-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1402-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1402-	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1402-	●
132	SHAFT; REV	8-98189-378-0	01	1	1401-		●
132	SHAFT; REV	8-97252-655-0	01	1	1402-	●
135	GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1401-		●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1402-	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1402-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1401-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1402-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1402-	●
408	SPRING (A)	8-98189-347-0	01	1	1401-		●
408	SPRING (B)	8-94148-196-0	03	1	1402-	●
408	SPRING (C)	8-97366-040-1	02	1	1402-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1402-	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1402-	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1402-	●

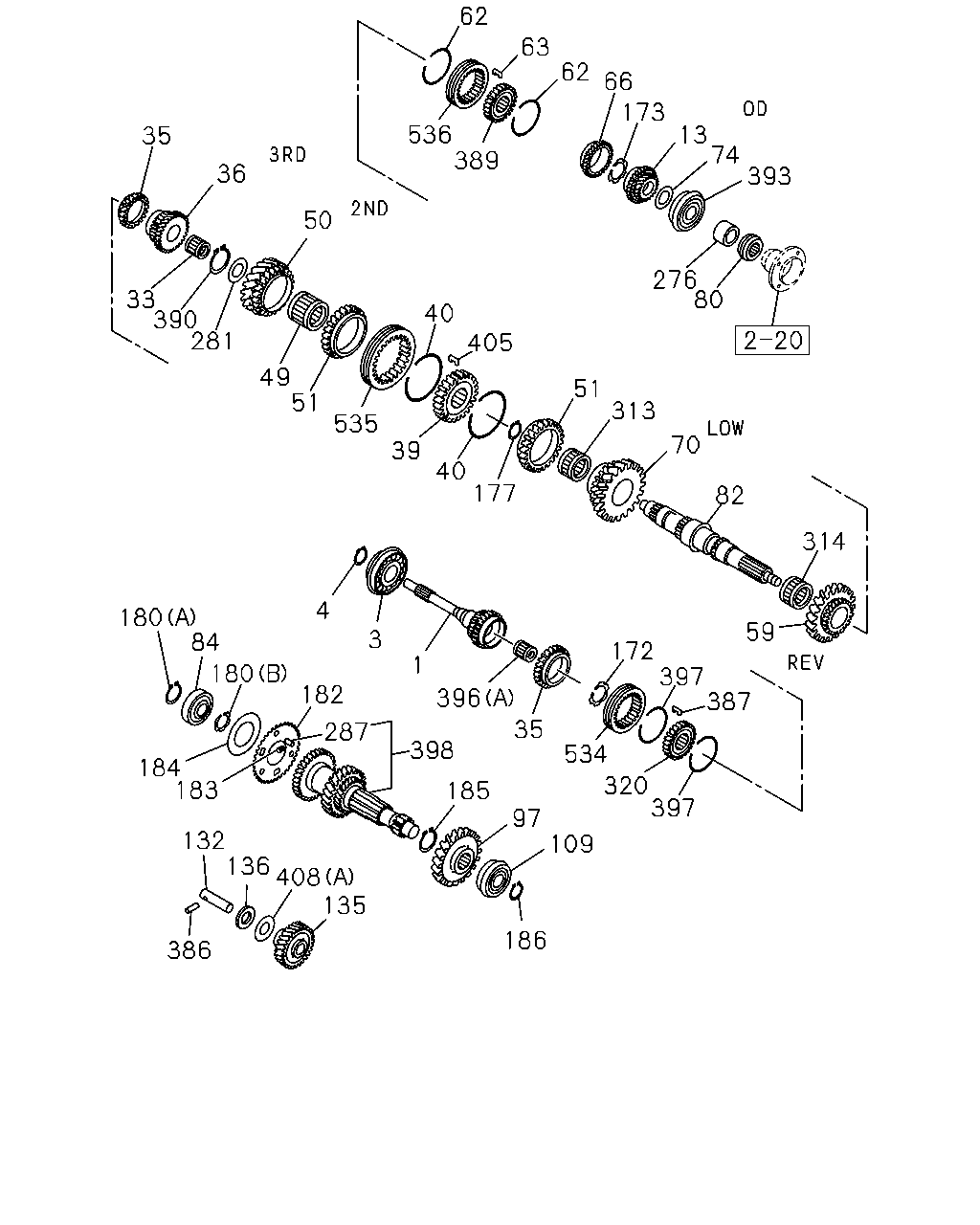

62 63 62 66 173 13 74 393 276 80 389 536 35 36 50 40 405 51 313 70 82 314 59 172 397 387 397 320 534 35 396 1 3 4 177 40 39 535 51 49 281 390 33 180 84 180 182 287 398 185 97 109 186 135 408 136 132 183 184 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1401-		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1402-	●
3	BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1401-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1402-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	1401-		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97373-011-0	01	1	1401-		●
33	BEARING; NEEDLE,3RD GEAR	8-98189-746-0	01	1	1401-		●
35	RING; BLOCK,4TH & 3RD Z=36	8-98190-426-0	02	1	1401-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1402-	●
39	HUB; CLU,LOW & 2ND Z=42	8-97177-689-0	01	1	1401-		●
40	SPRING; INSERT,LOW & 2ND	8-98189-960-0	02	1	1401-		●
49	BEARING; NEEDLE,2ND GEAR NSK	8-98189-747-0	01	1	1401-		●
50	GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	1401-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1402-	●
51	RING; BLOCK,LOW & 2ND Z=42	8-98190-428-0	02	1	1401-		●
59	GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1401-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1402-	●
62	SPRING; INSERT,REV & 5TH	8-98189-962-0	02	1	1401-		●
63	INSERT; SYN,REV & 5TH	8-98190-418-0	03	1	1401-		●
66	RING; BLOCK,SYN Z=36	8-98190-426-0	01	1	1401-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1401-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1402-	●
74	WASHER; THRUST,REV GEAR	8-98188-569-0	01	1	1401-		●
80	GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1401-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1402-	●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1401-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1402-	●
84	BEARING; COUNTER SHAFT,FRT NSK	8-98189-745-0	01	1	1401-		●
97	GEAR; 5TH,COUNTER Z=53	8-97169-511-0	01	1	1401-		●
109	BEARING; COUNTER SHAFT,RR	8-98189-744-0	01	1	1401-		●
132	SHAFT; REV	8-98189-378-0	01	1	1401-		●
132	SHAFT; REV	8-97252-655-0	01	1	1402-	●
135	GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1401-		●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1402-	●
136	WASHER; THRUST,REV IDLE,RR	8-98188-533-0	01	1	1401-		●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	1401-		●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	1401-		●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	1401-		●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	1401-		●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	1401-		●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	1401-		●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	1401-		●
177	RING; SNAP,CLU HUB ID=44.5	8-98189-990-0	01	1	1401-		●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-98189-991-0	01	1	1401-		●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	1401-		●
182	PLATE; CLUSTER GEAR	8-98188-585-0	01	1	1401-		●
183	SPRING; PLATE,CLUSTER GEAR	8-98189-380-0	03	1	1401-		●
184	SPRING; CLUSTER GEAR	8-98189-350-0	01	1	1401-		●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	1401-		●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	1401-		●
276	SPACER; BRG TO DRIVE GEAR	8-98188-906-0	01	1	1401-		●
281	WASHER; THRUST,MAINSHAFT	8-98188-466-0	01	1	1401-		●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	1401-1405		●
287	PIN; COUNTER GEAR	8-98190-445-0	03	1	1406-		●
313	BEARING; NEEDLE,LOW GEAR	8-98189-748-0	01	1	1401-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1401-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1402-	●
320	HUB; CLU,4TH & 3RD Z=36	8-97177-690-0	01	1	1401-		●
386	PIN; REV SHAFT	8-98190-093-0	01	1	1401-		●
387	INSERT; SYN,4TH & 3RD	8-98189-965-0	03	1	1401-		●
389	HUB; CLU,REV & 5TH Z=36	8-97373-144-0	01	1	1401-		●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	1401-		●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	1401-		●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	1401-		●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	1401-		●
393	BEARING; MAINSHAFT END	8-98189-743-0	01	1	1401-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1402-	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-98189-970-0	01	1	1401-		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1402-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1402-	●
397	SPRING; INSERT,4TH & 3RD	8-98189-962-0	02	1	1401-		●
398	GEAR; COUNTER Z=49-34-22-14	8-97381-658-0	01	1	1401-		●
405	INSERT; SYN,LOW & 2ND	8-98189-965-0	03	1	1401-		●
408	SPRING (A)	8-98189-347-0	01	1	1401-		●
408	SPRING (B)	8-94148-196-0	03	1	1402-	●
408	SPRING (C)	8-97366-040-1	02	1	1402-	●
534	SLEEVE; HUB,4TH-3RD Z=36	8-97177-134-0	01	1	1401-		●
535	SLEEVE; HUB,LOW-2ND Z=42	8-97177-133-0	01	1	1401-		●
536	SLEEVE; HUB,REV-5TH Z=36	8-97177-135-0	01	1	1401-		●

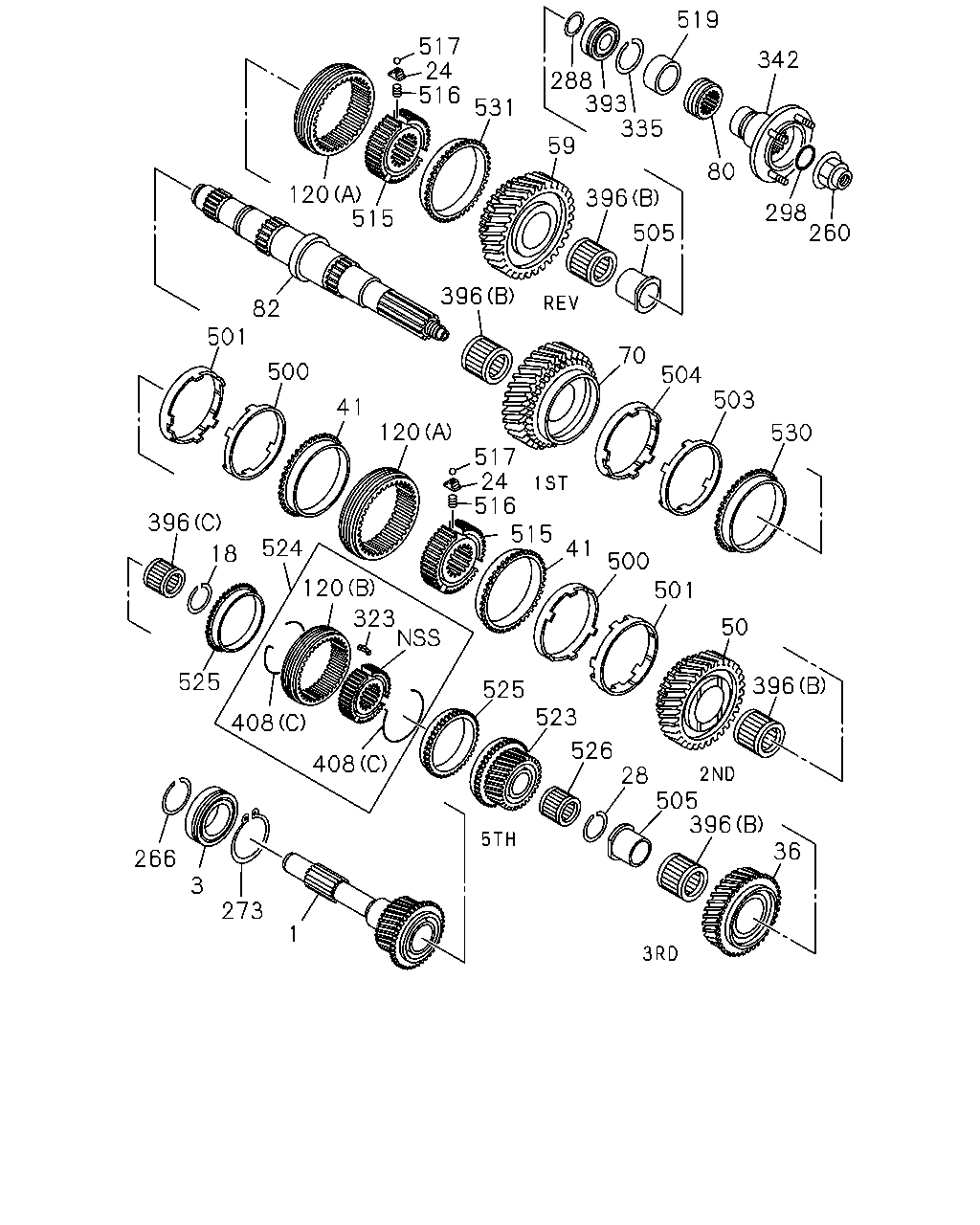

82 500 501 41 120 517 24 516 515 41 500 501 50 396 396 525 408 396 70 504 503 530 505 260 298 80 342 519 24 516 517 531 120 515 396 59 335 393 288 524 120 323 408 266 3 273 1 36 396 505 28 525 523 526 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1401-		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1402-	●
3	BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1401-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1402-	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1402-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1402-	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1402-	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1402-	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1402-	●
50	GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	1401-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1402-	●
59	GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1401-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1402-	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1401-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1402-	●
80	GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1401-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1402-	●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1401-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1402-	●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1402-	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1402-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1402-	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1402-	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1402-	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1402-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1402-	●
323	INSERT	8-94448-202-2	03	1	1402-	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1402-	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1402-	●
393	BEARING; MAINSHAFT END	8-98189-743-0	01	1	1401-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1402-	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-98189-970-0	01	1	1401-		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1402-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1402-	●
408	SPRING (A)	8-98189-347-0	01	1	1401-		●
408	SPRING (B)	8-94148-196-0	03	1	1402-	●
408	SPRING (C)	8-97366-040-1	02	1	1402-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1402-	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1402-	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1402-	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1402-	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1402-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1402-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1402-	●
516	SPRING; SYNCHRO,INDEX	8-97241-835-0	06	1	1402-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1402-	●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	1402-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1402-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1402-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1402-	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1402-	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1402-	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1402-	●
