2-25 — SPEEDOMETER DRIVEN GEAR (#132458) — 91 parça

28 27 22 2 1 3 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) Z=14	8-98190-000-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) Z=15	8-98190-001-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) Z=16	8-98190-002-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) Z=10	8-97253-579-1	01	1	1402-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) Z=12	8-97253-563-1	01	1	1402-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) Z=11	8-97253-559-1	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) Z=14 MARK "4"	8-98190-371-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5"	8-98190-431-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) Z=16 MARK "6"	8-98190-372-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) MARK "10,11,16,17"	8-97253-124-0	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) MARK "10,11,16,17"	8-97253-124-0	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) MARK "12,13,14,15"	8-97253-125-0	01	1	1402-
3	GASKET; BUSHING M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	9-09567-220-0	01	1	1401-
9	SEAL; OIL,DRIVEN GEAR M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) NOK	8-98189-455-0	01	1	1401-
9	SEAL; OIL,DRIVEN GEAR M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) NOK	8-97131-328-1	01	1	1402-
9	SEAL; OIL,DRIVEN GEAR M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) NOK	8-97131-328-1	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12X35 FLANGE	0-28051-235-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28051-235-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12X40 FLANGE	0-28051-240-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M12X40 FLANGE	0-28051-240-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X35 FLANGE	0-28650-835-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M8X35 FLANGE	0-28650-835-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28051-035-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28051-035-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) M10X35 FLANGE	0-28051-035-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X40 FLANGE	0-28051-040-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X40 FLANGE	0-28051-040-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) M10X40 FLANGE	0-28051-040-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M12X35 FLANGE	0-28051-235-0	04	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28051-235-0	04	1	1504-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	04	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1402-1503
22	BOLT; TRANS CASE TO ENG M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1402-
27	NUT; CLU HSG TO TRANS 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 FLANGE MAL	0-91180-108-0	01	1	1401-1503
27	NUT; CLU HSG TO TRANS M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M8 FLANGE MAL	0-91180-108-0	01	1	1504-
27	NUT; CLU HSG TO TRANS 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE MAL	0-91180-110-0	02	1	1401-1503
27	NUT; CLU HSG TO TRANS 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10 FLANGE MAL	0-91180-110-0	02	1	1401-1503
27	NUT; CLU HSG TO TRANS M/T MSB5S(R45) M10 FLANGE MAL	0-91180-110-0	02	1	1504-
28	BOLT; TRANS CASE TO HSG 4JB1-TC ENG(RDT) M/T MSB5S(R45) M12X35 FLANGE	0-28161-235-0	06	1	1401-

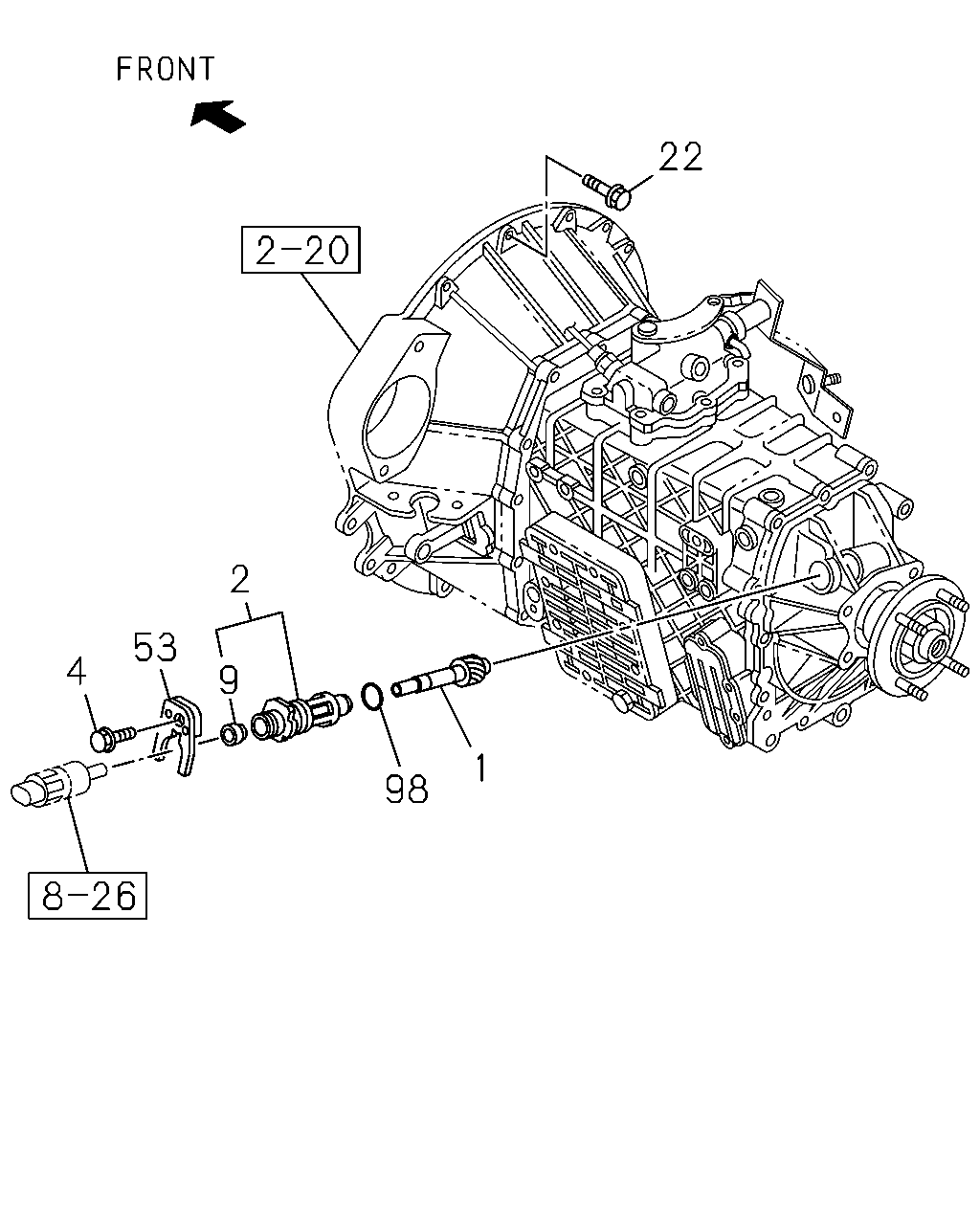

22 4 53 2 9 98 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) Z=14	8-98190-000-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) Z=15	8-98190-001-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) Z=16	8-98190-002-0	01	1	1401-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) Z=10	8-97253-579-1	01	1	1402-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) Z=12	8-97253-563-1	01	1	1402-
1	GEAR; DRIVEN,SPD M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) Z=11	8-97253-559-1	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) Z=14 MARK "4"	8-98190-371-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5"	8-98190-431-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MSB5S(R45) FINAL GEAR RATIO 43/7(R42) Z=16 MARK "6"	8-98190-372-0	01	1	1401-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 43/10(S7C) MARK "10,11,16,17"	8-97253-124-0	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) MARK "10,11,16,17"	8-97253-124-0	01	1	1402-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) MARK "12,13,14,15"	8-97253-125-0	01	1	1402-
4	BOLT; RET,DRIVEN GEAR M/T MYY5T(RSM) M8X20 FLANGE MAL	0-28650-820-0	01	1	1402-
9	SEAL; OIL,DRIVEN GEAR M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) NOK	8-98189-455-0	01	1	1401-
9	SEAL; OIL,DRIVEN GEAR M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) NOK	8-97131-328-1	01	1	1402-
9	SEAL; OIL,DRIVEN GEAR M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) NOK	8-97131-328-1	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12X35 FLANGE	0-28051-235-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28051-235-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12X40 FLANGE	0-28051-240-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M12X40 FLANGE	0-28051-240-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X35 FLANGE	0-28650-835-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) M8X35 FLANGE	0-28650-835-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28051-035-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28051-035-0	03	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) M10X35 FLANGE	0-28051-035-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X40 FLANGE	0-28051-040-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X40 FLANGE	0-28051-040-0	01	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) M10X40 FLANGE	0-28051-040-0	01	1	1504-
22	BOLT; TRANS CASE TO ENG 4JB1-TC ENG(RDT) M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M12X35 FLANGE	0-28051-235-0	04	1	1401-1503
22	BOLT; TRANS CASE TO ENG M/T MSB5S(R45) EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28051-235-0	04	1	1504-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	04	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1402-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1402-1503
22	BOLT; TRANS CASE TO ENG M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1504-
22	BOLT; TRANS CASE TO ENG 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1402-
53	PLATE; LOCK,DRIVEN GEAR M/T MYY5T(RSM)	8-98046-217-0	01	1	1402-
98	SEAL; OIL,BUSH M/T MYY5T(RSM) FINAL GEAR RATIO 41/10(GT5) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC)	9-09561-324-0	01	1	1402-
98	SEAL; OIL,BUSH M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)	9-09561-324-0	01	1	1402-
