2-20 — MANUAL TRANSMISSION ASM AND CASE (#132457) — 82 parça

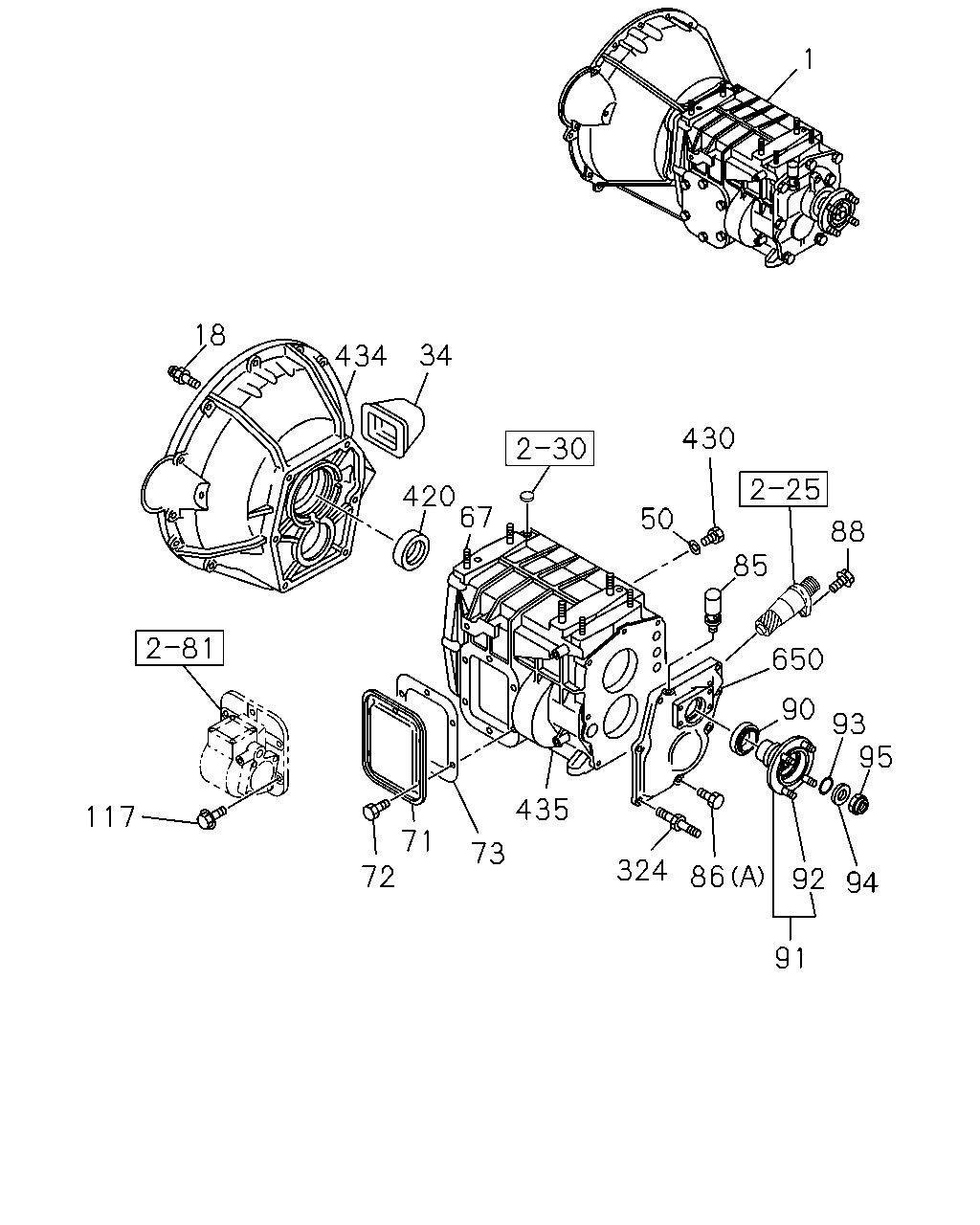

1 88 650 90 93 95 94 92 91 86 324 435 73 71 72 117 85 50 430 67 420 34 434 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-870-0	01	1	1401-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-871-0	01	1	1401-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1402-		●
18	SUPPORT; DRAW LEVER L=47.5	8-98189-389-0	01	1	1401-	●
34	COVER; DUST,SHIFT FORK	8-98190-416-0	01	1	1401-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1401-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-		●
67	STUD; CASE TRANS	8-98189-390-0	06	1	1401-	●
71	COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1401-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1402-		●
72	BOLT; SIDE COVER M10X12 FLANGE	0-28051-012-0	06	1	1401-	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE	8-98014-142-0	06	1	1402-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98189-272-0	01	1	1401-	●
85	BREATHER; RR COVER	8-98189-454-0	01	1	1401-	●
86	BOLT; RR COVER (A) M8X25 FLANGE	0-28050-825-0	04	1	1401-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28151-040-0	10	1	1402-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1402-		●
88	SCREW; SPEEDOMETER BUSHING M8X12 FLANGE	0-28050-812-0	01	1	1401-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1401-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1402-		●
91	DRIVER; COUPLING	8-98190-298-0	01	1	1401-	●
92	BOLT; COUPLING DRIVER M10X33	8-98189-989-0	04	1	1401-	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-98189-967-0	01	1	1401-	●
94	WASHER; COUPLING DRIVER	8-98189-951-0	01	1	1401-	●
95	NUT; MAINSHAFT M24 FLANGE	8-98189-932-0	01	1	1401-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1401-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1401-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28751-030-0	02	1	1402-		●
324	STUD; RR COVER	8-98189-391-0	03	1	1401-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1402-		●
420	SEAL; OIL,FRT COVER,T/M NOK	8-98189-424-0	01	1	1401-	●
430	PLUG; OIL DRAIN	8-98190-430-0	01	1	1401-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1402-		●
434	HOUSING; CLU	8-97204-108-0	01	1	1401-	●
434	HOUSING; CLU	8-97237-099-5	01	1	1402-		●
435	CASE; TRANS	8-97373-564-0	01	1	1401-	●
435	CASE; TRANS	8-97379-375-0	01	1	1402-		●
650	COVER; RR	8-97174-087-0	01	1	1401-	●

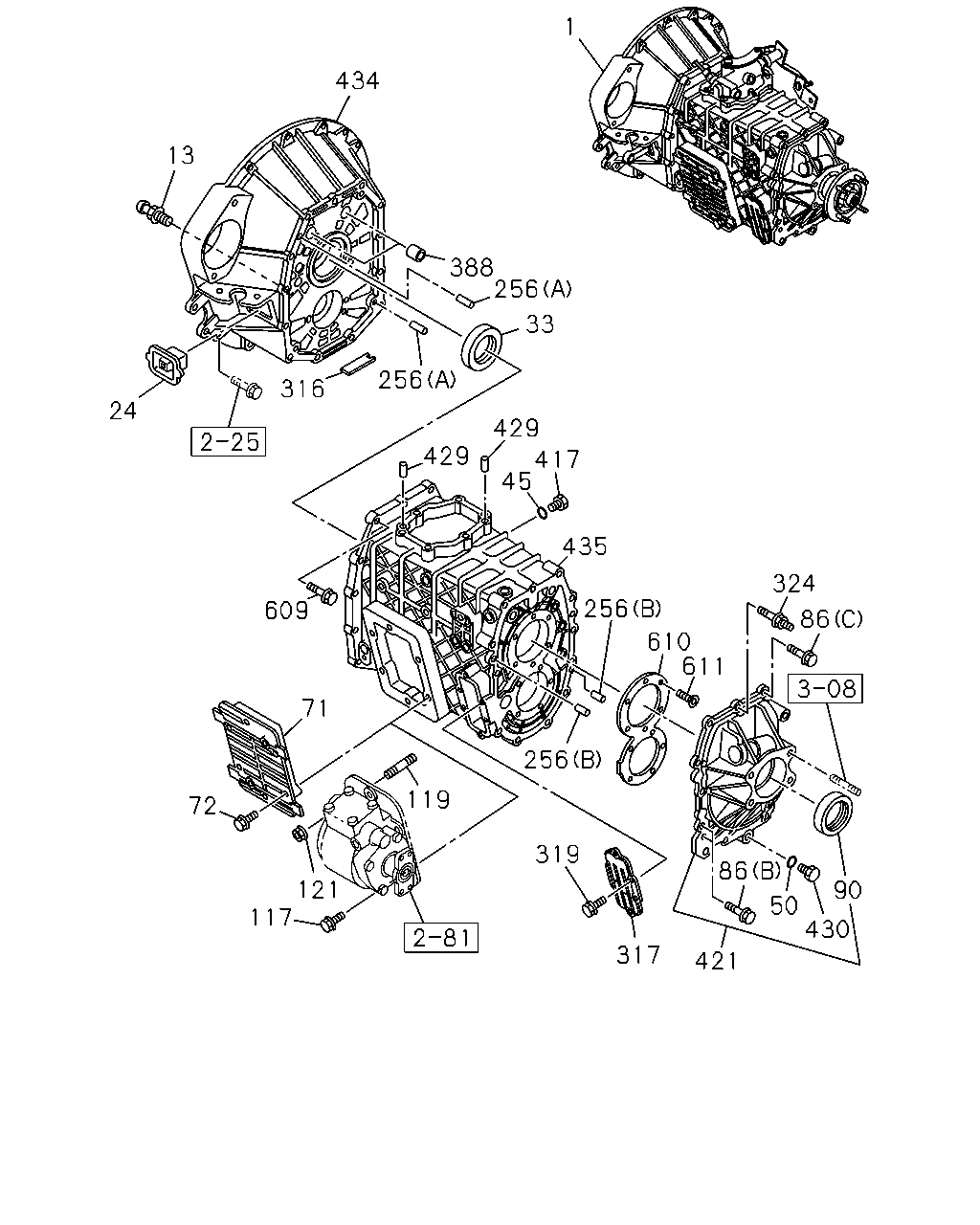

1 434 13 24 609 71 72 117 121 119 319 317 430 50 421 86 256 86 324 611 610 256 435 417 45 429 429 388 256 33 256 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-870-0	01	1	1401-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-871-0	01	1	1401-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1402-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1402-		●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1402-		●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1402-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1402-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1401-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1402-		●
71	COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1401-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1402-		●
72	BOLT; SIDE COVER M10X12 FLANGE	0-28051-012-0	06	1	1401-	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE	8-98014-142-0	06	1	1402-		●
86	BOLT; RR COVER (A) M8X25 FLANGE	0-28050-825-0	04	1	1401-	●
86	BOLT; RR COVER (C) M10X40 FLANGE	0-28151-040-0	10	1	1402-		●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1402-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1401-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1401-	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28751-030-0	02	1	1402-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 L=40	0-44011-025-0	02	1	1402-		●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 L=45	0-44011-030-0	02	1	1402-		●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE MAL	0-91180-210-0	04	1	1402-		●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	1402-		●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	1402-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1402-		●
317	COVER; CASE	8-97252-626-0	01	1	1402-		●
319	BOLT; COVER M8X20 FLANGE MAL	0-28050-820-0	06	1	1402-		●
324	STUD; RR COVER	8-98189-391-0	03	1	1401-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1402-		●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1402-		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1402-		●
421	COVER; RR,TRANS	8-98020-029-0	01	1	1402-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1402-		●
430	PLUG; OIL DRAIN	8-98190-430-0	01	1	1401-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1402-		●
434	HOUSING; CLU	8-97204-108-0	01	1	1401-	●
434	HOUSING; CLU	8-97237-099-5	01	1	1402-		●
435	CASE; TRANS	8-97373-564-0	01	1	1401-	●
435	CASE; TRANS	8-97379-375-0	01	1	1402-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1402-		●
610	RETAINER; BRG	8-97241-315-1	01	1	1402-		●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	1402-		●
