◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#132455) — 69 parça

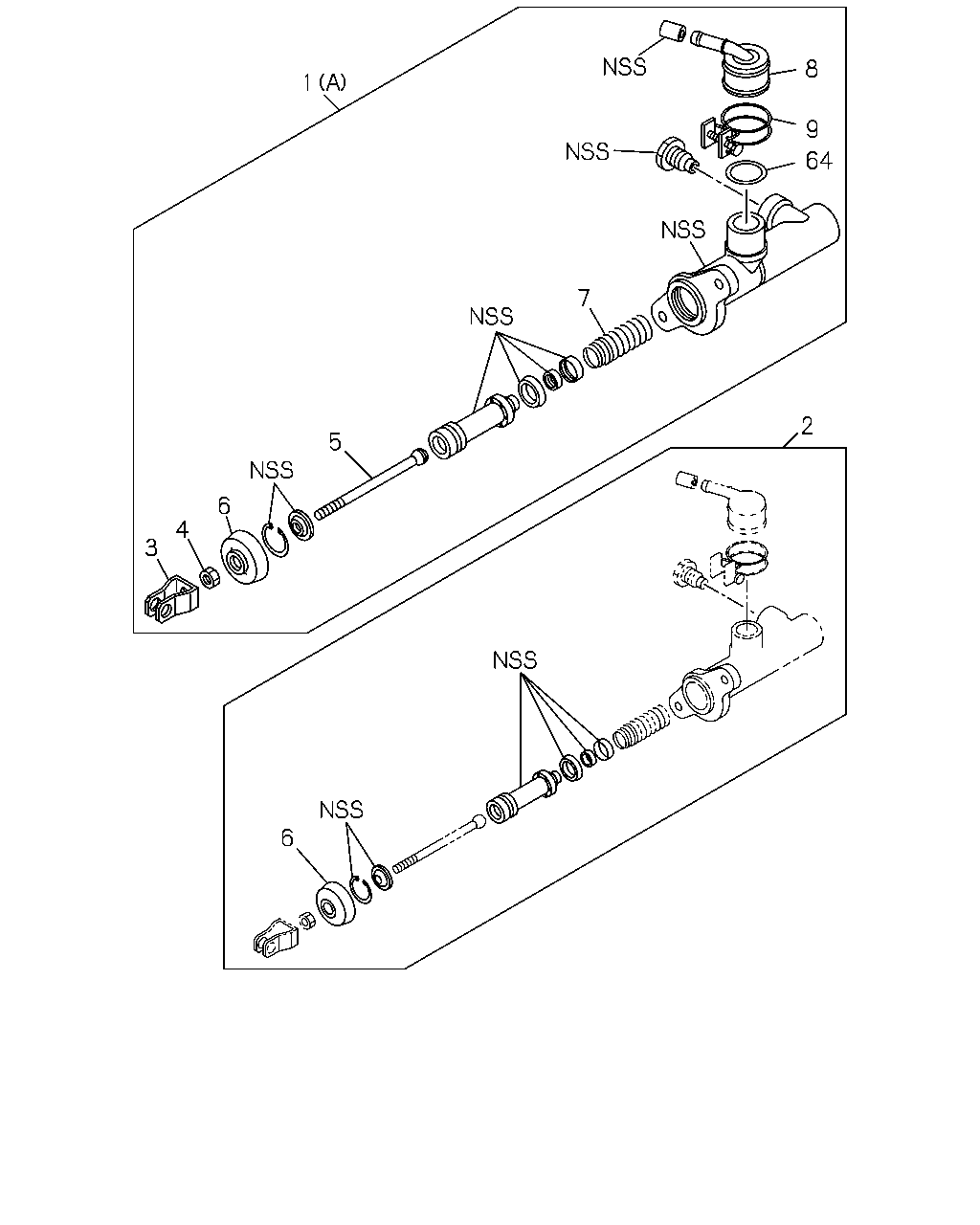

çizim 401323
1 3 4 6 5 7 64 9 8 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
(A) 		8-98117-639-0 01 1 1401-1401 ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-250-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 1402- ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1401-1401 ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1402- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1402- ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1401-1401 ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1402- ● ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1401-1401 ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1402- ● ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1401-1401 ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1402- ● ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 1401-1401 ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1402- ● ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1401-1401 ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1402- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1402- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1401-1401 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1402- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1401-1401 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1402- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1401-1401 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1402- ● ●

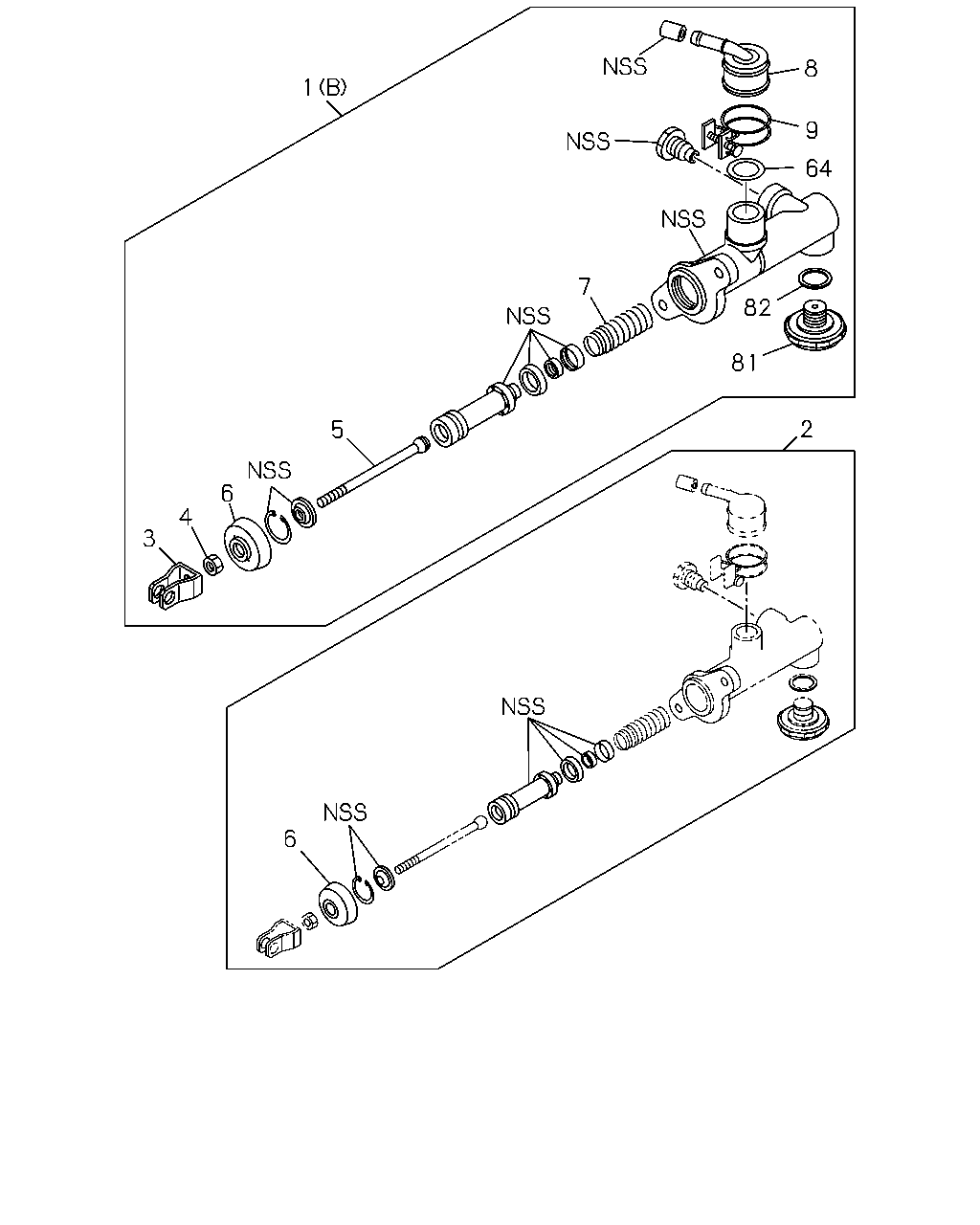

çizim 401339
1 3 4 6 5 7 8 9 64 82 81 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
(A) 		8-98117-639-0 01 1 1401-1401 ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-250-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 1402- ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1401-1401 ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1402- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1402- ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1401-1401 ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1402- ● ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1401-1401 ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1402- ● ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1401-1401 ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1402- ● ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 1401-1401 ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1402- ● ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1401-1401 ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1402- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1402- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1401-1401 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1402- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1401-1401 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1402- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1401-1401 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1402- ● ●
81 DAMPER; MASTER CYL
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 1402- ●
82 GASKET; DAMPER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 1402- ●

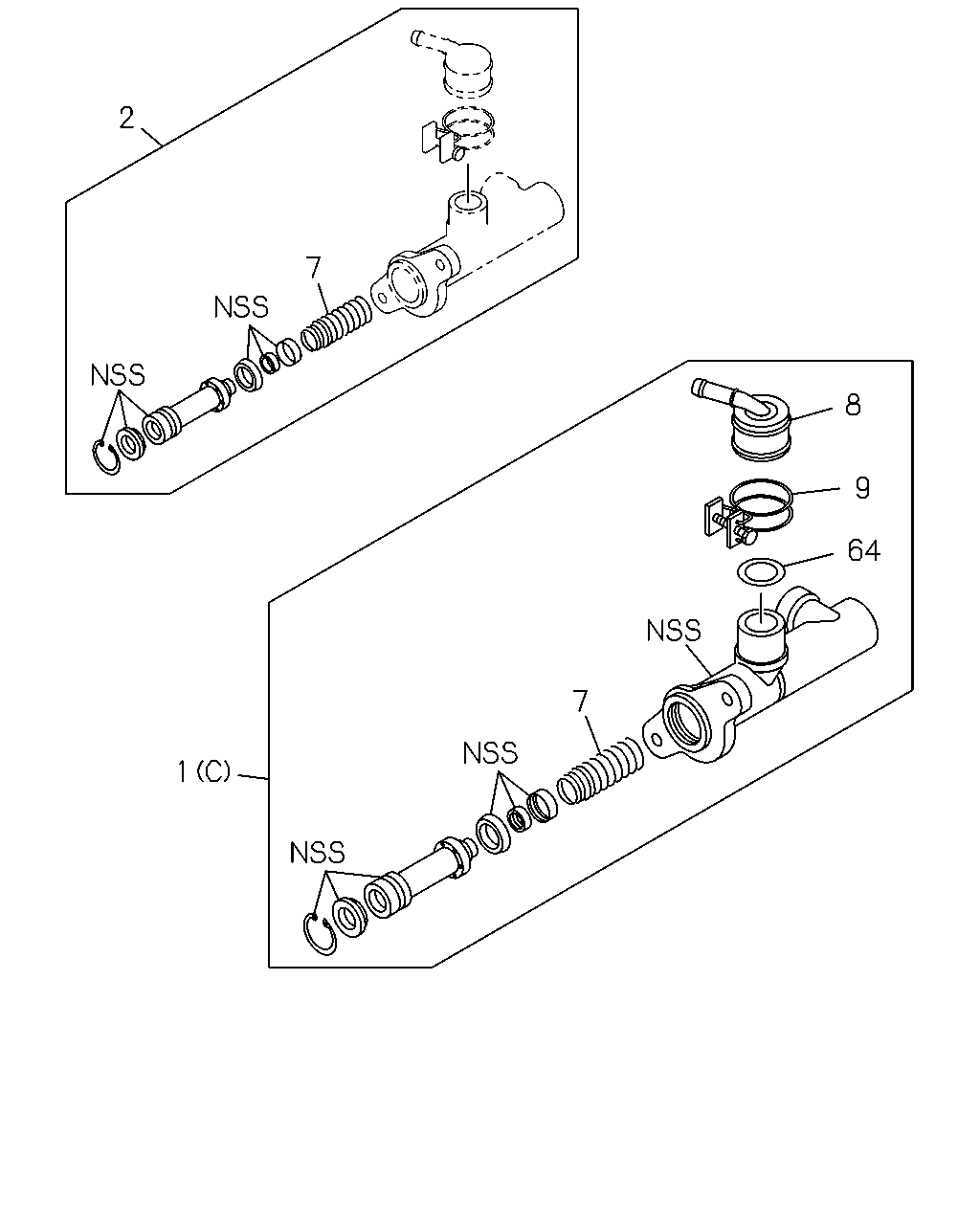

çizim 401341
2 1 7 64 9 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
(A) 		8-98117-639-0 01 1 1401-1401 ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98098-250-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 1402- ●
1 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 1402- ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1401-1401 ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1402- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1402- ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1401-1401 ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1402- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1402- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1401-1401 ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1402- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1401-1401 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1402- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1401-1401 ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1402- ● ●
