Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#132449) — 19 parça
◀

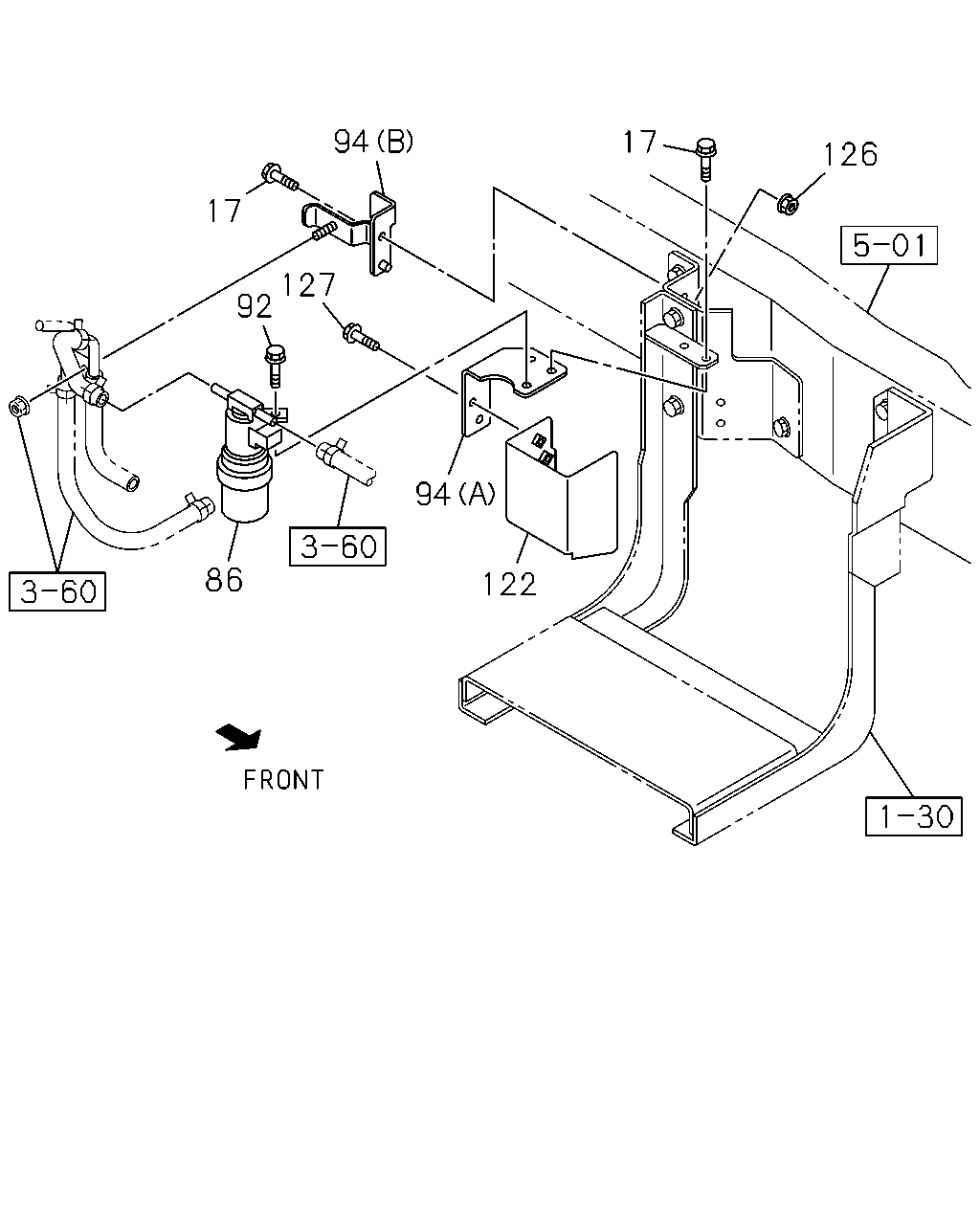

[156A] DPD VALVE AND BRACKET (11 parça)
[156A] EXH BRAKE UNIT (8 parça)
▶
17
126
94
122
92
86
127
17
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; BRKT
EXHAUST BRAKE<NF8> M8X25 FLANGE MAL
0-28650-825-0
02
1
1401-
17
BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) M8X25 FLANGE MAL
0-28650-825-0
01
1
1402-
86
VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8>
8-97328-577-0
01
1
1401-1401
86
VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>
8-97328-577-0
01
1
1402-
86
VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>
8-98043-344-0
01
1
1402-
92
BOLT; MAG VLV
EXHAUST BRAKE<NF8> M8X25 FLANGE MAL
0-28650-825-0
01
1
1401-
94
BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (A)
8-98211-757-1
01
1
1401-
94
BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)
8-98042-694-2
01
1
1402-
122
PROTECTOR; MAG VLV
EXHAUST BRAKE<NF8>
8-98098-564-0
01
1
1401-
126
NUT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) M8 FLANGE MAL
0-91180-108-0
01
1
1402-
127
BOLT; PROTECTOR
EXHAUST BRAKE<NF8> M6X12 FLANGE MAL
0-28050-612-0
02
1
1401-
8
5
5
1
5
1
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRAKE UNIT; EXH
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)
8-98072-102-0
01
1
1401-
1
BRAKE UNIT; EXH
4JJ1-TCC ENG(RDU) (B)
8-98033-200-1
01
1
1402-
5
GASKET; EXH BRAKE UNIT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54 MAL
8-94328-354-0
02
1
1401-1401
5
GASKET; EXH BRAKE UNIT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54 MAL
8-94328-354-0
02
1
1402-
5
GASKET; EXH BRAKE UNIT
4JJ1-TCC ENG(RDU) ID=54 MAL
8-94328-354-0
02
1
1402-
8
NUT; EXH BRAKE UNIT FIX
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8 W/LK WASHER MAL
8-97581-234-0
04
1
1401-1401
8
NUT; EXH BRAKE UNIT FIX
4JJ1-TCC ENG(RDU) M8 W/LK WASHER MAL
8-97581-234-0
04
1
1402-
8
NUT; EXH BRAKE UNIT FIX
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8 W/LK WASHER MAL
8-97581-234-0
04
1
1402-
