Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#132447) — 159 parça

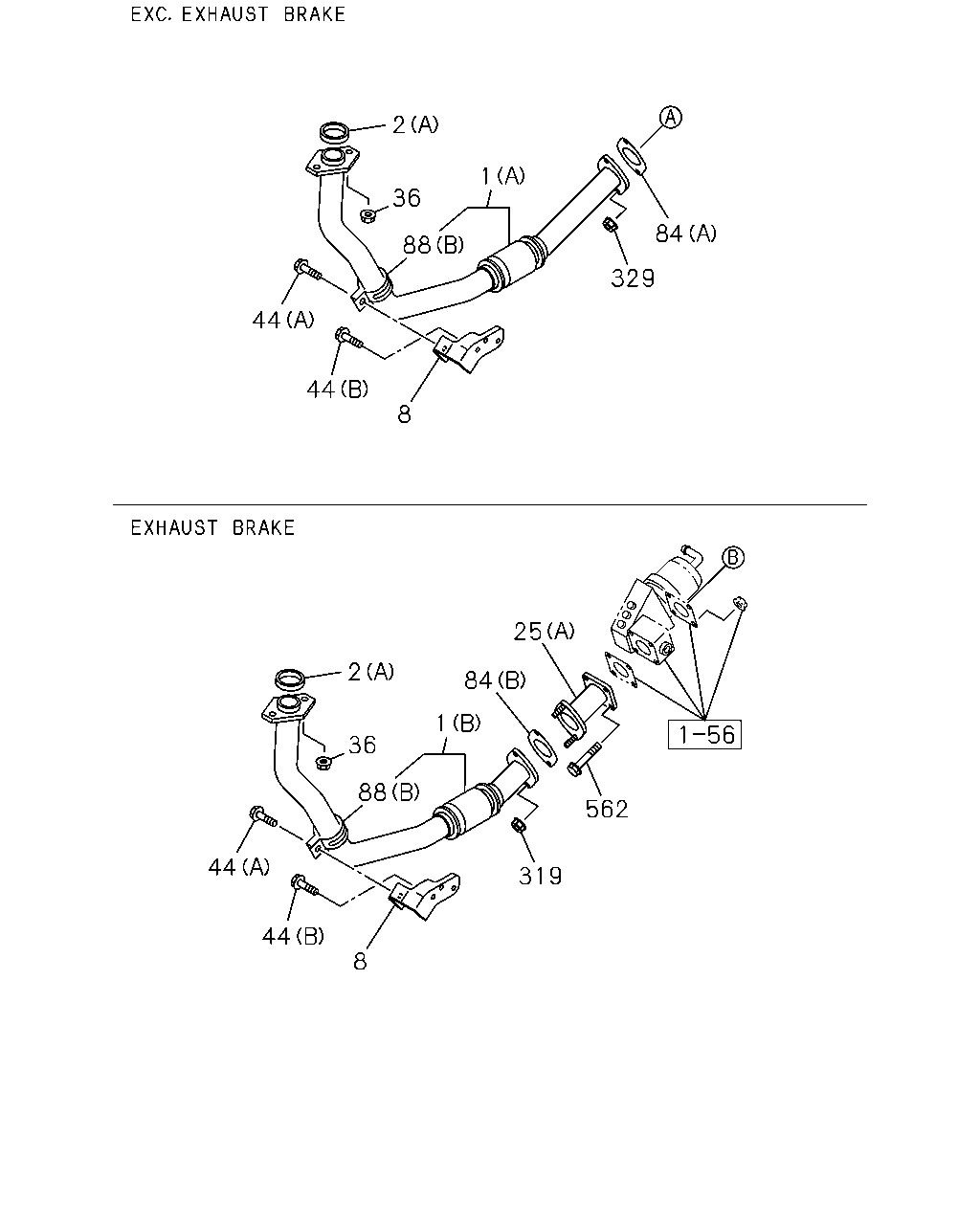

2 36 44 88 44 329 84 1 25 84 1 2 36 88 44 44 8 319 562 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) MAL	8-98072-117-0	01	1	1401-
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A)	8-98072-118-0	01	1	1401-
1	PIPE; EXH 4JJ1-TCC ENG(RDU) (C)	8-98075-966-0	01	1	1402-
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1401-
2	GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	1402-
8	BRACKET; EXH PIPE 4JB1-TC ENG(RDT) MAL	8-97084-346-2	01	1	1401-
8	BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU)	8-98026-063-0	01	1	1402-
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) MAL	8-98072-122-0	01	1	1401-
25	PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98027-805-1	01	1	1402-
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1401-
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) M10 FLANGE	8-97096-192-1	03	1	1402-
44	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M8X16 FLANGE MAL	0-28050-816-0	02	1	1401-
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	1401-
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M10X25 FLANGE	0-28151-025-0	02	1	1402-
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (D) M10X30 FLANGE	0-28651-030-0	02	1	1402-
84	GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=53.0 NON-ASBESTOS MAL	8-94328-353-0	01	1	1401-
84	GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) ID=64.7 MAL	8-94328-352-0	01	1	1401-
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	1402-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5 MAL	8-97016-034-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
319	NUT; PROTECTOR 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M10 FLANGE MAL	0-91180-110-0	02	1	1401-
329	NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M10 FLANGE MAL	0-91180-110-0	02	1	1401-
329	NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	04	1	1402-
562	PLATE; STUD,BOLT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	1401-

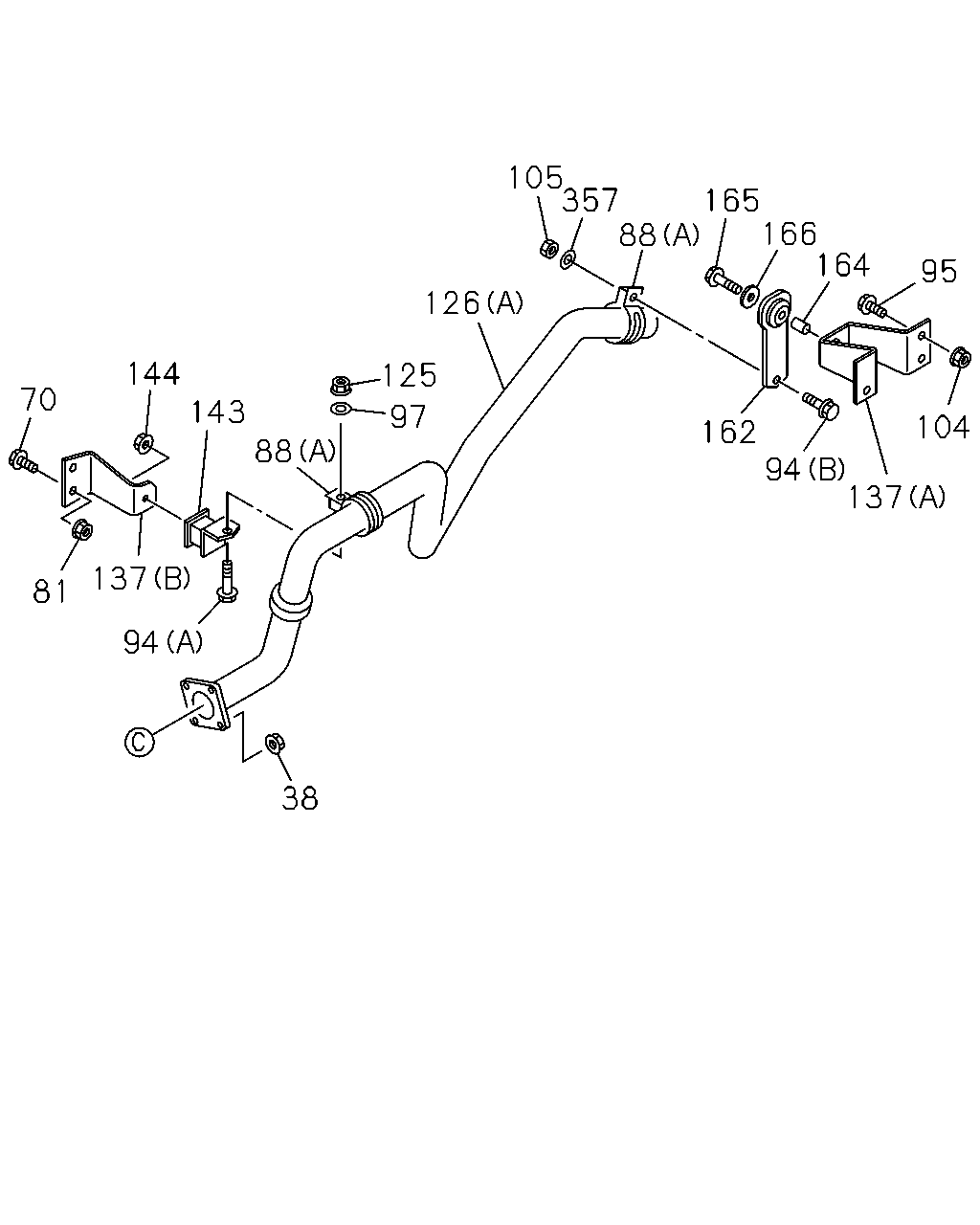

137 94 162 88 357 105 165 104 95 164 166 126 125 143 97 88 137 38 81 70 144 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; SILENCER 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	04	1	1401-
38	NUT; SILENCER 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	04	1	1402-
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1401-
81	NUT; BRKT 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	02	1	1401-1401
81	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	02	1	1402-
81	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	02	1	1402-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5 MAL	8-97016-034-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
94	BOLT; CLAMP (B) M10X45 FLANGE MAL	0-28051-045-0	01	1	1401-
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1401-
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1401-
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1401-
104	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	01	1	1401-
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1401-
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1401-
126	PIPE; EXH,RR 4JB1-TC ENG(RDT) (A) MAL	8-98072-130-0	01	1	1401-
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) (B)	8-98072-135-0	01	1	1402-
137	BRACKET; TAIL PIPE (B)	8-98001-893-1	01	1	1401-
137	BRACKET; TAIL PIPE (A)	8-98001-903-0	01	1	1401-
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1401-
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1401-
162	RUBBER; SUPPORT,TAIL PIPE	8-98032-149-0	01	1	1401-
164	COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1401-
165	BOLT; SUPPORT RUBBER M10X45 FLANGE MAL	0-28051-045-0	01	1	1401-
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1401-
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1401-

44 8 44 43 1 36 2 25 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) MAL	8-98072-117-0	01	1	1401-
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A)	8-98072-118-0	01	1	1401-
1	PIPE; EXH 4JJ1-TCC ENG(RDU) (C)	8-98075-966-0	01	1	1402-
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1401-
2	GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	1402-
8	BRACKET; EXH PIPE 4JB1-TC ENG(RDT) MAL	8-97084-346-2	01	1	1401-
8	BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU)	8-98026-063-0	01	1	1402-
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) MAL	8-98072-122-0	01	1	1401-
25	PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98027-805-1	01	1	1402-
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1401-
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) M10 FLANGE	8-97096-192-1	03	1	1402-
43	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97351-200-1	01	1	1402-
44	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M8X16 FLANGE MAL	0-28050-816-0	02	1	1401-
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	1401-
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M10X25 FLANGE	0-28151-025-0	02	1	1402-
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (D) M10X30 FLANGE	0-28651-030-0	02	1	1402-
329	NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M10 FLANGE MAL	0-91180-110-0	02	1	1401-
329	NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	04	1	1402-

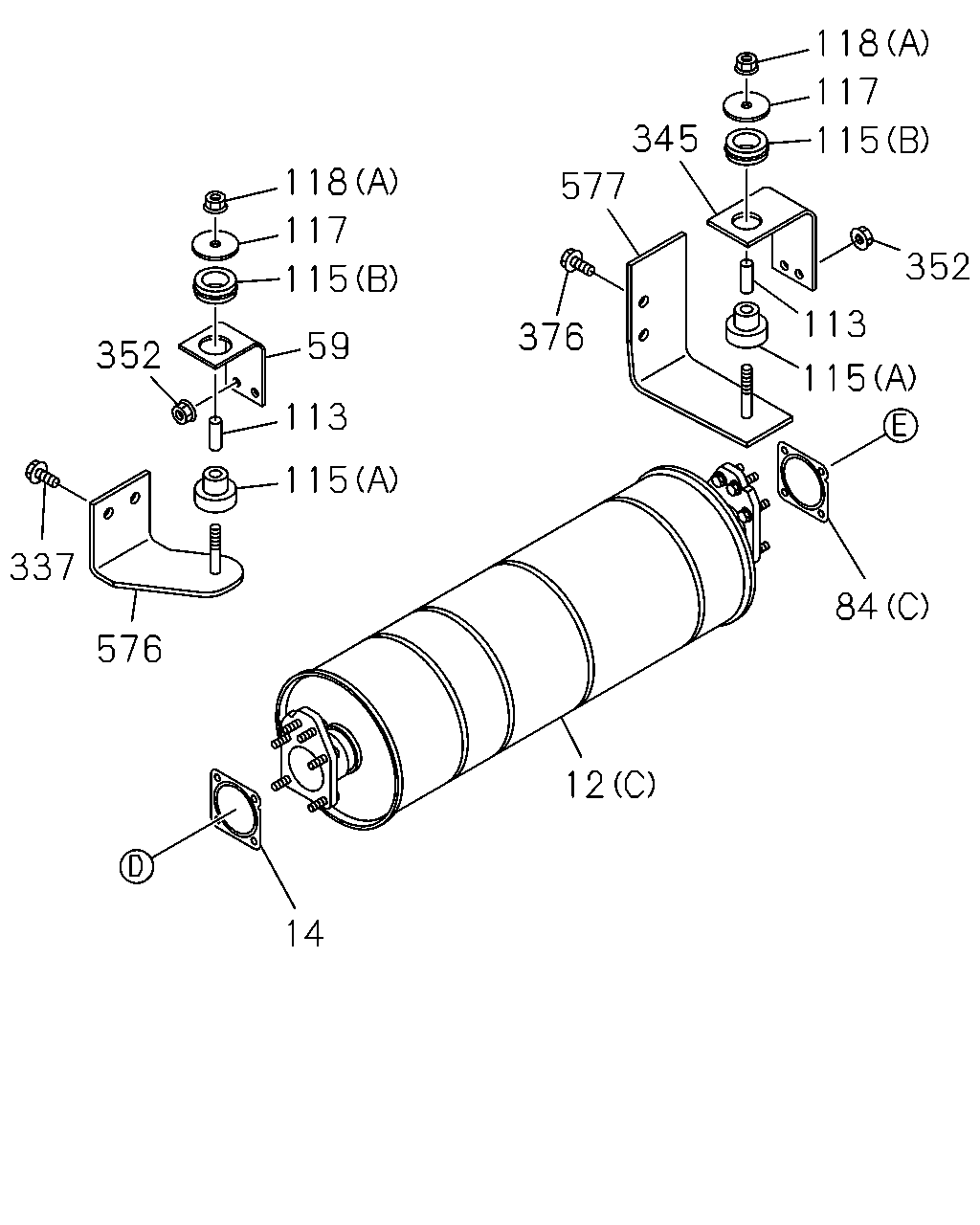

12 14 576 337 115 113 59 115 117 118 352 376 577 345 118 115 117 352 113 84 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98072-123-0	01	1	1401-
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A)	8-98072-124-0	01	1	1401-
12	SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (C)	8-98027-813-1	01	1	1402-
14	GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) ID=64	8-97373-108-0	01	1	1402-
59	BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-156-0	01	1	1402-
84	GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=53.0 NON-ASBESTOS MAL	8-94328-353-0	01	1	1401-
84	GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) ID=64.7 MAL	8-94328-352-0	01	1	1401-
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	1402-
113	COLLAR; DIST,MTG BRKT 4JB1-TC ENG(RDT) L=37.5	9-22151-217-0	01	1	1401-
113	COLLAR; DIST,MTG BRKT 4JJ1-TCC ENG(RDU) L=37.5	9-22151-217-0	02	1	1402-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (A) MAL	8-94457-277-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (B) MAL	8-94457-278-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (C) MAL	8-97166-498-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A) MAL	8-94457-277-1	02	1	1402-
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B) MAL	8-94457-278-1	02	1	1402-
117	WASHER; PL,SILENCER MTG BRKT 4JB1-TC ENG(RDT) OD=55	9-09852-169-0	01	1	1401-
117	WASHER; PL,SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) OD=55	9-09852-169-0	02	1	1402-
118	NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) (B) M10 FLANGE MAL	0-91180-110-0	04	1	1401-
118	NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) (A) M10 FLANGE	5-09440-006-0	01	1	1401-
118	NUT; SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	5-09440-006-0	02	1	1402-
337	BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) M10X30 FLANGE	0-28651-030-0	02	1	1402-
345	BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU)	8-98027-822-0	01	1	1402-
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	02	1	1402-
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	04	1	1402-
376	BOLT; BRKT 4JJ1-TCC ENG(RDU) M10X30 FLANGE	0-28651-030-0	01	1	1402-
576	BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU)	8-98067-992-0	01	1	1402-
577	BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU)	8-98107-264-0	01	1	1402-

137 104 95 164 166 165 88 357 105 126 125 88 97 143 144 70 137 81 38 94 162 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; SILENCER 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	04	1	1401-
38	NUT; SILENCER 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	04	1	1402-
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1401-
81	NUT; BRKT 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	02	1	1401-1401
81	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	02	1	1402-
81	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	02	1	1402-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5 MAL	8-97016-034-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97373-141-0	01	1	1401-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) (C) MAL	8-97373-158-0	01	1	1402-
94	BOLT; CLAMP (B) M10X45 FLANGE MAL	0-28051-045-0	01	1	1401-
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1401-
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1401-
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1401-
104	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	01	1	1401-
105	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1401-
125	NUT; CLAMP M10 MAL	0-91110-510-0	01	1	1401-
126	PIPE; EXH,RR 4JB1-TC ENG(RDT) (A) MAL	8-98072-130-0	01	1	1401-
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) (B)	8-98072-135-0	01	1	1402-
137	BRACKET; TAIL PIPE (B)	8-98001-893-1	01	1	1401-
137	BRACKET; TAIL PIPE (A)	8-98001-903-0	01	1	1401-
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1401-
144	NUT; MTG RUBBER M8 FLANGE MAL	0-91180-108-0	01	1	1401-
162	RUBBER; SUPPORT,TAIL PIPE	8-98032-149-0	01	1	1401-
164	COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1401-
165	BOLT; SUPPORT RUBBER M10X45 FLANGE MAL	0-28051-045-0	01	1	1401-
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 MAL	0-91614-810-0	01	1	1401-
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1401-

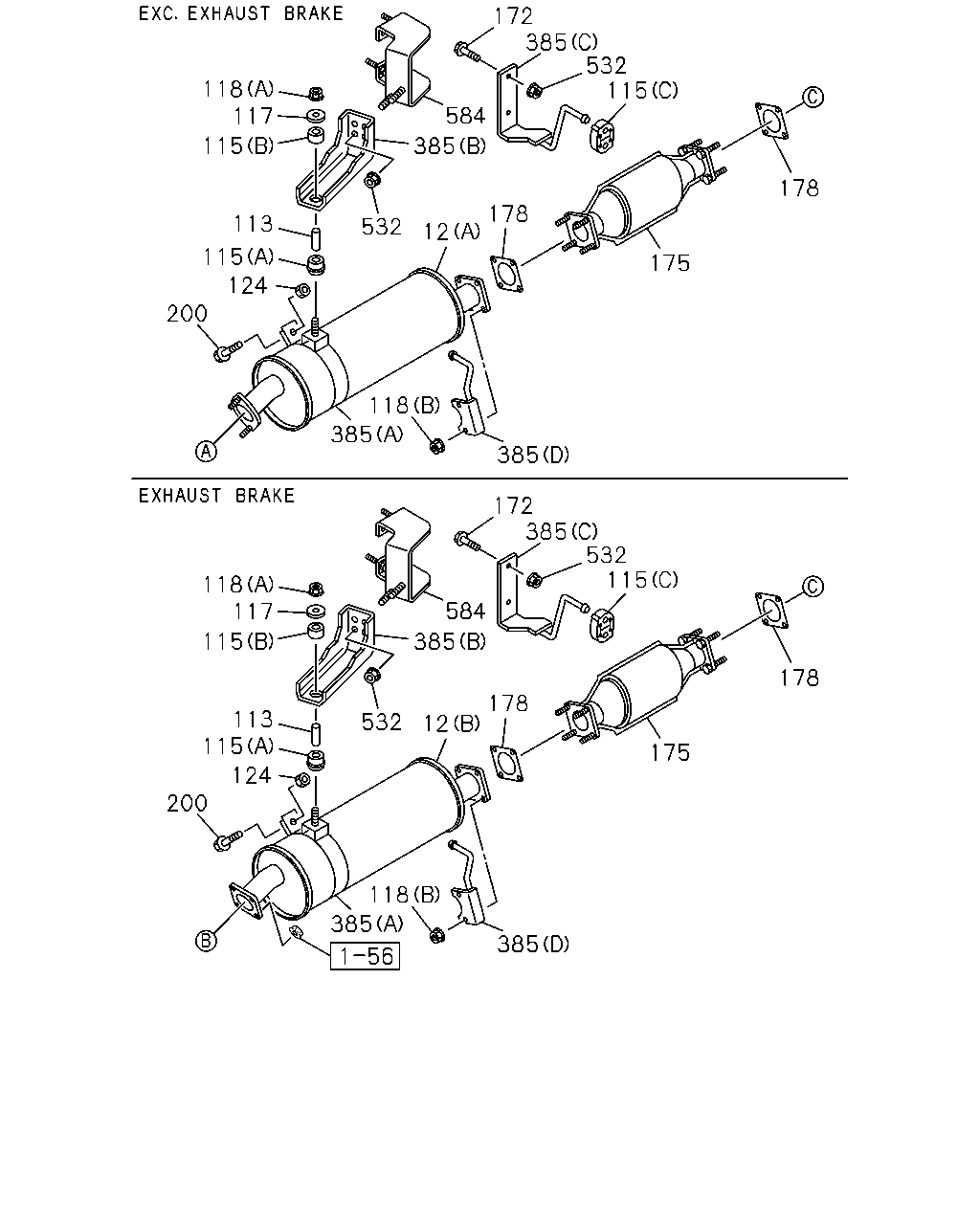

178 175 115 532 385 172 584 385 178 12 532 118 117 115 113 115 200 124 118 385 385 178 115 532 385 172 584 385 178 175 12 532 113 115 115 117 118 124 385 118 385 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98072-123-0	01	1	1401-
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A)	8-98072-124-0	01	1	1401-
12	SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (C)	8-98027-813-1	01	1	1402-
113	COLLAR; DIST,MTG BRKT 4JB1-TC ENG(RDT) L=37.5	9-22151-217-0	01	1	1401-
113	COLLAR; DIST,MTG BRKT 4JJ1-TCC ENG(RDU) L=37.5	9-22151-217-0	02	1	1402-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (A) MAL	8-94457-277-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (B) MAL	8-94457-278-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (C) MAL	8-97166-498-1	01	1	1401-
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A) MAL	8-94457-277-1	02	1	1402-
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B) MAL	8-94457-278-1	02	1	1402-
117	WASHER; PL,SILENCER MTG BRKT 4JB1-TC ENG(RDT) OD=55	9-09852-169-0	01	1	1401-
117	WASHER; PL,SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) OD=55	9-09852-169-0	02	1	1402-
118	NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) (B) M10 FLANGE MAL	0-91180-110-0	04	1	1401-
118	NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) (A) M10 FLANGE	5-09440-006-0	01	1	1401-
118	NUT; SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	5-09440-006-0	02	1	1402-
124	NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) M8	0-91110-508-0	01	1	1401-
172	BOLT 4JB1-TC ENG(RDT) M10X35 FLANGE MAL	0-28651-035-0	02	1	1401-
175	CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-98118-541-0	01	1	1401-1404
175	CONVERTER; CATALYST	8-97140-417-2	01	1	1405-
178	GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71	8-94324-194-1	02	1	1401-
200	BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) M8X45 W/LK WASHER	0-50540-845-0	01	1	1401-
385	BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (A) MAL	8-97076-018-0	01	1	1401-
385	BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (B)	8-97172-313-0	01	1	1401-
385	BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (C)	8-98072-149-0	01	1	1401-
385	BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (D)	8-98072-150-0	01	1	1401-
532	NUT 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	02	1	1401-
532	NUT 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	02	1	1401-
532	NUT 4JB1-TC ENG(RDT) M10 FLANGE MAL	0-91180-110-0	02	1	1401-
584	SPACER; EXH SILENCER 4JB1-TC ENG(RDT)	8-98072-147-1	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
