Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#132446) — 222 parça

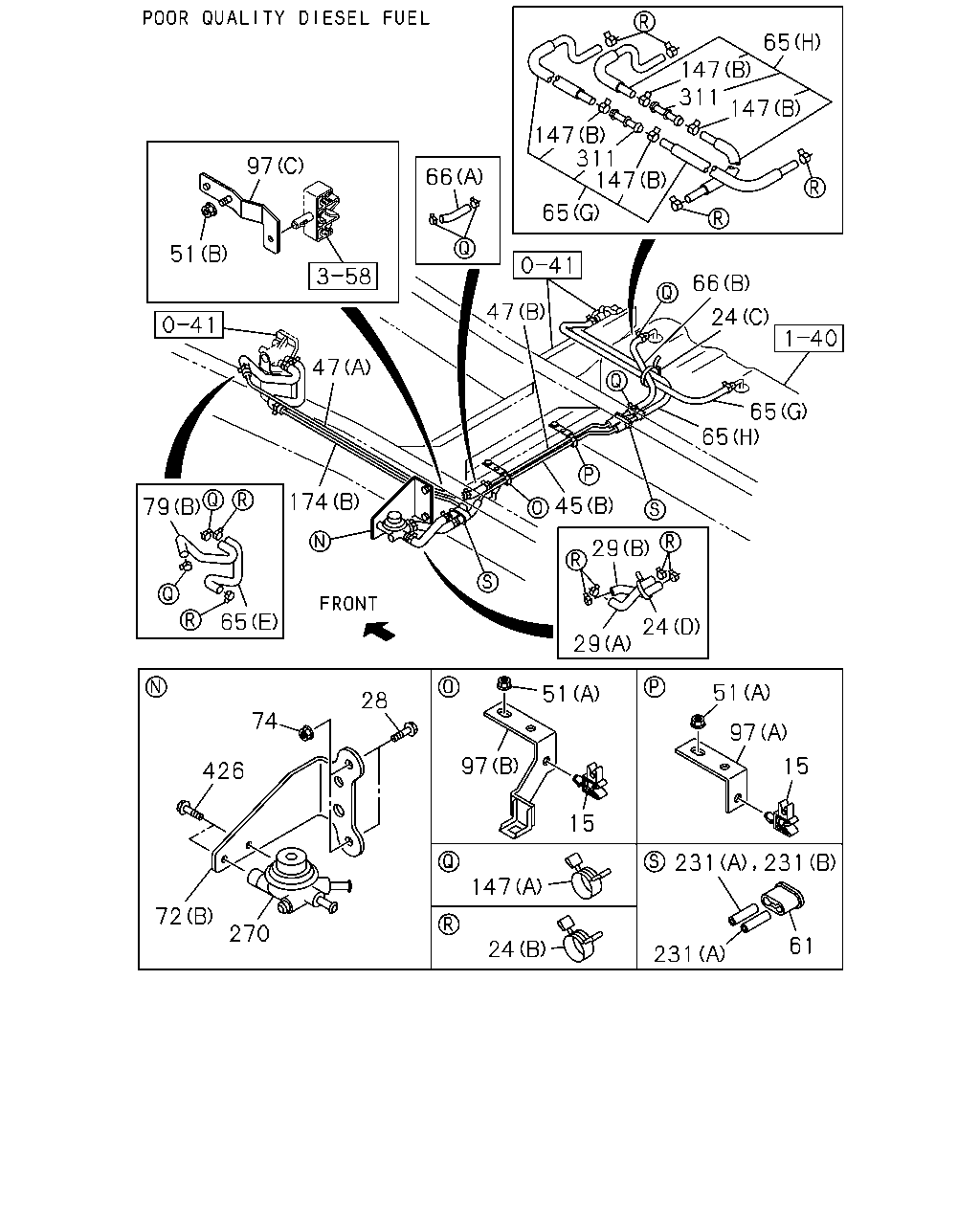

97 51 47 79 65 174 47 66 66 65 24 45 29 29 24 51 97 51 97 15 15 74 28 426 72 270 147 24 231 231 61 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (A) ID=22 L=22	5-83574-045-0	01	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1401-1401
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1401-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1401-1401
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (B)	8-98120-599-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1402-1511
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) (B) L=200	8-98081-038-0	01	1	1402-1511
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (B) L=200	8-98081-038-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1512-
45	PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744 MAL	8-98069-488-1	01	1	1401-
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-579-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690 MAL	8-98083-666-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A) MAL	8-98113-761-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (B) L=679 MAL	8-98020-778-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (A) MAL	8-98110-833-0	01	1	1402-
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1401-
51	NUT; CLIP,PIPE (B) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1401-1401
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1402-
61	GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) BIO DIESEL FUEL B10<8NV> (A)	8-98289-250-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (G)	8-98139-110-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (H)	8-98139-111-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) BIO DIESEL FUEL B10<8NV> (E)	8-98120-600-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (A) MAL	8-97222-766-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (A) MAL	8-97222-766-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98127-107-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98127-107-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98132-679-1	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98132-679-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. BIO DIESEL FUEL B10<8NV> (E)	8-97389-772-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (H)	8-98098-175-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (H)	8-98098-175-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (G)	8-98098-176-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (G)	8-98098-176-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-97389-796-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1401-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1401-1401
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) (A)	8-98107-351-2	01	1	1401-1401
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98107-351-2	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) (B)	8-98107-370-0	01	1	1402-
74	NUT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	02	1	1402-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	1401-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1402-
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1401-
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1401-
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1402-
174	PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A) MAL	8-98113-756-2	01	1	1401-
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-589-1	01	1	1402-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	1402-
270	PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-98018-187-4	01	1	1402-1408
270	PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-97948-892-0	01	1	1409-
426	BOLT; FUEL PUMP 4JJ1-TCC ENG(RDU) M8X20 FLANGE MAL	0-28650-820-0	02	1	1402-

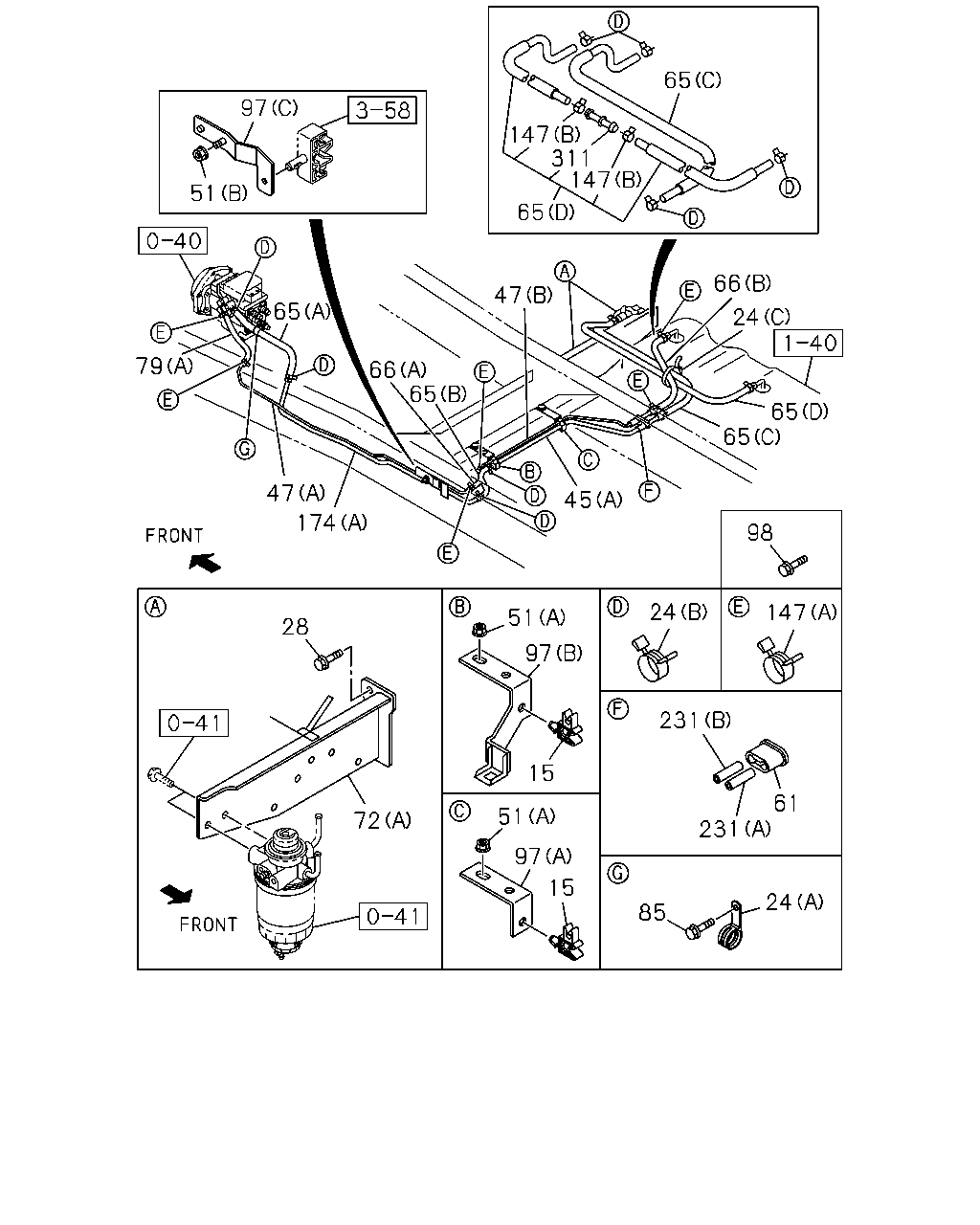

97 65 147 65 147 47 66 47 79 65 51 65 174 45 65 24 66 65 311 98 147 24 231 61 15 51 97 28 72 51 97 231 24 85 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (A) ID=22 L=22	5-83574-045-0	01	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1401-1401
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1401-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1401-1401
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
45	PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744 MAL	8-98069-488-1	01	1	1401-
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-579-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690 MAL	8-98083-666-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A) MAL	8-98113-761-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (B) L=679 MAL	8-98020-778-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (A) MAL	8-98110-833-0	01	1	1402-
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1401-
51	NUT; CLIP,PIPE (B) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1401-1401
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1402-
61	GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) BIO DIESEL FUEL B10<8NV> (A)	8-98289-250-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (G)	8-98139-110-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (H)	8-98139-111-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) BIO DIESEL FUEL B10<8NV> (E)	8-98120-600-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (A) MAL	8-97222-766-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (A) MAL	8-97222-766-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98127-107-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98127-107-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98132-679-1	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98132-679-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. BIO DIESEL FUEL B10<8NV> (E)	8-97389-772-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (H)	8-98098-175-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (H)	8-98098-175-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (G)	8-98098-176-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (G)	8-98098-176-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-97389-796-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1401-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1401-1401
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) (A)	8-98107-351-2	01	1	1401-1401
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98107-351-2	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) (B)	8-98107-370-0	01	1	1402-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	1401-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1402-
85	BOLT; CLIP,FUEL HOSE 4JB1-TC ENG(RDT) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1401-
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1401-
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1401-
98	BOLT; BRKT,FUEL PIPE 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	01	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1402-
174	PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A) MAL	8-98113-756-2	01	1	1401-
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-589-1	01	1	1402-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	1402-
311	JOINT; HOSE 4JB1-TC ENG(RDT)	8-97353-668-0	01	1	1401-
311	JOINT; HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	1402-

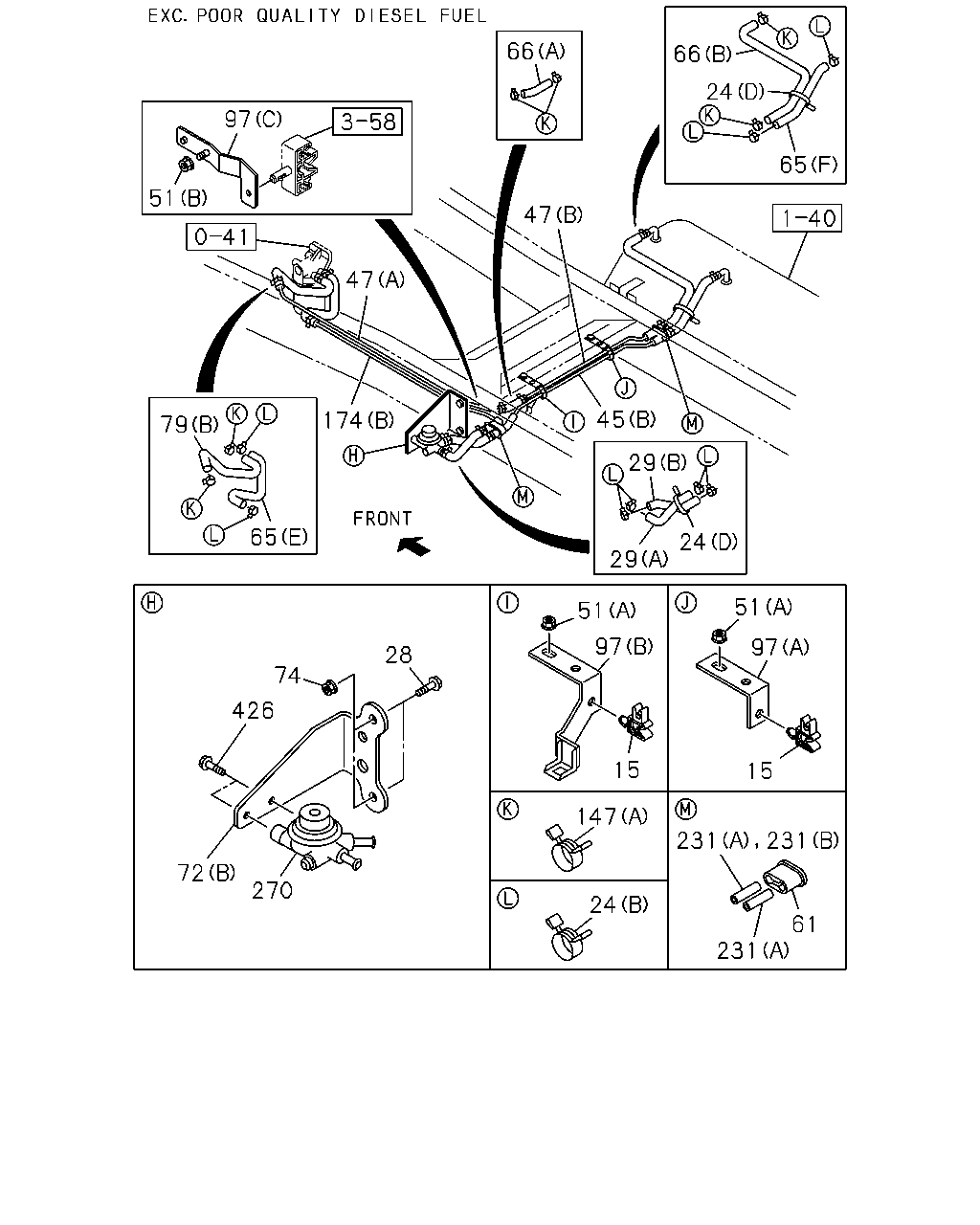

51 97 66 65 147 147 147 65 311 311 147 47 174 79 65 45 65 65 47 66 24 29 24 29 51 97 15 51 97 15 28 74 426 72 270 147 24 231 231 231 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (A) ID=22 L=22	5-83574-045-0	01	1	1401-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1401-1401
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1402-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1401-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 MAL	5-09707-031-1	01	1	1402-
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1401-1401
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
28	BOLT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE	0-28651-030-0	02	1	1402-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (A) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (B)	8-98120-599-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1402-1511
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) (B) L=200	8-98081-038-0	01	1	1402-1511
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (B) L=200	8-98081-038-0	01	1	1512-
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	1512-
45	PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744 MAL	8-98069-488-1	01	1	1401-
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-579-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690 MAL	8-98083-666-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A) MAL	8-98113-761-2	01	1	1401-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (B) L=679 MAL	8-98020-778-3	01	1	1402-
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (A) MAL	8-98110-833-0	01	1	1402-
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1401-
51	NUT; CLIP,PIPE (B) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1401-1401
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1402-
61	GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) BIO DIESEL FUEL B10<8NV> (A)	8-98289-250-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (G)	8-98139-110-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) BIO DIESEL FUEL B10<8NV> (H)	8-98139-111-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) BIO DIESEL FUEL B10<8NV> (E)	8-98120-600-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (B) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (A) MAL	8-97222-766-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (A) MAL	8-97222-766-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98127-107-0	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (C)	8-98127-107-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98132-679-1	01	1	1401-1511
65	HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) EXC. BIO DIESEL FUEL B10<8NV> (D)	8-98132-679-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. BIO DIESEL FUEL B10<8NV> (E)	8-97389-772-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (H)	8-98098-175-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (H)	8-98098-175-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (G)	8-98098-176-1	01	1	1402-1511
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. BIO DIESEL FUEL B10<8NV> (G)	8-98098-176-1	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-97389-796-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1401-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1401-1401
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) (A)	8-98107-351-2	01	1	1401-1401
72	BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98107-351-2	01	1	1402-
72	BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) (B)	8-98107-370-0	01	1	1402-
74	NUT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) M10 FLANGE MAL	0-91180-110-0	02	1	1402-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	1401-
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1402-
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1401-
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1401-
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1401-
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1401-
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	04	1	1402-
174	PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A) MAL	8-98113-756-2	01	1	1401-
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B) MAL	8-97389-589-1	01	1	1402-
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1401-
231	RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	1402-
270	PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-98018-187-4	01	1	1402-1408
270	PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-97948-892-0	01	1	1409-
311	JOINT; HOSE 4JB1-TC ENG(RDT)	8-97353-668-0	01	1	1401-
311	JOINT; HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	1402-
426	BOLT; FUEL PUMP 4JJ1-TCC ENG(RDU) M8X20 FLANGE MAL	0-28650-820-0	02	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
