1-31 — AIR DUCT (#132443) — 111 parça

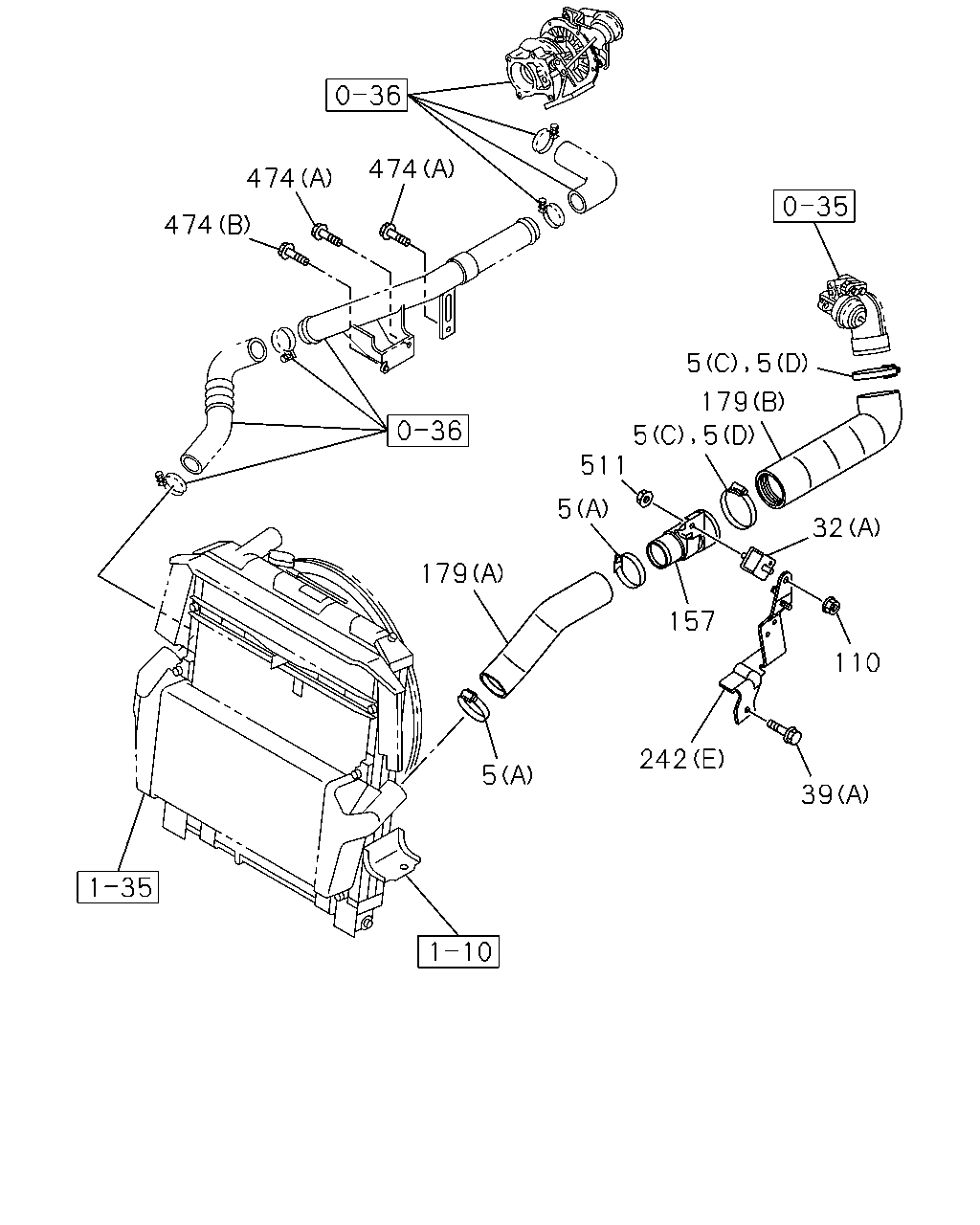

çizim 401260
474 474 474 5 5 179 5 5 511 5 32 179 157 110 5 242 39
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=40-50 		8-98133-347-0 02 1 1401-
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (C) ID=55-75 		8-98133-349-0 02 1 1401-
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1401-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (E) ID=45-65 		8-98133-348-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (D) ID=55-75 		8-98133-349-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=65-85 		8-98133-350-0 01 1 1402-
32 RUBBER; AIR DUCT MTG
4JB1-TC ENG(RDT) (A) MAL 		8-97081-886-0 01 1 1401-
32 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) (B) OD=23 		8-97105-689-6 01 1 1402-
39 BOLT; BRKT
4JB1-TC ENG(RDT) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1401-
39 BOLT; BRKT
4JJ1-TCC ENG(RDU) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1402-
39 BOLT; BRKT
4JJ1-TCC ENG(RDU) (B) M8X14 FLANGE 		8-97378-075-0 01 1 1402-
110 NUT; RUBBER MTG
4JB1-TC ENG(RDT) M8 FLANGE MAL 		0-91180-108-0 01 1 1401-
157 PIPE; AIR
4JB1-TC ENG(RDT) 		8-98072-276-0 01 1 1401-
179 HOSE; AIR INT
4JB1-TC ENG(RDT) (B) 		8-97228-658-2 01 1 1401-
179 HOSE; AIR INT
4JB1-TC ENG(RDT) (A) 		8-98069-637-1 01 1 1401-
179 HOSE; AIR INT
4JJ1-TCC ENG(RDU) (C) 		8-98050-920-2 01 1 1402-
242 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-98072-277-1 01 1 1401-
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1401-
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1401-
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1401-
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1401-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-97384-140-3 01 1 1402-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98108-313-1 01 1 1402-
474 BOLT; PIPE
4JB1-TC ENG(RDT) (A) M8X12 FLANGE 		0-28050-812-0 02 1 1401-
474 BOLT; PIPE
4JB1-TC ENG(RDT) (B) M10X12 FLANGE 		0-28051-012-0 01 1 1401-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (F) M6X70 FLANGE 		0-28050-670-0 02 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (C) M6X30 FLANGE 		0-28650-630-0 01 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (D) M8X35 FLANGE 		0-28650-835-0 01 1 1402-
511 NUT; PIPE
4JB1-TC ENG(RDT) M8 FLANGE MAL 		0-91180-108-0 01 1 1401-

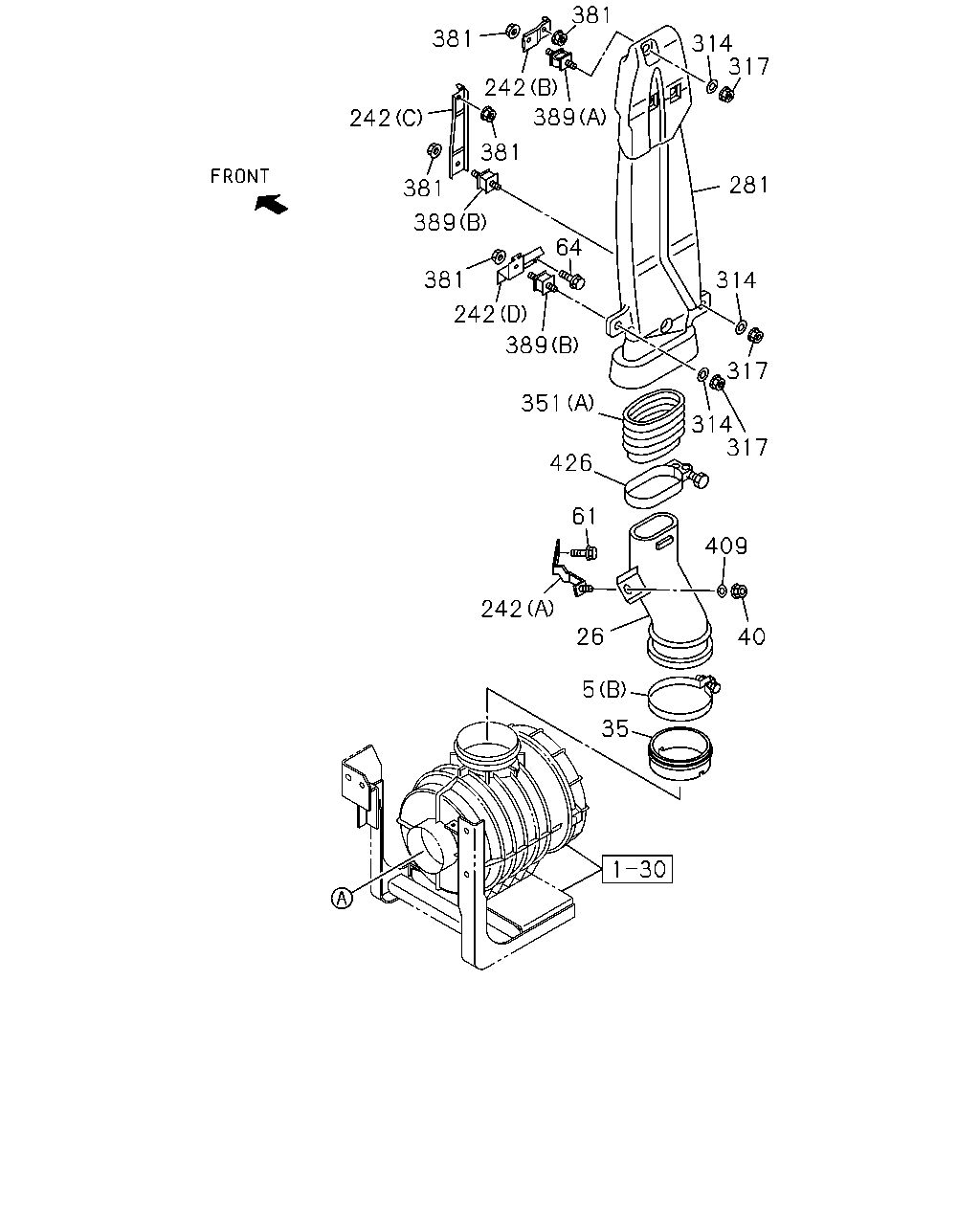

çizim 401268
242 381 381 242 381 381 381 389 351 426 61 242 26 5 35 314 389 281 314 317 314 409 40 317 317 389 64 242
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=40-50 		8-98133-347-0 02 1 1401-
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (C) ID=55-75 		8-98133-349-0 02 1 1401-
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1401-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (E) ID=45-65 		8-98133-348-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (D) ID=55-75 		8-98133-349-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=65-85 		8-98133-350-0 01 1 1402-
26 DUCT; AIR INT 8-98023-339-0 01 1 1401-
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1401-
40 NUT; AIR INT DUCT
M10 FLANGE MAL 		0-91180-110-0 01 1 1401-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1401-
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1401-
242 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-98072-277-1 01 1 1401-
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1401-
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1401-
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1401-
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1401-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-97384-140-3 01 1 1402-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98108-313-1 01 1 1402-
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-994-2 01 1 1401-
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97369-706-0 01 1 1401-
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 MAL 		0-91614-810-0 03 1 1401-
317 NUT; CUSHION RUBBER
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1401-
351 DUCT; AIR
(A) 		8-98115-594-0 01 1 1401-
351 DUCT; AIR
4JJ1-TCC ENG(RDU) (B) 		8-98067-267-0 01 1 1402-
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER MAL 		8-97581-234-0 02 1 1401-
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER MAL 		8-97581-234-0 03 1 1401-
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1401-
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1401-
409 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1401-
426 CLIP; DUCT
D=101.6 		9-09915-502-1 01 1 1401-

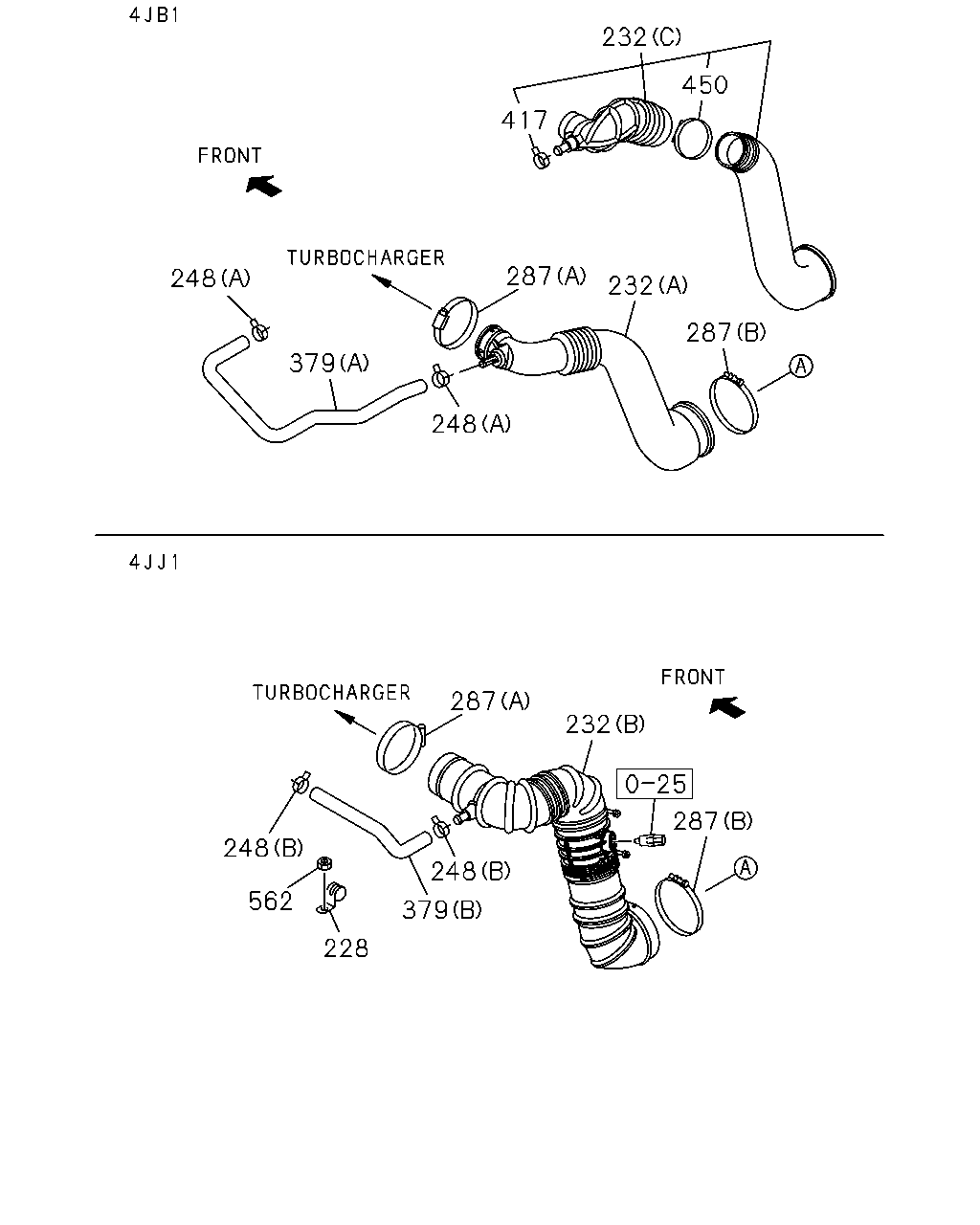

çizim 401269
232 450 417 287 232 287 248 379 248 287 232 287 248 379 248 562 228
BalonParca AdiParca NoAdetTipApplied Date
228 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) ID=25 H=40 L=50 		8-98073-275-0 01 1 1402-
232 HOSE; CONN
4JB1-TC ENG(RDT) (A) 		8-98069-040-2 01 1 1401-1509
232 HOSE; CONN
4JB1-TC ENG(RDT) (C) 		8-98327-660-0 01 1 1510-
232 HOSE; CONN
4JJ1-TCC ENG(RDU) (B) 		8-98048-540-0 01 1 1402-1409
232 HOSE; CONN
4JJ1-TCC ENG(RDU) (B) 		8-98269-834-0 01 1 1410-
248 CLIP; RUBBER HOSE
4JB1-TC ENG(RDT) (A) ID=20.4 		8-94121-113-0 02 1 1401-
248 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) (B) ID=21.7 		8-97203-074-0 02 1 1402-
287 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=40-50 		8-98133-347-0 01 1 1401-
287 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (B) ID=112 		9-09915-074-1 01 1 1401-
287 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (A) ID=65-85 		8-98133-350-0 01 1 1402-
287 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (B) ID=117 		9-09915-075-1 01 1 1402-
379 HOSE; RUBBER
4JB1-TC ENG(RDT) (A) 		8-98178-711-0 01 1 1401-
379 HOSE; RUBBER
4JJ1-TCC ENG(RDU) (B) 		8-98135-511-0 01 1 1402-
417 CLIP; WATER HOSE
4JB1-TC ENG(RDT) ID=23 		8-94382-402-0 01 1 1510-
450 CLAMP; HOSE
4JB1-TC ENG(RDT) ID=65-85 		8-98133-350-0 01 1 1510-
562 NUT; HOSE CLIP
4JJ1-TCC ENG(RDU) M8 FLANGE MAL 		0-91180-108-0 01 1 1402-

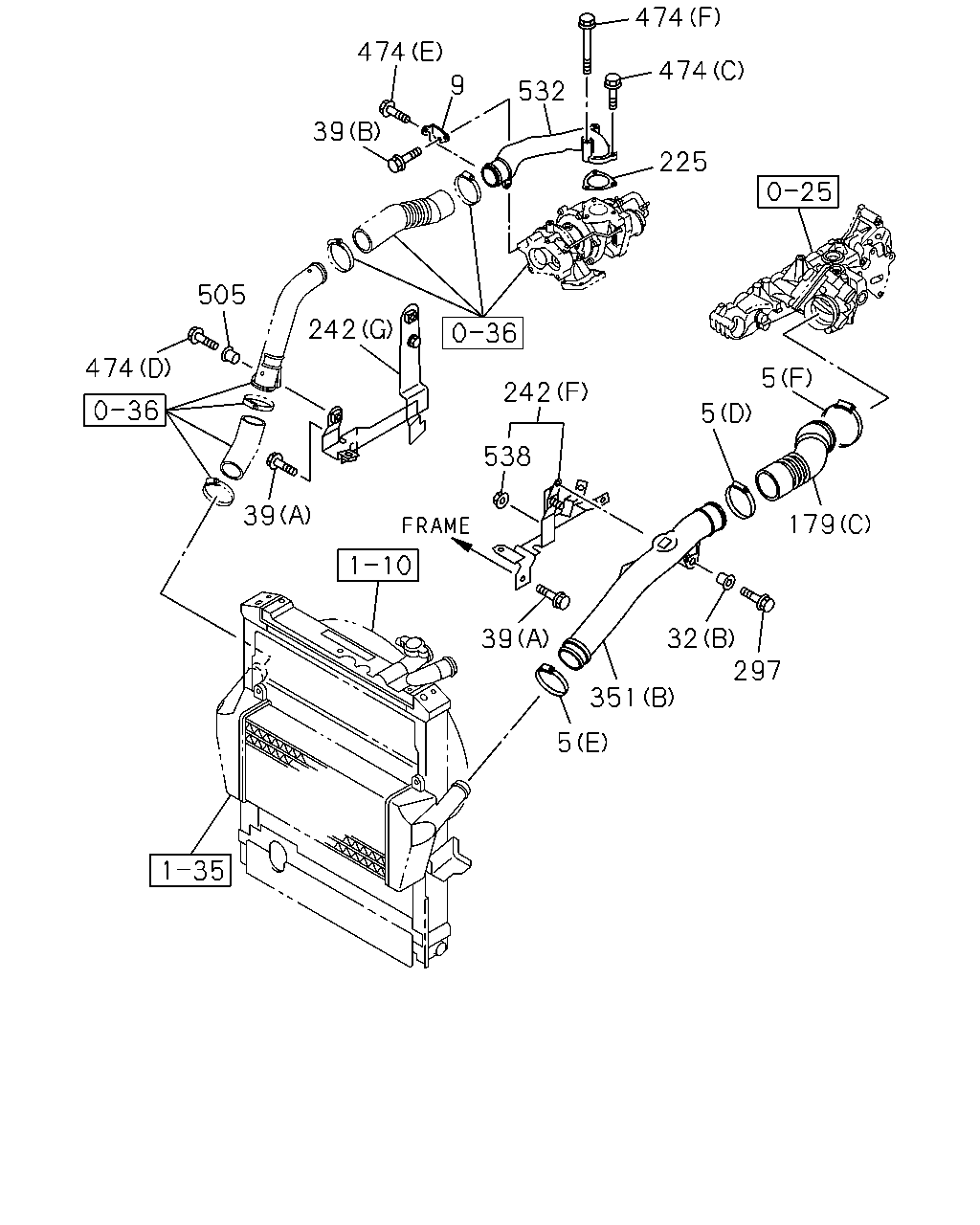

çizim 401270
474 532 474 474 225 242 39 505 474 39 242 538 5 5 179 32 297 351 5 39 9
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=40-50 		8-98133-347-0 02 1 1401-
5 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (C) ID=55-75 		8-98133-349-0 02 1 1401-
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1401-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (E) ID=45-65 		8-98133-348-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (D) ID=55-75 		8-98133-349-0 01 1 1402-
5 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=65-85 		8-98133-350-0 01 1 1402-
9 BRACKET; INT PIPE
4JJ1-TCC ENG(RDU) 		8-98009-086-0 01 1 1402-
32 RUBBER; AIR DUCT MTG
4JB1-TC ENG(RDT) (A) MAL 		8-97081-886-0 01 1 1401-
32 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) (B) OD=23 		8-97105-689-6 01 1 1402-
39 BOLT; BRKT
4JB1-TC ENG(RDT) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1401-
39 BOLT; BRKT
4JJ1-TCC ENG(RDU) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1402-
39 BOLT; BRKT
4JJ1-TCC ENG(RDU) (B) M8X14 FLANGE 		8-97378-075-0 01 1 1402-
179 HOSE; AIR INT
4JB1-TC ENG(RDT) (B) 		8-97228-658-2 01 1 1401-
179 HOSE; AIR INT
4JB1-TC ENG(RDT) (A) 		8-98069-637-1 01 1 1401-
179 HOSE; AIR INT
4JJ1-TCC ENG(RDU) (C) 		8-98050-920-2 01 1 1402-
225 GASKET; AIR PIPE
4JJ1-TCC ENG(RDU) ID=47 		8-97202-328-1 01 1 1402-
242 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-98072-277-1 01 1 1401-
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1401-
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1401-
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1401-
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1401-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-97384-140-3 01 1 1402-
242 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98108-313-1 01 1 1402-
297 BOLT; DUCT
4JJ1-TCC ENG(RDU) M8X35 FLANGE 		0-28650-835-0 01 1 1402-
351 DUCT; AIR
(A) 		8-98115-594-0 01 1 1401-
351 DUCT; AIR
4JJ1-TCC ENG(RDU) (B) 		8-98067-267-0 01 1 1402-
474 BOLT; PIPE
4JB1-TC ENG(RDT) (A) M8X12 FLANGE 		0-28050-812-0 02 1 1401-
474 BOLT; PIPE
4JB1-TC ENG(RDT) (B) M10X12 FLANGE 		0-28051-012-0 01 1 1401-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (F) M6X70 FLANGE 		0-28050-670-0 02 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (E) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (C) M6X30 FLANGE 		0-28650-630-0 01 1 1402-
474 BOLT; PIPE
4JJ1-TCC ENG(RDU) (D) M8X35 FLANGE 		0-28650-835-0 01 1 1402-
505 RUBBER; MTG
4JJ1-TCC ENG(RDU) OD=23 		8-97105-689-6 01 1 1402-
532 PIPE; INTAKE
4JJ1-TCC ENG(RDU) 		8-98237-771-1 01 1 1402-
538 NUT; PLATE,AIR DUCT
4JJ1-TCC ENG(RDU) M6 FLANGE MAL 		0-91180-106-0 02 1 1402-
