1-11 — RADIATOR HOSE AND SUB TANK
(#132441) — 30 parça
◀

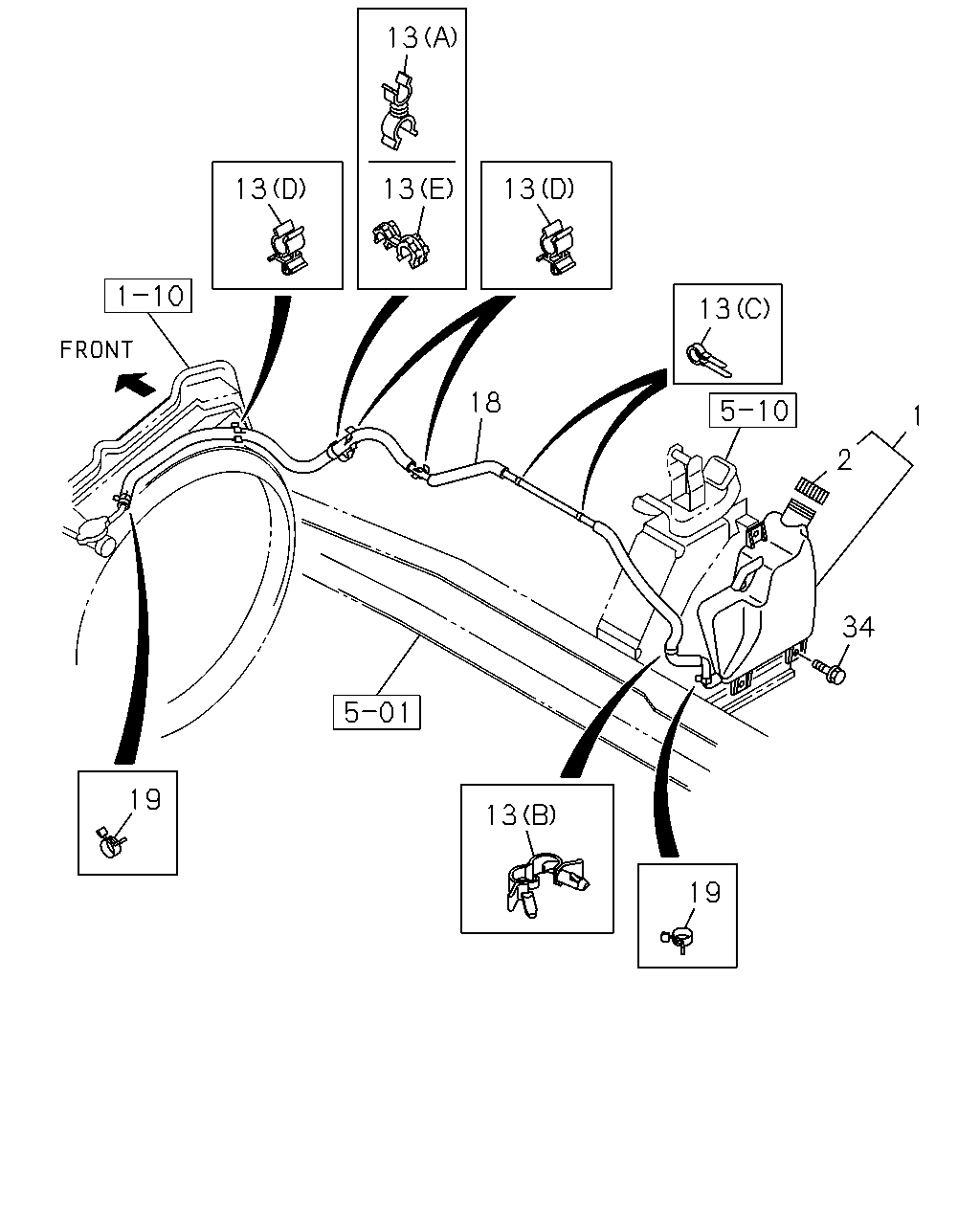

[111A] SURGE TANK AND HOSE (12 parça)

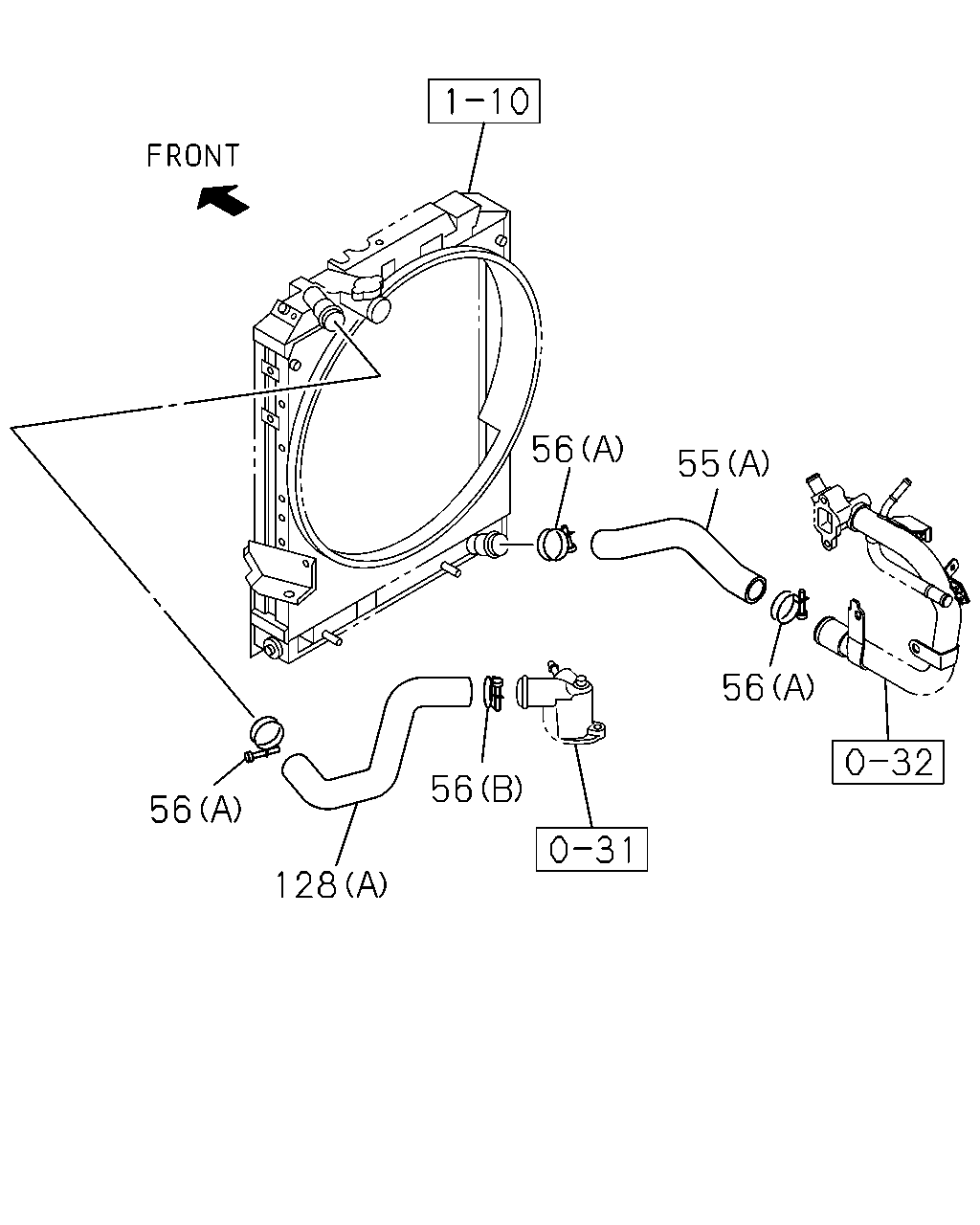

[111A] RADIATOR HOSE;4JB1 (9 parça)

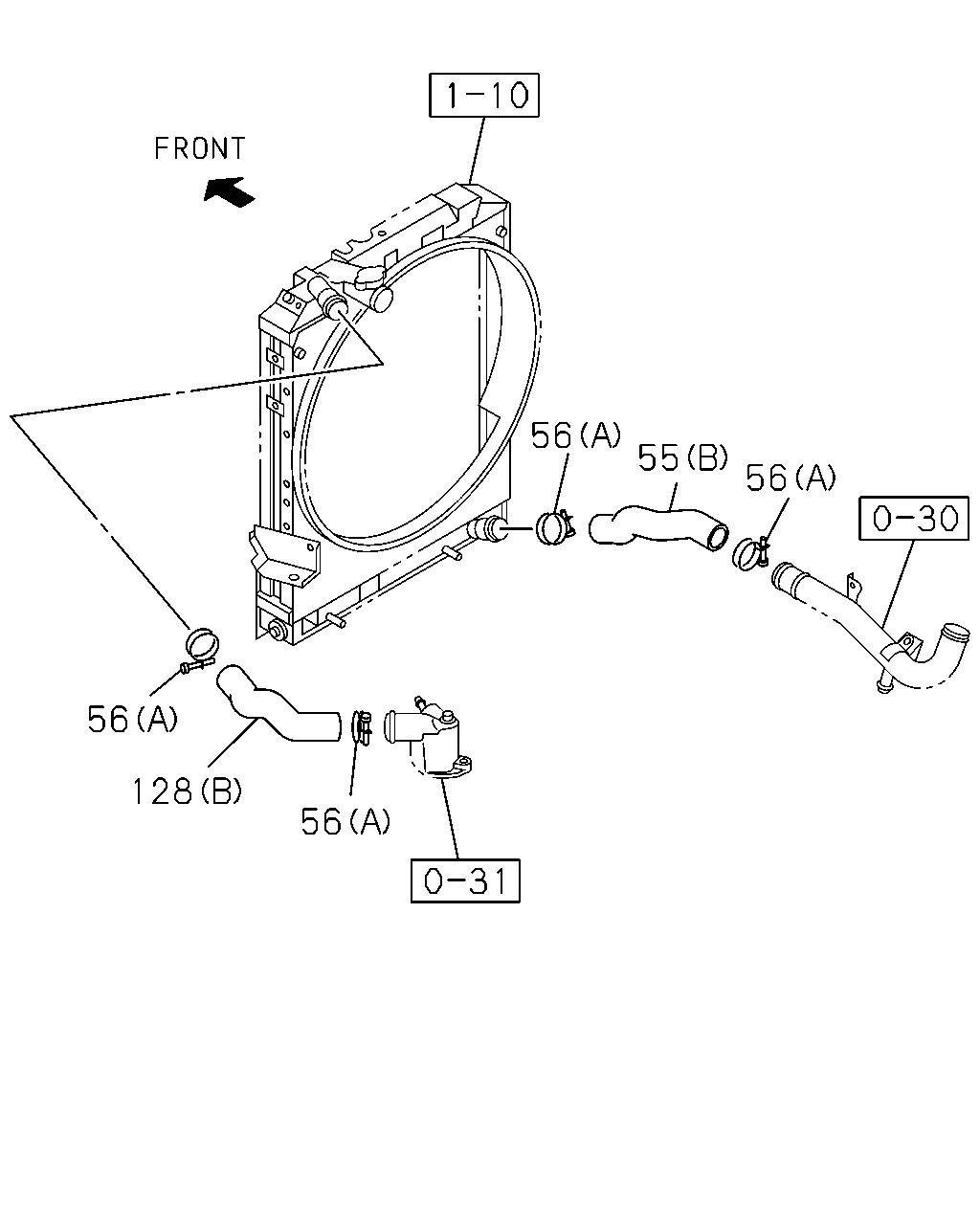

[111A] RADIATOR HOSE;4JJ1 (9 parça)
▶
2
1
18
34
19
13
19
13
13
13
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1401-
2
CAP; SURGE TANK
MAL
8-98178-074-0
01
1
1401-
13
CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (A) ID=12 & 16.5
8-94400-865-0
01
1
1401-
13
CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (D) ID=12
8-98029-256-0
01
1
1401-
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 MAL
5-09700-319-0
02
1
1401-
13
CLIP; HOSE,SURGE TANK
(B) ID=13-18 L=14.5
1-09709-290-0
01
1
1401-
13
CLIP; HOSE,SURGE TANK
4JJ1-TCC ENG(RDU) (E) ID=10 & 12
8-94416-613-0
01
1
1402-
13
CLIP; HOSE,SURGE TANK
4JJ1-TCC ENG(RDU) (D) ID=12
8-98029-256-0
03
1
1402-
18
HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT)
8-98039-398-1
01
1
1401-
18
HOSE; RAD TO SURGE TANK
4JJ1-TCC ENG(RDU)
8-98065-255-0
01
1
1402-
19
CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
1401-
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
1401-
56
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
4JB1-TC ENG(RDT) (A) MAL
8-98039-391-1
01
1
1401-
55
HOSE; WATER,RAD OUTLET
4JJ1-TCC ENG(RDU) (B)
8-97383-814-1
01
1
1402-
56
CLIP; WATER HOSE,RAD
4JB1-TC ENG(RDT) (A) ID=48
8-98133-956-0
01
1
1401-
56
CLIP; WATER HOSE,RAD
4JB1-TC ENG(RDT) (B) ID=42
8-98133-958-0
01
1
1401-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1401-1401
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1402-
56
CLIP; WATER HOSE,RAD
4JJ1-TCC ENG(RDU) (A) ID=48
8-98133-956-0
02
1
1402-
128
HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) (A)
8-98039-390-0
01
1
1401-
128
HOSE; WATER,RAD INL
4JJ1-TCC ENG(RDU) (B)
8-97383-812-1
01
1
1402-
56
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
4JB1-TC ENG(RDT) (A) MAL
8-98039-391-1
01
1
1401-
55
HOSE; WATER,RAD OUTLET
4JJ1-TCC ENG(RDU) (B)
8-97383-814-1
01
1
1402-
56
CLIP; WATER HOSE,RAD
4JB1-TC ENG(RDT) (A) ID=48
8-98133-956-0
01
1
1401-
56
CLIP; WATER HOSE,RAD
4JB1-TC ENG(RDT) (B) ID=42
8-98133-958-0
01
1
1401-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1401-1401
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1402-
56
CLIP; WATER HOSE,RAD
4JJ1-TCC ENG(RDU) (A) ID=48
8-98133-956-0
02
1
1402-
128
HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) (A)
8-98039-390-0
01
1
1401-
128
HOSE; WATER,RAD INL
4JJ1-TCC ENG(RDU) (B)
8-97383-812-1
01
1
1402-
