Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#132440) — 83 parça
◀
[110A] 4JB1(NO.1) (20 parça)
[110A] 4JB1(NO.2) (19 parça)
[110A] 4JJ1(NO.2) (23 parça)
[110A] 4JJ1(NO.1) (21 parça)
▶

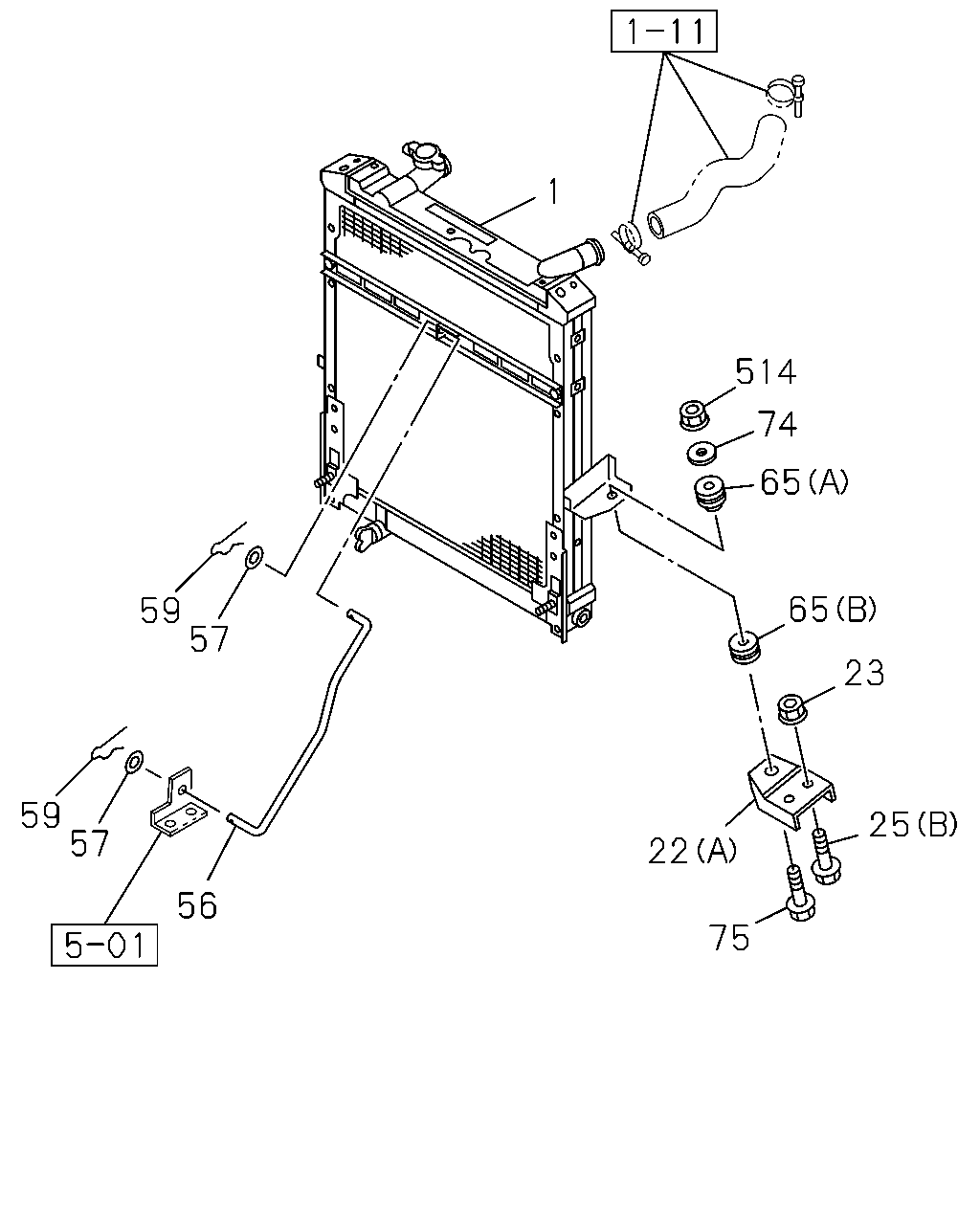

1
514
65
74
65
23
25
22
75
56
57
59
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98090-739-1
01
1
1401-1410
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98259-936-0
01
1
1411-
1
RADIATOR ASM
4JJ1-TCC ENG(RDU)
8-98172-907-0
01
1
1402-
22
BRACKET; RAD MTG
4JB1-TC ENG(RDT) (A)
8-98040-358-0
01
1
1401-
22
BRACKET; RAD MTG
4JB1-TC ENG(RDT) (A)
8-98040-359-0
01
1
1401-
22
BRACKET; RAD MTG
4JJ1-TCC ENG(RDU) (B)
8-97383-951-0
01
1
1402-
22
BRACKET; RAD MTG
4JJ1-TCC ENG(RDU) (B)
8-97383-952-0
01
1
1402-
23
NUT; RAD MTG
M10 FLANGE MAL
0-91180-110-0
04
1
1401-
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1401-
25
BOLT; BRKT
(A) M6X12 FLANGE MAL
0-28050-612-0
04
1
1401-
56
STAY; RAD
4JB1-TC ENG(RDT)
8-98039-485-0
01
1
1401-
56
STAY; RAD
4JJ1-TCC ENG(RDU)
8-97383-947-1
01
1
1402-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1401-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1401-
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1401-
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1401-
74
WASHER; PL,CUSHION RUBBER
4JB1-TC ENG(RDT) ID=10.5
0-91610-710-0
01
1
1401-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1401-
75
BOLT; CUSHION RUBBER,RAD MTG
4JB1-TC ENG(RDT) M8X63
8-94249-446-0
01
1
1401-
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1401-

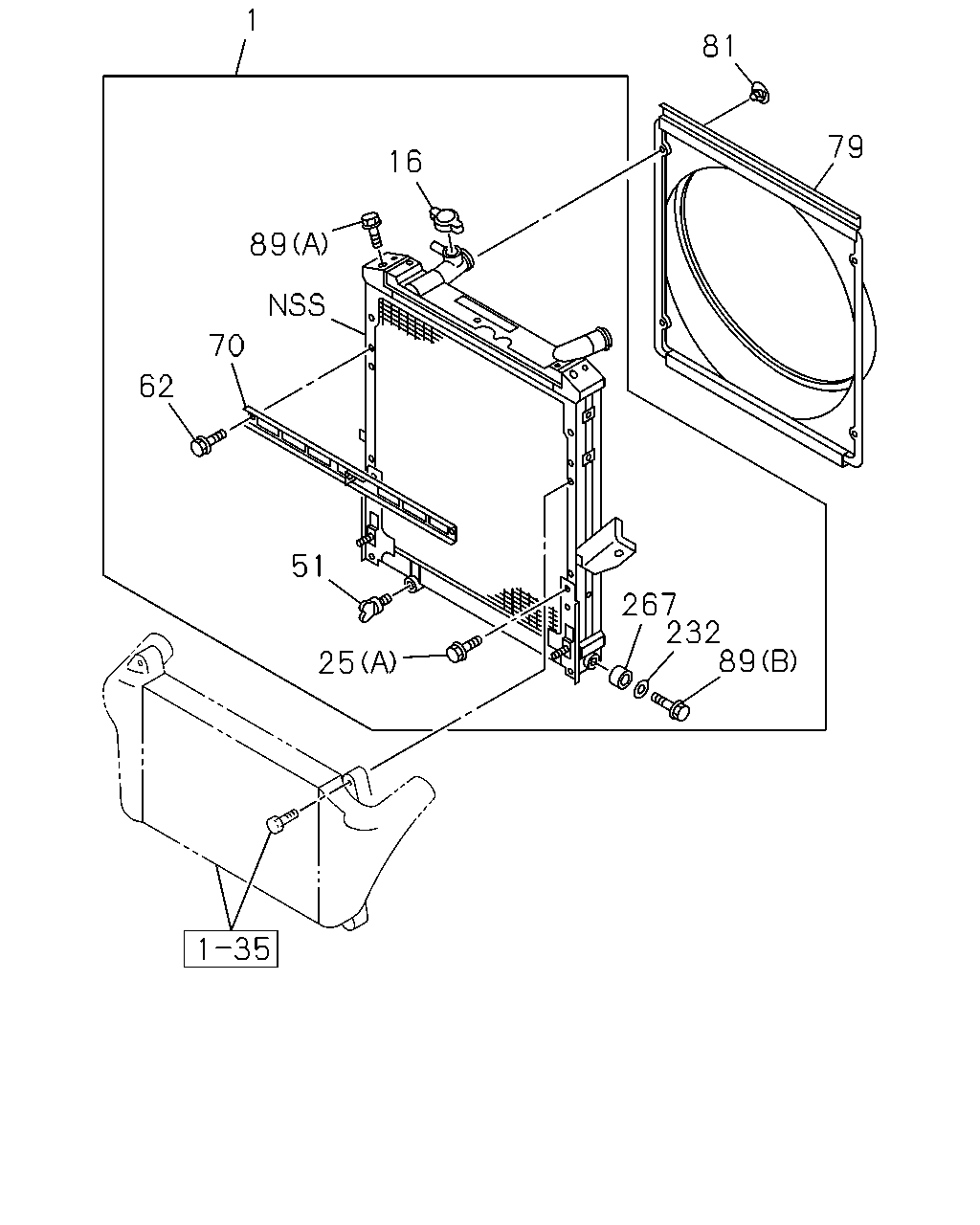

81
79
16
1
89
70
62
51
25
267
232
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98090-739-1
01
1
1401-1410
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98259-936-0
01
1
1411-
1
RADIATOR ASM
4JJ1-TCC ENG(RDU)
8-98172-907-0
01
1
1402-
16
CAP; RAD
4JB1-TC ENG(RDT)
8-97239-187-0
01
1
1401-
16
CAP; RAD
4JJ1-TCC ENG(RDU)
8-98096-226-0
01
1
1402-
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1401-
25
BOLT; BRKT
(A) M6X12 FLANGE MAL
0-28050-612-0
04
1
1401-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1401-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1401-
70
STAY; RAD
8-98018-940-0
01
1
1401-
79
GUIDE; FAN,RAD
4JB1-TC ENG(RDT)
8-98090-742-0
01
1
1401-
79
GUIDE; FAN,RAD
4JJ1-TCC ENG(RDU)
8-98172-923-0
01
1
1402-
81
SCREW; FAN GUIDE,RAD
4JB1-TC ENG(RDT) MAL
8-97088-810-0
02
1
1401-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1401-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1401-
232
COLLAR; DIST,CUSHION RUBBER
4JB1-TC ENG(RDT)
8-98141-232-0
02
1
1411-
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1401-1410
232
COLLAR; DIST,CUSHION RUBBER
4JJ1-TCC ENG(RDU)
1-87410-723-0
02
1
1411-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1401-

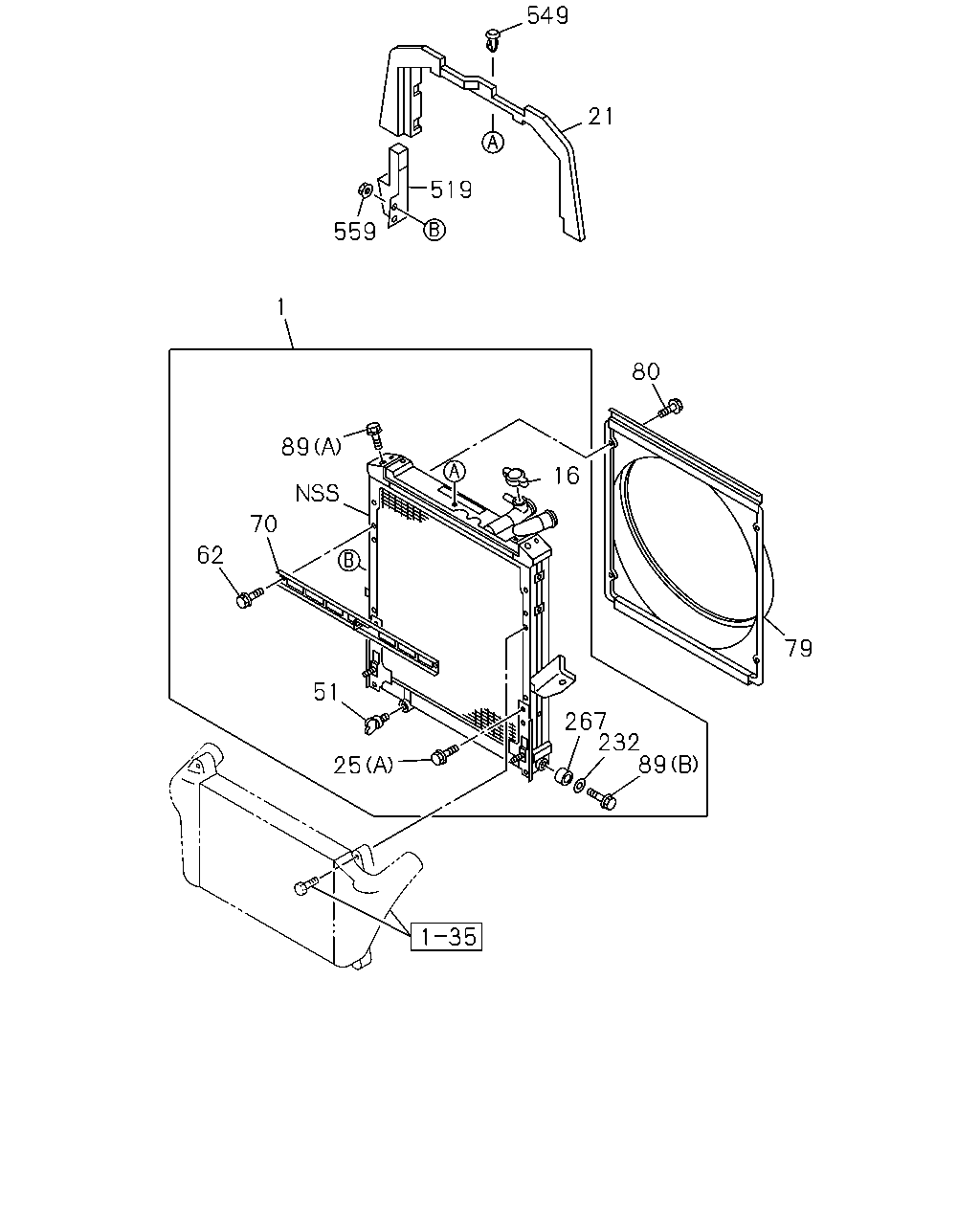

549
21
519
559
1
80
79
267
232
89
25
51
70
62
89
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98090-739-1
01
1
1401-1410
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98259-936-0
01
1
1411-
1
RADIATOR ASM
4JJ1-TCC ENG(RDU)
8-98172-907-0
01
1
1402-
16
CAP; RAD
4JB1-TC ENG(RDT)
8-97239-187-0
01
1
1401-
16
CAP; RAD
4JJ1-TCC ENG(RDU)
8-98096-226-0
01
1
1402-
21
SEAL; RAD
4JJ1-TCC ENG(RDU)
8-98000-816-0
01
1
1402-
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1401-
25
BOLT; BRKT
(A) M6X12 FLANGE MAL
0-28050-612-0
04
1
1401-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1401-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1401-
70
STAY; RAD
8-98018-940-0
01
1
1401-
79
GUIDE; FAN,RAD
4JB1-TC ENG(RDT)
8-98090-742-0
01
1
1401-
79
GUIDE; FAN,RAD
4JJ1-TCC ENG(RDU)
8-98172-923-0
01
1
1402-
80
BOLT; FAN GUIDE
4JJ1-TCC ENG(RDU) M6X12
8-98039-672-0
02
1
1402-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1401-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1401-
232
COLLAR; DIST,CUSHION RUBBER
4JB1-TC ENG(RDT)
8-98141-232-0
02
1
1411-
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1401-1410
232
COLLAR; DIST,CUSHION RUBBER
4JJ1-TCC ENG(RDU)
1-87410-723-0
02
1
1411-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1401-
519
SEAL; RAD SIDE
4JJ1-TCC ENG(RDU)
8-98038-591-0
01
1
1402-
549
CLIP; SEAL,RAD
4JJ1-TCC ENG(RDU)
8-97228-568-0
05
1
1402-
559
NUT; RAD SIDE
4JJ1-TCC ENG(RDU) M6 FLANGE MAL
0-91180-106-0
02
1
1402-

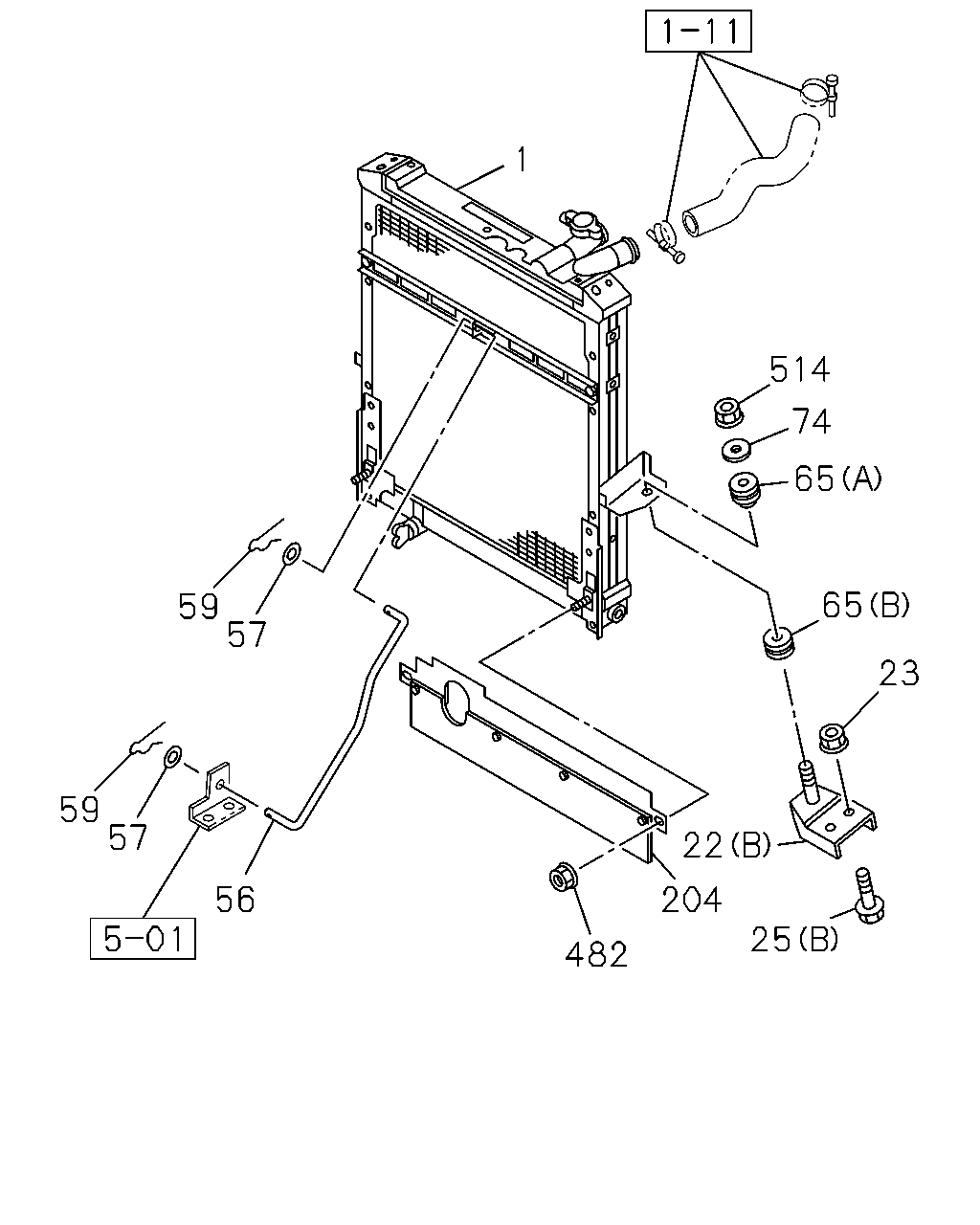

1
514
65
74
65
23
22
25
204
482
56
57
59
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98090-739-1
01
1
1401-1410
1
RADIATOR ASM
4JB1-TC ENG(RDT)
8-98259-936-0
01
1
1411-
1
RADIATOR ASM
4JJ1-TCC ENG(RDU)
8-98172-907-0
01
1
1402-
22
BRACKET; RAD MTG
4JB1-TC ENG(RDT) (A)
8-98040-358-0
01
1
1401-
22
BRACKET; RAD MTG
4JB1-TC ENG(RDT) (A)
8-98040-359-0
01
1
1401-
22
BRACKET; RAD MTG
4JJ1-TCC ENG(RDU) (B)
8-97383-951-0
01
1
1402-
22
BRACKET; RAD MTG
4JJ1-TCC ENG(RDU) (B)
8-97383-952-0
01
1
1402-
23
NUT; RAD MTG
M10 FLANGE MAL
0-91180-110-0
04
1
1401-
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1401-
25
BOLT; BRKT
(A) M6X12 FLANGE MAL
0-28050-612-0
04
1
1401-
56
STAY; RAD
4JB1-TC ENG(RDT)
8-98039-485-0
01
1
1401-
56
STAY; RAD
4JJ1-TCC ENG(RDU)
8-97383-947-1
01
1
1402-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1401-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1401-
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1401-
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1401-
74
WASHER; PL,CUSHION RUBBER
4JB1-TC ENG(RDT) ID=10.5
0-91610-710-0
01
1
1401-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1401-
204
GUIDE ASM; AIR
4JJ1-TCC ENG(RDU)
8-97383-928-1
01
1
1402-
482
NUT; AIR GUIDE
4JJ1-TCC ENG(RDU) M8 FLANGE MAL
0-91180-108-0
02
1
1402-
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1401-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
