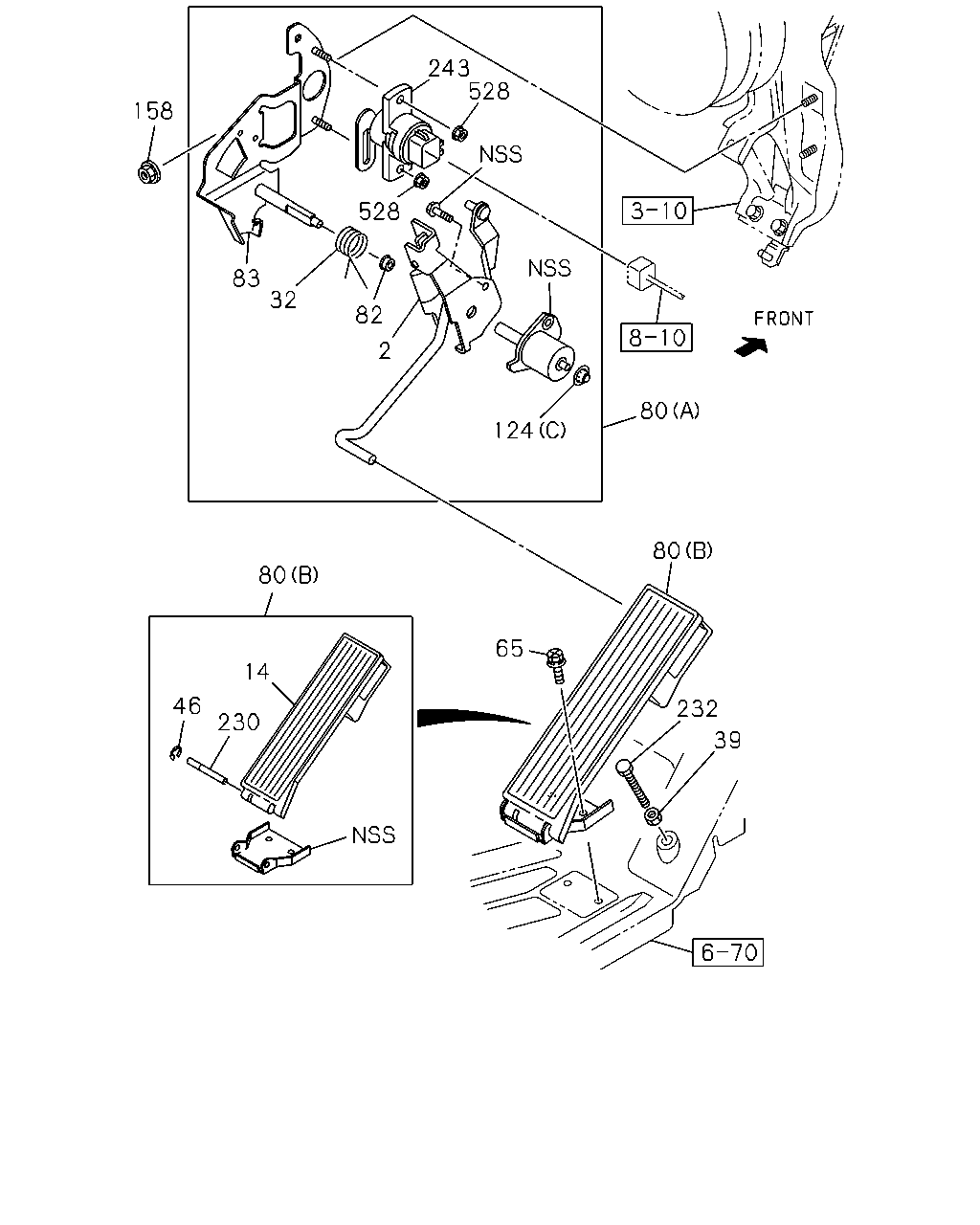

1-01 — ACCELERATOR PEDAL AND CONTROL (#132439) — 66 parça

158 243 528 528 83 32 82 2 124 80 80 80 65 232 39 14 46 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT 4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	1402-
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1401-
32	SPRING; RETURN,ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	1402-
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1401-
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1401-
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1401-
80	LINK ASM; ENG CONT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1401-
80	LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1401-
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1401-
80	LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1402-
82	BUSHING; ENG CONT LVR 4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	1402-
83	BRACKET; CONT LINK 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1401-
83	BRACKET; CONT LINK 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1401-
83	BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1402-
124	NUT; LEVER 4JB1-TC ENG(RDT) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1401-
124	NUT; LEVER 4JB1-TC ENG(RDT) (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1401-
124	NUT; LEVER 4JJ1-TCC ENG(RDU) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1402-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1401-
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1401-
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1401-
243	SENSOR; ACCEL 4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	1402-
528	NUT; ACCEL SENSOR 4JJ1-TCC ENG(RDU) M5	8-94169-022-0	02	1	1402-

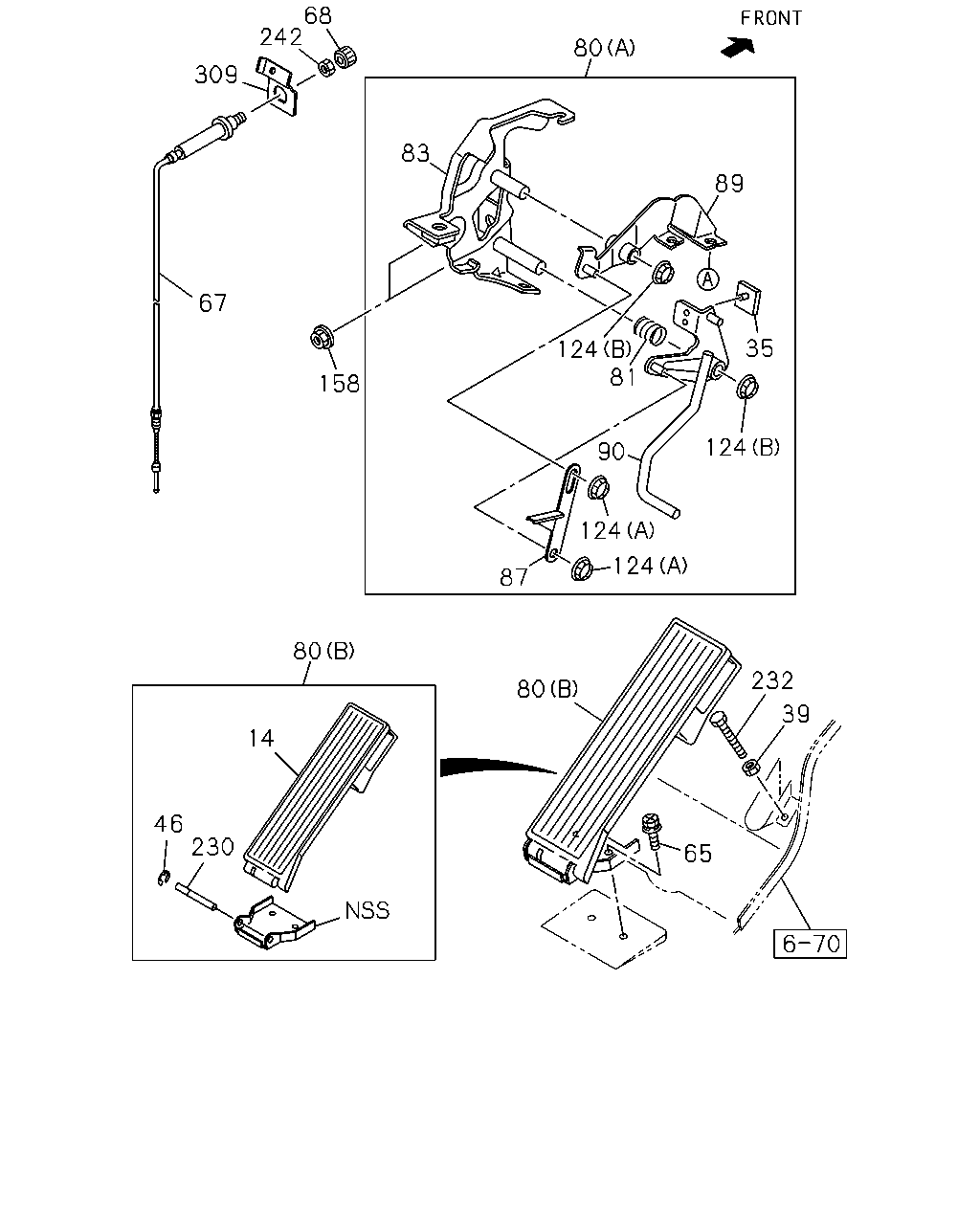

80 83 89 35 124 81 124 90 124 124 87 158 67 309 242 68 80 14 46 230 80 232 39 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PAD; PEDAL,ACCEL MAL	8-97853-062-2	01	1	1401-
35	STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT)	8-97302-305-0	01	1	1401-
39	NUT; ACCEL PEDAL STOPPER M8	0-91110-508-0	01	1	1401-
46	RING; SNAP,ACCEL CONT PEDAL ID=4 MAL	0-91805-504-0	01	1	1401-
65	BOLT M8X16 W/LK&PL WASHER MAL	8-94310-730-0	02	1	1401-
67	CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT)	8-98124-108-3	01	1	1401-
68	KNOB; IDLE CONT 4JB1-TC ENG(RDT)	8-97853-765-1	01	1	1401-
80	LINK ASM; ENG CONT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1401-
80	LINK ASM; ENG CONT 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1401-
80	LINK ASM; ENG CONT (B) MAL	8-97853-061-2	01	1	1401-
80	LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1402-
81	SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT)	8-98031-665-0	01	1	1401-
83	BRACKET; CONT LINK 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1401-
83	BRACKET; CONT LINK 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1401-
83	BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1402-
87	LINK; ENG CONT 4JB1-TC ENG(RDT)	8-97853-204-1	01	1	1401-
89	LEVER; RELAY 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1401-
89	LEVER; RELAY 4JB1-TC ENG(RDT) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1401-
90	LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT)	8-98059-513-0	01	1	1401-
124	NUT; LEVER 4JB1-TC ENG(RDT) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1401-
124	NUT; LEVER 4JB1-TC ENG(RDT) (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1401-
124	NUT; LEVER 4JJ1-TCC ENG(RDU) (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1402-
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	1401-
230	PIN; JOINT,ACCEL PEDAL TO BRKT MAL	8-97853-064-0	01	1	1401-
232	BOLT; STOPPER,ACCEL PEDAL M8X45 MAL	8-97378-461-0	01	1	1401-
242	NUT; ACCEL PEDAL 4JB1-TC ENG(RDT) M18	8-97853-233-0	01	1	1401-
309	BRACKET; IDLE CONT CABLE 4JB1-TC ENG(RDT)	8-98124-981-1	01	1	1401-

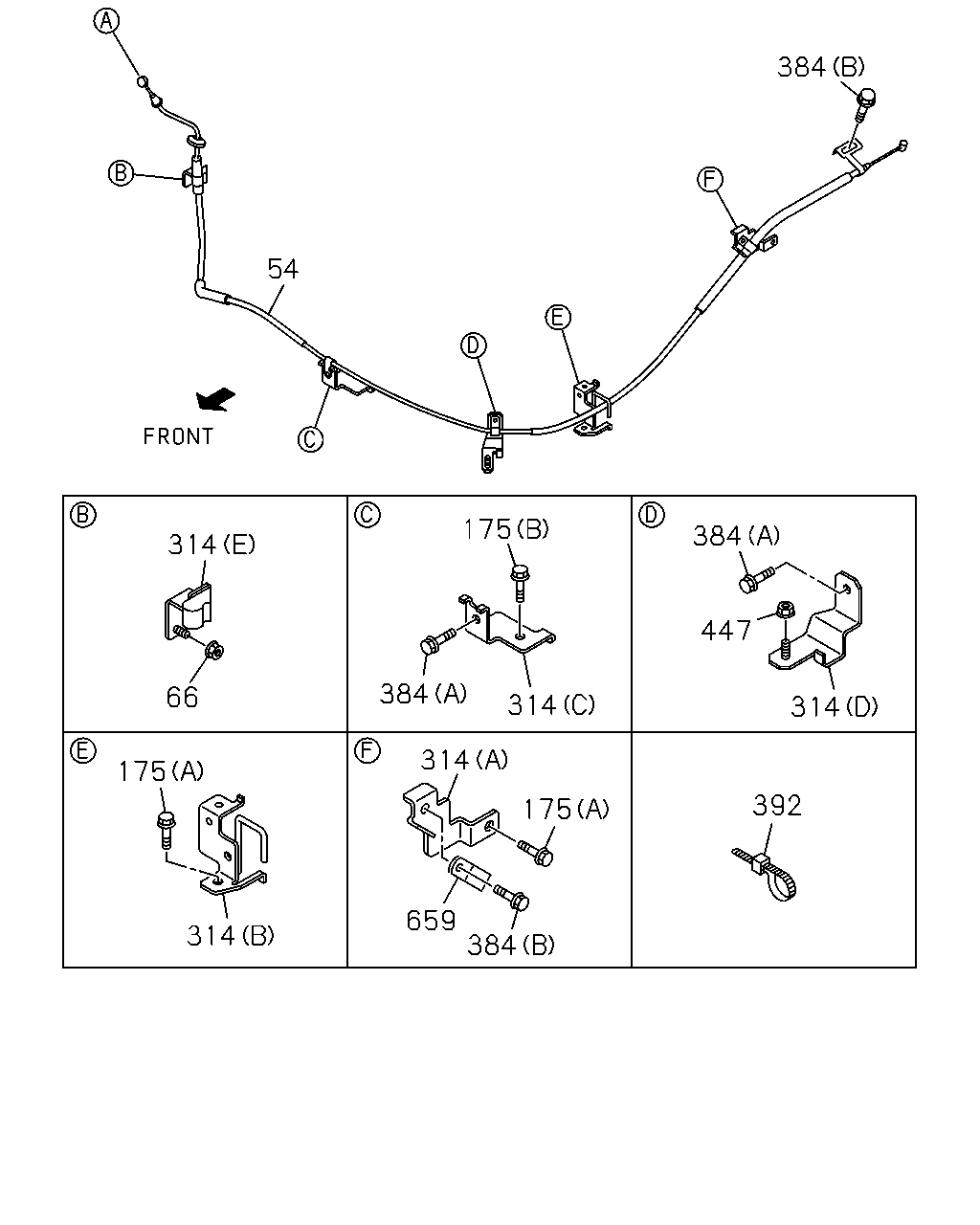

384 54 314 66 175 384 314 384 447 314 175 314 314 175 659 384 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT 4JB1-TC ENG(RDT)	8-98038-458-4	01	1	1401-
66	NUT; BRKT 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
175	BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-
175	BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
314	BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (D)	8-98072-003-2	01	1	1401-
314	BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (E)	8-98094-801-1	01	1	1401-
314	BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (A)	8-98106-754-1	01	1	1401-
314	BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (B)	8-98114-289-0	01	1	1401-
314	BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (C)	8-98131-406-0	01	1	1401-
384	BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) (B) M6X12 FLANGE MAL	0-28050-612-0	02	1	1401-
384	BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
392	CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) L=250	5-09707-030-1	01	1	1401-
447	NUT; BRKT,CONT WIRE 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
659	CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) ID=16 L=28	0-95235-552-0	01	1	1401-

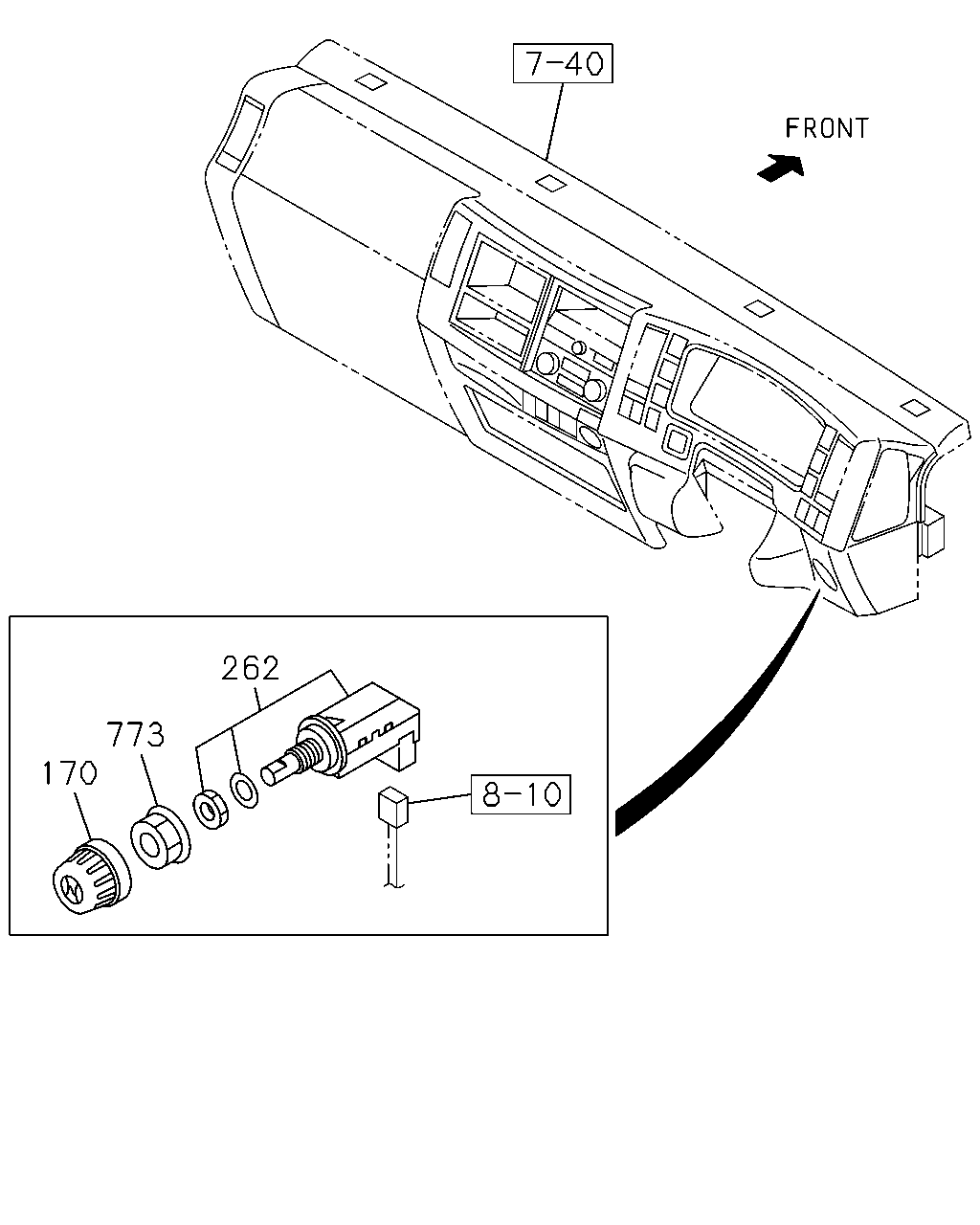

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	KNOB 4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	1402-
262	SWITCH; ACCEL,IDLE 4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	1402-
773	HOLDER; ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	1402-
