0-84 — FEED PUMP; INJECTION PUMP (#132437) — 7 parça

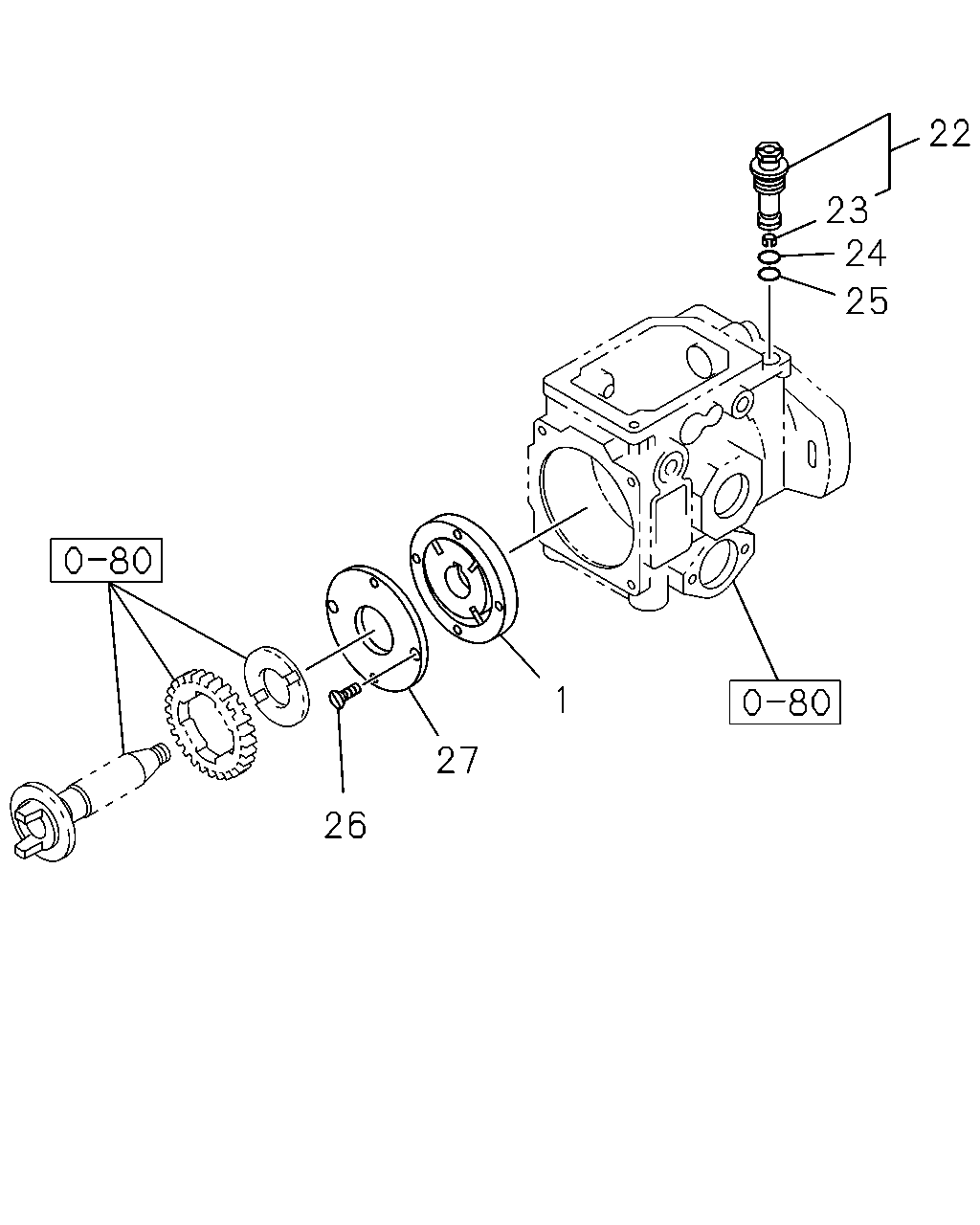

çizim 402056
22 23 1 27 26 24 25
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-477-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 06 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94174-819-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97385-180-0 01 1 -
