0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#132436) — 104 parça

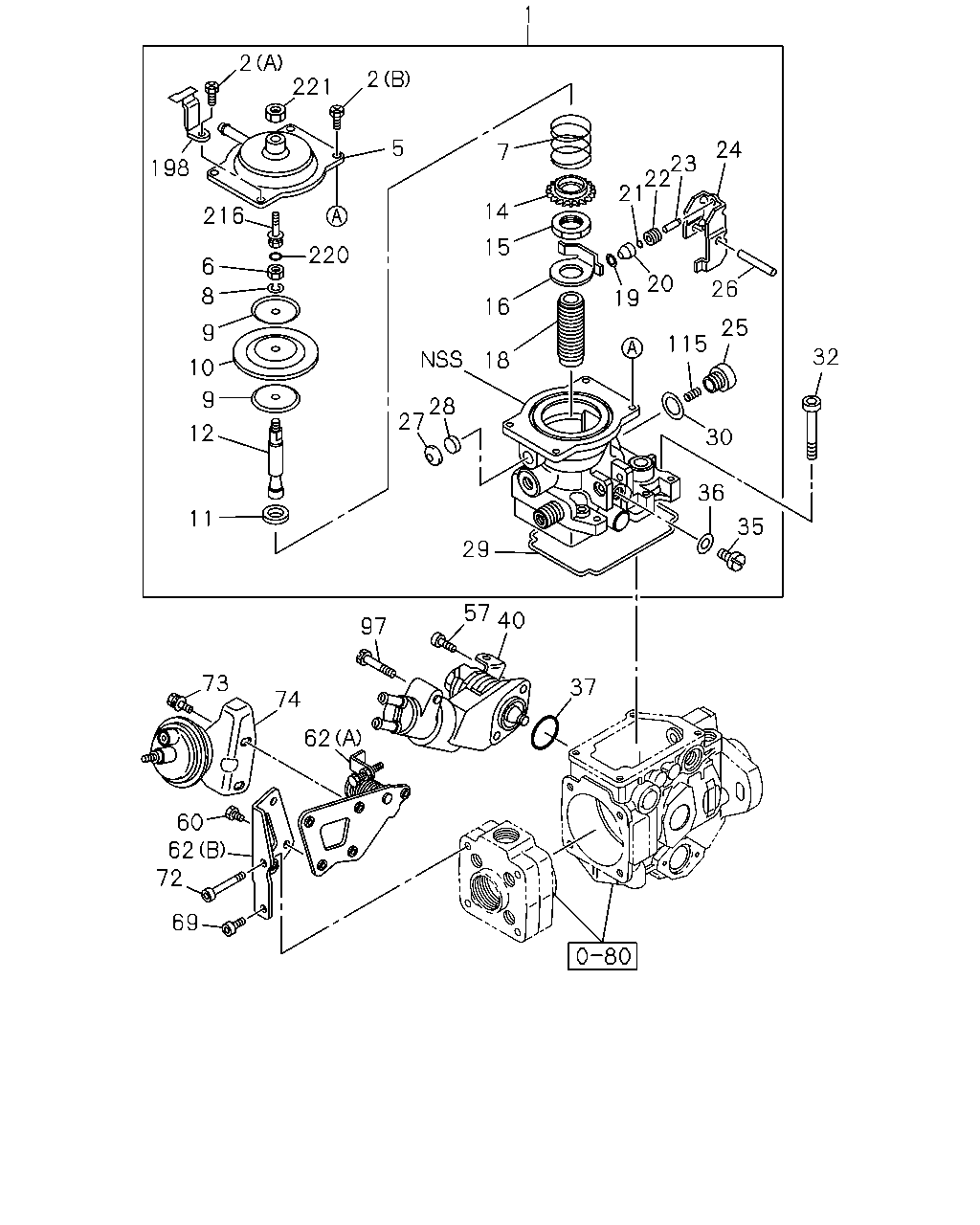

çizim 401890
2 198 216 6 8 9 10 9 12 11 73 60 62 72 69 221 74 2 220 62 5 97 1 7 14 15 16 18 28 27 29 57 24 23 22 21 19 40 20 26 115 37 25 30 36 32 35
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97204-201-9 		8-97231-935-0 01 1 -
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: B = 8-97263-086-3 		8-97302-242-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94313-264-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A), M6X12 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94313-267-0 02 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-503-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		9-88410-525-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97185-286-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-725-0 01 1 -
9 PLATE; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-723-0 02 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-724-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-729-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-730-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-731-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-732-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-733-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-734-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-735-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-736-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-737-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-738-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-739-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-740-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-741-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-742-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-743-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-744-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-745-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-746-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-747-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-748-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-749-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-750-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-751-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-752-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-753-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-754-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-755-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-756-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-757-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-758-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-510-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-511-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-512-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-513-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-514-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-515-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-516-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-517-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-518-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-102-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-103-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-104-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-105-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-106-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-107-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-108-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-109-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-110-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-111-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-112-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-113-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-114-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97046-115-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97169-970-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97169-971-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97169-972-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97169-973-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97169-974-0 01 1 -
12 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97120-314-0 01 1 -
14 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-726-0 01 1 -
15 NUT; BUSHING LK,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-720-0 01 1 -
16 PLATE; BUSHING,ADJ
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-719-0 01 1 -
18 BUSHING; ADJ PIN,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94151-391-0 01 1 -
19 GASKET; BUSHING,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-686-0 01 1 -
20 BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97218-966-0 01 1 -
21 GASKET; CONT PIN,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-684-0 01 1 -
22 NUT; BUSHING,CONT PIN,BOOST COMPENSATO
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-683-0 01 1 -
23 PIN; CONT,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94151-392-0 01 1 -
24 LEVER; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97218-967-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-502-0 01 1 -
26 PIN; CONT LEVER,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-693-0 01 1 -
27 PLUG; ELEMENT
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94151-395-0 01 1 -
28 ELEMENT; BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94159-096-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97136-413-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94144-588-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94242-298-0 04 1 -
35 PLUG; CONT LEVER PIN,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-694-0 02 1 -
36 GASKET; LEVER PIN,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		5-15729-099-0 02 1 -
37 GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-491-0 01 1 -
40 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97313-362-0 01 1 -
57 BOLT; START ADVANCE
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		1-15619-276-0 01 1 -
60 BOLT; BRKT
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94313-203-0 02 1 -
62 BRACKET; ACTUATOR
(A) ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97086-128-1 01 1 -
62 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97086-129-0 01 1 -
69 SCREW; BRKT,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94325-497-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94242-278-0 01 1 -
73 BOLT; ACTUATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97094-111-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97086-134-0 01 1 -
97 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97218-972-0 01 1 -
115 SPRING; COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-505-0 01 1 -
198 BRACKET; DIAPH
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-507-0 01 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-478-0 01 1 -
220 GASKET; ADJ SCREW,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94122-761-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		1-15729-006-0 01 1 -
