0-80 — INJECTION PUMP (#132434) — 143 parça

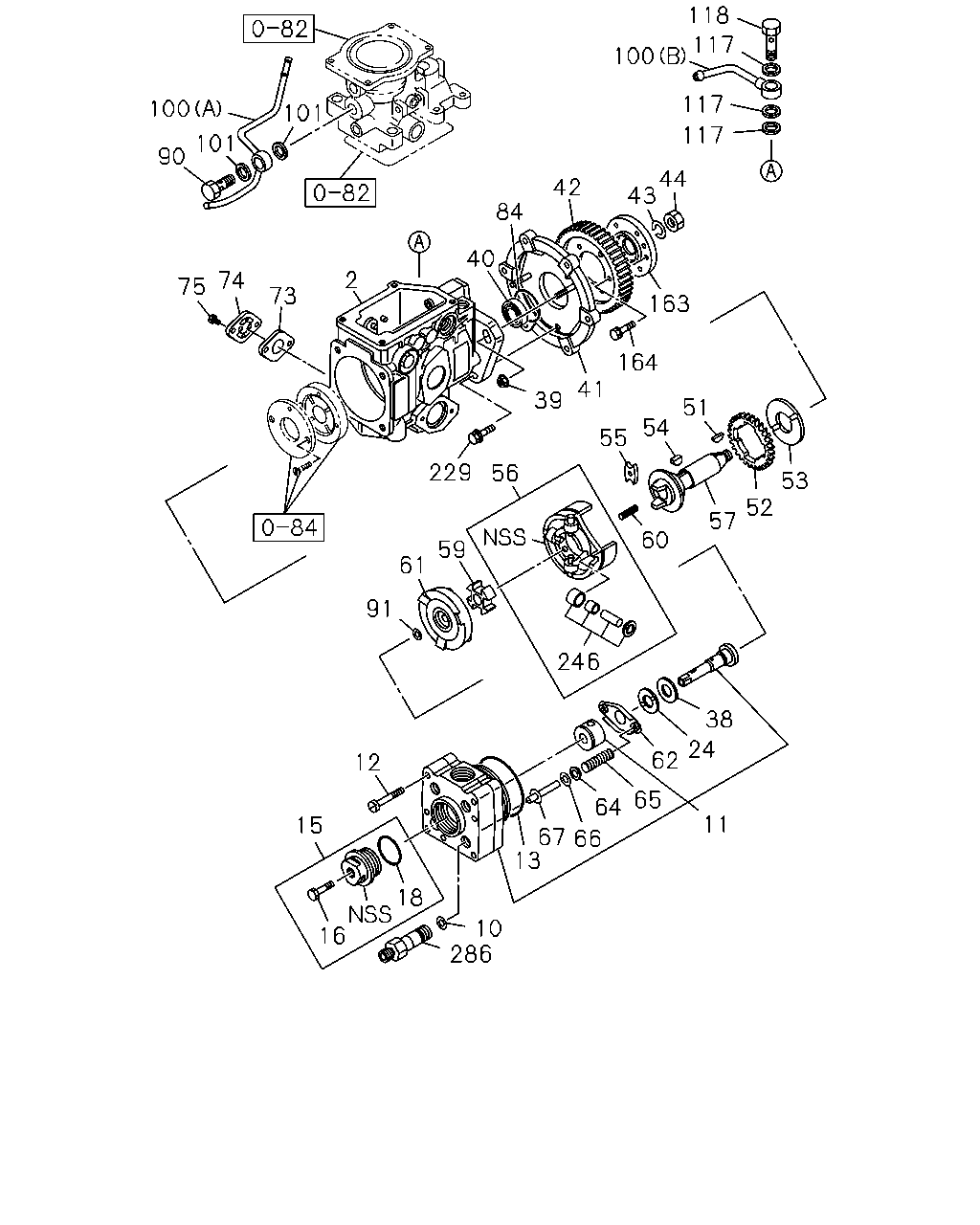

çizim 401785
100 90 75 15 16 74 73 2 61 91 12 18 42 84 101 101 40 229 59 10 286 100 43 44 163 164 41 39 56 13 118 117 117 117 51 54 55 246 67 60 64 66 53 52 57 38 24 62 65 11
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97231-940-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94247-716-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-499-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94257-670-0 03 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-527-0 01 1 -
15 PLUG ASM; DISTR,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97231-942-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-514-0 01 1 -
39 NUT; MTG BRKT FIX
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97147-034-0 01 1 -
41 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-512-1 01 1 -
42 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97229-619-0 01 1 -
43 WASHER; LK,DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94226-554-0 01 1 -
44 NUT; DRIVE GEAR FIX,INJ PUMP
M14 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94226-565-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97204-201-9 		5-83539-024-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: B = 8-97263-086-3 		8-94239-370-0 01 1 -
52 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94317-488-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-528-0 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97218-960-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97217-211-0 01 1 -
59 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97144-349-1 01 1 -
60 SPRING; DRIVE DISC,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-524-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-495-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-522-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94433-209-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97146-139-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97146-140-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97146-141-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97146-142-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-360-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-361-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-362-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-363-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-364-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-365-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-366-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-367-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-368-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-369-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-370-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-371-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-372-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-373-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97189-374-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97328-703-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97383-765-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97231-933-0 02 1 -
84 GASKET; BRKT TO HSG
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94247-722-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-509-0 01 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-578-0 AR 1 -
100 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97214-510-0 01 1 -
100 PIPE; FUEL INJ PUMP
(B) ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97385-181-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97249-545-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97249-545-0 03 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94379-688-0 01 1 -
163 COUPLING; INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-337-1 01 1 -
164 BOLT; GEAR TO COUPLING
M6X18 ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		9-01910-618-0 06 1 -
229 BOLT; BRKT
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97049-904-0 01 1 -
246 ROLLER KIT; INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97218-980-0 01 1 -
286 VALVE; PRESSURE,CONT
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97227-581-1 04 1 -

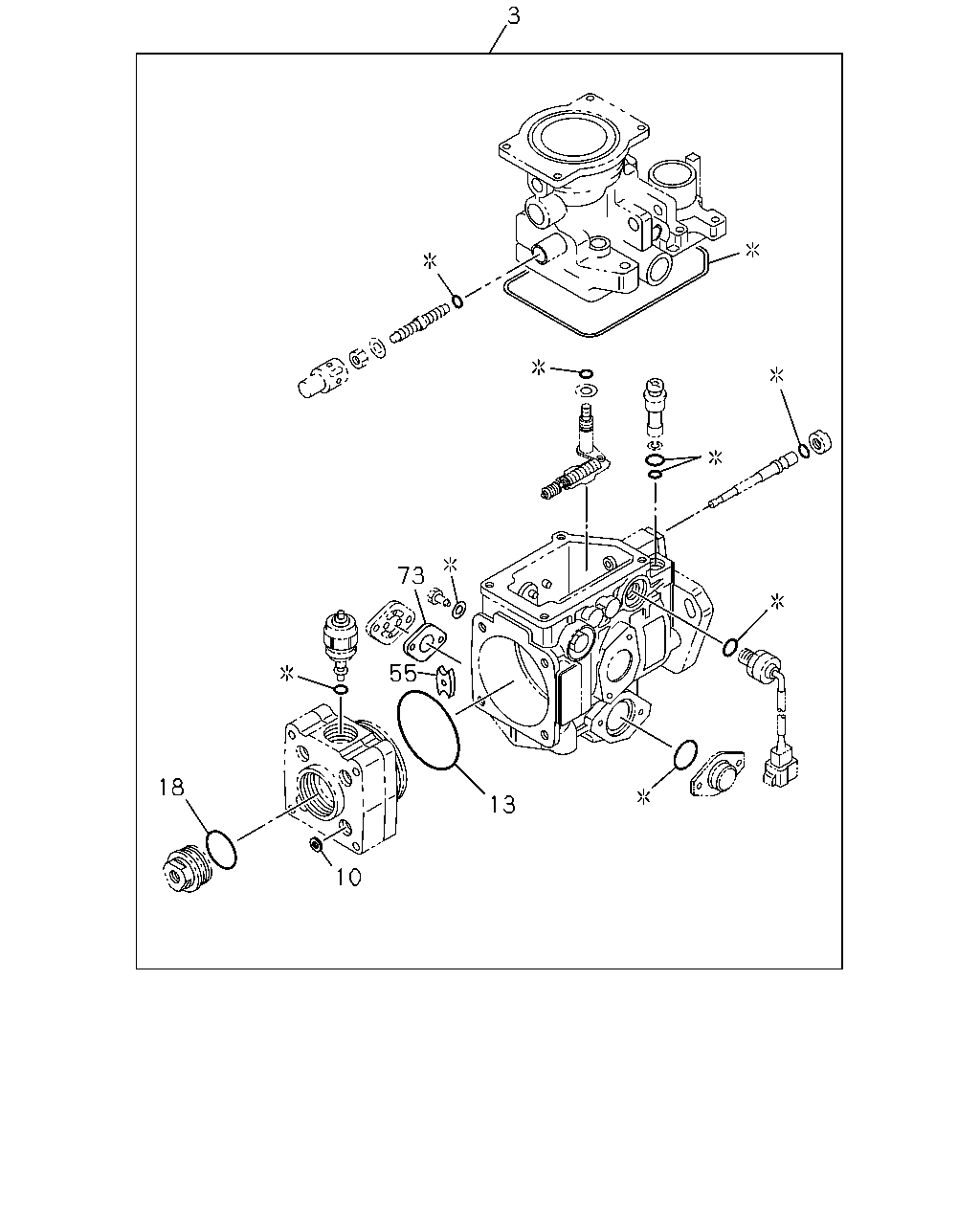

çizim 402115
3 18 73 55 10 13
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97383-766-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94247-716-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-527-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94227-637-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-94169-528-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97204-201-9, B = 8-97263-086-3 		8-97383-765-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
