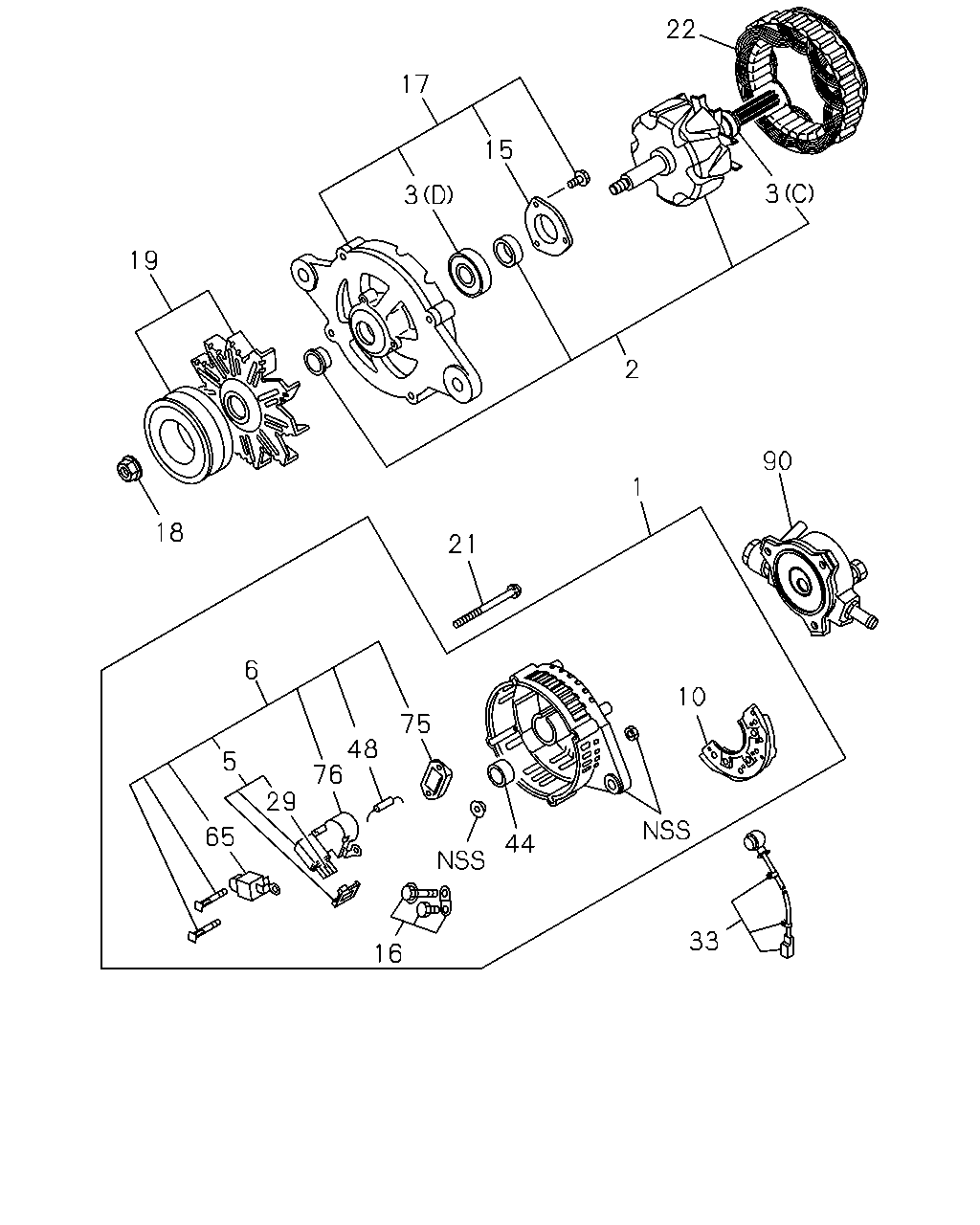

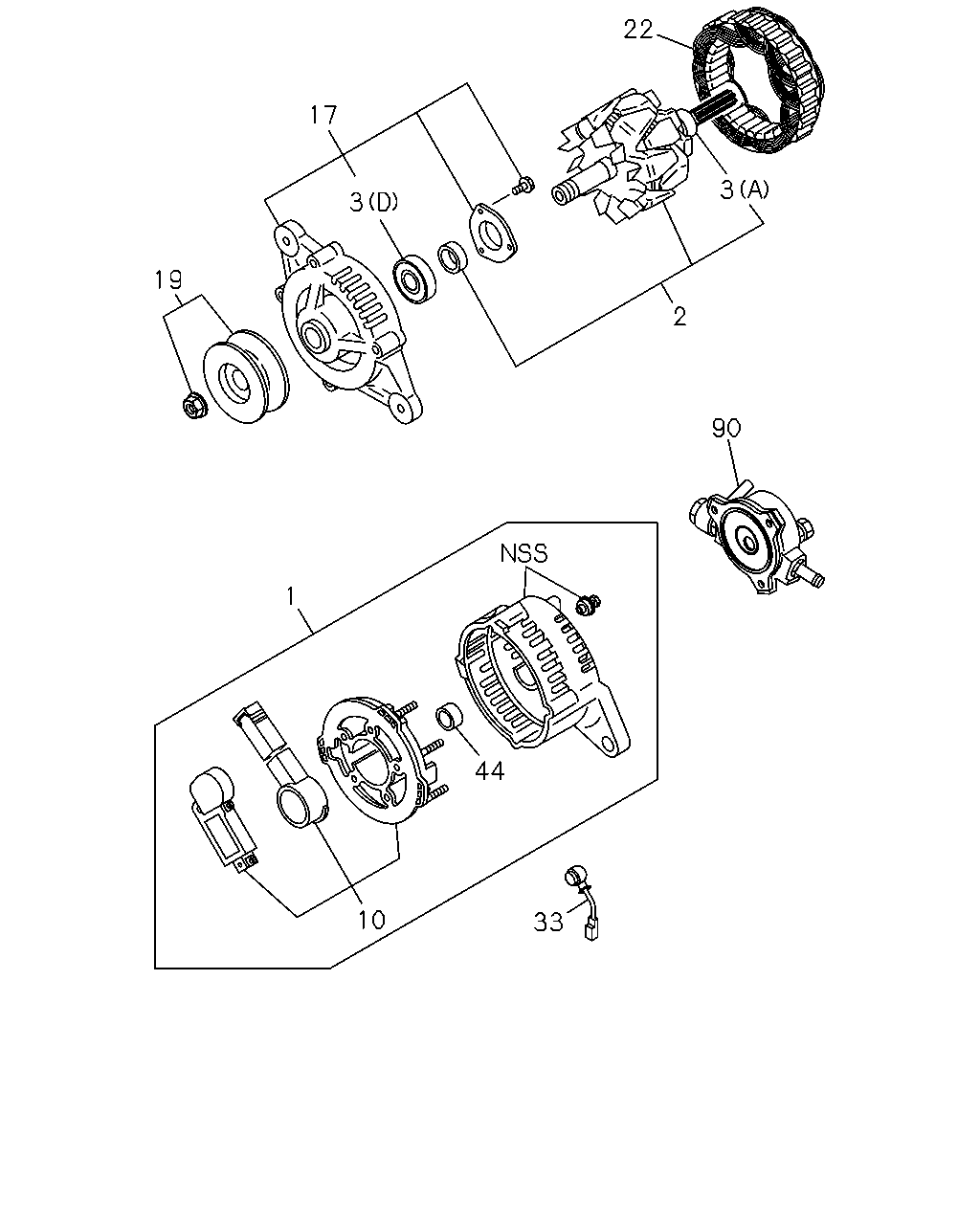

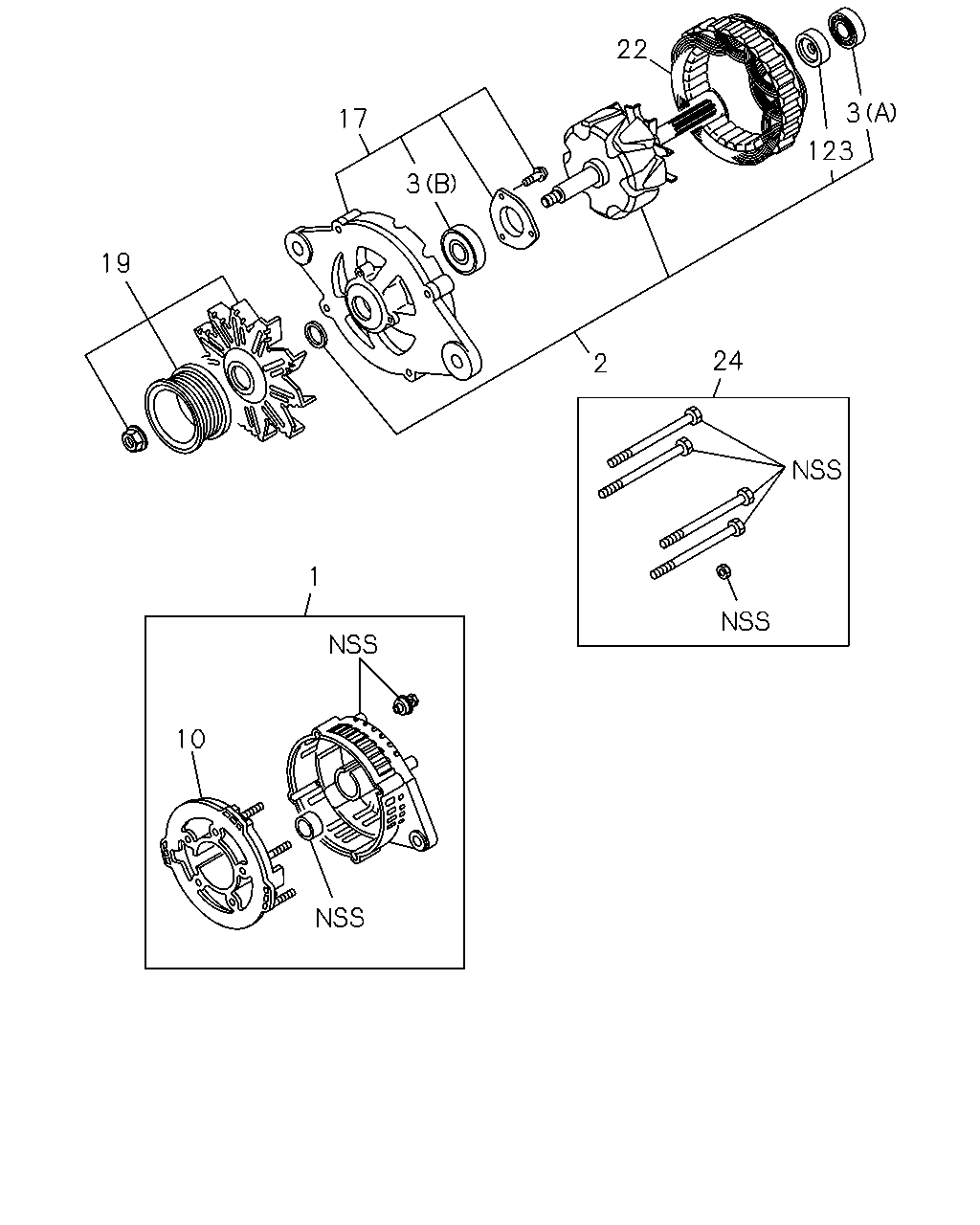

0-66 — GENERATOR (#132433) — 122 parça

17 19 22 3 15 18 2 3 6 21 1 90 5 65 29 76 48 75 16 44 10 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98029-887-2	8-98230-316-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98029-887-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98029-887-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (C), MAL ASM PART: A = 8-97187-657-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D), MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-98159-457-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97187-657-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97187-657-2	8-97026-052-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-98029-887-2	8-98230-326-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-596-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97187-657-2	8-94223-974-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97187-657-2	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98300-335-0	8-98305-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97187-657-2	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97187-657-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-599-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97187-657-2	8-94156-602-0	04	1	-
22	STATOR; GEN MAL ASM PART: B = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97313-437-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97187-657-2	8-94156-593-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97187-657-2	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-597-0	01	1	-
44	SEAL; RR COVER,GEN MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: A = 8-97187-657-2	8-94237-727-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97187-657-2	8-94156-594-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97187-657-2	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN ASM PART: A = 8-97187-657-2	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97351-341-0	01	1	-

90 2 3 22 17 3 19 1 44 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98029-887-2	8-98230-316-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98029-887-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98029-887-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (C), MAL ASM PART: A = 8-97187-657-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D), MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-98159-457-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-98029-887-2	8-98230-326-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-596-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98300-335-0	8-98305-117-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97187-657-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-599-0	01	1	-
22	STATOR; GEN MAL ASM PART: B = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97313-437-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97187-657-2	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-597-0	01	1	-
44	SEAL; RR COVER,GEN MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97351-341-0	01	1	-

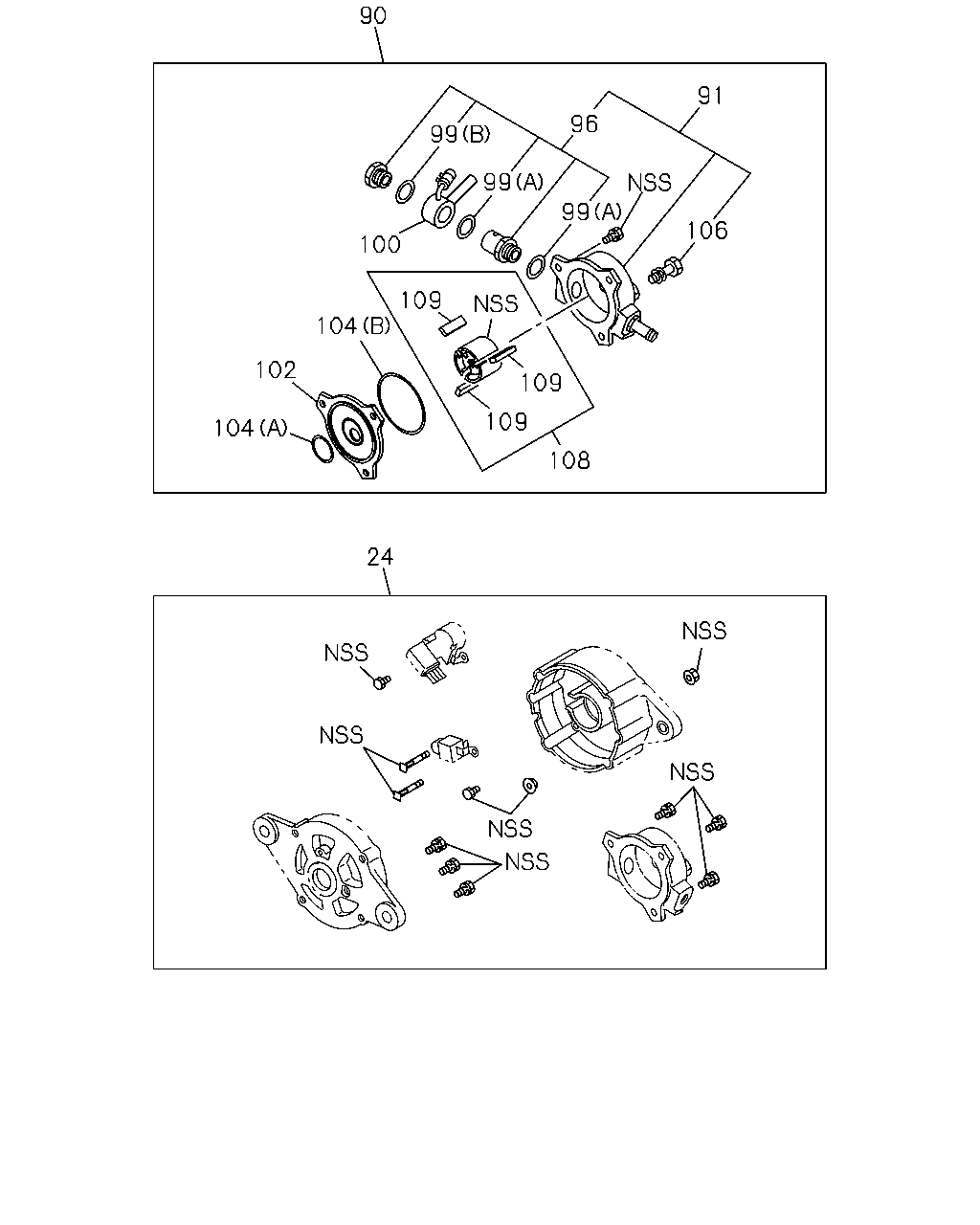

24 104 102 104 109 108 109 109 100 106 99 99 99 96 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-98029-887-2	8-98038-927-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97351-341-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-985-0	03	1	-

17 22 3 123 3 19 2 24 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98029-887-2	8-98230-316-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98029-887-2	8-98038-914-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-98029-887-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-98029-887-2	8-97161-473-0	01	1	-
3	BEARING; ROTOR,GEN (C), MAL ASM PART: A = 8-97187-657-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D), MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-98159-457-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-98029-887-2	8-98230-326-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-596-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98029-887-2	8-98038-922-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98300-335-0	8-98305-117-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97187-657-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98029-887-2	8-98038-925-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-98284-599-0	01	1	-
22	STATOR; GEN MAL ASM PART: B = 8-98029-887-2	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-98029-887-2	8-98038-927-0	01	1	-
123	GUIDE; BRUSH MAL ASM PART: B = 8-98029-887-2	8-97062-644-0	01	1	-

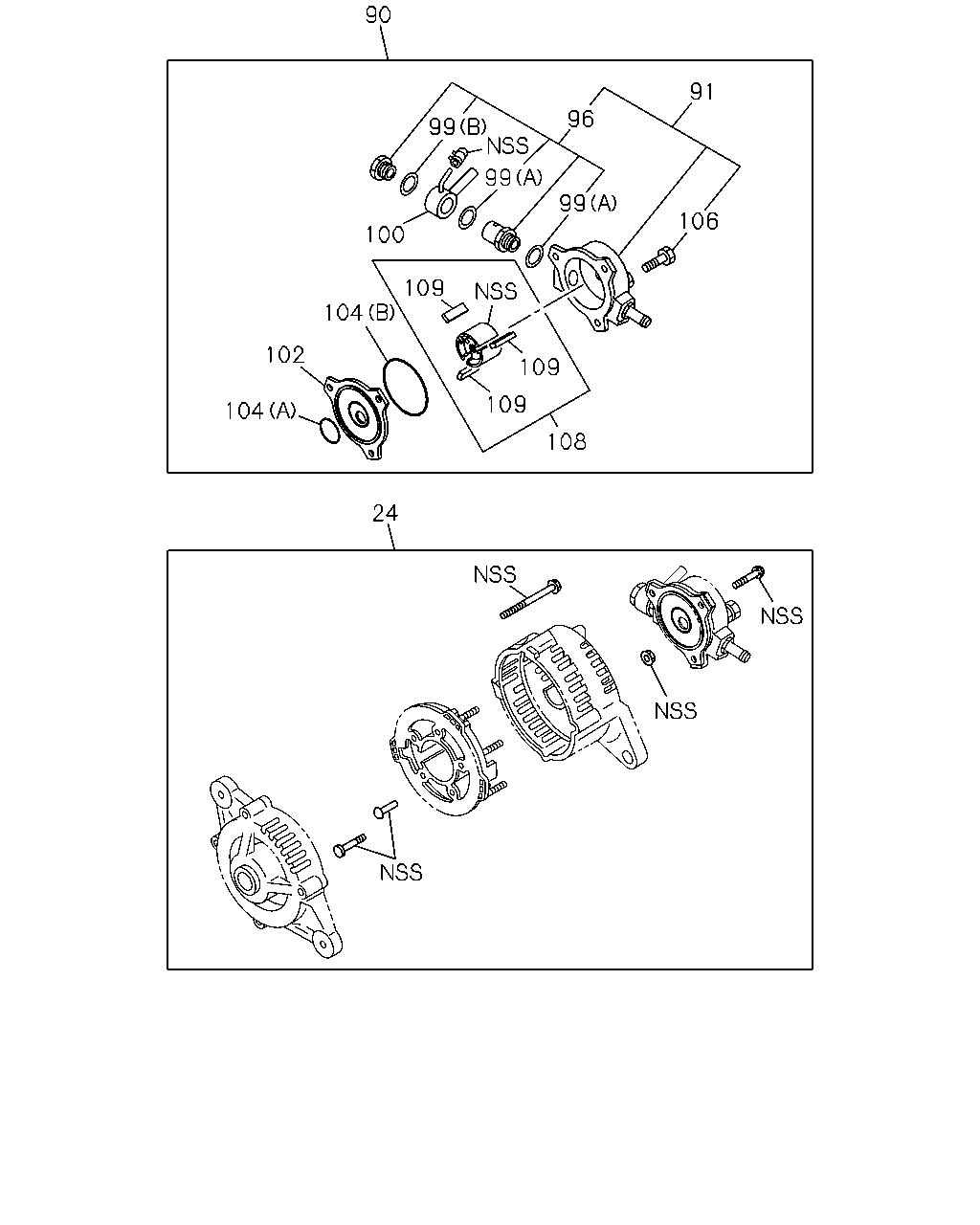

90 99 96 91 99 106 99 109 100 104 102 104 109 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: C = 8-98284-007-0, D = 8-98300-335-0	8-97161-697-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-98029-887-2	8-98038-927-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97351-341-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), MAL ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97187-657-2, C = 8-98284-007-0, D = 8-98300-335-0	8-94223-985-0	03	1	-
