0-65 — STARTER (#132432) — 80 parça

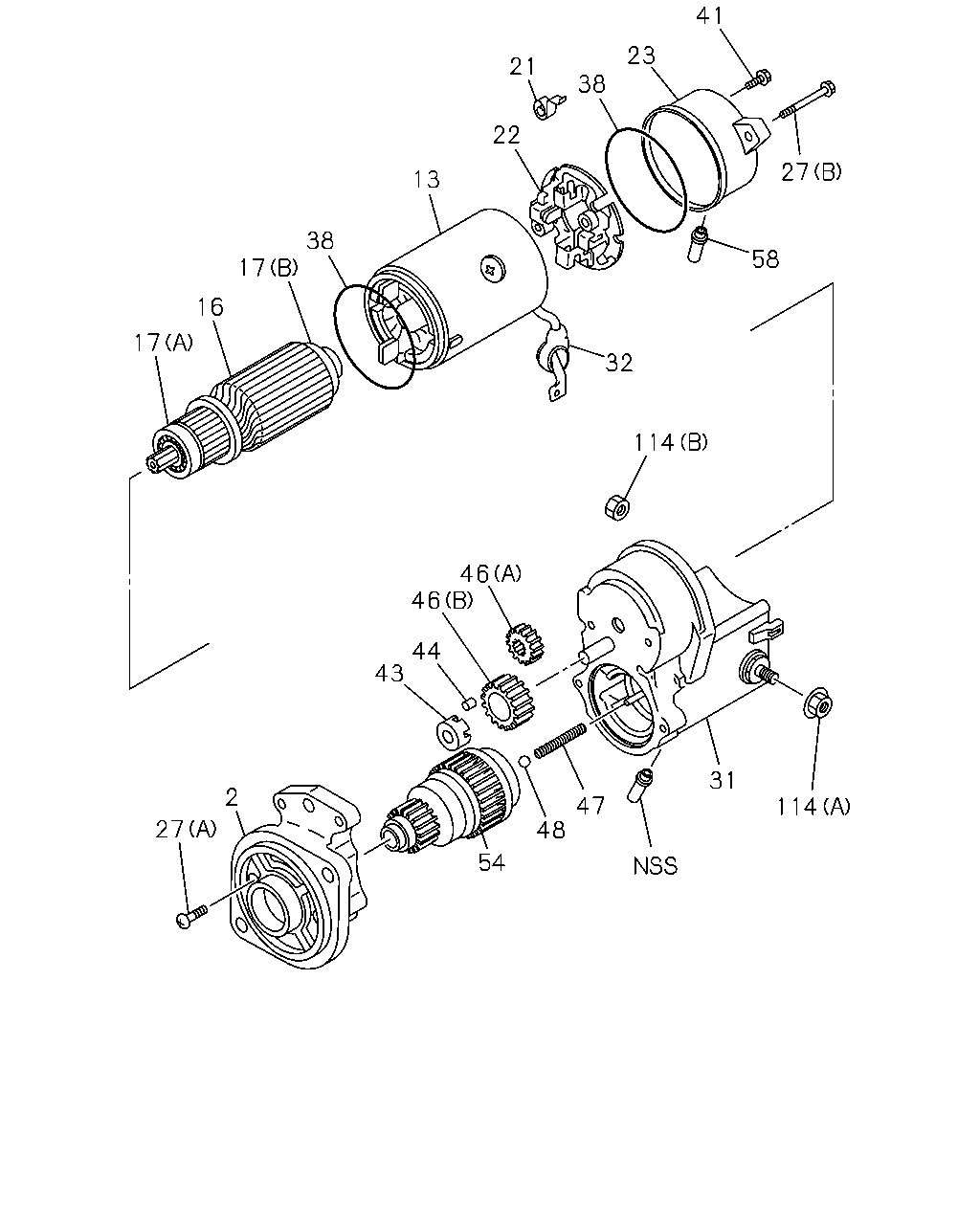

17 16 17 38 13 22 21 23 38 41 27 58 32 114 46 46 44 43 2 27 54 47 48 31 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-786-1	01	1	-
13	YOKE; STARTER MAL ASM PART: A = 8-97120-356-2	8-97135-497-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: B = 8-98222-018-2	8-97192-299-0	01	1	-
17	BEARING; ARMATURE,STARTER (D), MAL ASM PART: B = 8-98222-018-2	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: A = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), MAL ASM PART: B = 8-98222-018-2	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), MAL ASM PART: A = 8-97120-356-2	8-97112-954-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: B = 8-98222-018-2	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98222-018-2	8-98246-185-0	01	1	-
27	BOLT; THROUGH,STARTER (A), MAL ASM PART: A = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B), MAL ASM PART: A = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER (C), MAL ASM PART: B = 8-98222-018-2	8-97192-423-0	02	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: B = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER MAL ASM PART: A = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER MAL ASM PART: B = 8-98222-018-2	5-81129-069-0	01	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: A = 8-97120-356-2	8-94170-214-0	02	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: B = 8-98222-018-2	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: B = 8-98222-018-2	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER MAL ASM PART: A = 8-97120-356-2	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER MAL ASM PART: A = 8-97120-356-2	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B), MAL ASM PART: A = 8-97120-356-2	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A), MAL ASM PART: A = 8-97120-356-2	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER MAL ASM PART: A = 8-97120-356-2	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER MAL ASM PART: A = 8-97120-356-2	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER MAL ASM PART: A = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98222-018-2	8-98222-101-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER MAL ASM PART: A = 8-97120-356-2	8-97041-421-0	01	1	-
114	NUT; TERMINAL (A), MAL ASM PART: A = 8-97120-356-2	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B), MAL ASM PART: A = 8-97120-356-2	8-94377-238-0	01	1	-

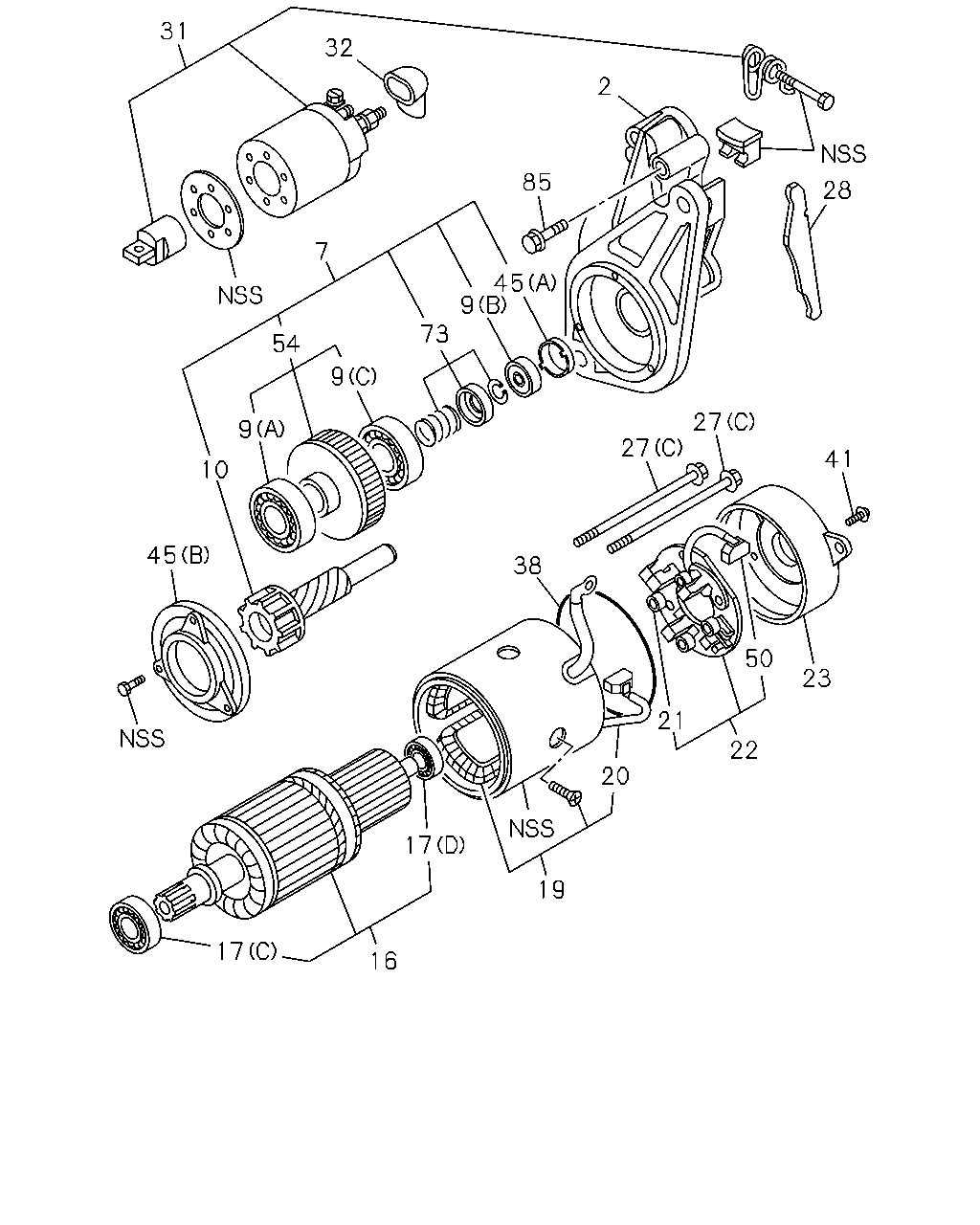

31 32 7 54 9 10 45 85 45 9 73 9 2 27 28 27 41 23 50 22 20 21 38 19 17 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-786-1	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98222-018-2	8-98222-100-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C), MAL ASM PART: B = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), MAL ASM PART: B = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), MAL ASM PART: B = 8-98222-018-2	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER MAL ASM PART: B = 8-98222-018-2	8-97179-772-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-869-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: B = 8-98222-018-2	8-97192-299-0	01	1	-
17	BEARING; ARMATURE,STARTER (D), MAL ASM PART: B = 8-98222-018-2	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: A = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), MAL ASM PART: B = 8-98222-018-2	8-97030-387-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), MAL ASM PART: A = 8-97120-356-2	8-97112-954-0	01	1	-
19	COIL; FIELD,STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-295-0	01	1	-
20	BRUSH; (+),STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: B = 8-98222-018-2	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: B = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER MAL ASM PART: A = 8-97120-356-2	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98222-018-2	8-98246-185-0	01	1	-
27	BOLT; THROUGH,STARTER (A), MAL ASM PART: A = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B), MAL ASM PART: A = 8-97120-356-2	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER (C), MAL ASM PART: B = 8-98222-018-2	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER MAL ASM PART: B = 8-98222-018-2	8-97179-776-0	01	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: B = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER MAL ASM PART: A = 8-97120-356-2	5-81119-029-0	01	1	-
32	COVER; RUBBER,STARTER MAL ASM PART: B = 8-98222-018-2	5-81129-069-0	01	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: A = 8-97120-356-2	8-94170-214-0	02	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: B = 8-98222-018-2	8-97115-763-0	01	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: B = 8-98222-018-2	8-97117-107-0	02	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: A = 8-97120-356-2	8-97142-903-0	02	1	-
45	RETAINER; BEARING,STARTER (A), MAL ASM PART: B = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (B), MAL ASM PART: B = 8-98222-018-2	8-97179-774-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER MAL ASM PART: A = 8-97120-356-2	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98222-018-2	8-98222-101-0	01	1	-
73	STOPPER SET; PINION MAL ASM PART: B = 8-98222-018-2	8-97030-396-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER MAL ASM PART: B = 8-98222-018-2	8-94408-500-0	02	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER MAL ASM PART: B = 8-98222-018-2	8-97179-778-0	01	1	-
