0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#132431) — 38 parça

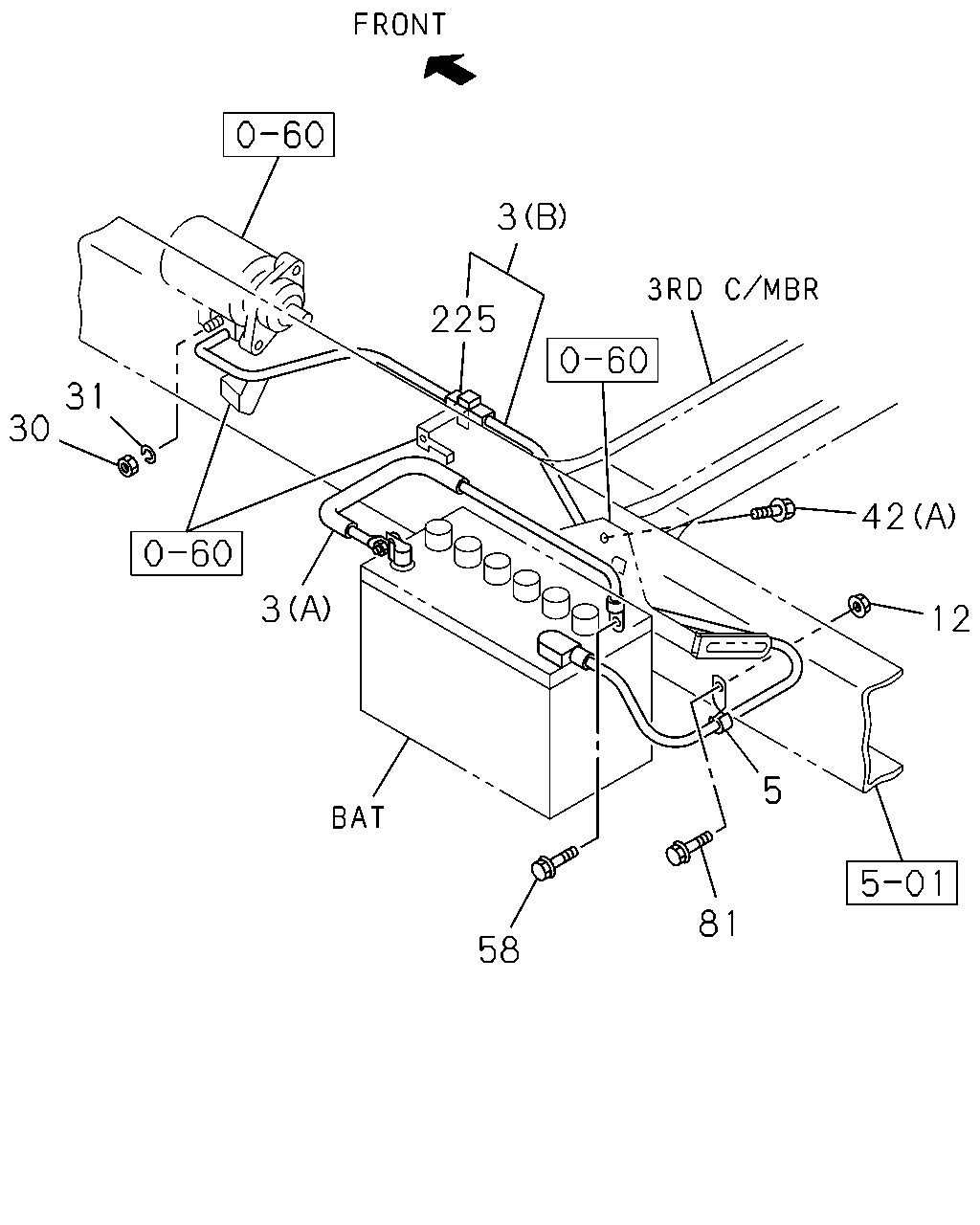

çizim 401210
31 30 3 225 3 42 12 5 81 58
BalonParca AdiParca NoAdetTipApplied Date A B
3 HARNESS; CABLE,BATTERY TO STARTER
(A) MAL 		8-98072-081-3 01 1 1401- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) MAL 		8-98108-626-1 01 1 1401-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) MAL 		8-98294-683-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(C) 		8-98048-439-3 01 1 1402-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(C) 		8-98293-886-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(D) L=200 MAL 		8-98056-337-1 01 1 1402- ●
5 CLIP; BATTERY CABLE TO BODY
ID=19 L=58 		1-09700-733-1 01 1 1401- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1401- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1401-1401 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1402- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1401-1401 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1402- ● ●
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 1401- ● ●
42 BOLT; BRKT,BATTERY CABLE
(B) M6X25 FLANGE MAL 		0-28650-625-0 01 1 1402- ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1401- ● ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1401- ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1401-1401 ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1402-1409 ● ●
225 BLOCK; TERMINAL
MAL 		8-98294-524-0 01 1 1410- ● ●

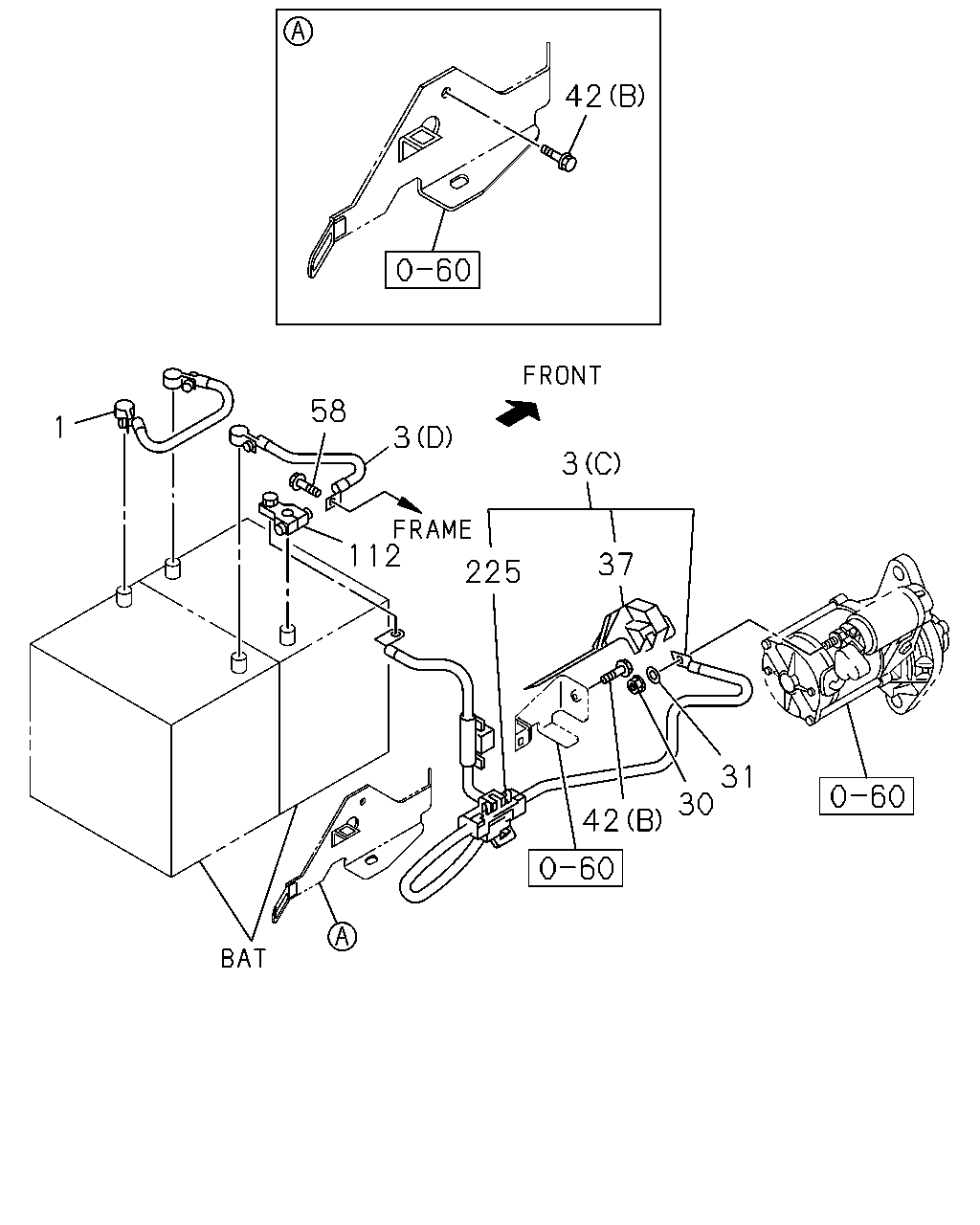

çizim 401212
42 1 58 112 3 225 37 31 30 42 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 MAL 		8-98025-412-3 01 1 1402- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) MAL 		8-98072-081-3 01 1 1401- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) MAL 		8-98108-626-1 01 1 1401-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) MAL 		8-98294-683-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(C) 		8-98048-439-3 01 1 1402-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
(C) 		8-98293-886-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(D) L=200 MAL 		8-98056-337-1 01 1 1402- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1401-1401 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1402- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1401-1401 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-808-0 01 1 1402- ● ●
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1402- ●
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 1401- ● ●
42 BOLT; BRKT,BATTERY CABLE
(B) M6X25 FLANGE MAL 		0-28650-625-0 01 1 1402- ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1401- ● ●
112 TERMINAL; BATTERY
<+> MAL 		8-97365-771-0 01 1 1402- ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1401-1401 ●
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1402-1409 ● ●
225 BLOCK; TERMINAL
MAL 		8-98294-524-0 01 1 1410- ● ●
