0-52 — OIL AND VACUUM PIPING; ENGINE (#132428) — 106 parça

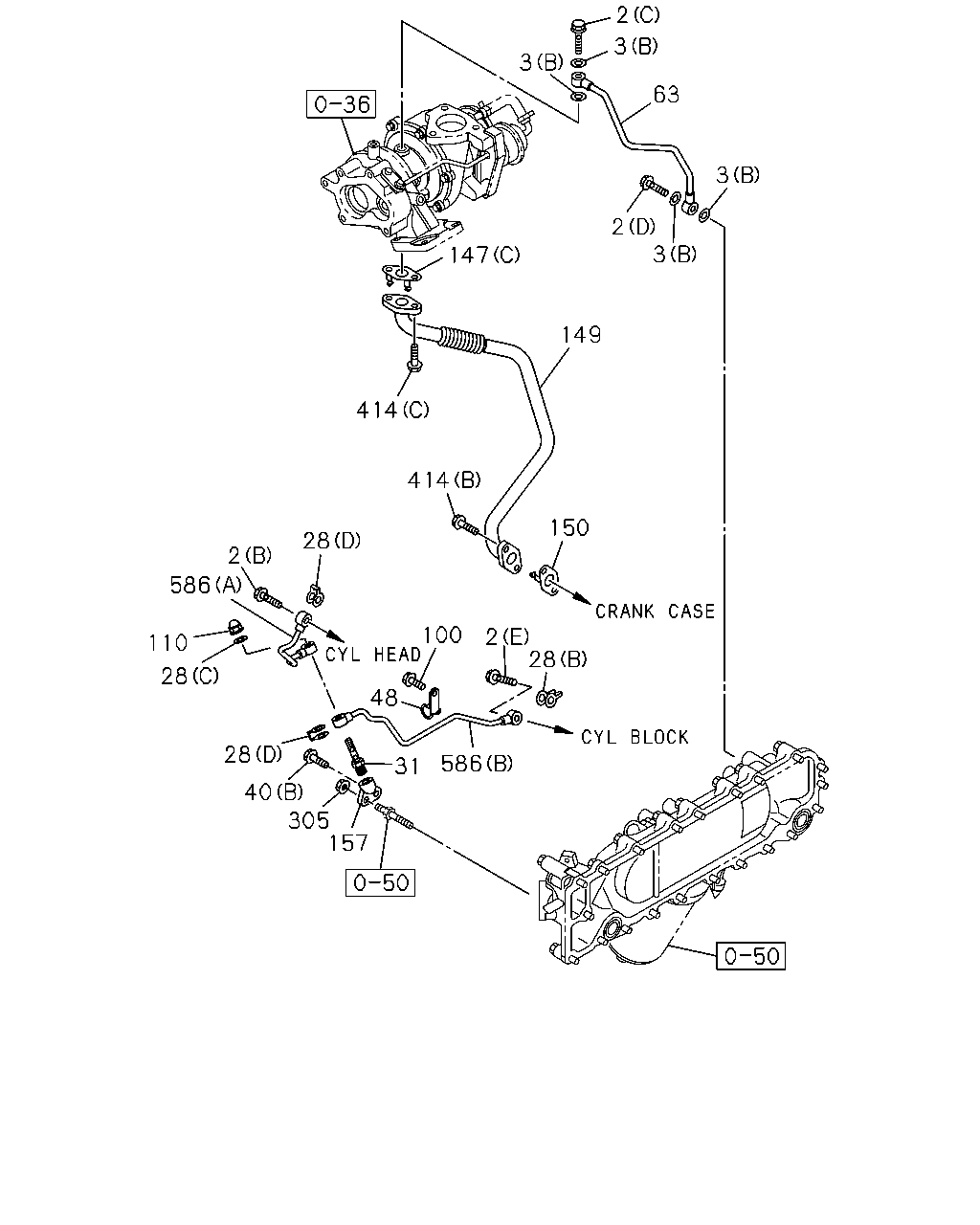

2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 110 28 100 2 28 48 586 31 28 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X23 FLANGE	8-94332-831-1	01	1	1401-	●
2	BOLT; EYE,OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (D) M10X24	9-09906-205-1	01	1	1402-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	04	1	1402-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	1401-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1402-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=8.2	8-97251-046-0	02	1	1402-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1402-		●
31	NIPPLE; OIL PIPE	8-98044-067-1	01	1	1402-		●
40	BOLT; OIL PIPE (A) M6X10 FLANGE	0-28050-610-0	01	1	1401-	●
40	BOLT; OIL PIPE (B) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-		●
48	CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	1402-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1401-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	1402-		●
100	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	1402-		●
110	NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1402-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-1	01	1	1401-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1401-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	1402-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1401-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	1402-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1402-		●
157	BRACKET; OIL PIPE	8-98043-093-0	01	1	1402-		●
305	NUT; BRKT,OIL PIPE M6 FLANGE MAL	0-91180-106-0	01	1	1402-		●
414	BOLT; OIL PIPE (A) M6X16 FLANGE MAL	0-28050-616-0	02	1	1401-	●
414	BOLT; OIL PIPE (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1402-		●
414	BOLT; OIL PIPE (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1402-		●
586	PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	1402-		●
586	PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	1402-		●

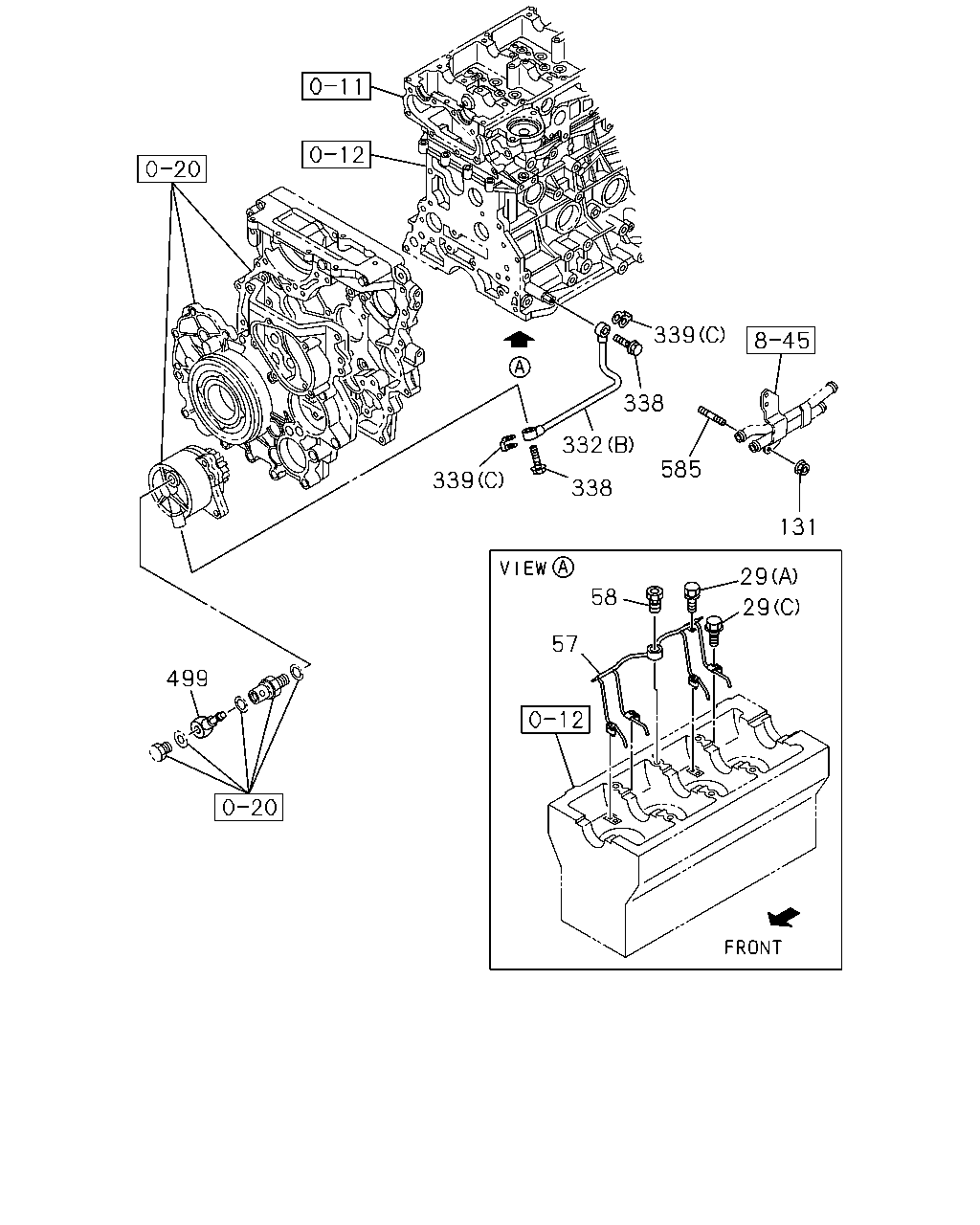

339 338 332 585 131 338 339 57 58 29 29 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1401-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1401-1401	●
29	BOLT; OIL PIPE,OIL JET (C) M6X20	8-97117-298-1	04	1	1402-		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1402-	●	●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	1401-	●
57	PIPE; OIL,OIL JET	8-97312-132-3	01	1	1402-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	1401-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	1402-1407		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-98285-334-0	01	1	1408-		●
131	NUT; UNION M8 FLANGE	5-09440-010-0	01	1	1402-		●
332	PIPE; OIL,C/BL TO VAC PUMP (A)	8-94443-644-1	01	1	1401-	●
332	PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1402-		●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1401-	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1402-		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1401-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1401-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1402-		●
499	PIPE; VACUUM	8-98027-553-0	01	1	1402-		●
585	STUD; CLIP M8X18 L=30	0-41010-818-0	01	1	1402-		●

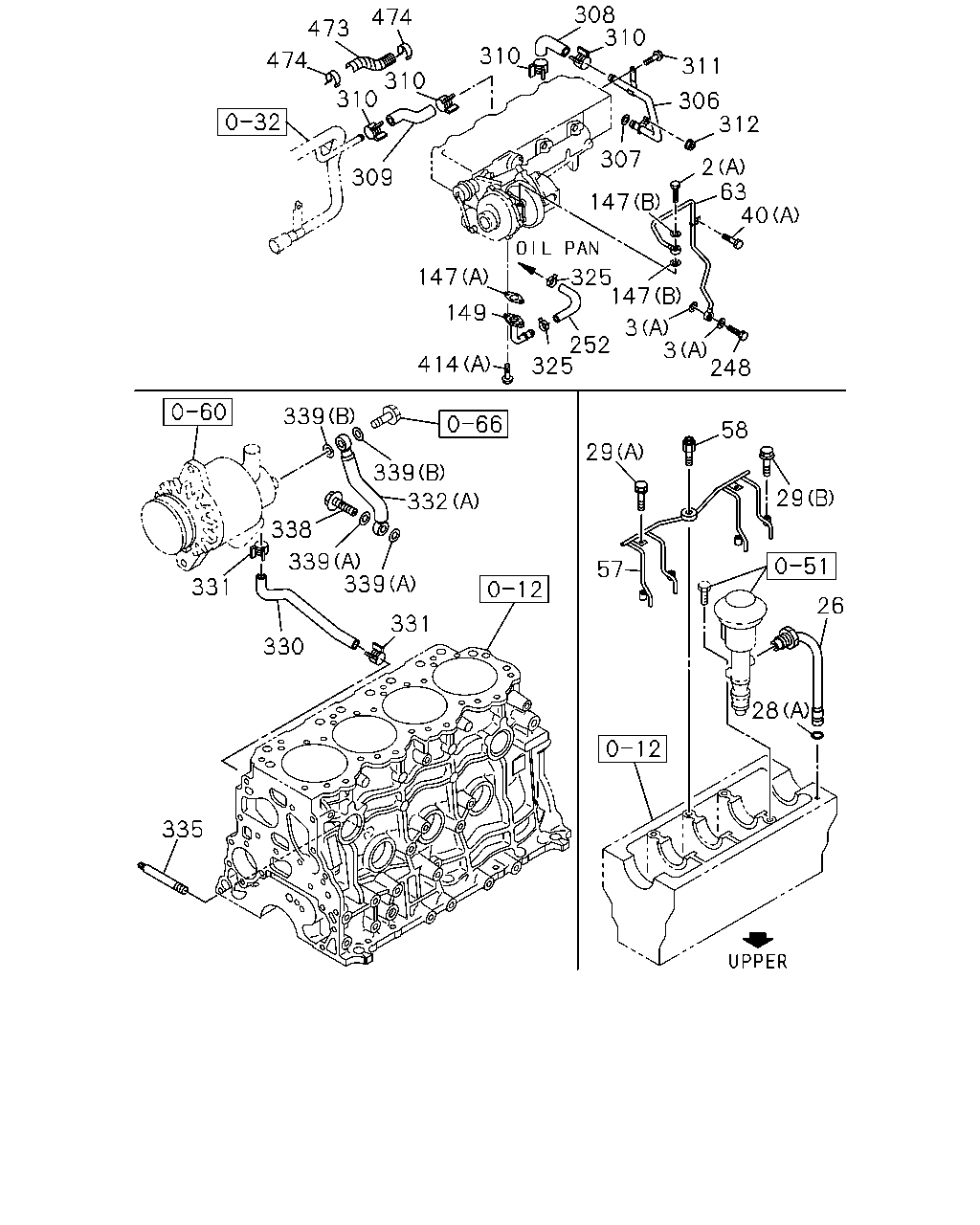

474 473 474 308 310 310 310 309 310 311 306 312 307 147 147 149 414 2 63 40 325 147 3 252 325 3 248 29 57 58 29 26 28 339 339 332 338 339 339 331 331 330 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (A) M10X23 FLANGE	8-94332-831-1	01	1	1401-	●
2	BOLT; EYE,OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1402-		●
2	BOLT; EYE,OIL PIPE (D) M10X24	9-09906-205-1	01	1	1402-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=20.0	9-09571-414-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	04	1	1402-		●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1401-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=11	5-09623-002-0	02	1	1401-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1402-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=8.2	8-97251-046-0	02	1	1402-		●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1402-		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1401-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1401-1401	●
29	BOLT; OIL PIPE,OIL JET (C) M6X20	8-97117-298-1	04	1	1402-		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1402-	●	●
40	BOLT; OIL PIPE (A) M6X10 FLANGE	0-28050-610-0	01	1	1401-	●
40	BOLT; OIL PIPE (B) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-		●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	1401-	●
57	PIPE; OIL,OIL JET	8-97312-132-3	01	1	1402-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	1401-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97239-048-1	01	1	1402-1407		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-98285-334-0	01	1	1408-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1401-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	1402-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-1	01	1	1401-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1401-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	1402-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1401-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	1402-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	1401-	●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	1401-	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1401-	●
307	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	1401-	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1401-	●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1401-	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	1401-	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	1401-	●
312	NUT; PIPE FIX M8 FLANGE MAL	8-97581-233-0	01	1	1401-	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	1401-	●
330	HOSE; VAC PUMP,RETURN	8-98204-694-0	01	1	1401-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1401-	●
332	PIPE; OIL,C/BL TO VAC PUMP (A)	8-94443-644-1	01	1	1401-	●
332	PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1402-		●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	1401-	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1401-	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1402-		●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1401-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1401-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1402-		●
414	BOLT; OIL PIPE (A) M6X16 FLANGE MAL	0-28050-616-0	02	1	1401-	●
414	BOLT; OIL PIPE (C) M6X16 HEX SOCKET	0-58330-616-0	02	1	1402-		●
414	BOLT; OIL PIPE (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1402-		●
473	INSULATOR; HOSE	8-97101-331-0	02	1	1401-	●
474	CLIP; INSULATOR	8-97101-337-0	04	1	1401-	●
