0-40 — FUEL INJECTION SYSTEM (#132424) — 265 parça

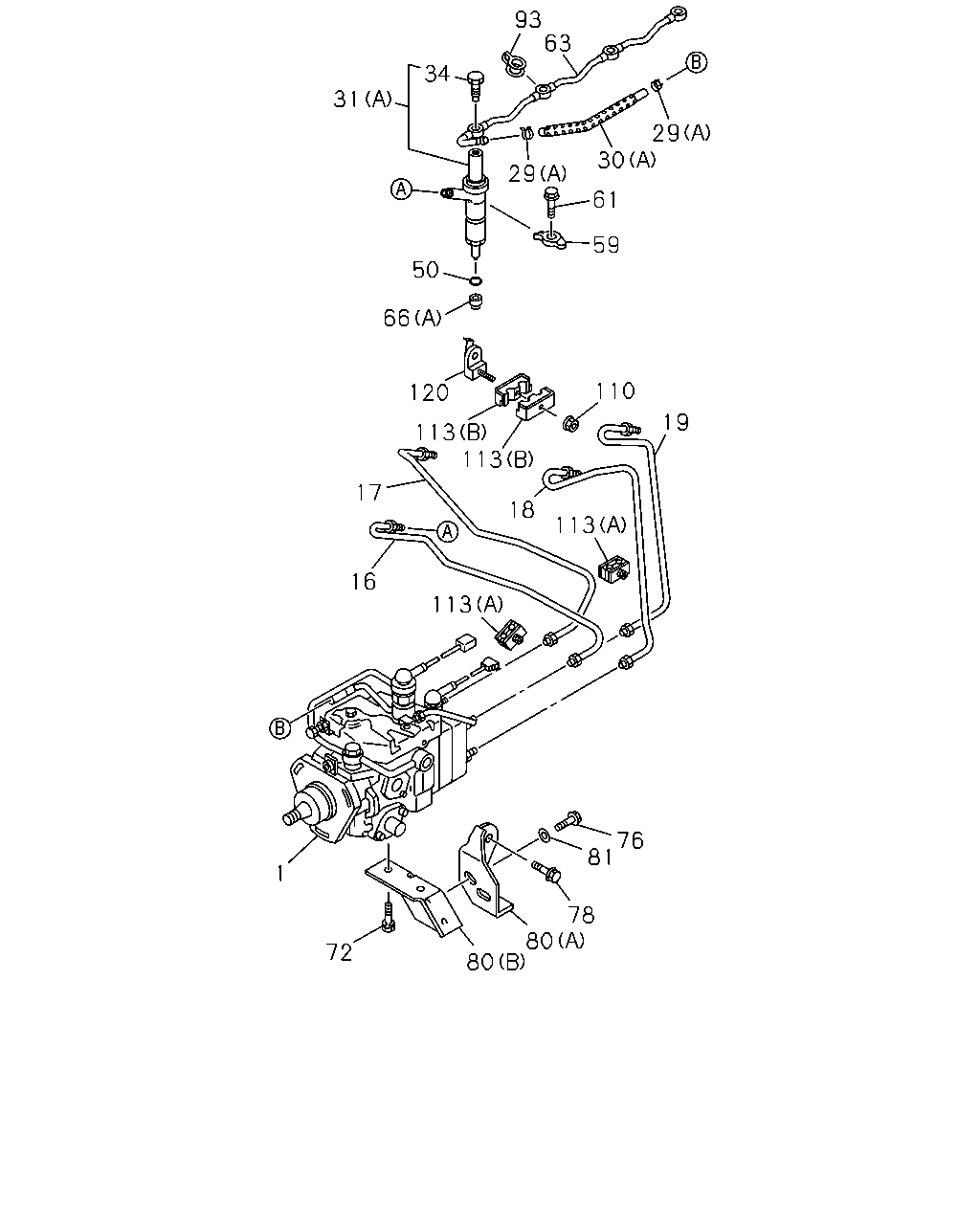

çizim 401142
93 63 34 31 29 29 30 61 50 59 66 120 110 113 19 113 17 18 113 16 113 1 72 76 81 78 80 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97263-086-3 01 1 1401-1404 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97204-201-9 01 1 1405- ●
16 PIPE; INJ NO.1 8-97223-923-1 01 1 1401- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1402- ●
17 PIPE; INJ NO.2 8-97223-924-1 01 1 1401- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1402- ●
18 PIPE; INJ NO.3 8-97223-925-1 01 1 1401- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1402- ●
19 PIPE; INJ NO.4 8-97223-926-1 01 1 1401- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1402- ●
29 CLIP; HOSE
(A) ID=11 		8-97173-219-0 02 1 1401- ●
29 CLIP; HOSE
(D) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1402- ●
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1402- ●
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1401- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1402- ●
31 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1401- ●
31 NOZZLE ASM; INJ
(B) 		8-98011-604-5 04 1 1402- ●
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 1401- ●
50 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 1401- ●
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1401- ●
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1402- ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 1401- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 1401- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1401- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98181-540-0 04 1 1402- ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 1401- ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER 		0-50540-825-0 02 1 1401- ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE MAL 		0-28650-820-0 02 1 1401- ●
80 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 1401- ●
80 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1401- ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 		0-91614-708-0 02 1 1401- ●
93 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 1401- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 01 1 1401- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 02 1 1402- ●
113 CLIP; INJ PIPE
(B) 		1-09701-240-0 02 1 1401- ●
113 CLIP; INJ PIPE
(A) 		8-98227-926-0 02 1 1401- ●
120 BRACKET; INJ PIPE 8-98015-024-1 01 1 1401- ●

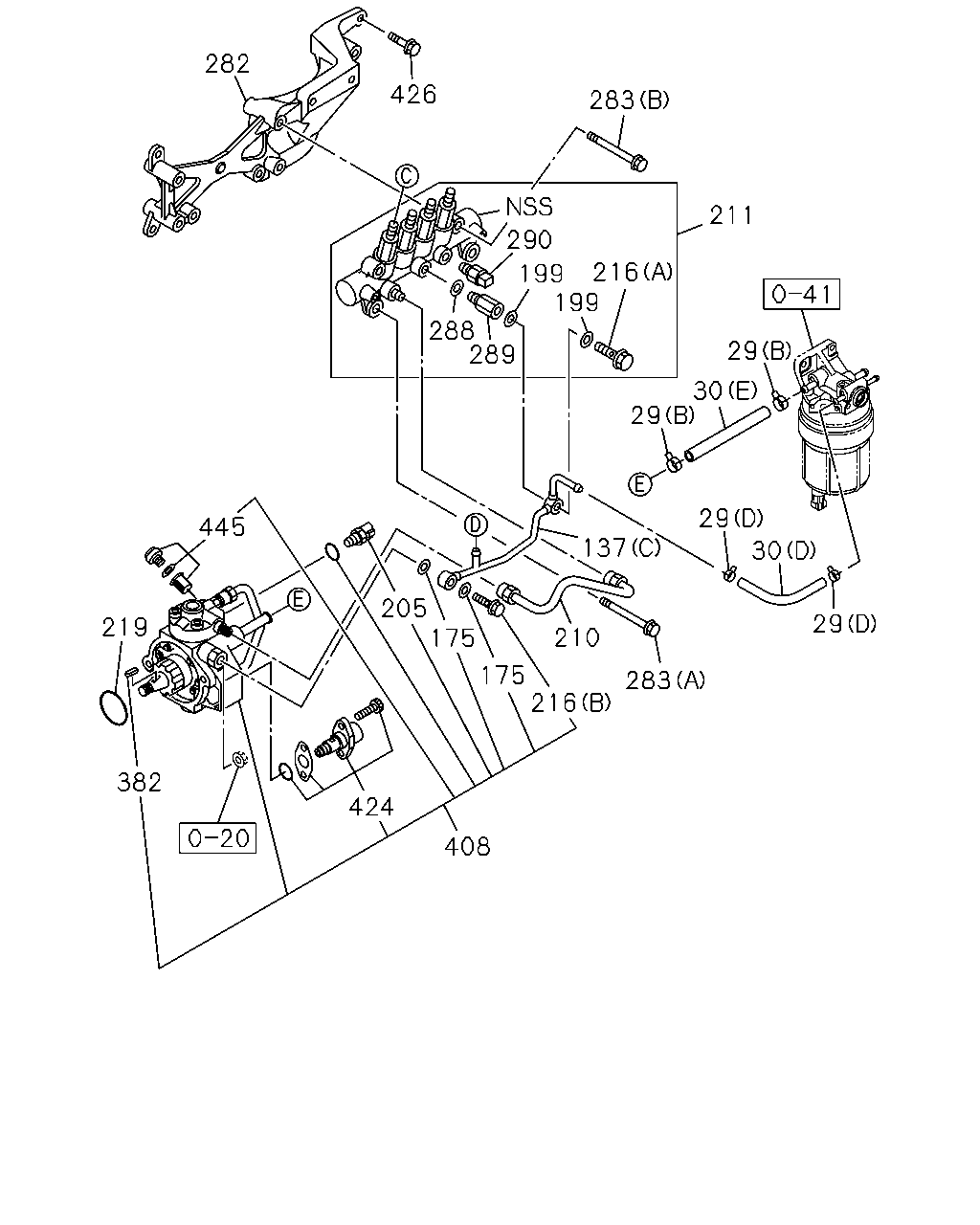

çizim 401152
282 426 283 211 290 288 199 29 199 216 29 30 29 30 29 283 137 210 175 175 216 205 445 219 382 424 408 289
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; HOSE
(A) ID=11 		8-97173-219-0 02 1 1401- ●
29 CLIP; HOSE
(D) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1402- ●
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1402- ●
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1401- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1402- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1402- ●
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1402- ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1402- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1402- ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1402- ●
199 GASKET; EYE BOLT 8-97602-218-0 02 1 1402- ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1402- ●
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1402- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1402- ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1402- ●
216 BOLT; EYE
(B) 		9-88130-088-0 01 1 1402- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1402- ●
282 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1402- ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1402- ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1402- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1402- ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1402- ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1402- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1402- ●
408 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1402- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1402- ●
426 BOLT; BRACKET
M8X60 FLANGE 		0-28050-860-0 01 1 1402- ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1402- ●
çizim 401156
31 32 34 140 43 45 47 44 138 140 43 272 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1401- ●
31 NOZZLE ASM; INJ
(B) 		8-98011-604-5 04 1 1402- ●
32 HOLDER ASM; NOZZLE 8-97203-471-1 04 1 1401- ●
34 BOLT; EYE,NOZZLE HOLDER 8-94320-307-0 04 1 1401- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.00 		8-97223-343-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.02 		8-97223-344-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.04 		8-97223-345-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.06 		8-97223-346-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.08 		8-97223-347-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.10 		8-97223-348-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.12 		8-97223-349-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.14 		8-97223-350-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.16 		8-97223-351-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.18 		8-97223-352-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.20 		8-97223-353-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.22 		8-97223-354-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.24 		8-97223-355-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.26 		8-97223-356-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.28 		8-97223-357-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.30 		8-97223-358-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.32 		8-97223-359-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.34 		8-97223-360-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.36 		8-97223-361-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.38 		8-97223-362-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.40 		8-97223-363-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.42 		8-97223-364-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.44 		8-97223-365-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.46 		8-97223-366-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.48 		8-97223-367-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.50 		8-97223-368-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.52 		8-97223-369-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.54 		8-97223-370-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.56 		8-97223-371-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.58 		8-97223-372-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.60 		8-97223-373-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.62 		8-97223-374-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.64 		8-97223-375-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.66 		8-97223-376-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.68 		8-97223-377-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.70 		8-97223-378-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.72 		8-97223-379-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.74 		8-97223-380-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.76 		8-97223-381-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.78 		8-97223-382-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.80 		8-97223-383-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.82 		8-97223-384-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.84 		8-97223-385-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.86 		8-97223-386-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.88 		8-97223-387-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.90 		8-97223-388-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.92 		8-97223-389-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.94 		8-97223-390-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.96 		8-97223-391-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.98 		8-97223-392-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) T=3.00 		8-97223-393-0 04 1 1401- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) 		8-97361-697-0 04 1 1401- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 1401- ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 1401- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 1401- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.20 		1-15349-004-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		1-15349-044-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		1-15349-045-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		1-15349-046-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		1-15349-047-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.60 		1-15349-048-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.70 		1-15349-049-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 1401- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 1401- ●
272 NOZZLE KIT; INJ 8-97329-208-0 04 1 1401- ●

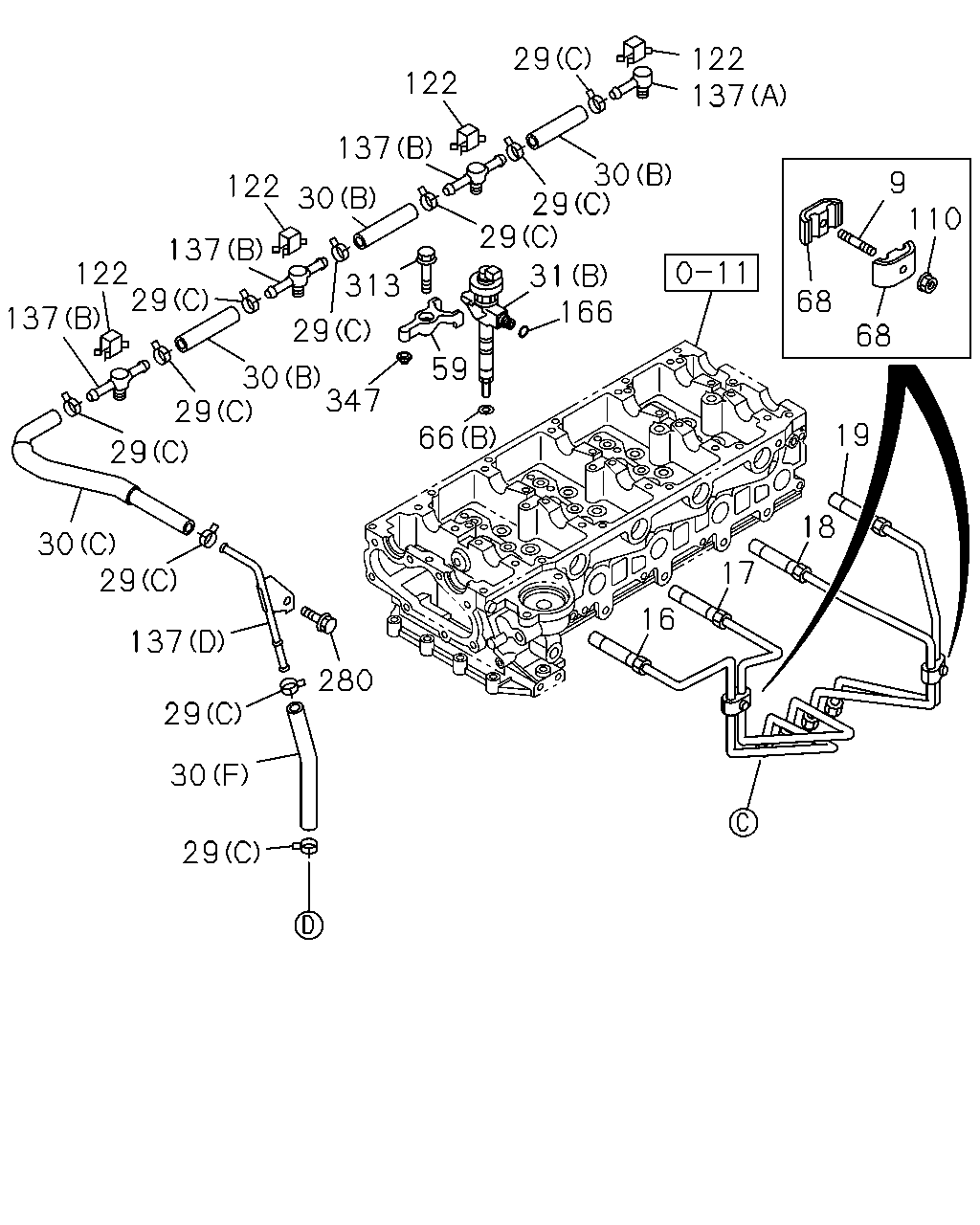

çizim 401792
29 122 122 137 137 30 122 30 29 9 110 137 29 122 313 31 68 68 29 29 59 166 137 30 29 347 66 29 19 30 29 18 137 280 29 30 29 17 16
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1402- ●
16 PIPE; INJ NO.1 8-97223-923-1 01 1 1401- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1402- ●
17 PIPE; INJ NO.2 8-97223-924-1 01 1 1401- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1402- ●
18 PIPE; INJ NO.3 8-97223-925-1 01 1 1401- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1402- ●
19 PIPE; INJ NO.4 8-97223-926-1 01 1 1401- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1402- ●
29 CLIP; HOSE
(A) ID=11 		8-97173-219-0 02 1 1401- ●
29 CLIP; HOSE
(D) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1402- ●
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1402- ●
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1401- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 1402- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1402- ●
31 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1401- ●
31 NOZZLE ASM; INJ
(B) 		8-98011-604-5 04 1 1402- ●
59 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1401- ●
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1402- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1401- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98181-540-0 04 1 1402- ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 04 1 1402-1405 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 01 1 1401- ●
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 02 1 1402- ●
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1402- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1402- ●
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1402- ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1402- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1402- ●
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1402- ●
280 BOLT; CLIP,FUEL HOSE
M8X12 FLANGE 		0-28050-812-0 01 1 1402- ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1402- ●
347 PIN 8-98165-035-0 04 1 1402- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
