0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#132422) — 81 parça
Tümü
A - 4JB1-TC ENG
B - 4JJ1-TCC ENG
◀

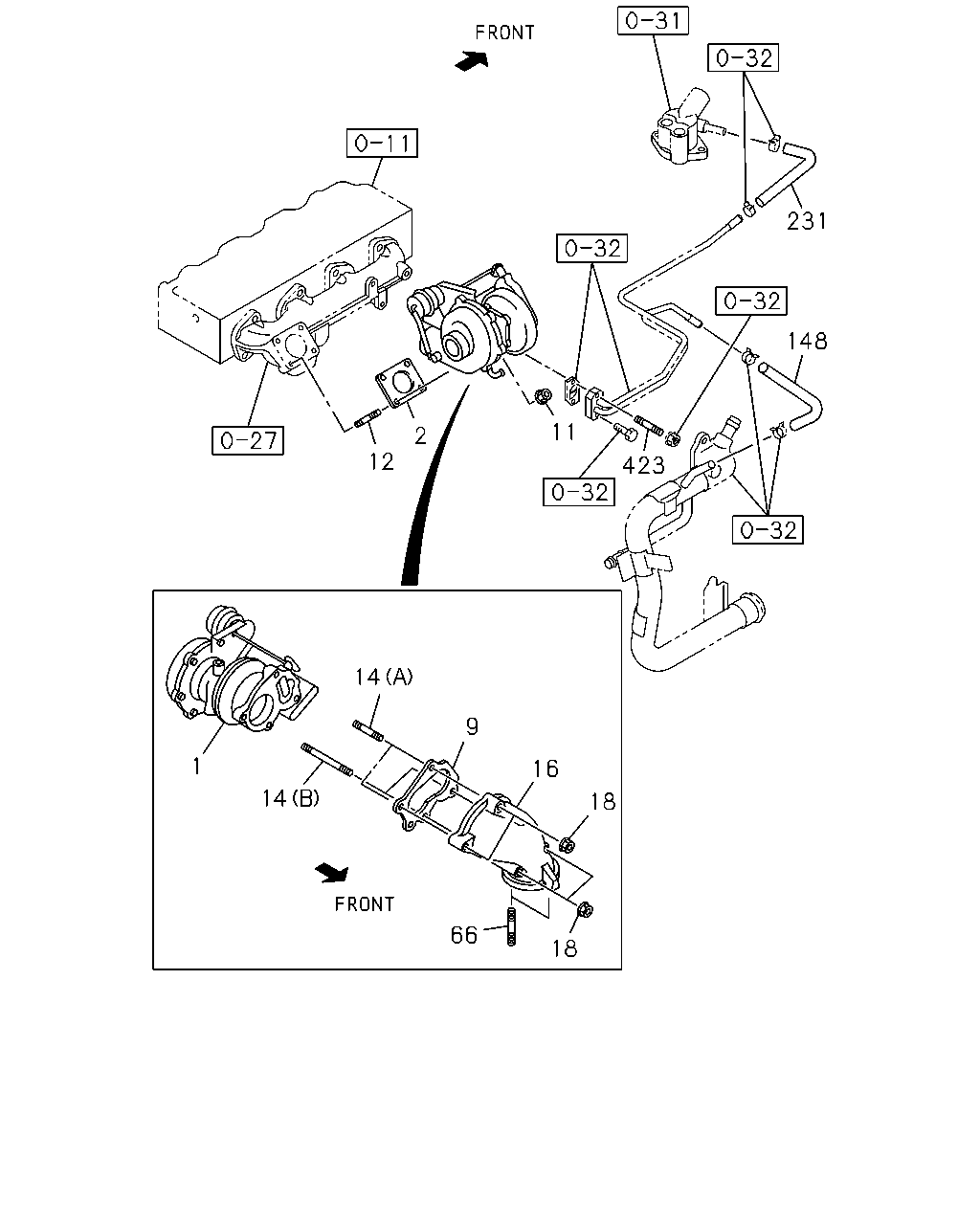

[036A] 4JB1(NO.1) (25 parça)

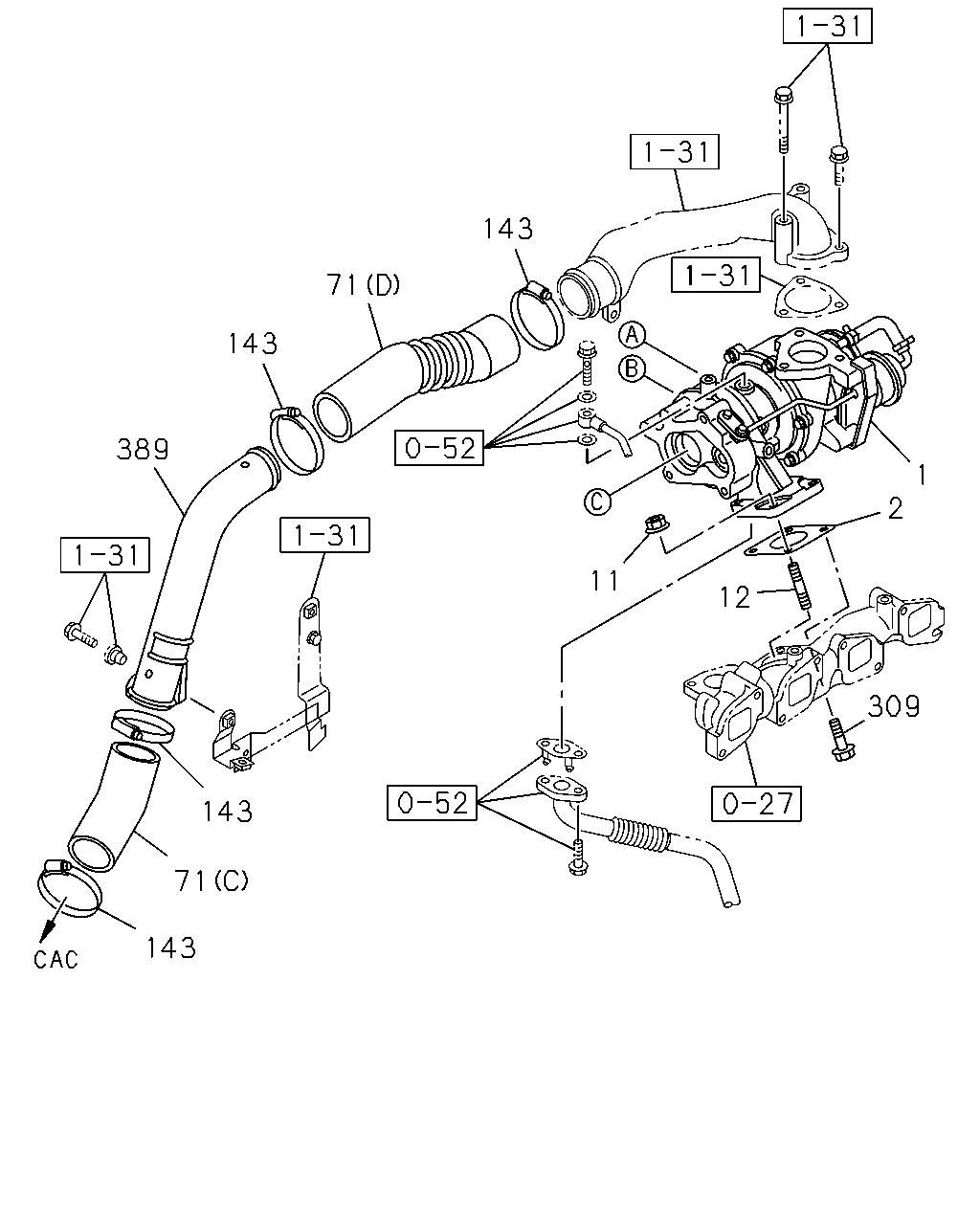

[036A] TURBO AND INLET PIPE;4JJ1 (18 parça)

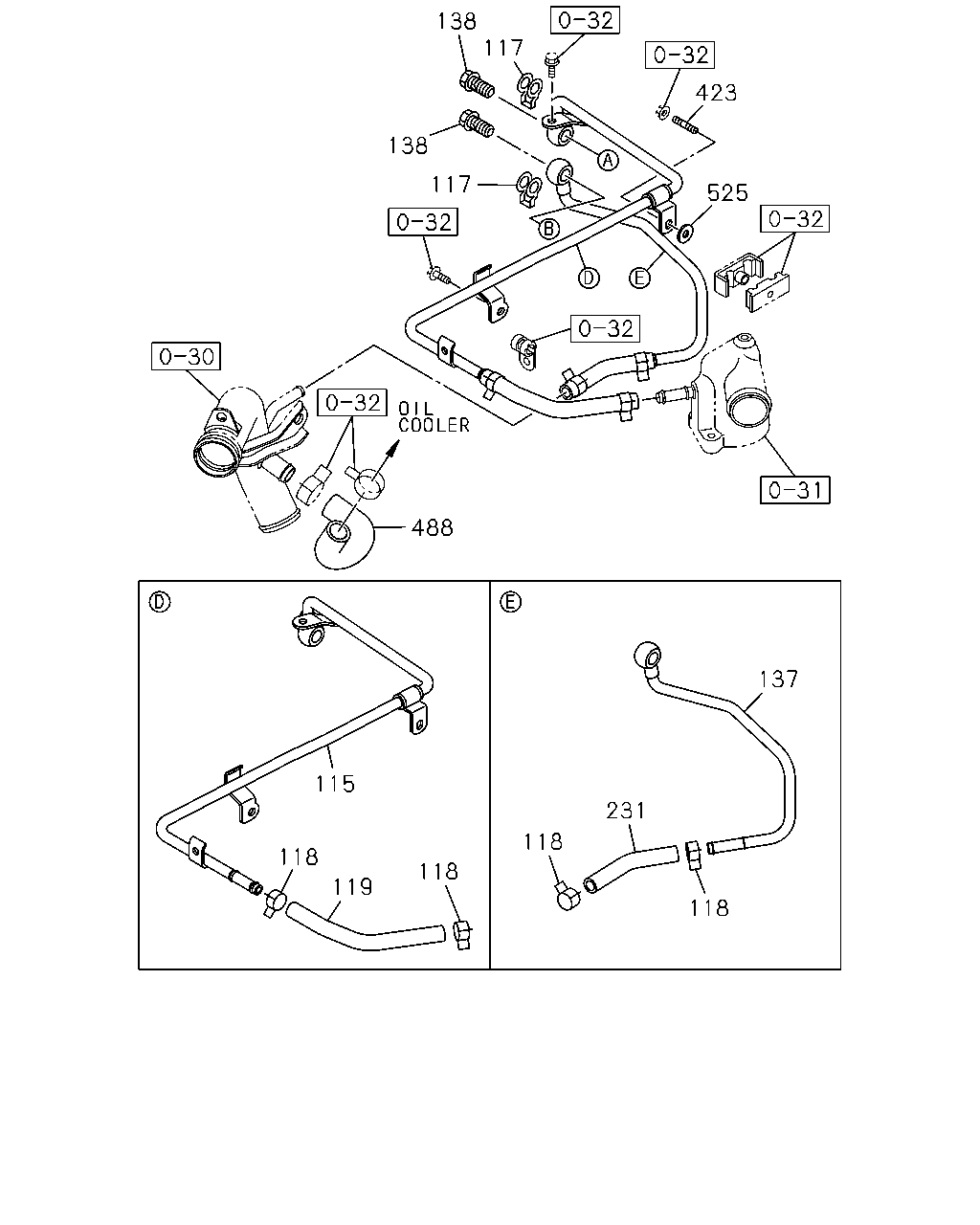

[036A] WATER PIPE;4JJ1 (12 parça)

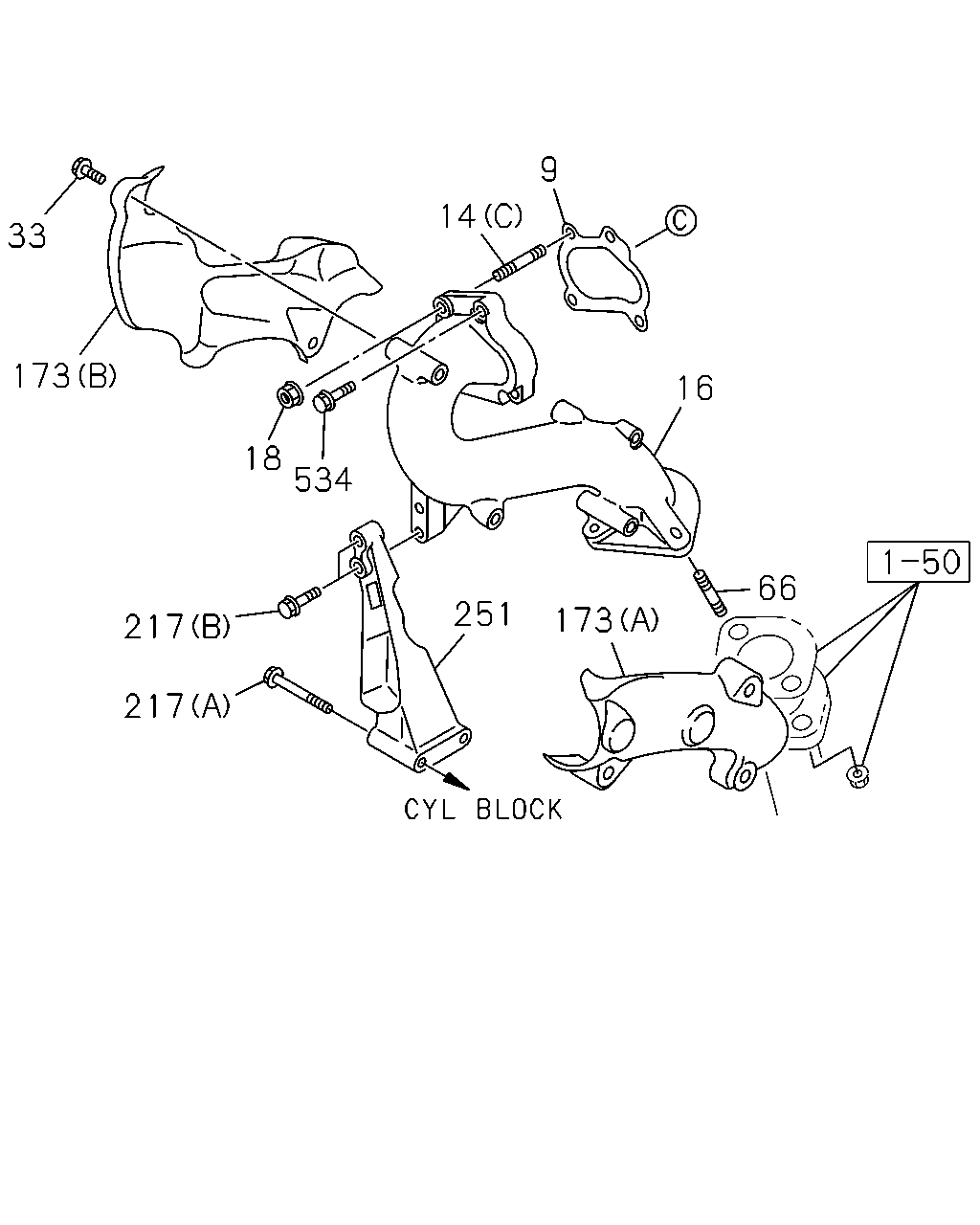

[036A] ADAPTER AND BRACKET;4JJ1 (18 parça)
[036A] 4JB1(NO.2) (8 parça)
▶
12
2
11
423
148
231
14
14
1
9
16
18
66
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97331-185-1
01
1
1401-1404
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97192-331-4
01
1
1405-
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98097-686-1
01
1
1402-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97315-266-0
01
1
1401-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
1402-
●
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97139-726-0
01
1
1401-
●
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98015-116-1
02
1
1402-
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
1401-
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
02
1
1402-
●
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
1401-
●
12
STUD; TURBOCHARGER
M8X25 L=36
8-97378-062-0
02
1
1402-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(A) M8X43 L=54
8-97378-067-0
02
1
1401-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X126 L=137
8-97378-069-0
02
1
1401-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(C) M8X25 L=36
8-97378-062-0
02
1
1402-
●
16
ADAPTER; EXH PIPE
8-97192-332-0
01
1
1401-
●
16
ADAPTER; EXH PIPE
8-98012-735-4
01
1
1402-
●
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
1401-
●
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
1402-
●
66
STUD; EXH PIPE
M10X45 L=60 PLATING
5-09302-008-1
02
1
1401-
●
66
STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
03
1
1402-
●
148
HOSE; TURBOCHARGER,INL
L=180 SERVICED BY L=3000
0-03559-300-0
01
1
1401-
●
231
HOSE; RUBBER,TURBOCHARGER OUT
8-97212-155-0
01
1
1401-
●
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98030-402-0
01
1
1402-
●
423
STUD; WATER PIPE
M6X20 L=28
0-41010-620-0
01
1
1401-
●
423
STUD; WATER PIPE
M6X16 L=25
0-41010-616-0
01
1
1402-
●
389
143
71
143
143
71
143
11
12
2
1
309
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97331-185-1
01
1
1401-1404
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97192-331-4
01
1
1405-
●
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98097-686-1
01
1
1402-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97315-266-0
01
1
1401-
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
1402-
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
1401-
●
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
02
1
1402-
●
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
1401-
●
12
STUD; TURBOCHARGER
M8X25 L=36
8-97378-062-0
02
1
1402-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-97217-911-3
01
1
1401-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98069-636-0
01
1
1401-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(C)
8-98036-513-2
01
1
1402-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(D)
8-98159-280-1
01
1
1402-
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=40-50
8-98133-347-0
04
1
1401-
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=45-65
8-98133-348-0
04
1
1402-
●
309
BOLT; TURBOCHARGER
M8X28 FLANGE
8-98043-528-0
02
1
1402-
●
389
PIPE; INL,TURBOCHARGER TO CAC
8-97216-223-0
01
1
1401-
●
389
PIPE; INL,TURBOCHARGER TO CAC
8-98038-996-1
01
1
1402-
●
115
118
119
118
488
138
138
117
117
118
231
118
423
525
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
115
PIPE; WATER,TURBOCHARGER OUT
8-98113-710-0
01
1
1402-
●
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.6
8-97331-137-1
02
1
1402-
●
118
CLIP; WATER HOSE
ID=12.8
8-94367-943-0
04
1
1402-
●
119
HOSE; WATER,TURBOCHARGER
8-98113-336-0
01
1
1402-
●
137
PIPE; WATER,TURBOCHARGER IN
8-97381-650-0
01
1
1402-
●
138
BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT
1-09675-081-0
02
1
1402-
●
231
HOSE; RUBBER,TURBOCHARGER OUT
8-97212-155-0
01
1
1401-
●
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98030-402-0
01
1
1402-
●
423
STUD; WATER PIPE
M6X20 L=28
0-41010-620-0
01
1
1401-
●
423
STUD; WATER PIPE
M6X16 L=25
0-41010-616-0
01
1
1402-
●
488
HOSE; RUBBER
8-98066-091-0
01
1
1402-
●
525
PLATE; WATER,TURBO
ID=6.4 OD=18
9-09164-706-0
01
1
1402-
●
33
173
217
217
18
534
14
251
9
173
16
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97139-726-0
01
1
1401-
●
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98015-116-1
02
1
1402-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(A) M8X43 L=54
8-97378-067-0
02
1
1401-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X126 L=137
8-97378-069-0
02
1
1401-
●
14
STUD; TURBOCHARGER TO EXH PIPE
(C) M8X25 L=36
8-97378-062-0
02
1
1402-
●
16
ADAPTER; EXH PIPE
8-97192-332-0
01
1
1401-
●
16
ADAPTER; EXH PIPE
8-98012-735-4
01
1
1402-
●
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
1401-
●
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
1402-
●
33
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
06
1
1402-
●
66
STUD; EXH PIPE
M10X45 L=60 PLATING
5-09302-008-1
02
1
1401-
●
66
STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
03
1
1402-
●
173
PROTECTOR; HEAT,FUEL PIPE
(A)
8-98032-023-1
01
1
1402-
●
173
PROTECTOR; HEAT,FUEL PIPE
(B)
8-98032-024-3
01
1
1402-
●
217
BOLT; BRKT
(A) M10X70 FLANGE MAL
0-28051-070-0
02
1
1402-
●
217
BOLT; BRKT
(B) M10X30 FLANGE
8-98032-158-0
02
1
1402-
●
251
BRACKET; ADAPTER
8-98009-098-1
01
1
1402-
●
534
BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE
8-98053-224-0
02
1
1402-
●
143
143
71
389
143
143
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
71
HOSE; INLET PIPE TO TURBOCHARGER
(A)
8-97217-911-3
01
1
1401-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(B)
8-98069-636-0
01
1
1401-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(C)
8-98036-513-2
01
1
1402-
●
71
HOSE; INLET PIPE TO TURBOCHARGER
(D)
8-98159-280-1
01
1
1402-
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=40-50
8-98133-347-0
04
1
1401-
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=45-65
8-98133-348-0
04
1
1402-
●
389
PIPE; INL,TURBOCHARGER TO CAC
8-97216-223-0
01
1
1401-
●
389
PIPE; INL,TURBOCHARGER TO CAC
8-98038-996-1
01
1
1402-
●
