Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#132419) — 33 parça
Tümü
A - 4JB1-TC ENG
B - 4JJ1-TCC ENG
◀

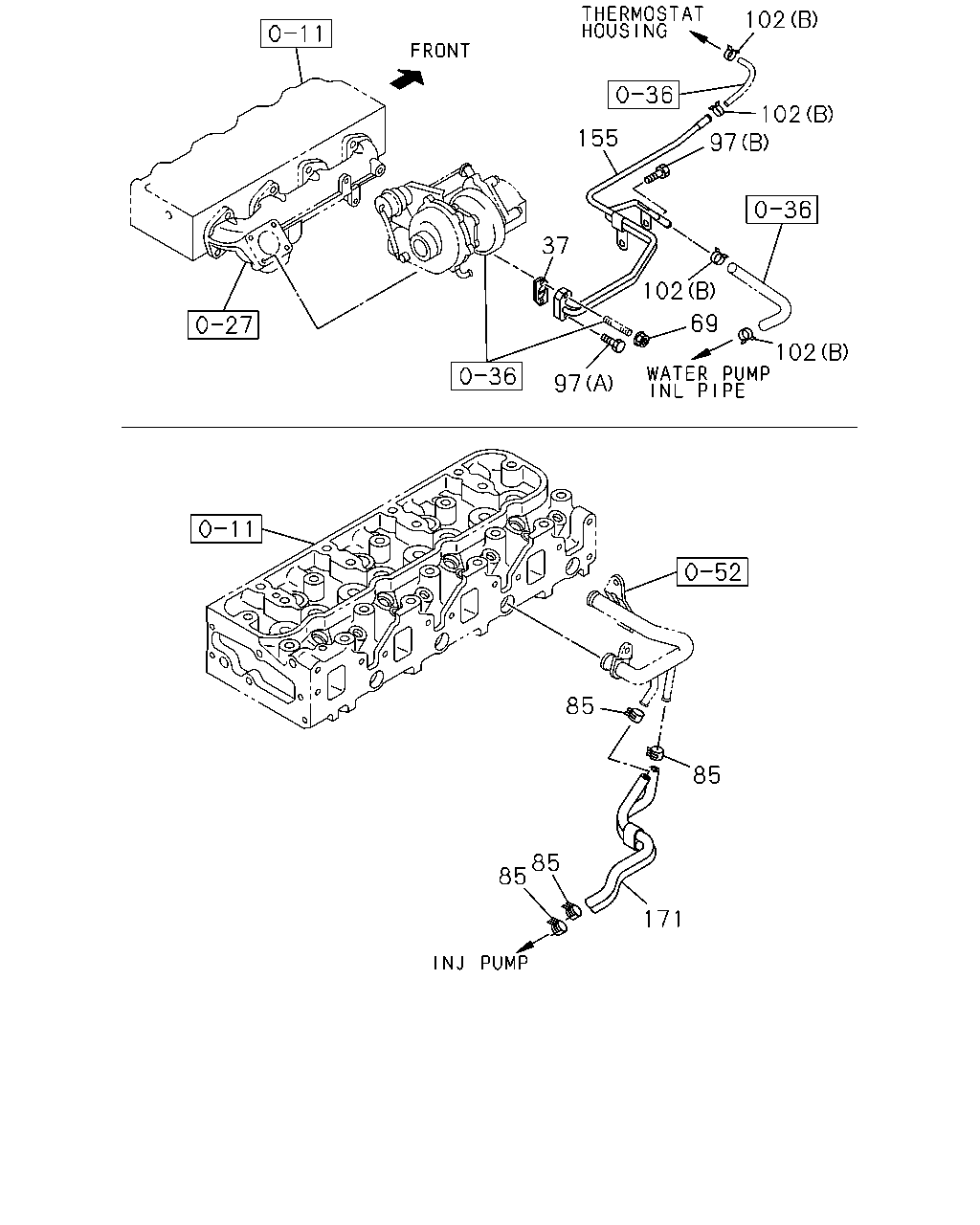

[032A] 4JB1(NO.1) (10 parça)

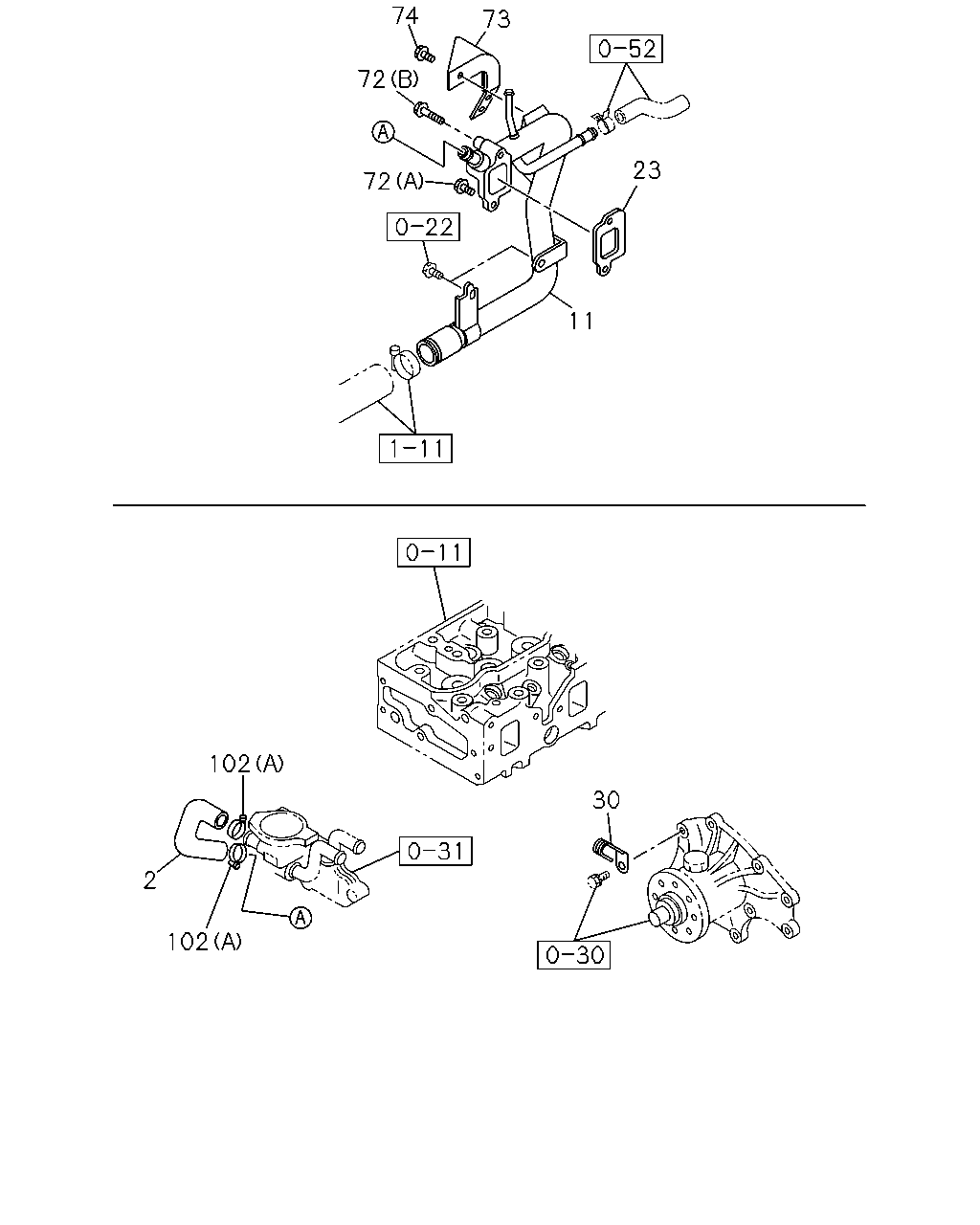

[032A] 4JB1(NO.2) (13 parça)

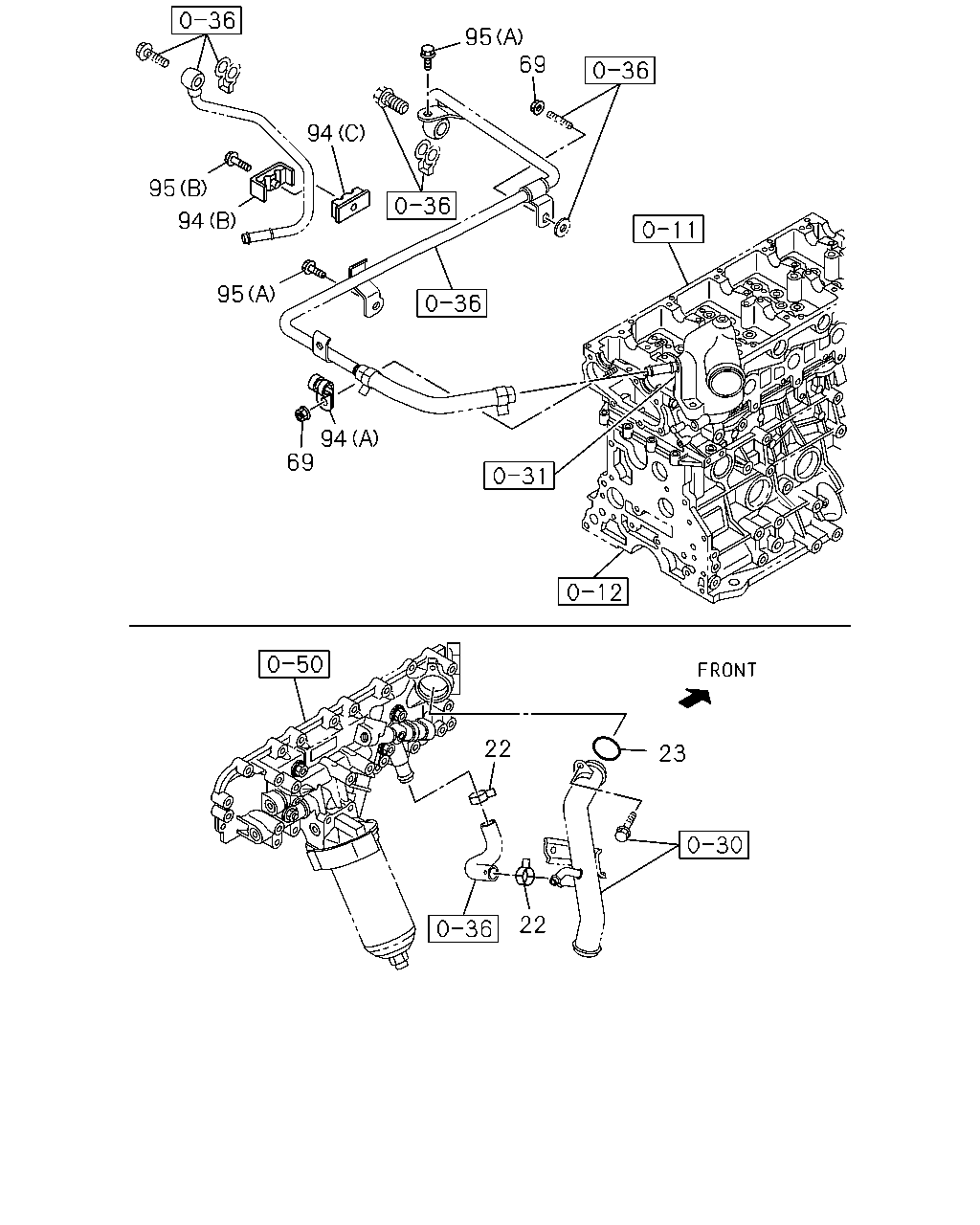

[032A] 4JJ1 (10 parça)
▶
155
102
102
97
102
69
97
102
37
85
171
85
85
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94321-135-1
01
1
1401-
●
69
NUT; WATER PIPE
M6 FLANGE MAL
0-91180-106-0
01
1
1401-
●
69
NUT; WATER PIPE
M6 FLANGE MAL
0-91180-206-0
02
1
1402-
●
85
CLIP; RUBBER,WAX CSD
ID=12.8
8-94367-943-0
04
1
1401-
●
97
BOLT; WATER PIPE
(B) M6X12 FLANGE MAL
0-28050-612-0
01
1
1401-
●
97
BOLT; WATER PIPE
(A) M6X16 FLANGE MAL
0-28050-616-0
01
1
1401-
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1401-
●
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1401-
●
155
PIPE ASM; WATER
8-98169-766-0
01
1
1401-
●
171
HOSE; RUBBER,WAX CSD
8-97225-605-0
01
1
1401-
●
102
2
102
30
11
23
73
74
72
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1401-
●
11
PIPE; INL,WATER PUMP
8-97213-400-2
01
1
1401-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1401-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1402-
●
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
1401-
●
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
1401-
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE MAL
0-28050-820-0
01
1
1401-
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50540-845-0
01
1
1401-
●
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
1401-1403
●
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER MAL
0-50640-816-0
03
1
1401-
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1401-
●
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1401-
●
95
95
69
94
94
94
69
95
23
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
CLIP; WATER HOSE
ID=22
8-97359-141-0
02
1
1402-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1401-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1402-
●
69
NUT; WATER PIPE
M6 FLANGE MAL
0-91180-106-0
01
1
1401-
●
69
NUT; WATER PIPE
M6 FLANGE MAL
0-91180-206-0
02
1
1402-
●
94
CLIP; WATER PIPE
(A) ID=12 L=20
1-09700-911-1
01
1
1402-
●
94
CLIP; WATER PIPE
(B) ID=7 & 9 L=25
1-09701-228-3
01
1
1402-
●
94
CLIP; WATER PIPE
(C) ID=7 & 9 L=25
1-09701-229-2
01
1
1402-
●
95
BOLT; CLIP
(A) M6X12 FLANGE MAL
0-28050-612-0
02
1
1402-
●
95
BOLT; CLIP
(B) M6X35 FLANGE
0-28650-635-0
01
1
1402-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
