0-31 — THERMOSTAT AND HOUSING (#132418) — 29 parça

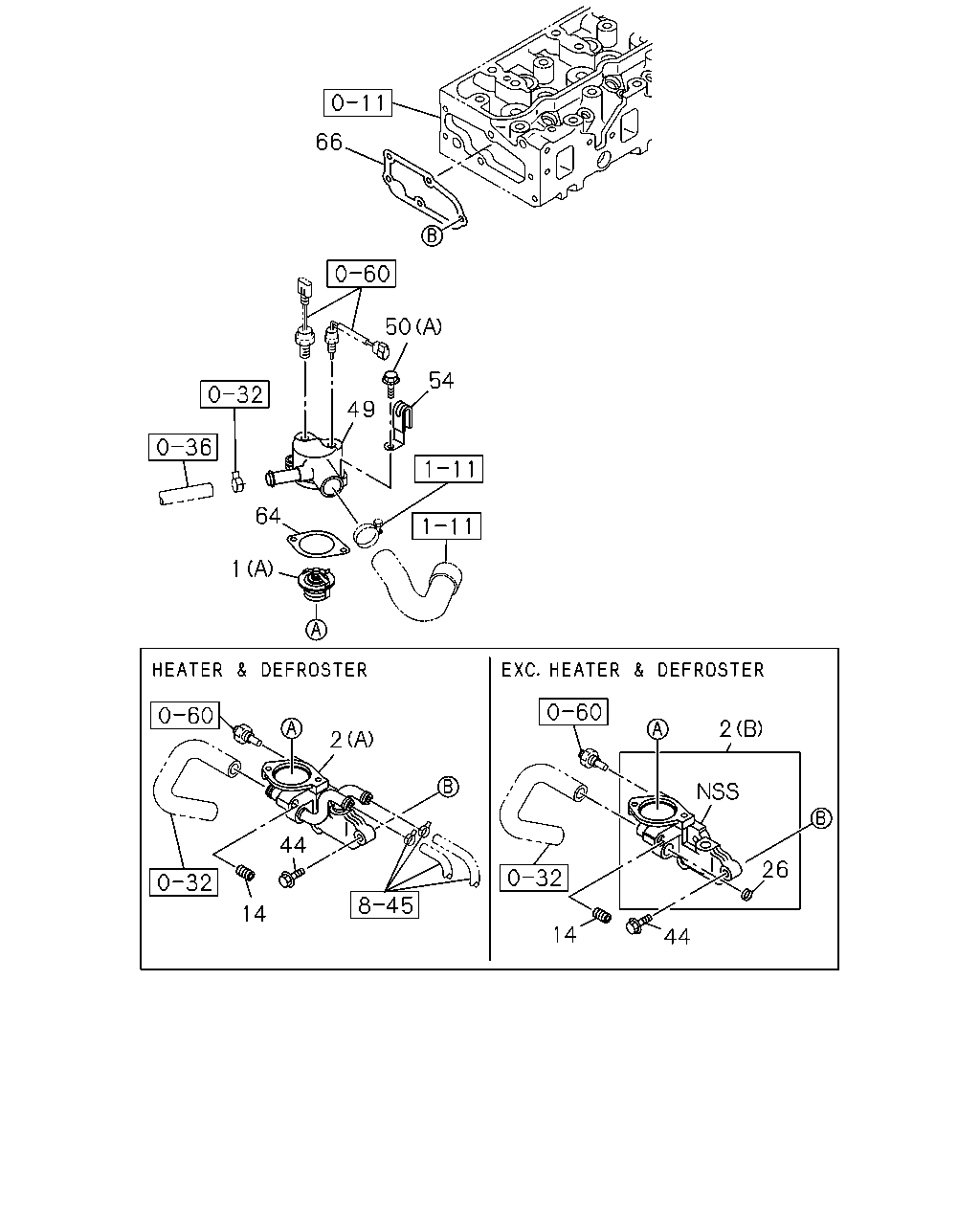

çizim 401093
66 50 54 49 64 1 2 44 14 14 44 26 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97254-816-1 01 1 1401- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-98017-027-2 01 1 1402- ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 1401- ●
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 1401- ●
14 PLUG; SW
PT3/8 		5-09605-005-0 01 1 1401-1404 ●
26 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) OD=18 		5-11219-008-0 01 1 1401- ●
44 BOLT; HSG TO HD
M8X30 W/LK WASHER 		0-50540-830-0 05 1 1401- ●
49 PIPE; WATER OUTLET 8-97204-199-0 01 1 1401- ●
49 PIPE; WATER OUTLET 8-98028-252-1 01 1 1402- ●
50 BOLT; OUTLET PIPE
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1401- ●
50 BOLT; OUTLET PIPE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1402- ●
54 CLIP; THERMO SWITCH,OUTLET PIPE
ID=13 H=50 L=27 		8-94130-076-0 01 1 1401- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94365-674-2 01 1 1401- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1401- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1402- ●

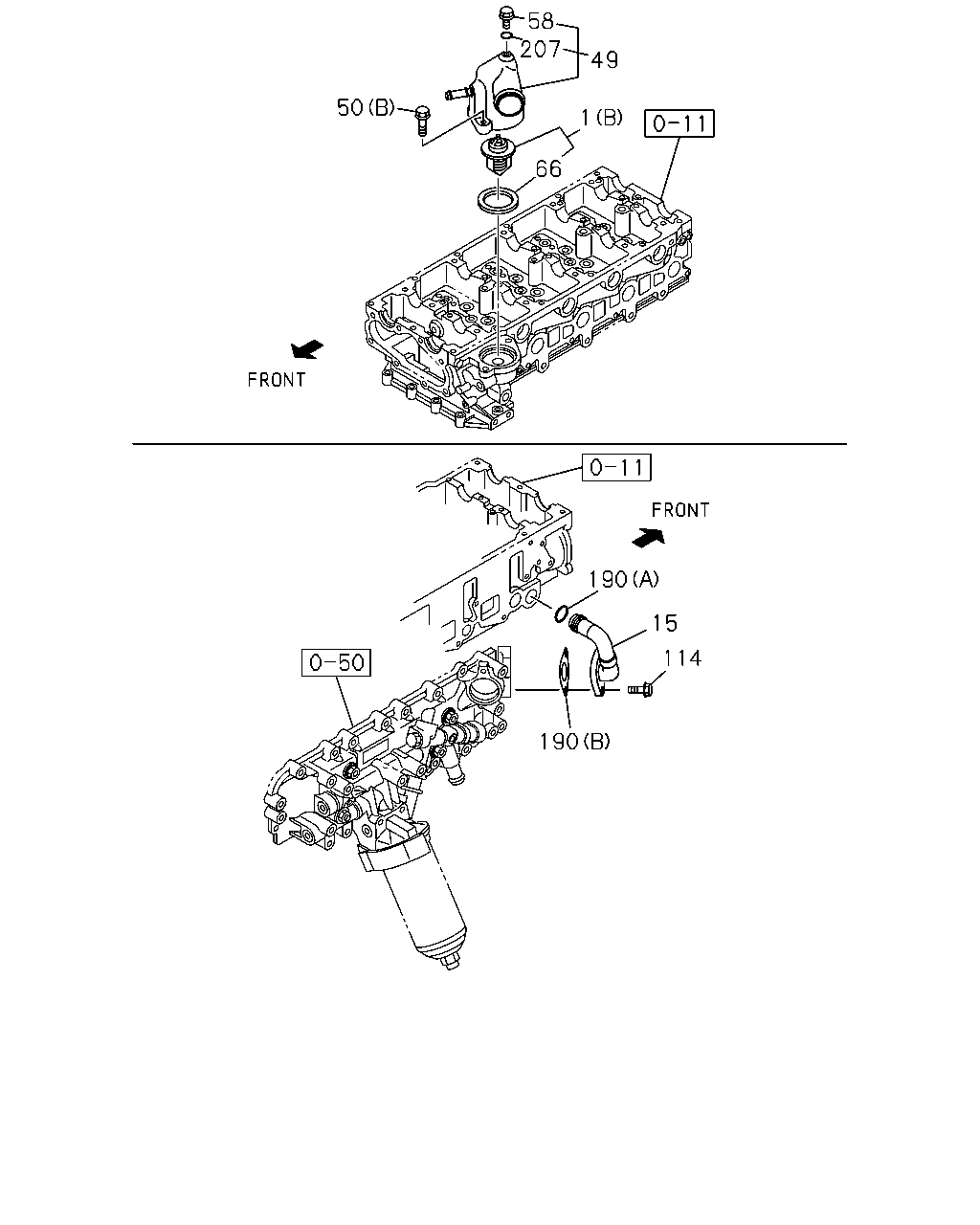

çizim 401097
50 58 207 49 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97254-816-1 01 1 1401- ●
1 THERMOSTAT
(B) 85 CELSIUS 		8-98017-027-2 01 1 1402- ●
15 PIPE; BYPASS 8-97318-732-2 01 1 1402- ●
49 PIPE; WATER OUTLET 8-97204-199-0 01 1 1401- ●
49 PIPE; WATER OUTLET 8-98028-252-1 01 1 1402- ●
50 BOLT; OUTLET PIPE
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1401- ●
50 BOLT; OUTLET PIPE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1402- ●
58 PLUG; WATER OUTLET PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 1402- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1401- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1402- ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE MAL 		0-28650-825-0 02 1 1402- ●
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1402- ●
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1402- ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1402- ●
