Sayfa 0-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶

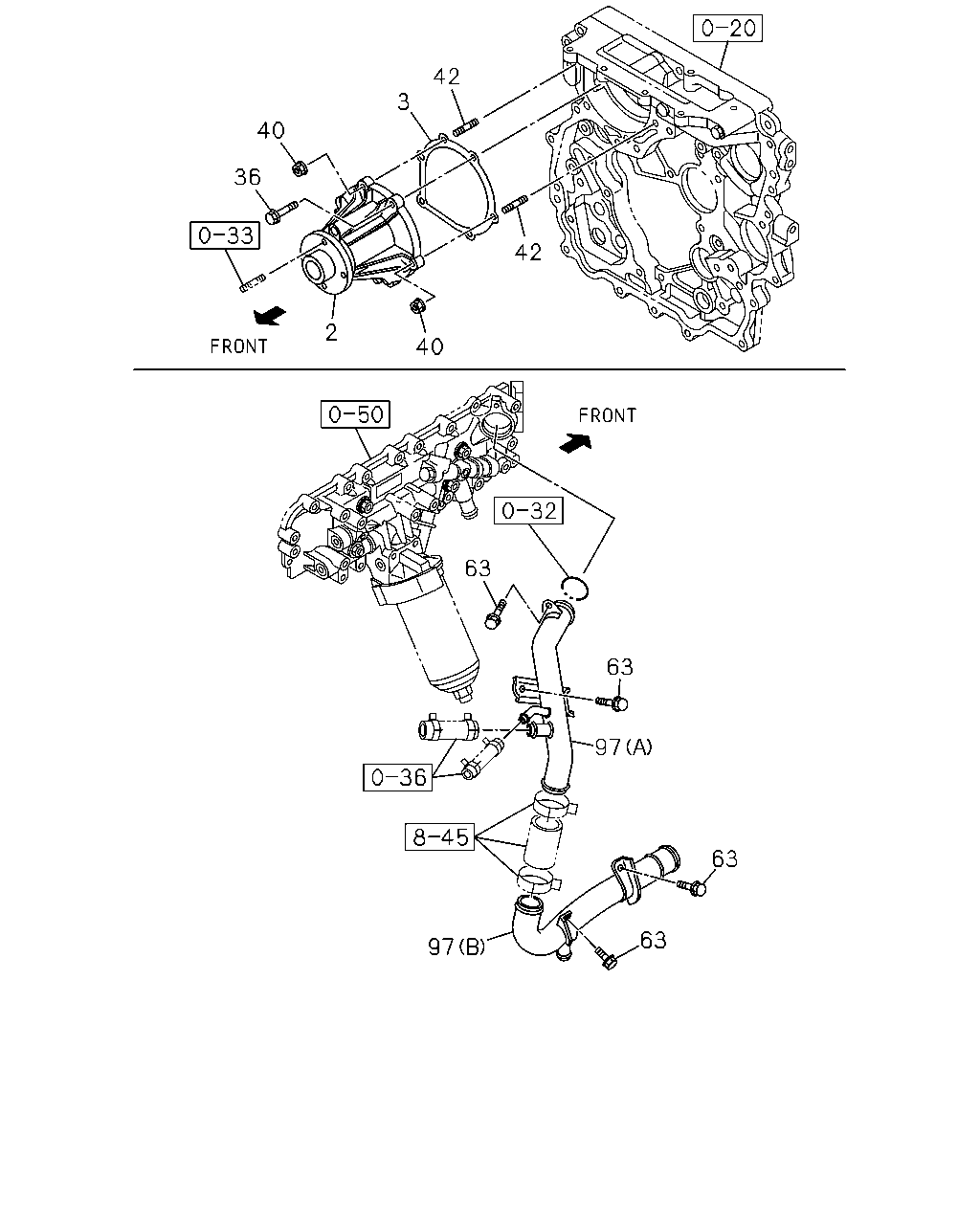

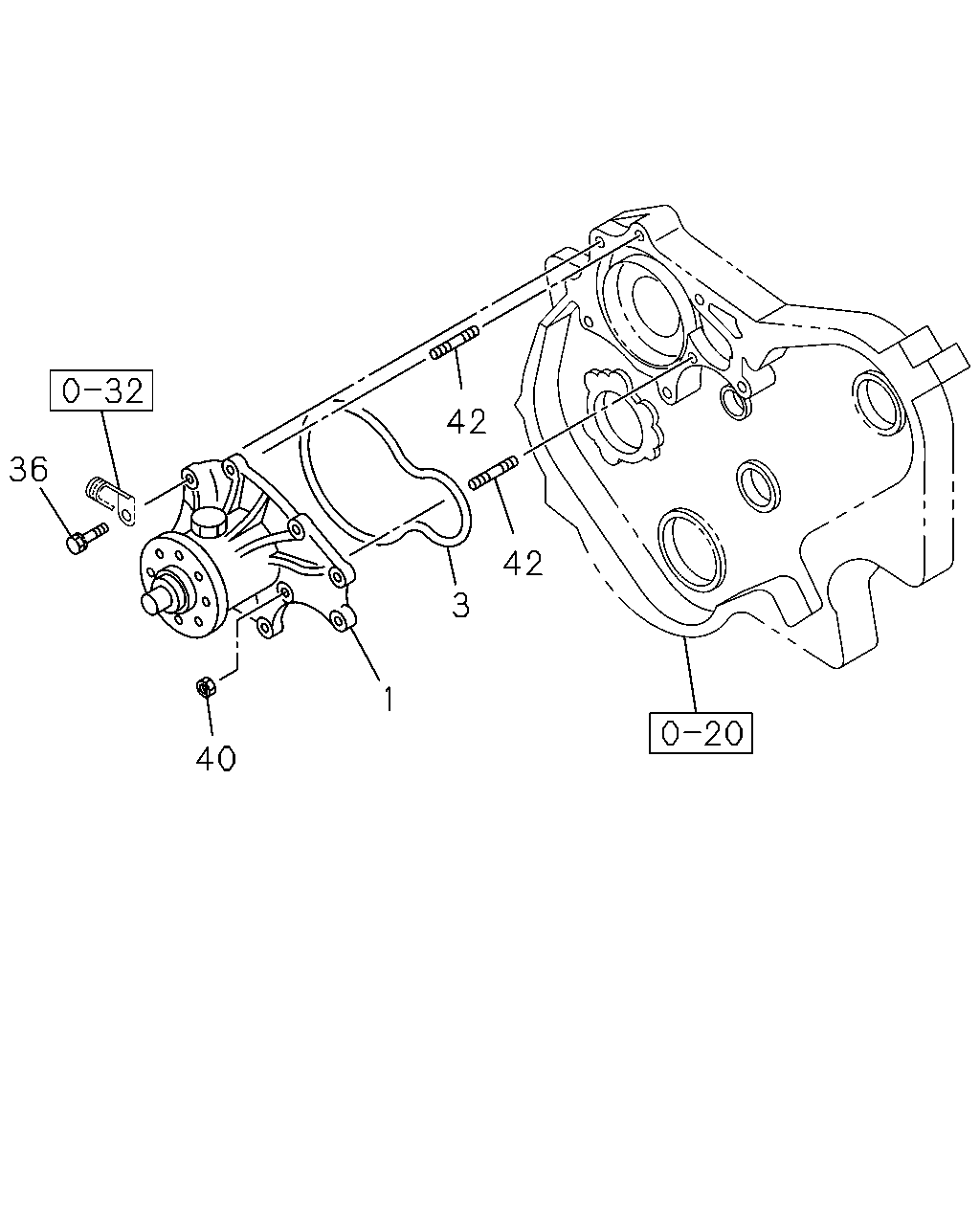

0-30 — WATER PUMP AND CORROSION RESISTOR (#132417) — 22 parça

36 40 1 3 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET	8-97105-012-5	01	1	1401-	●
1	PUMP ASM; WATER,W/GASKET BEST VALUE PARTS	5-87610-088-0	01	1	1401-	●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	1401-	●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	1402-		●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	05	1	1401-	●
36	BOLT; WATER PUMP TO C/BL M8X60 FLANGE	0-28050-860-0	04	1	1402-		●
40	NUT; WATER PUMP M8 FLANGE MAL	0-91180-108-0	02	1	1401-	●
40	NUT; WATER PUMP M8 FLANGE	0-91180-208-0	02	1	1402-		●
42	STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	1401-	●
42	STUD; WATER PUMP M8X28 L=40	0-41010-828-0	02	1	1402-		●

2 36 40 40 3 42 42 63 63 97 97 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PUMP ASM; WATER	8-98004-292-3	01	1	1402-		●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	1401-	●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	1402-		●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	05	1	1401-	●
36	BOLT; WATER PUMP TO C/BL M8X60 FLANGE	0-28050-860-0	04	1	1402-		●
40	NUT; WATER PUMP M8 FLANGE MAL	0-91180-108-0	02	1	1401-	●
40	NUT; WATER PUMP M8 FLANGE	0-91180-208-0	02	1	1402-		●
42	STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	1401-	●
42	STUD; WATER PUMP M8X28 L=40	0-41010-828-0	02	1	1402-		●
63	BOLT; INL PIPE M8X16 FLANGE MAL	0-28050-816-0	04	1	1402-		●
97	PIPE; WATER (B)	8-98009-676-3	01	1	1402-		●
97	PIPE; WATER (A)	8-98066-089-1	01	1	1402-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
