◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#132414) — 43 parça

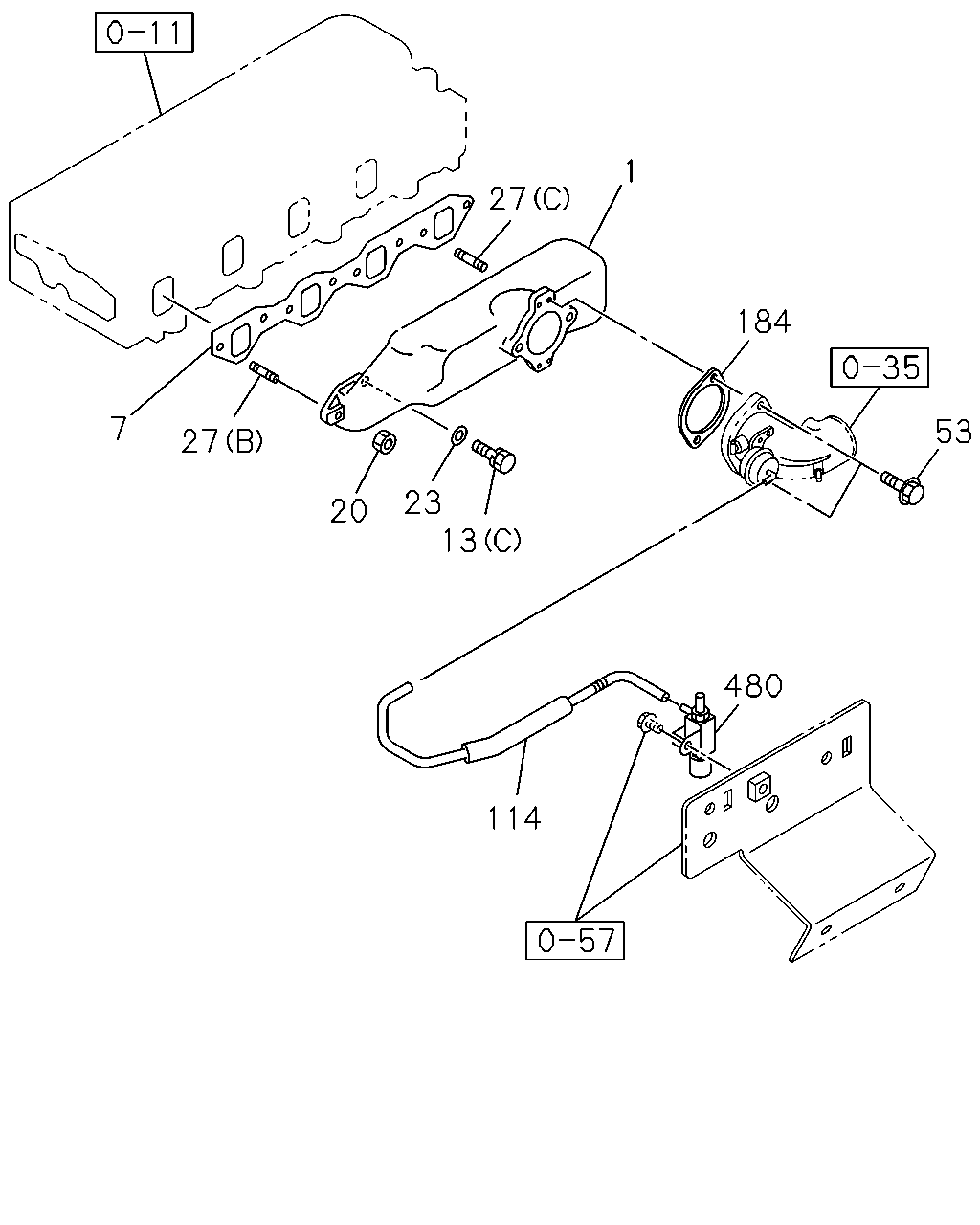

çizim 401064
1 184 53 480 114 20 27 7 23 27 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL 8-98156-575-0 01 1 1401-1404 ●
1 MANIFOLD; INL 8-97192-327-1 01 1 1405- ●
1 MANIFOLD; INL 8-98024-411-1 01 1 1402- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 1401- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98212-999-0 01 1 1402- ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50540-825-0 05 1 1401- ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50540-830-0 01 1 1401- ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 1402- ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1402- ●
20 NUT; INL MANIF
M8 FLANGE MAL 		8-97581-233-0 02 1 1401- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91180-208-0 02 1 1402- ●
23 WASHER; PL,INL MANIF
ID=8.4 OD=22 		0-91614-708-0 01 1 1401- ●
27 STUD; INL MANIF
(B) M8X25 L=37 		0-41010-825-0 01 1 1401- ●
27 STUD; INL MANIF
(C) M8X35 L=46 		9-09630-034-1 01 1 1401- ●
27 STUD; INL MANIF
(A) M8X71 L=83 		8-98017-063-0 02 1 1402- ●
53 BOLT; INL PIPE
M10X25 FLANGE 		0-28151-025-0 02 1 1401- ●
114 HOSE; VAC,INT THROTTLE
L=433 		8-98089-751-1 01 1 1401- ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-1 01 1 1401- ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 1402- ●
480 VALVE ASM; VAC SW 8-94144-597-1 01 1 1401- ●

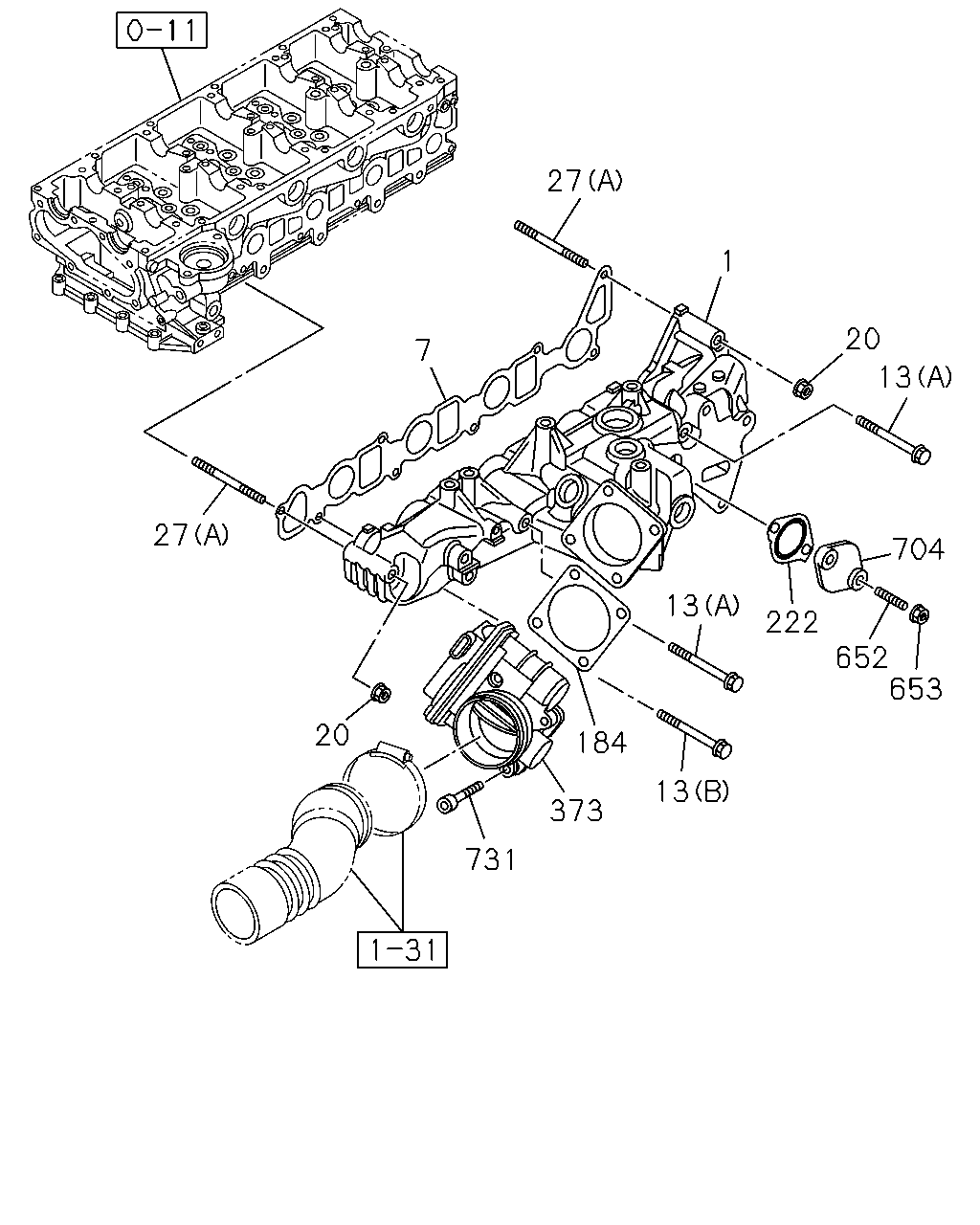

çizim 401070
27 7 27 20 731 13 184 13 222 652 653 704 13 20 373 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL 8-98156-575-0 01 1 1401-1404 ●
1 MANIFOLD; INL 8-97192-327-1 01 1 1405- ●
1 MANIFOLD; INL 8-98024-411-1 01 1 1402- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 1401- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98212-999-0 01 1 1402- ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50540-825-0 05 1 1401- ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50540-830-0 01 1 1401- ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 1402- ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 1402- ●
20 NUT; INL MANIF
M8 FLANGE MAL 		8-97581-233-0 02 1 1401- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91180-208-0 02 1 1402- ●
27 STUD; INL MANIF
(B) M8X25 L=37 		0-41010-825-0 01 1 1401- ●
27 STUD; INL MANIF
(C) M8X35 L=46 		9-09630-034-1 01 1 1401- ●
27 STUD; INL MANIF
(A) M8X71 L=83 		8-98017-063-0 02 1 1402- ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-1 01 1 1401- ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 1402- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97357-684-3 01 1 1402- ●
373 THROTTLE ASM; INT 8-98040-003-4 01 1 1402- ●
652 STUD; DUCT,AIR INLET
M8X25 L=41 		0-40210-825-0 02 1 1402- ●
653 NUT; DUCT,AIR INLET
M8 FLANGE 		0-91180-208-0 02 1 1402- ●
704 COVER 8-98056-986-0 01 1 1402- ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 1402- ●

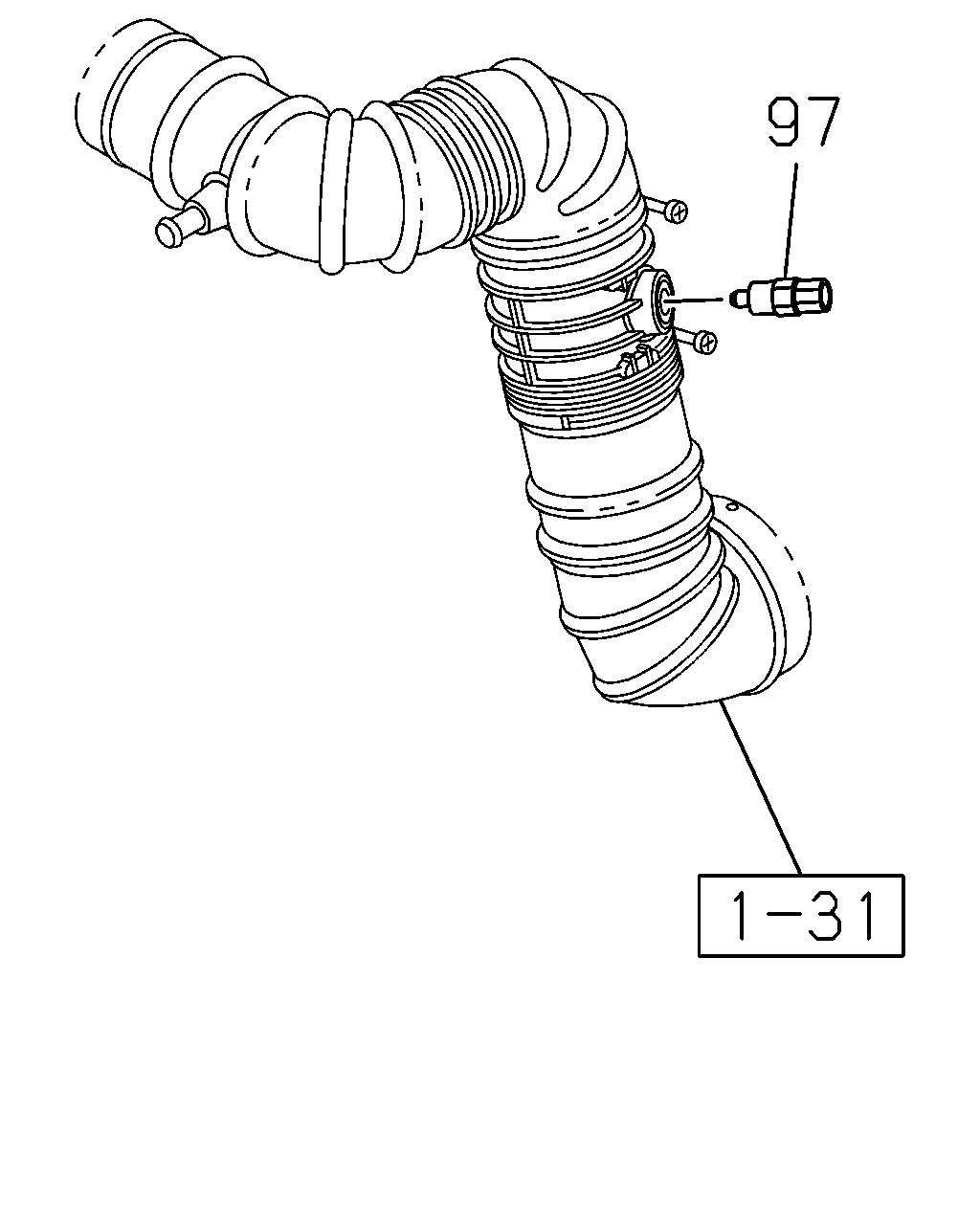

çizim 401627
97
BalonParca AdiParca NoAdetTipApplied Date A B
97 SENSOR; INTAKE,AIR TEMPERATURE 8-12146-830-0 01 1 1402- ●
