◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#132413) — 77 parça

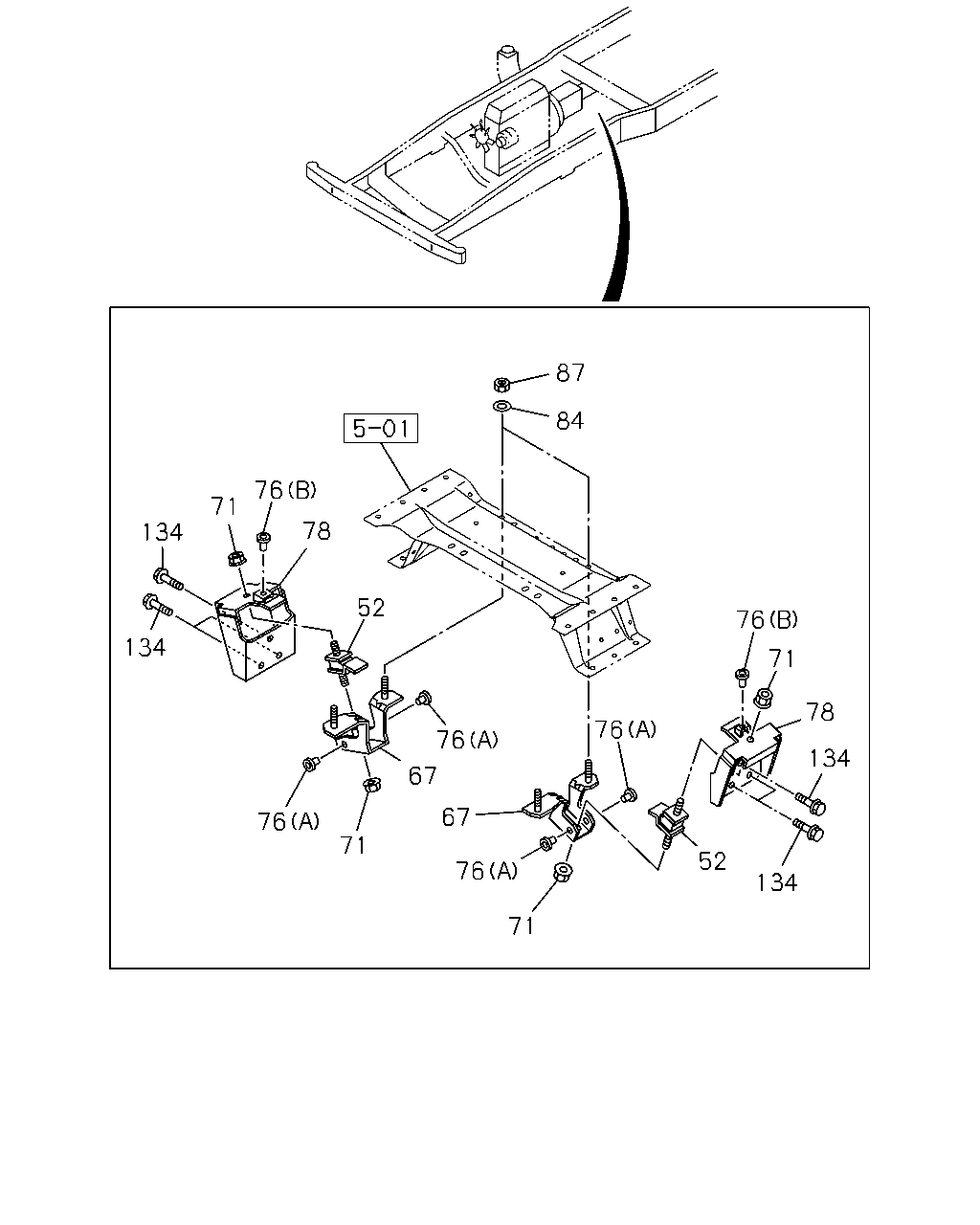

çizim 401057
134 134 76 71 78 52 76 76 67 71 67 76 76 71 52 134 143 78 71 76 87 84
BalonParca AdiParca NoAdetTipApplied Date A B
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1401-1401 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1402- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97182-198-1 01 1 1401- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97182-199-1 01 1 1401- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97354-876-1 01 1 1402- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97354-877-1 01 1 1402- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE MAL 		0-91180-110-0 04 1 1401-1401 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE MAL 		0-91180-110-0 04 1 1402- ● ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 02 1 1401- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-94111-904-0 02 1 1401-1401 ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-94111-904-0 02 1 1402- ● ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1402- ●
78 BRACKET; ENG MTG,RR 8-97182-197-2 01 1 1401- ●
78 BRACKET; ENG MTG,RR 8-98053-902-1 02 1 1402- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 MAL 		0-91614-810-0 04 1 1401- ● ●
87 NUT; ENG MTG RR
M10 FLANGE MAL 		0-91180-110-0 04 1 1401- ● ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 1402- ●

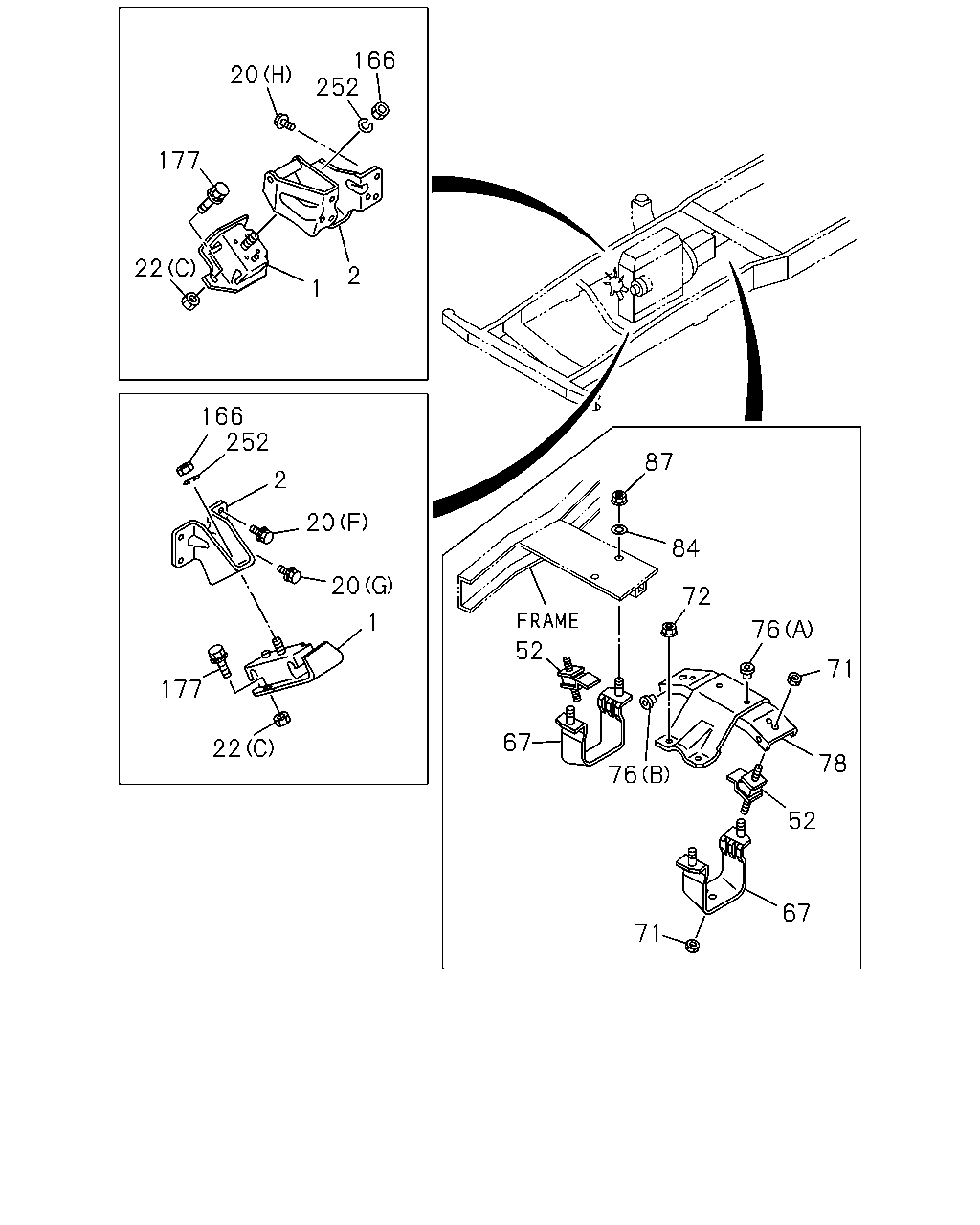

çizim 401058
20 177 22 1 2 252 166 166 252 20 20 1 22 177 2 87 84 72 76 71 78 52 67 71 76 67 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1401- ●
1 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1401- ●
1 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1402- ●
1 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1402- ●
2 FOOT; ENG 8-97287-639-2 01 1 1401- ●
2 FOOT; ENG 8-97300-156-0 01 1 1401- ●
2 FOOT; ENG 8-97381-513-1 01 1 1402- ●
2 FOOT; ENG 8-97381-514-2 01 1 1402- ●
20 BOLT; ENG FOOT
(F) M10X22 W/LK WASHER 		0-50541-022-0 05 1 1401- ●
20 BOLT; ENG FOOT
(G) M14X25 W/LK WASHER 		0-50541-425-0 01 1 1401- ●
20 BOLT; ENG FOOT
(H) M10X28 		8-94329-952-1 02 1 1401- ●
20 BOLT; ENG FOOT
(C) M10X70 FLANGE MAL 		0-28051-070-0 01 1 1402- ●
20 BOLT; ENG FOOT
(D) M10X20 FLANGE MAL 		0-28651-020-0 01 1 1402- ●
20 BOLT; ENG FOOT
(E) M10X25 FLANGE MAL 		0-28651-025-0 02 1 1402- ●
20 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1402- ●
20 BOLT; ENG FOOT
(B) M10X35 FLANGE MAL 		0-28651-035-0 01 1 1402- ●
22 NUT; CUSHION RUBBER TO BRKT
(C) M10 FLANGE MAL 		0-91180-210-0 04 1 1401- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE MAL 		0-91180-112-0 02 1 1402- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE 		8-98046-987-0 02 1 1402- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1401-1401 ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1402- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97182-198-1 01 1 1401- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97182-199-1 01 1 1401- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97354-876-1 01 1 1402- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97354-877-1 01 1 1402- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE MAL 		0-91180-110-0 04 1 1401-1401 ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE MAL 		0-91180-110-0 04 1 1402- ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 FLANGE MAL 		0-91180-110-0 04 1 1401- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 02 1 1401- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-94111-904-0 02 1 1401-1401 ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-94111-904-0 02 1 1402- ● ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1402- ●
78 BRACKET; ENG MTG,RR 8-97182-197-2 01 1 1401- ●
78 BRACKET; ENG MTG,RR 8-98053-902-1 02 1 1402- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 MAL 		0-91614-810-0 04 1 1401- ● ●
87 NUT; ENG MTG RR
M10 FLANGE MAL 		0-91180-110-0 04 1 1401- ● ●
166 NUT; SUPPORT RUBBER
M12 MAL 		0-91110-512-0 02 1 1401- ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1401- ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 MAL 		0-91510-612-0 02 1 1401- ●

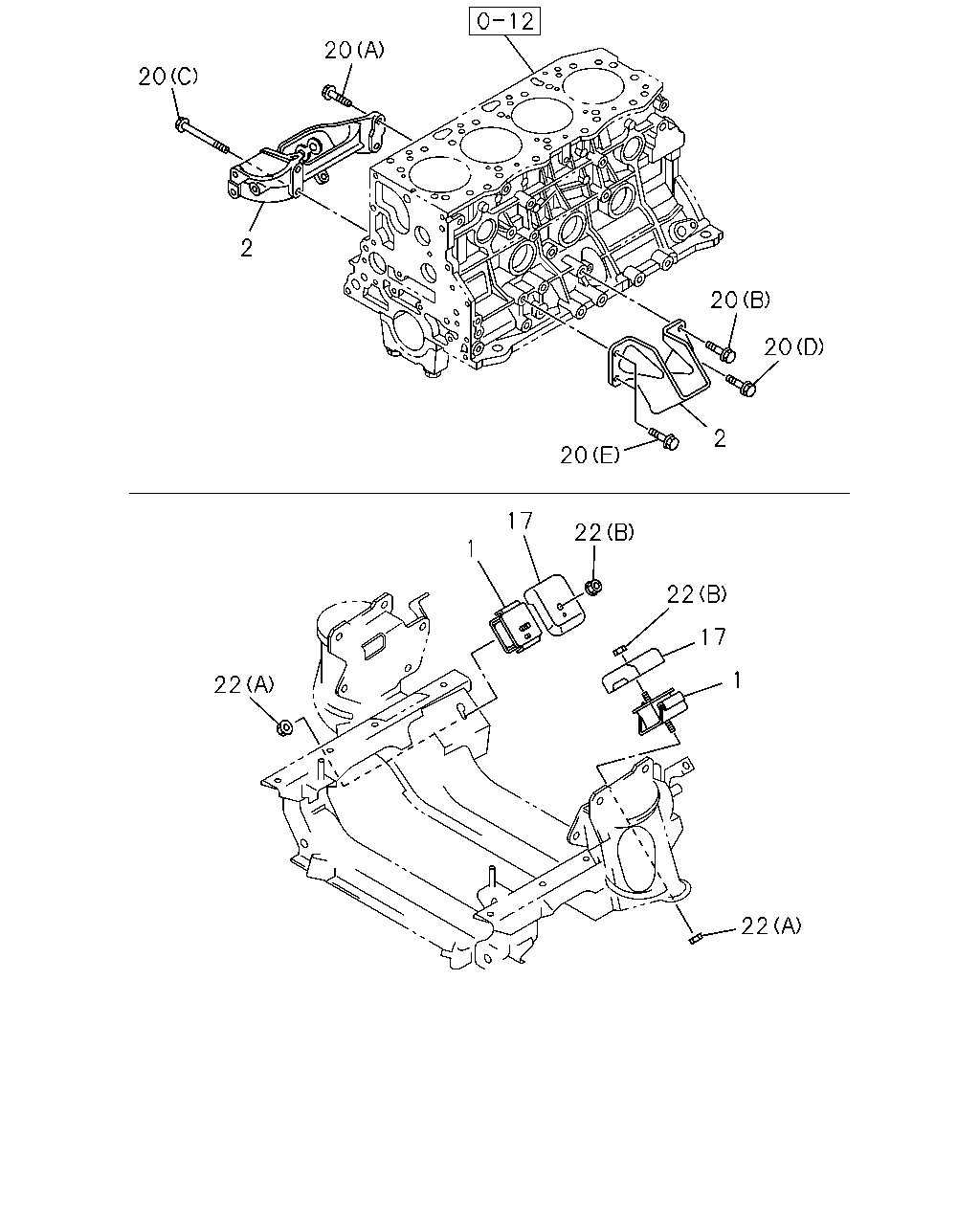

çizim 401061
20 20 2 20 2 20 20 1 22 22 17 1 22 22 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1401- ●
1 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1401- ●
1 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 1402- ●
1 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 1402- ●
2 FOOT; ENG 8-97287-639-2 01 1 1401- ●
2 FOOT; ENG 8-97300-156-0 01 1 1401- ●
2 FOOT; ENG 8-97381-513-1 01 1 1402- ●
2 FOOT; ENG 8-97381-514-2 01 1 1402- ●
17 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1402- ●
17 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1402- ●
20 BOLT; ENG FOOT
(F) M10X22 W/LK WASHER 		0-50541-022-0 05 1 1401- ●
20 BOLT; ENG FOOT
(G) M14X25 W/LK WASHER 		0-50541-425-0 01 1 1401- ●
20 BOLT; ENG FOOT
(H) M10X28 		8-94329-952-1 02 1 1401- ●
20 BOLT; ENG FOOT
(C) M10X70 FLANGE MAL 		0-28051-070-0 01 1 1402- ●
20 BOLT; ENG FOOT
(D) M10X20 FLANGE MAL 		0-28651-020-0 01 1 1402- ●
20 BOLT; ENG FOOT
(E) M10X25 FLANGE MAL 		0-28651-025-0 02 1 1402- ●
20 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1402- ●
20 BOLT; ENG FOOT
(B) M10X35 FLANGE MAL 		0-28651-035-0 01 1 1402- ●
22 NUT; CUSHION RUBBER TO BRKT
(C) M10 FLANGE MAL 		0-91180-210-0 04 1 1401- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE MAL 		0-91180-112-0 02 1 1402- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE 		8-98046-987-0 02 1 1402- ●
