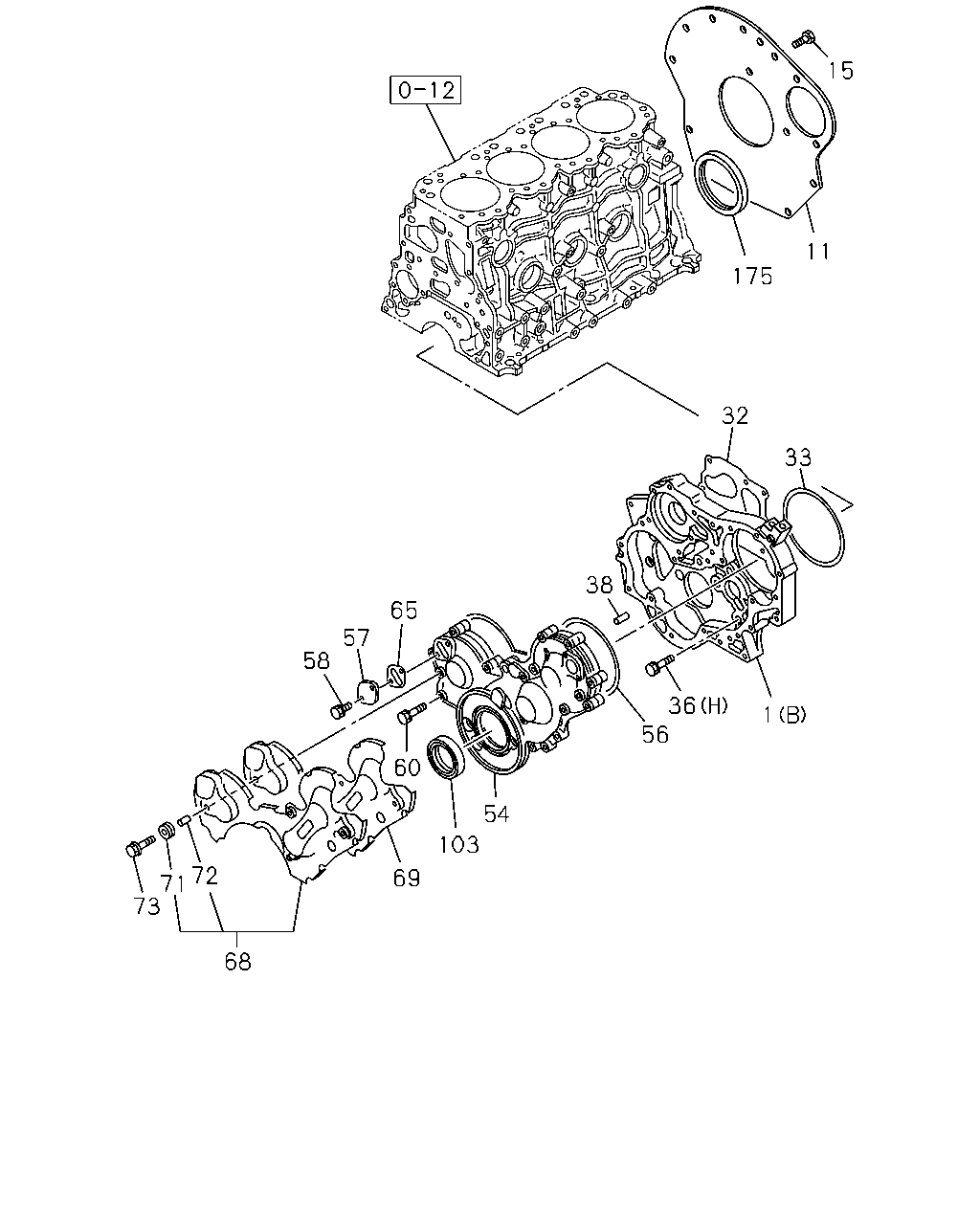

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#132412) — 98 parça

15 175 11 32 33 1 36 56 38 65 57 58 54 103 69 68 73 71 72 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR (B)	8-97219-001-4	01	1	1401-	●
1	CASE; TIMING GEAR (A)	8-98074-747-1	01	1	1402-		●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	1401-	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	1401-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	1401-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1402-		●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	1401-	●
36	BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1401-	●
36	BOLT; GEAR CASE (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1401-	●
36	BOLT; GEAR CASE (G) M8X16 FLANGE MAL	0-28050-816-0	01	1	1402-		●
36	BOLT; GEAR CASE (A) M8X20 FLANGE MAL	0-28050-820-0	13	1	1402-		●
36	BOLT; GEAR CASE (C) M8X35 FLANGE	0-28050-835-0	01	1	1402-		●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	1402-		●
36	BOLT; GEAR CASE (B) M8X60 FLANGE	0-28050-860-0	01	1	1402-		●
36	BOLT; GEAR CASE (D) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-		●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	1402-		●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	1401-1401	●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	1402-	●	●
54	COVER; GEAR CASE	8-97231-214-1	01	1	1401-	●
54	COVER; GEAR CASE	8-98165-119-1	01	1	1402-1405		●
54	COVER; GEAR CASE	8-98253-700-1	01	1	1406-		●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	1401-	●
57	COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	1401-	●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE MAL	0-28050-612-0	04	1	1401-	●
60	BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	1401-	●
60	BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	1401-	●
60	BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	1401-	●
60	BOLT; COVER TO CASE M8X58 FLANGE	8-94130-055-1	01	1	1401-	●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	02	1	1401-	●
68	COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	1401-	●
69	SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	1401-	●
71	RUBBER; MTG,COVER	5-19389-002-0	04	1	1401-	●
72	BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	1401-	●
73	BOLT; COVER FIX M6X16 FLANGE MAL	0-28050-616-0	04	1	1401-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1401-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1402-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1401-1401	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1402-	●	●

192 191 191 192

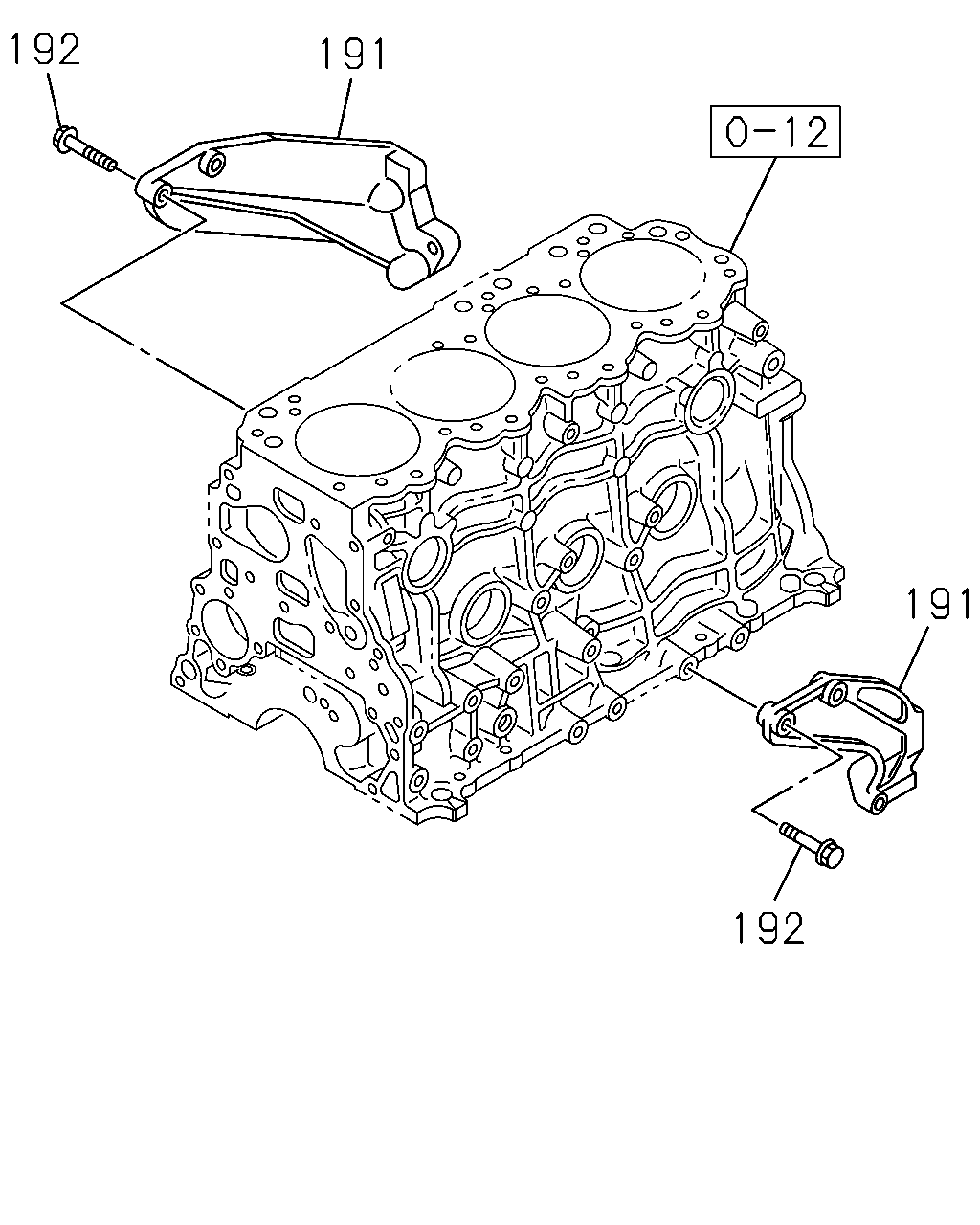

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
191	STAY; FLYWHEEL HSG	8-97074-108-3	01	1	1401-	●
191	STAY; FLYWHEEL HSG	8-97084-390-2	01	1	1401-	●
192	BOLT; STAY TO HSG M10X35 FLANGE MAL	0-28651-035-0	04	1	1401-	●

205 211 211 211 2 185 172 175

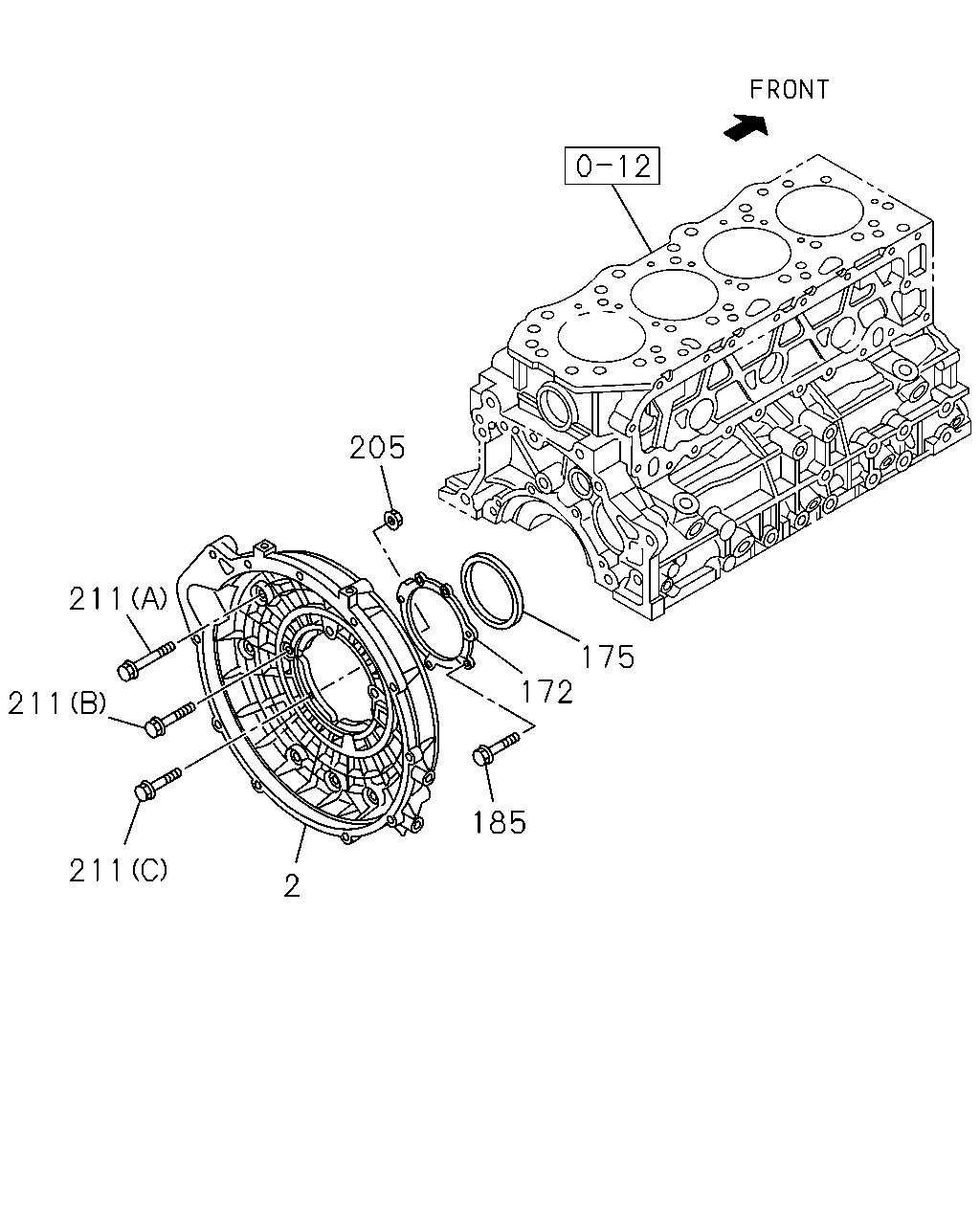

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-98252-203-0	01	1	1402-		●
172	RETAINER; CR/SHF	8-97379-826-0	01	1	1402-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1401-1401	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1402-	●	●
185	BOLT; RET TO C/BL M8X25 FLANGE MAL	0-28650-825-0	05	1	1402-		●
205	NUT; HSG M10 FLANGE MAL	0-91180-210-0	01	1	1402-		●
211	BOLT; HSG (A) M12X35 FLANGE	0-28651-235-0	06	1	1402-		●
211	BOLT; HSG (B) M12X25	5-09000-227-0	03	1	1402-		●
211	BOLT; HSG (C) M10X43	9-09606-535-0	01	1	1402-		●

79 233 202 32 36 36 620 1 81 36 36 38 49 36 36 36 133 36 38 134 98 99 99 54 51 50 103 80 124 81 123 517 621 4 595 595 510 595 518 516 516 516 517 595 50 636 510 595

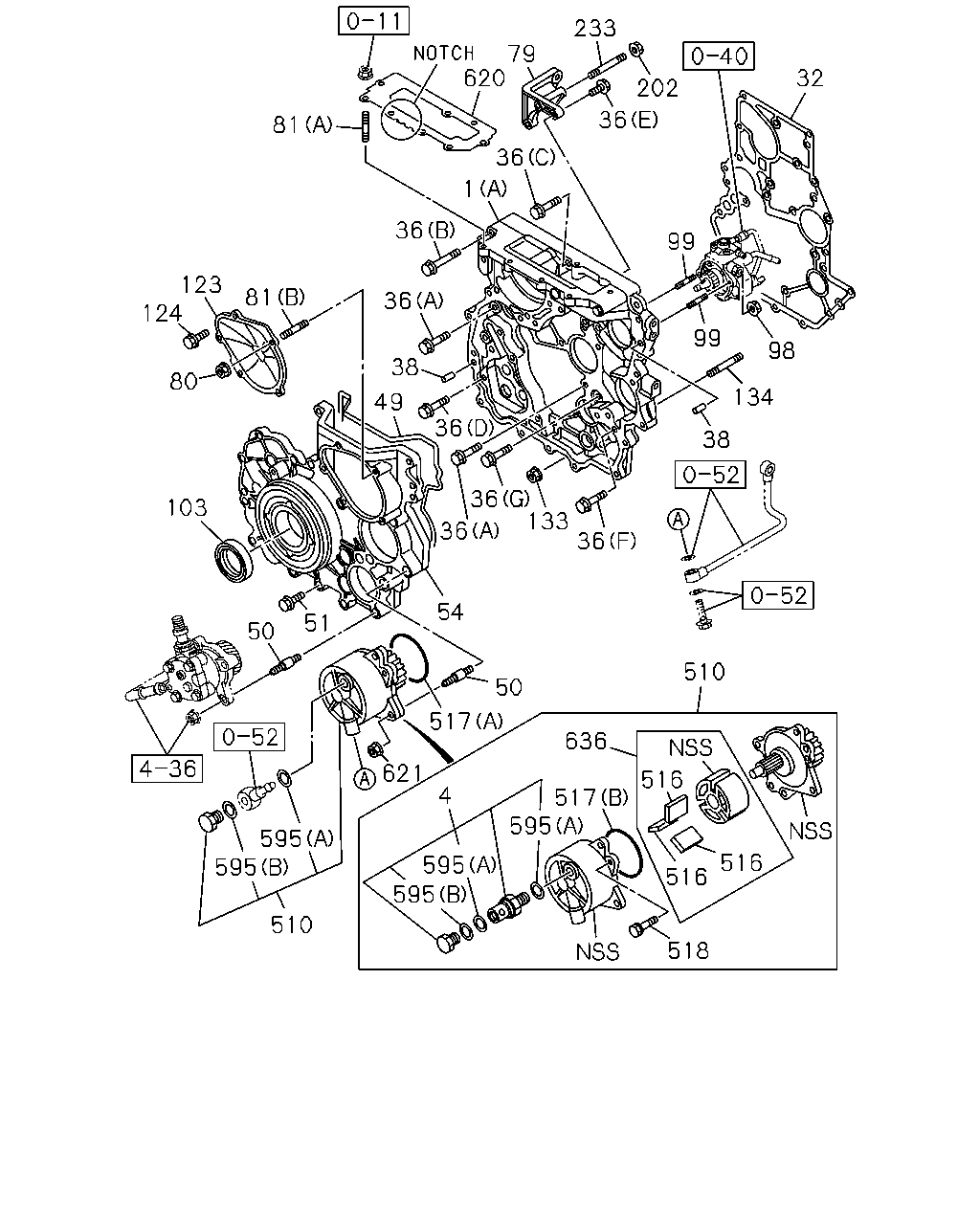

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR (B)	8-97219-001-4	01	1	1401-	●
1	CASE; TIMING GEAR (A)	8-98074-747-1	01	1	1402-		●
4	VALVE ASM; CHECK	8-98049-521-0	01	1	1402-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	1401-	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1402-		●
36	BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1401-	●
36	BOLT; GEAR CASE (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1401-	●
36	BOLT; GEAR CASE (G) M8X16 FLANGE MAL	0-28050-816-0	01	1	1402-		●
36	BOLT; GEAR CASE (A) M8X20 FLANGE MAL	0-28050-820-0	13	1	1402-		●
36	BOLT; GEAR CASE (C) M8X35 FLANGE	0-28050-835-0	01	1	1402-		●
36	BOLT; GEAR CASE (F) M8X45 FLANGE	0-28050-845-0	02	1	1402-		●
36	BOLT; GEAR CASE (B) M8X60 FLANGE	0-28050-860-0	01	1	1402-		●
36	BOLT; GEAR CASE (D) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-		●
36	BOLT; GEAR CASE (E) M8X30 FLANGE	0-28650-830-0	03	1	1402-		●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	1401-1401	●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	1402-	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1402-		●
50	STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	1402-		●
51	BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1402-		●
54	COVER; GEAR CASE	8-97231-214-1	01	1	1401-	●
54	COVER; GEAR CASE	8-98165-119-1	01	1	1402-1405		●
54	COVER; GEAR CASE	8-98253-700-1	01	1	1406-		●
79	BRACKET; GEAR CASE COVER	8-98107-106-0	01	1	1402-		●
80	NUT; COVER M6 FLANGE MAL	0-91180-206-0	02	1	1402-		●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1402-		●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48	0-49140-830-0	02	1	1402-		●
98	NUT; STUD,INJ PUMP M8 FLANGE	0-91180-208-0	02	1	1402-		●
99	STUD; INJ PUMP M8X30 L=41	8-97369-449-0	02	1	1402-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1401-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1402-		●
123	COVER; TIMING,LWR	8-98158-145-0	01	1	1402-		●
124	BOLT; TIMING COVER M6X16 FLANGE MAL	0-28050-616-0	03	1	1402-		●
133	NUT; TIMING GEAR CASE M8 FLANGE	0-91180-208-0	02	1	1402-		●
134	STUD; TIMING GEAR CASE M8X20 L=32	0-41010-820-0	02	1	1402-		●
202	NUT; BRKT M8 FLANGE	0-91180-208-0	01	1	1402-		●
233	STUD; BRKT M8X71 L=83	8-98017-063-0	01	1	1402-		●
510	PUMP ASM; VACUUM	8-98251-764-0	01	1	1402-		●
516	VANE; VAC PUMP	8-98051-275-0	03	1	1402-		●
517	GASKET; VAC PUMP (B)	8-98251-769-0	01	1	1402-		●
517	GASKET; VAC PUMP (A) ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-271-0	01	1	1402-		●
518	BOLT; VAC PUMP	8-98049-523-0	03	1	1402-		●
595	GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1402-		●
595	GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1402-		●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	1402-		●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	1402-		●
620	GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	1402-		●
621	NUT; VAC PUMP M8 FLANGE	0-91180-208-0	03	1	1402-		●
636	ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1402-		●
