0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#132411) — 122 parça

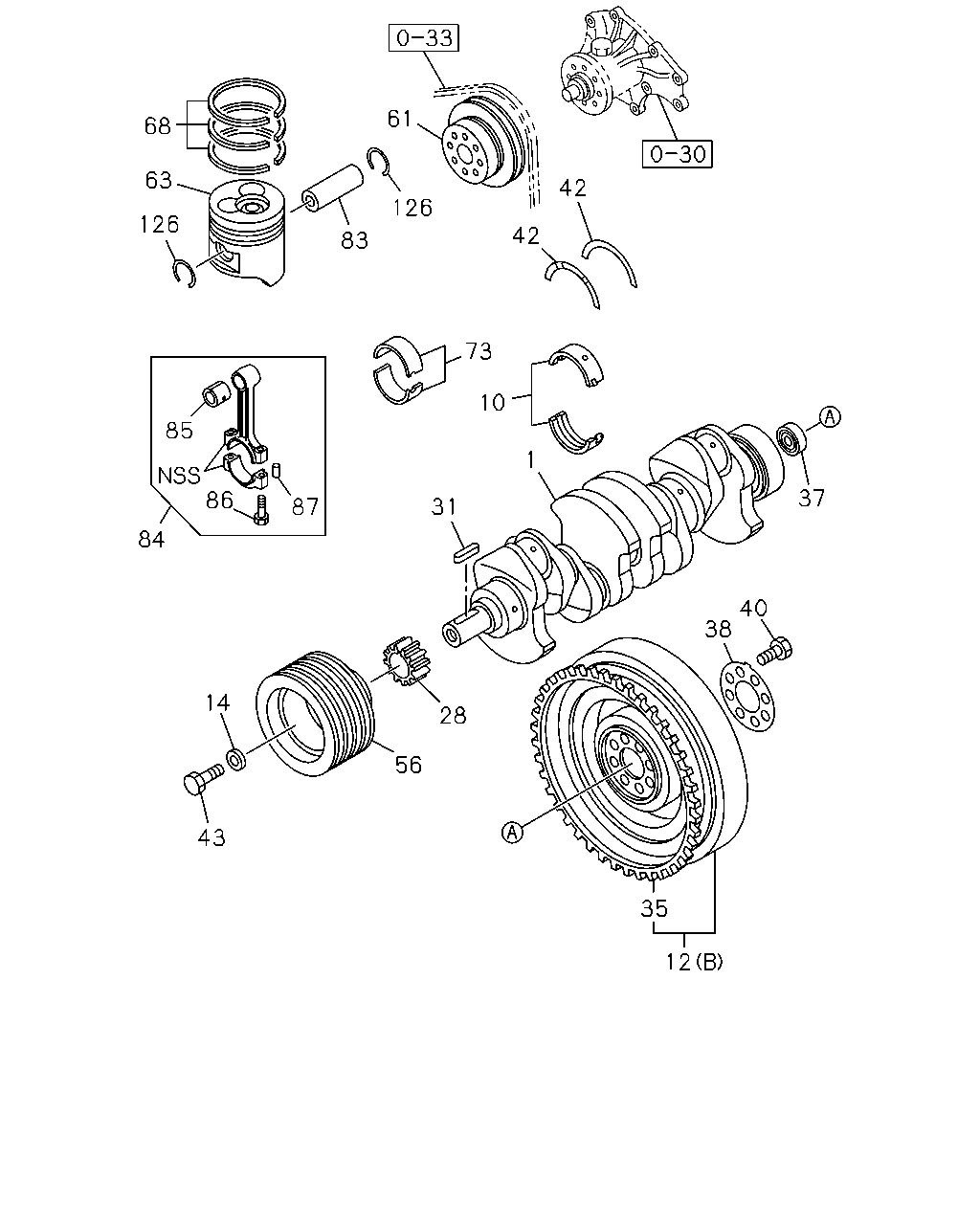

12 35 40 38 37 1 31 10 73 28 56 43 14 87 86 85 84 83 126 42 42 61 126 63 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97331-853-1	01	1	1401-	●
1	CRANKSHAFT	8-98154-950-2	01	1	1402-1409		●
1	CRANKSHAFT	8-98273-590-0	01	1	1410-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1401-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1401-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1402-		●
12	FLYWHEEL (B)	8-97034-430-2	01	1	1401-	●
12	FLYWHEEL (A)	8-98148-063-1	01	1	1402-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1401-	●
14	WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1402-		●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1401-	●
28	GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1402-		●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	1401-	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	1401-	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	1402-		●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	1401-	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	1401-	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1401-1401	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1402-	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1401-	●
40	BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1402-		●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1401-1401	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1402-	●	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1401-	●
43	BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1402-		●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	1401-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1402-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1401-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1402-		●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-610-0	04	1	1401-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-611-0	04	1	1401-	●
63	PISTON GRADE=A	8-98043-703-0	04	1	1402-		●
63	PISTON GRADE=B	8-98043-704-0	04	1	1402-		●
63	PISTON GRADE=C	8-98043-705-0	04	1	1402-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1401-	●
68	RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1402-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1401-1401	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1402-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1401-	●
83	PIN; PISTON	8-98015-193-1	04	1	1402-		●
84	ROD ASM; CONN	8-98013-962-4	04	1	1401-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1402-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	1401-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1402-		●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1401-1401	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1402-	●	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1401-1401	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1402-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1401-1401	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1402-	●	●

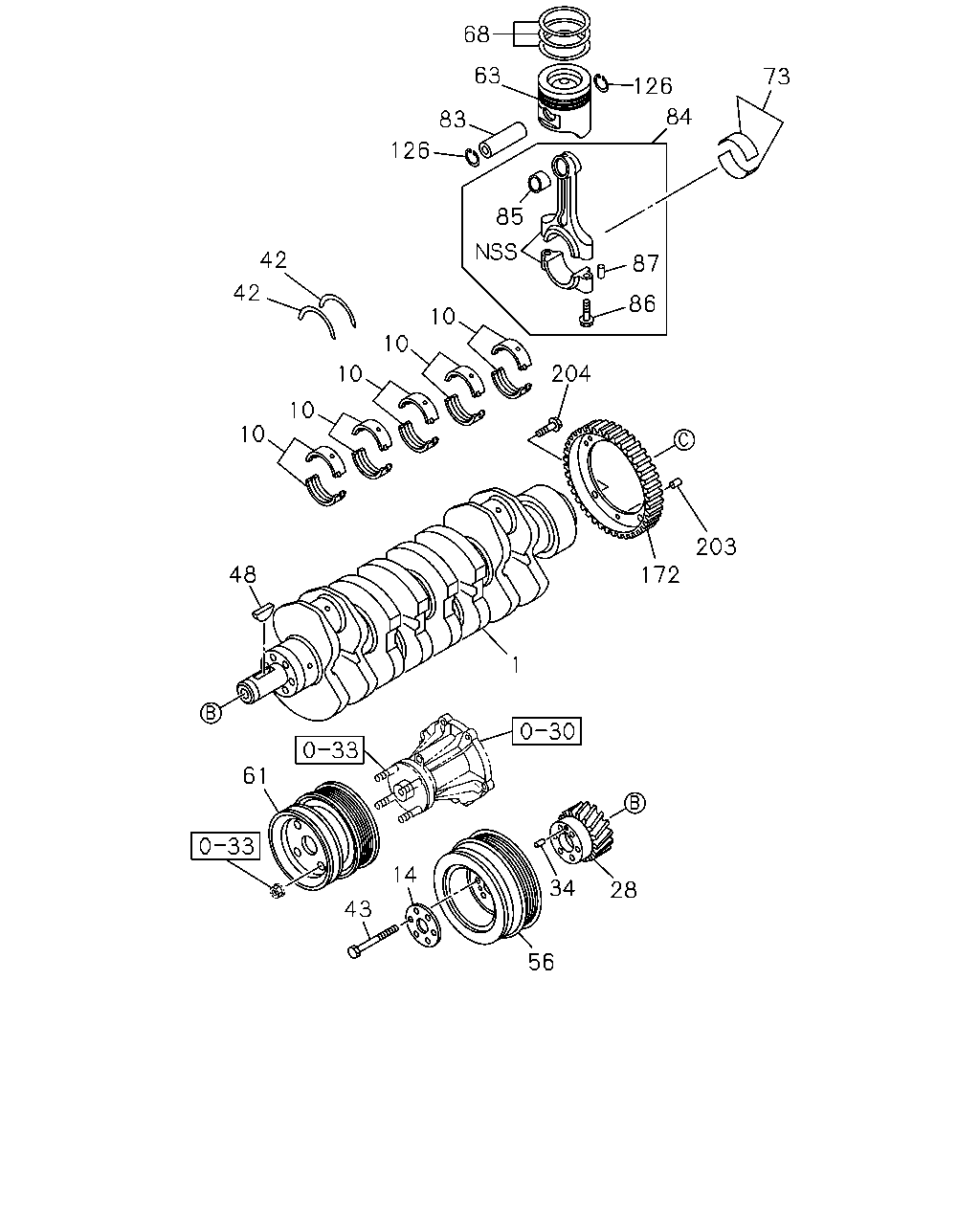

68 63 83 126 42 42 10 10 10 10 10 85 126 84 73 87 86 204 172 203 1 61 14 43 56 34 28 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97331-853-1	01	1	1401-	●
1	CRANKSHAFT	8-98154-950-2	01	1	1402-1409		●
1	CRANKSHAFT	8-98273-590-0	01	1	1410-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1401-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1401-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1401-1401	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1402-	●	●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1402-		●
10	METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1402-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1401-	●
14	WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1402-		●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1401-	●
28	GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1402-		●
34	PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1402-		●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1401-1401	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1402-	●	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1401-	●
43	BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1402-		●
48	KEY; WOODRUFF,CR/SHF	8-94201-641-0	01	1	1402-		●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	1401-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1402-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1401-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1402-		●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-610-0	04	1	1401-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-611-0	04	1	1401-	●
63	PISTON GRADE=A	8-98043-703-0	04	1	1402-		●
63	PISTON GRADE=B	8-98043-704-0	04	1	1402-		●
63	PISTON GRADE=C	8-98043-705-0	04	1	1402-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1401-	●
68	RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1402-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1401-1401	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1402-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1401-	●
83	PIN; PISTON	8-98015-193-1	04	1	1402-		●
84	ROD ASM; CONN	8-98013-962-4	04	1	1401-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1402-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	1401-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1402-		●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1401-1401	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1402-	●	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1401-1401	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1402-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1401-1401	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1402-	●	●
172	ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1402-		●
203	PIN; ROTOR OD=5 L=8	9-08160-508-0	01	1	1402-		●
204	BOLT; ROTOR M6X10	8-98038-343-0	03	1	1402-		●

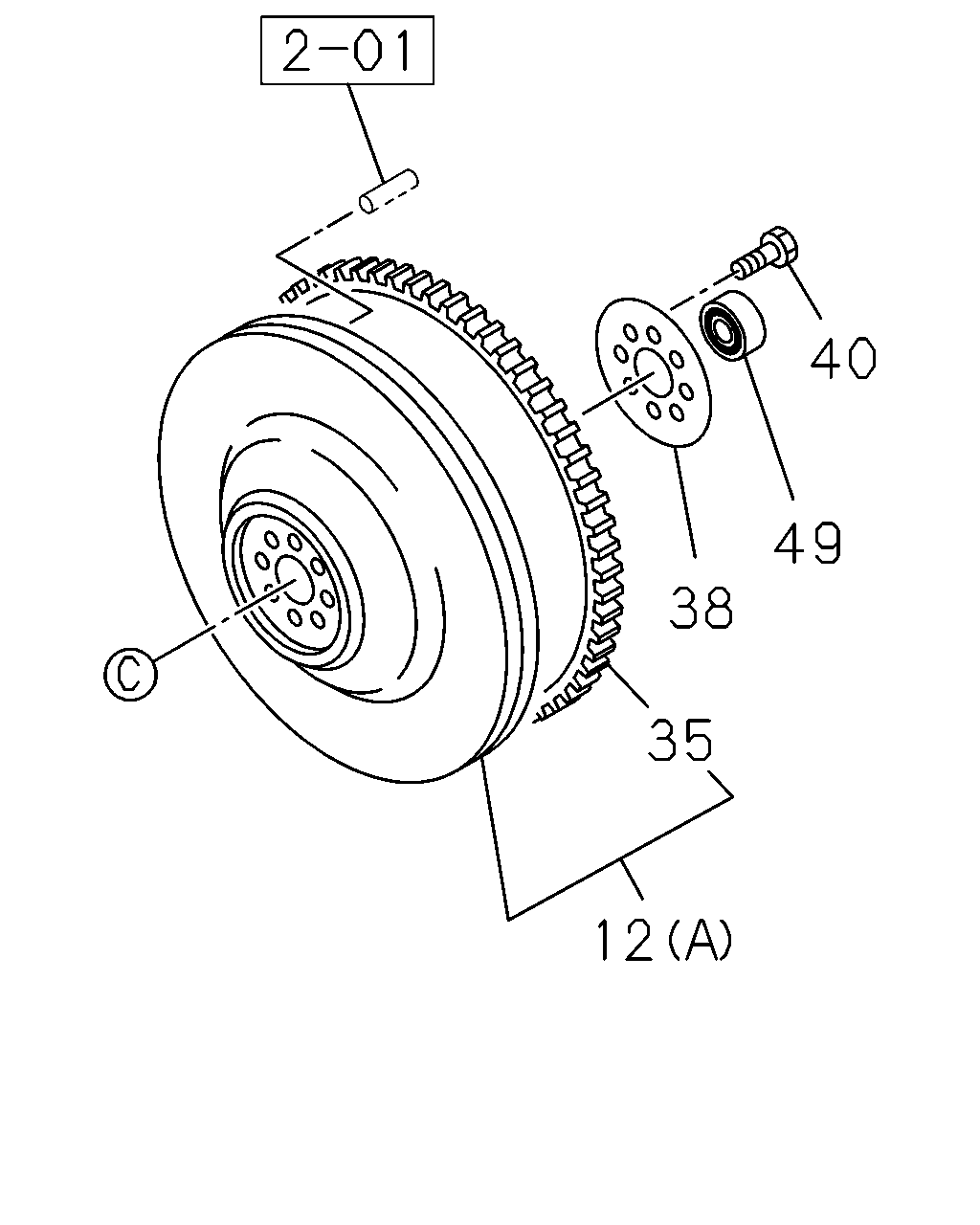

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	FLYWHEEL (B)	8-97034-430-2	01	1	1401-	●
12	FLYWHEEL (A)	8-98148-063-1	01	1	1402-		●
35	GEAR; RING Z=108	8-94419-602-1	01	1	1401-	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	1402-		●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1401-1401	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1402-	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1401-	●
40	BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1402-		●
49	BEARING; PILOT	8-97325-153-0	01	1	1402-		●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1402-		●
