0-13 — OIL PAN AND LEVEL GAUGE (#132409) — 33 parça

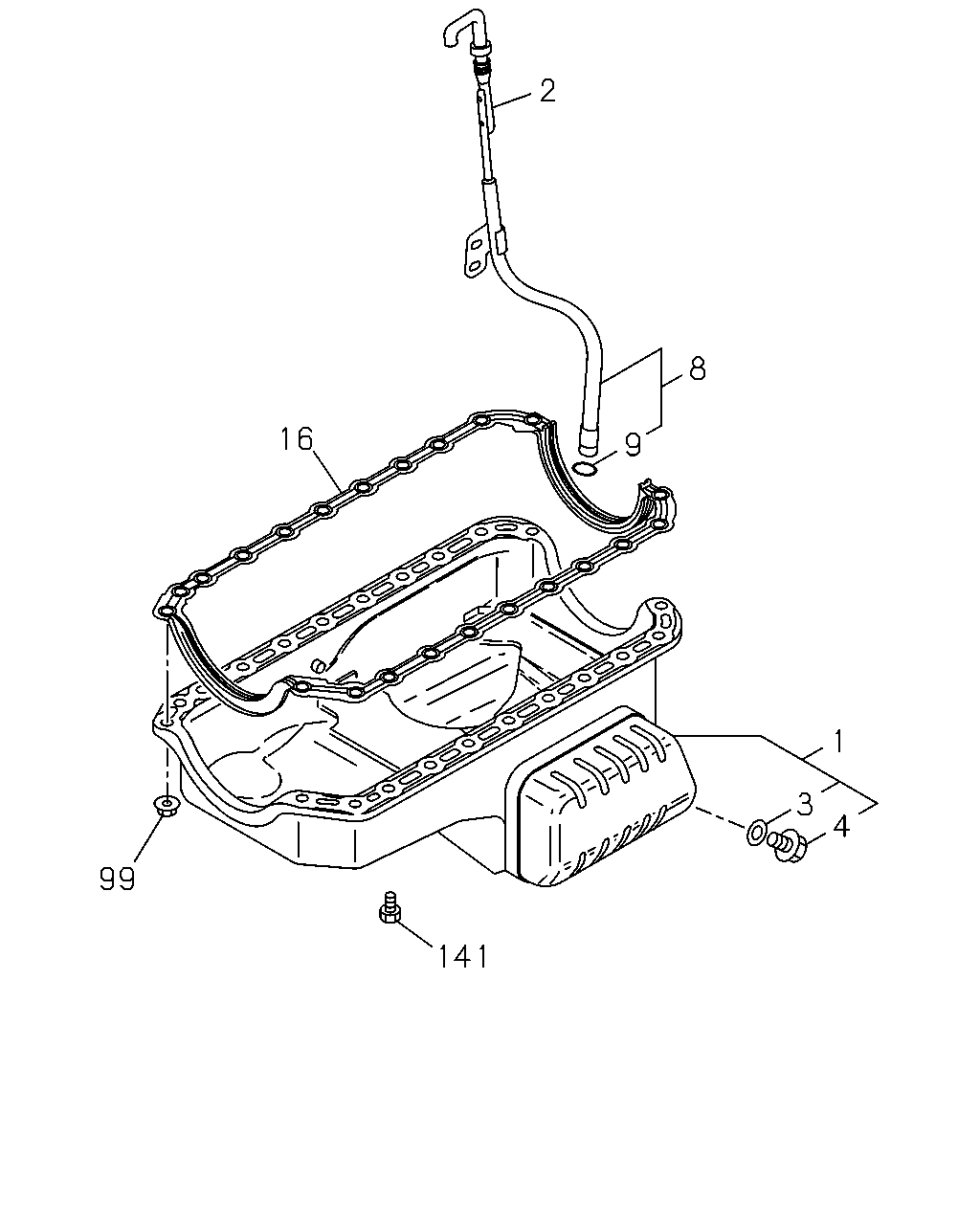

16 99 2 8 9 141 1 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-98000-123-0	01	1	1401-	●
1	PAN ASM; OIL	8-97383-067-3	01	1	1402-		●
2	GAUGE; OIL LEVEL	8-97231-295-0	01	1	1401-	●
2	GAUGE; OIL LEVEL	8-98112-777-1	01	1	1402-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1401-1401	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1402-	●	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1401-1401	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1402-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1401-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1402-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1401-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1402-		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	1401-	●
99	NUT; BRKT TO OIL PAN FIX M8 FLANGE	5-09440-010-0	10	1	1401-	●
141	BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	1401-	●

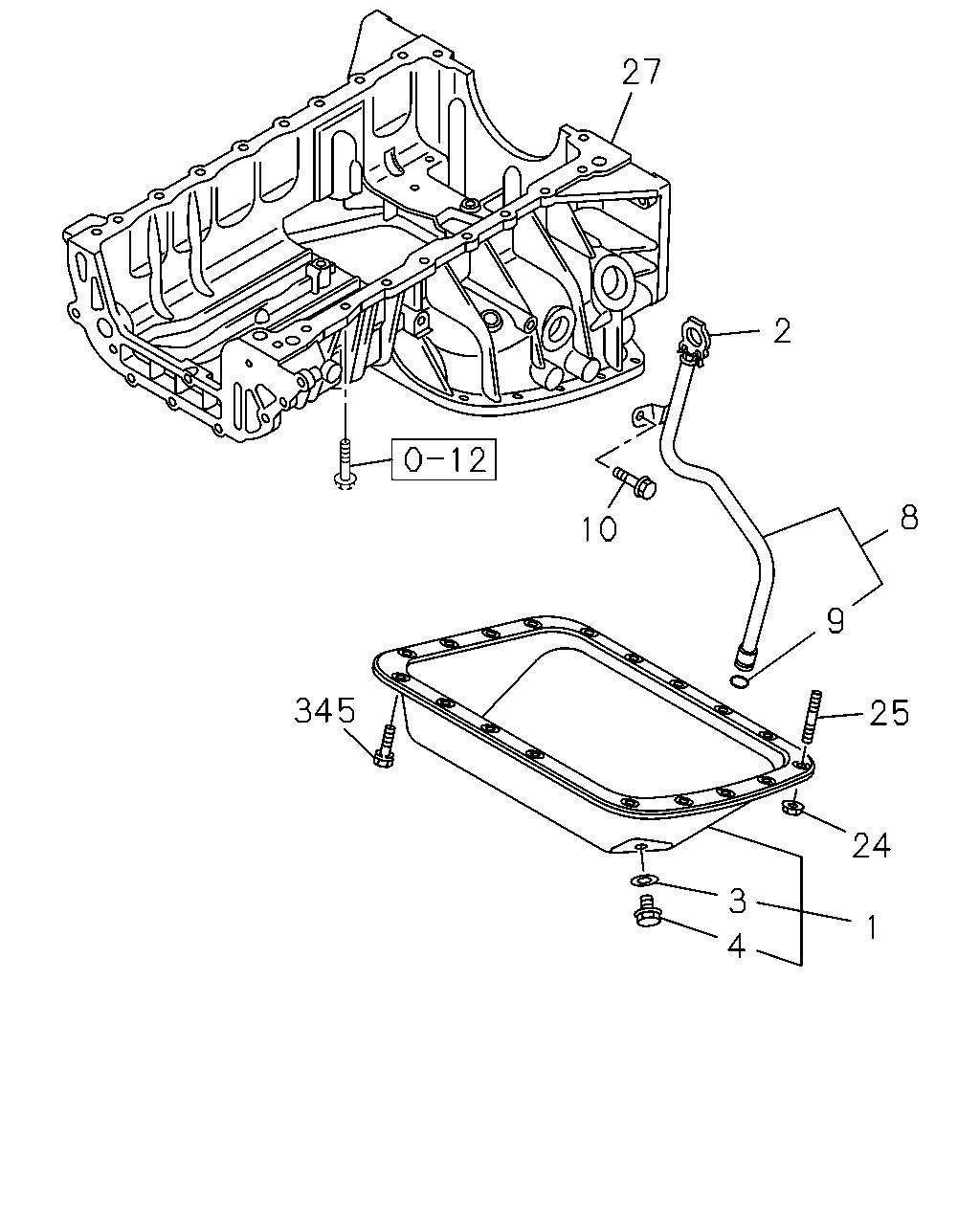

27 2 8 25 9 10 345 3 4 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	8-98000-123-0	01	1	1401-	●
1	PAN ASM; OIL	8-97383-067-3	01	1	1402-		●
2	GAUGE; OIL LEVEL	8-97231-295-0	01	1	1401-	●
2	GAUGE; OIL LEVEL	8-98112-777-1	01	1	1402-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1401-1401	●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1402-	●	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1401-1401	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1402-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1401-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1402-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1401-	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1402-		●
10	BOLT; GUIDE TUBE M8X12 FLANGE	0-28050-812-0	01	1	1402-		●
24	NUT; OIL PAN M8 FLANGE	0-91180-208-0	02	1	1402-		●
25	STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1402-1405		●
25	STUD; OIL PAN M8X20 L=31	8-97945-022-0	02	1	1406-		●
27	CRANKCASE	8-98191-052-0	01	1	1402-		●
345	BOLT; SENSOR,OIL LEVEL M8X12 FLANGE	0-28050-812-0	17	1	1402-		●
