0-12 — CYLINDER BLOCK (#132408) — 112 parça

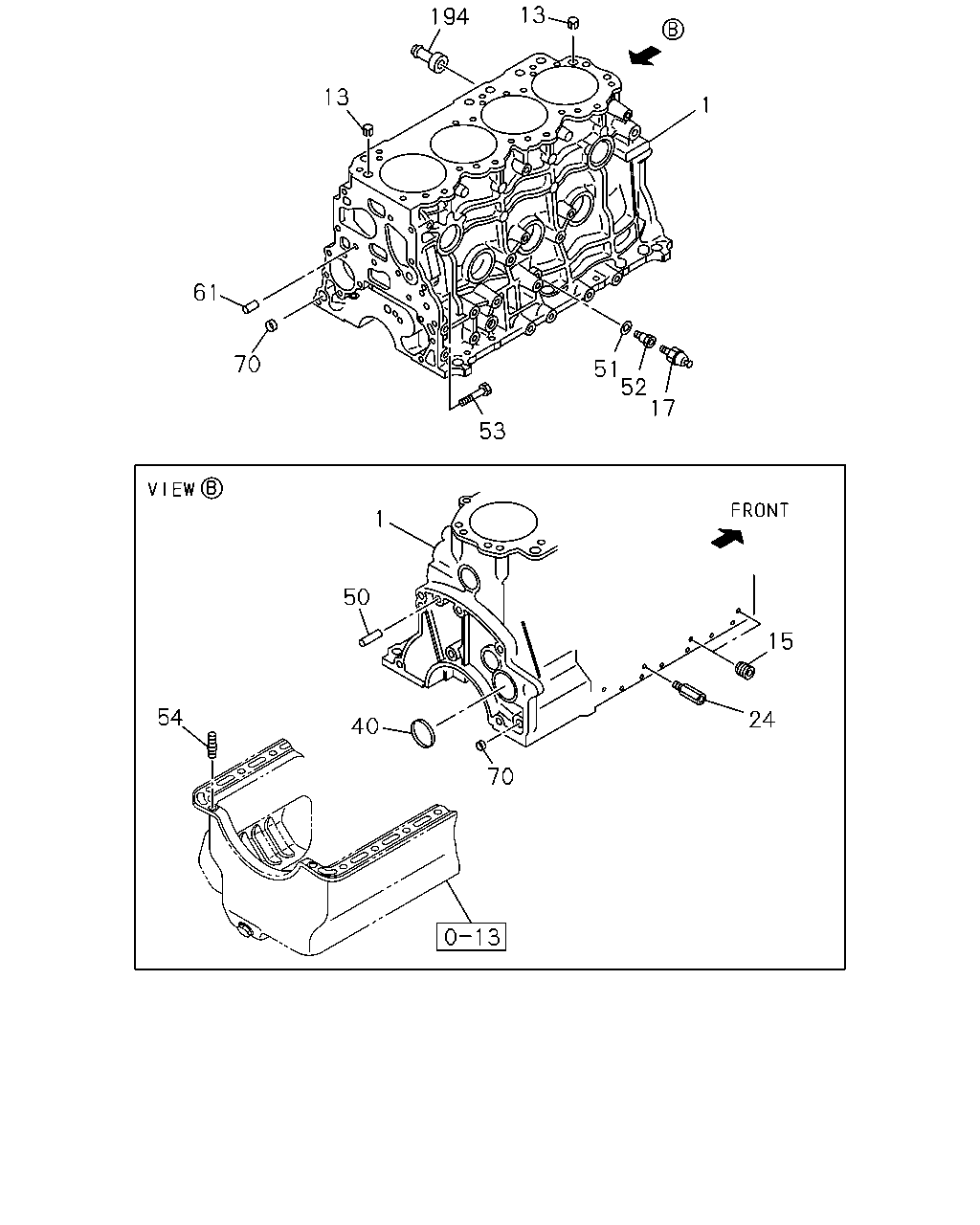

13 194 13 61 70 54 1 53 1 50 40 51 70 52 17 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	1401-	●
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1401-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1401-1401	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1402-	●	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	1401-	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1402-		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	1401-	●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	1401-	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	1401-	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	1401-	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1401-1401	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1402-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1401-1401	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1402-1501	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1502-	●	●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	1401-	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	1401-	●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	1401-	●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1402-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1401-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1402-		●
194	PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	1401-	●

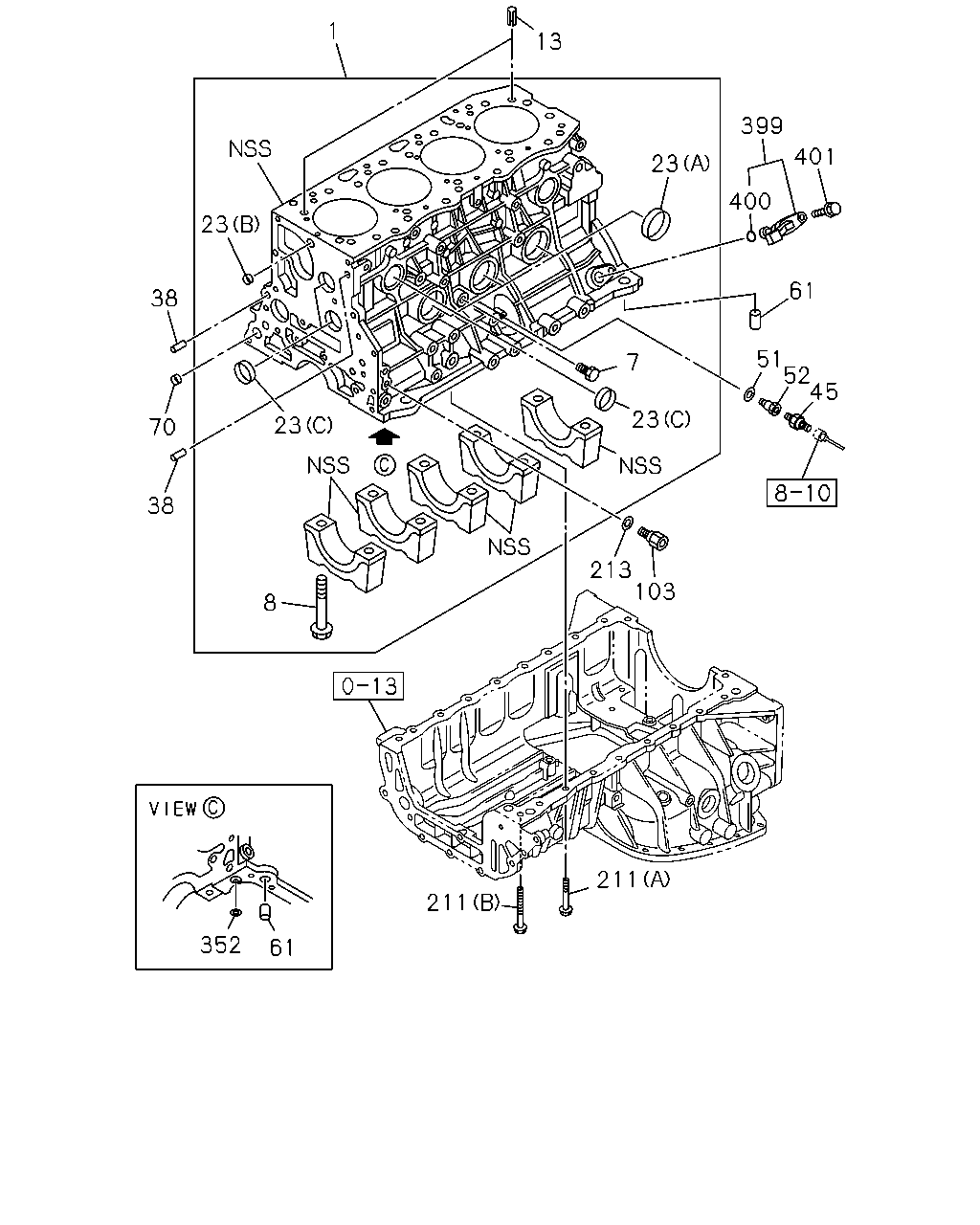

1 23 38 70 38 352 13 23 8 61 23 7 23 213 211 399 401 400 61 51 52 103 211 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	1401-	●
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1401-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1401-	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1402-		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1401-	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1402-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1401-1401	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1402-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1401-1401	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1402-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1402-		●
38	PIN; TIMING GEAR CASE OD=10 L=20	8-97135-423-0	02	1	1402-		●
45	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1402-		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1401-1401	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1402-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1401-1401	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1402-1501	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1502-	●	●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	1401-	●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1402-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1401-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1402-		●
103	NIPPLE; OIL FEED	8-94469-596-0	01	1	1402-		●
211	BOLT; CRANKCASE (A) M8X25 FLANGE MAL	0-28650-825-0	19	1	1402-		●
211	BOLT; CRANKCASE (B) M8X40 FLANGE	0-28650-840-0	01	1	1402-		●
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0	9-09571-410-0	01	1	1402-		●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1402-		●
399	SENSOR; CRANKSHAFT POSITION	8-97312-108-1	01	1	1402-		●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	1402-		●
401	BOLT; SENSOR M6X16 FLANGE MAL	0-28050-616-0	01	1	1402-		●

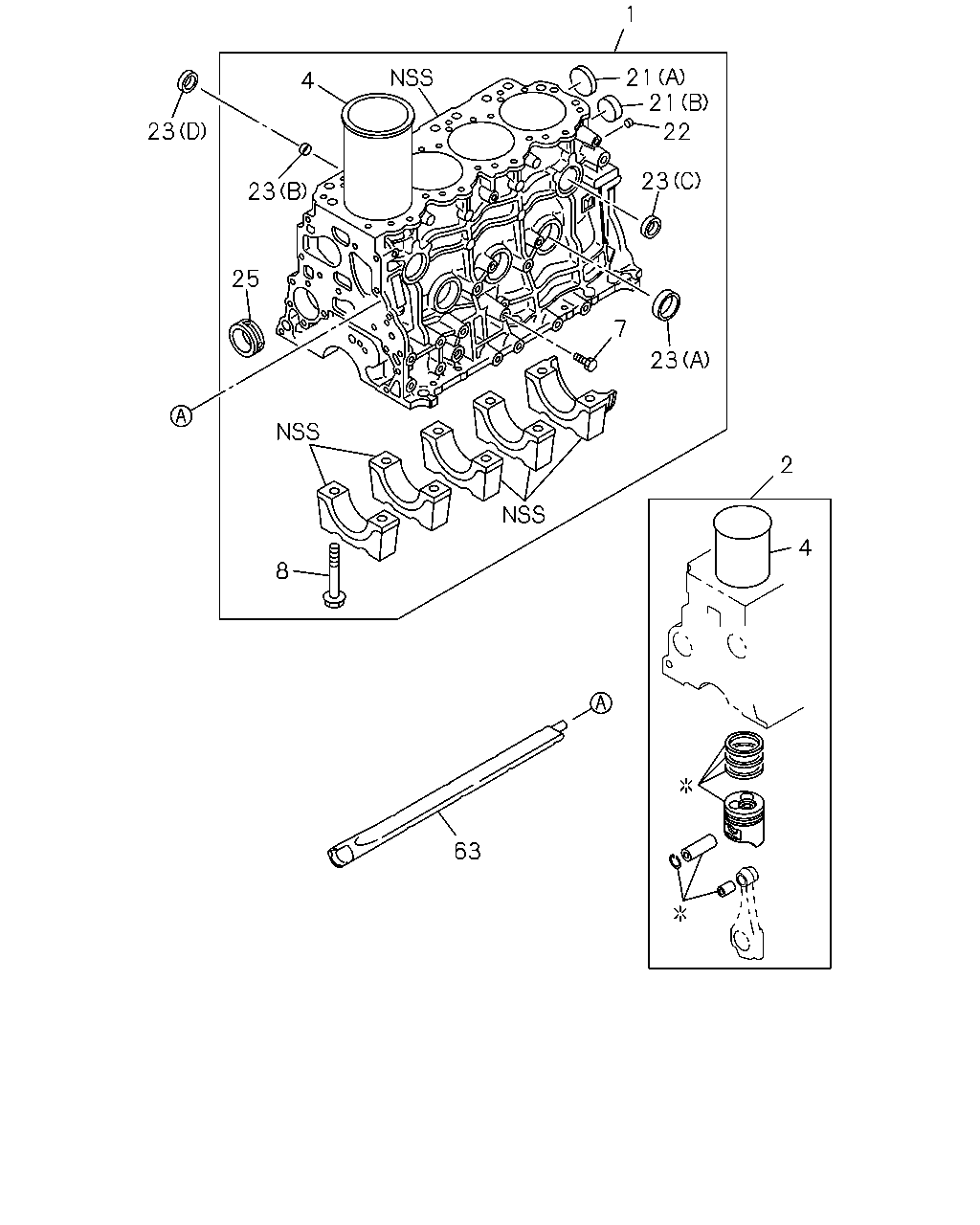

4 23 23 25 8 63 4 2 23 7 23 22 21 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	1401-	●
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1401-		●
2	LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	1401-	●
2	LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	1401-	●
2	LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	1401-	●
2	LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	1401-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	1401-	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1401-	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1402-		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1401-	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1402-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1401-	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1401-	●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	1402-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1402-		●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1402-		●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1401-1401	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1402-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1402-		●
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	03	1	1401-	●
25	METAL; CM/SHF FRONT	8-97378-148-0	03	1	1401-	●
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	1401-	●

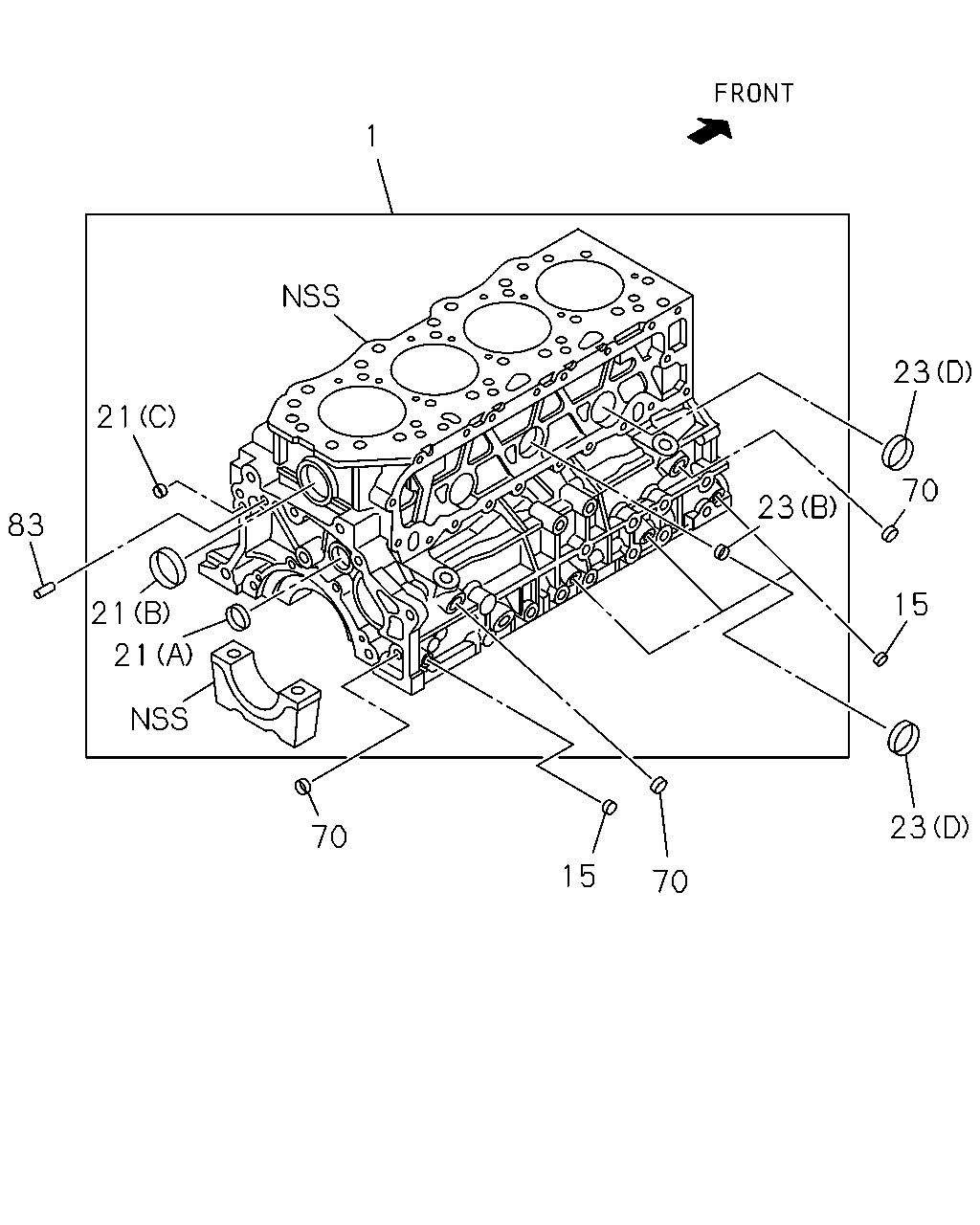

1 21 83 21 70 23 23 15 70 15 70 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	1401-	●
1	BLOCK ASM; CYL	8-98240-635-1	01	1	1401-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	1401-	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1402-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1401-	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1401-	●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	1402-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1402-		●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1401-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1401-1401	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	1402-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1402-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1402-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1401-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1402-		●
83	PIN; FLYWHEEL HSG OD=10 L=32	9-08161-032-0	01	1	1402-		●
