1 |

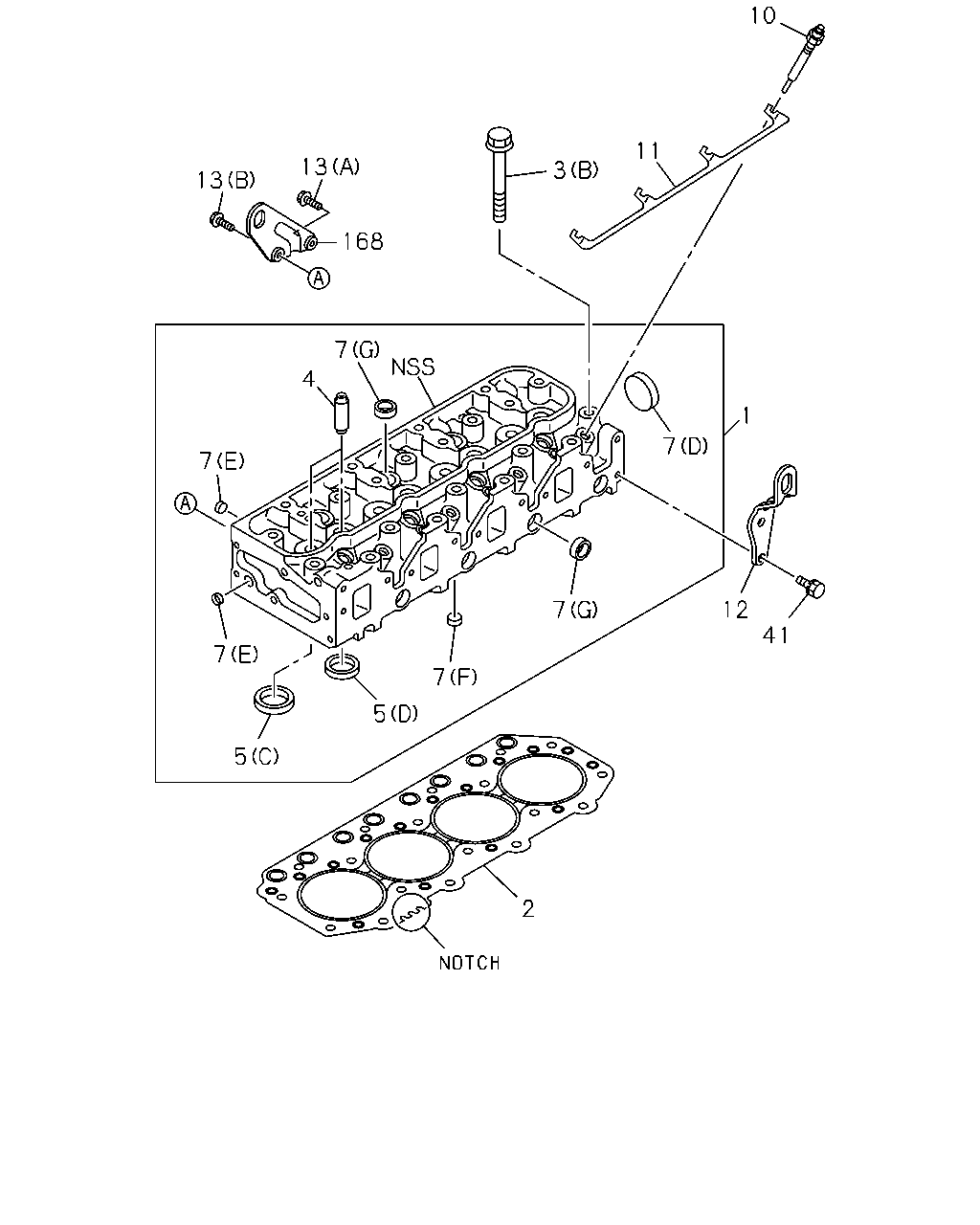

HEAD ASM; CYL
|
8-97204-376-6 |
01 |
1 |
1401- |
● |
|
| |
1 |

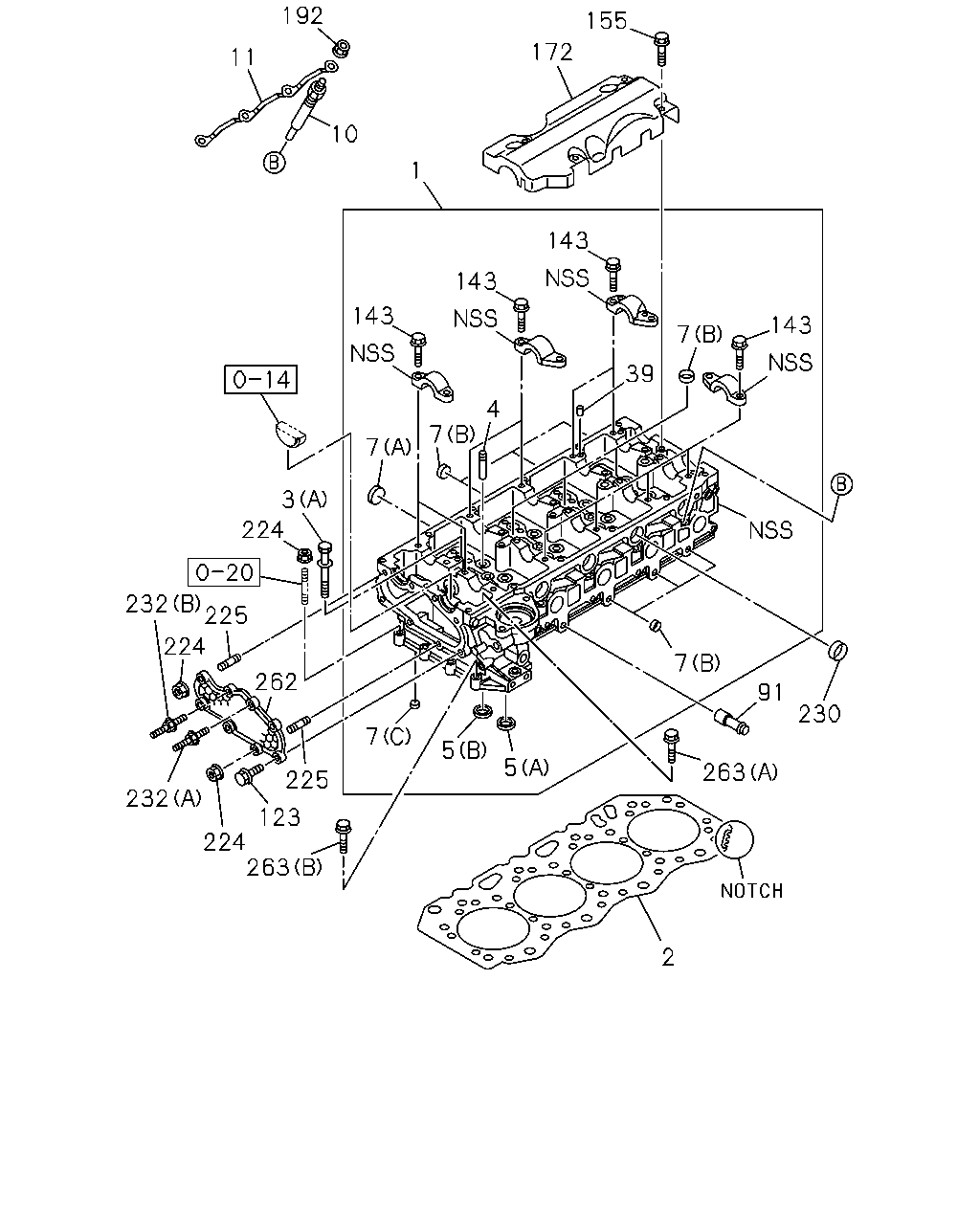

HEAD ASM; CYL
|
8-98223-019-2 |
01 |
1 |
1402- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.60 1-NOTCH
|
8-97350-318-0 |
01 |
1 |
1401- |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.65 2-NOTCH
|
8-97350-319-0 |
01 |
1 |
1401- |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.70 3-NOTCH
|
8-97350-320-0 |
01 |
1 |
1401- |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.05 1-NOTCH
|
8-98241-037-0 |
01 |
1 |
1402-1411 |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.14 1-NOTCH
|
8-98291-683-0 |
01 |
1 |
1412- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.10 2-NOTCH
|
8-98241-038-0 |
01 |
1 |
1402-1411 |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.19 2-NOTCH
|
8-98291-684-0 |
01 |
1 |
1412- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.15 3-NOTCH
|
8-98241-039-0 |
01 |
1 |
1402-1411 |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.24 3-NOTCH
|
8-98291-685-0 |
01 |
1 |
1412- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
(B)
M11X122
|
8-97133-416-1 |
18 |
1 |
1401- |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
(A)
M11X114 W/WASHER
|
8-98201-019-0 |
18 |
1 |
1402- |
|
● |
| |
4 |
GUIDE; VLV
L=50
|
5-11721-016-0 |
08 |
1 |
1401- |
● |
|
| |
4 |
GUIDE; VLV
L=42
|
8-94239-423-0 |
16 |
1 |
1402- |
|
● |
| |
5 |
SEAT; VLV INSERT
(C) INLET
OD=41.2
|
8-97231-228-0 |
04 |
1 |
1401- |
● |
|
| |
5 |
SEAT; VLV INSERT
(D) EXHAUST
OD=36.7
|
8-97231-229-0 |
04 |
1 |
1401- |
● |
|
| |
5 |
SEAT; VLV INSERT
(A) INLET
ID=29 OD=35
|
8-97311-378-0 |
08 |
1 |
1402- |
|
● |
| |
5 |
SEAT; VLV INSERT
(B) EXHAUST
ID=26 OD=32
|
8-97311-379-0 |
08 |
1 |
1402- |
|
● |
| |
7 |
CUP; SEALING,CYL HEAD
(D)
OD=45
|
1-09600-005-2 |
01 |
1 |
1401- |
● |
|
| |
7 |
CUP; SEALING,CYL HEAD
(E)
OD=12.3
|
5-09600-013-0 |
05 |
1 |
1401- |
● |
|
| |
7 |
CUP; SEALING,CYL HEAD
(F)
OD=16
|
5-11129-006-0 |
03 |
1 |
1401- |
● |
|
| |
7 |
CUP; SEALING,CYL HEAD
(G)
OD=22
|
8-97209-609-0 |
06 |
1 |
1401- |
● |
|
| |
7 |
CUP; SEALING,CYL HEAD
(A)
OD=32
|
1-09600-012-2 |
02 |
1 |
1402- |
|
● |
| |
7 |
CUP; SEALING,CYL HEAD
(B)
OD=18
|
5-11219-008-0 |
13 |
1 |
1402- |
|
● |
| |
7 |
CUP; SEALING,CYL HEAD
(C)
OD=14
|
5-11219-011-0 |
07 |
1 |
1402- |
|
● |
| |
10 |
PLUG; GLOW
BOSCH
|
8-94133-759-9 |
04 |
1 |
1401- |
● |
|
| |
10 |
PLUG; GLOW
NGK
|
8-94175-158-2 |
04 |
1 |
1401- |
● |
|
| |
10 |
PLUG; GLOW
NGK
|
8-94390-777-6 |
04 |
1 |
1402- |
|
● |
| |
11 |
CONNECTOR; GLOW PLUG
|
8-97146-517-0 |
01 |
1 |
1401- |
● |
|
| |
11 |
CONNECTOR; GLOW PLUG
|
8-98014-335-0 |
01 |
1 |
1402- |
|
● |
| |
39 |
DOWEL; CAP,CM/SHF
|
8-97329-129-1 |
20 |
1 |
1402- |
|
● |
| |
91 |
PIPE; HTR
|
8-94343-211-1 |
01 |
1 |
1402- |
|
● |
| |
123 |
BOLT; COVER
M8X20 FLANGE
|
8-97366-632-0 |
04 |
1 |
1402- |
|
● |
| |
143 |
BOLT; FIX
M8X40 FLANGE
|
0-28650-840-0 |
20 |
1 |
1402- |
|
● |
| |
155 |
BOLT; BAFFLE PLATE
M6X10 HEX SOCKET
|
0-58330-610-0 |
04 |
1 |
1402- |
|
● |
| |
172 |
PLATE; BAFFLE,CYL HD
|
8-98016-865-0 |
01 |
1 |
1402- |
|
● |
| |
192 |
NUT; GLOW PLUG
M4 FLANGE
|
8-97368-853-0 |
04 |
1 |
1402- |
|
● |
| |
224 |
NUT; COVER
M8 FLANGE
|
0-91180-208-0 |
04 |
1 |
1402- |
|
● |
| |
225 |
STUD; COVER
M8X15.5 L=33.5
|
8-98017-062-0 |
02 |
1 |
1402- |
|
● |
| |
230 |
GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
OD=30
|
1-09639-034-0 |
04 |
1 |
1402- |
|
● |
| |
232 |
STUD; CAM,CARRIER
(B)
M6X12 M8X17 L=37
|
8-97375-460-0 |
01 |
1 |
1402- |
|
● |
| |
232 |
STUD; CAM,CARRIER
(A)
M8X15 M8X17 L=40
|
8-98166-373-0 |
01 |
1 |
1402- |
|
● |
| |
262 |
COVER; CYL HEAD
|
8-97355-516-4 |
01 |
1 |
1402- |
|
● |
| |
263 |
BOLT; CYL HD
(A)
M8X60 FLANGE
|
0-28050-860-0 |
01 |
1 |
1402- |
|
● |
| |
263 |
BOLT; CYL HD
(B)
M8X35 FLANGE
|
0-28650-835-0 |
03 |
1 |
1402- |
|
● |
