5-01 — FRAME AND OTHER PARTS (#132403) — 204 parça

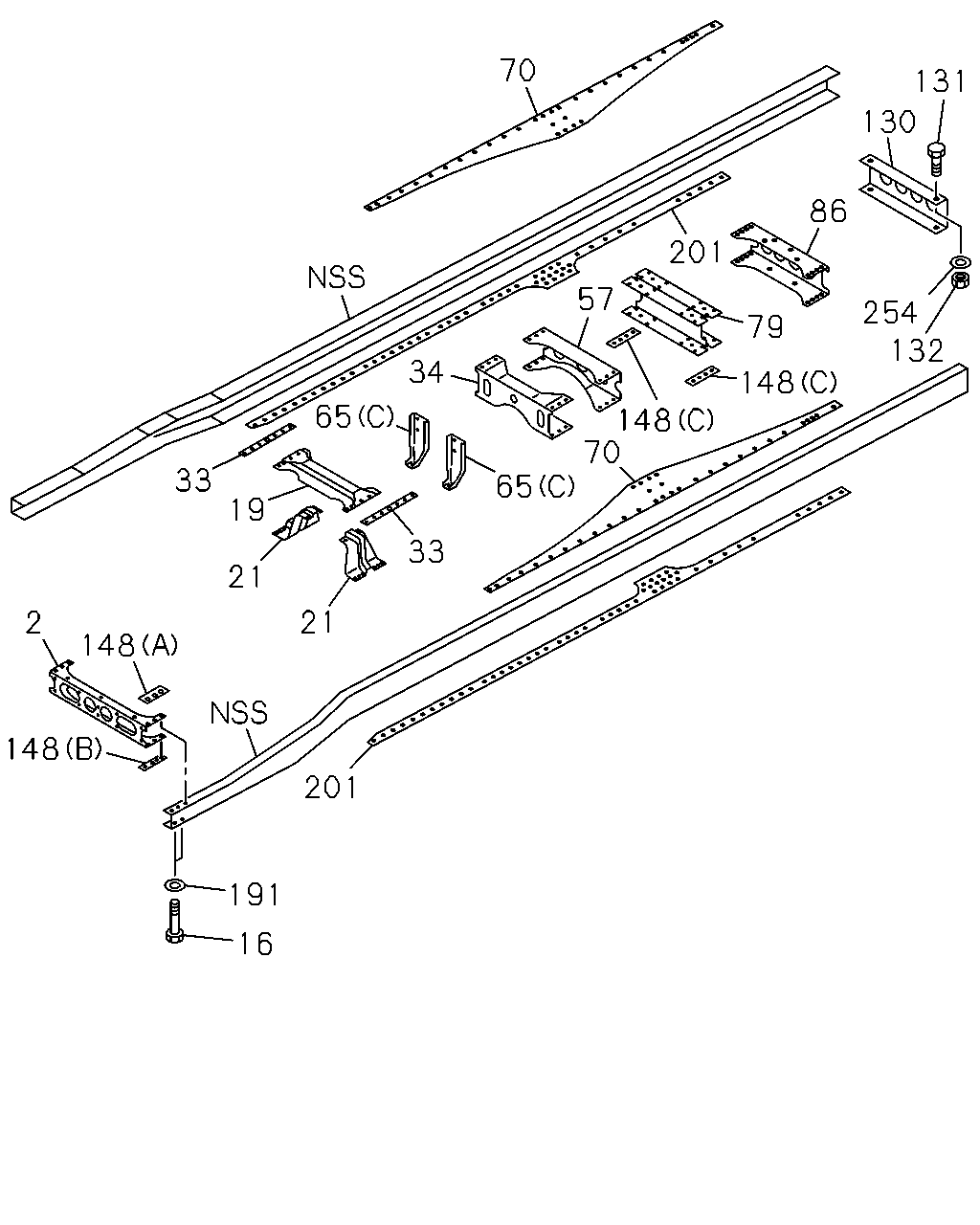

131 130 254 132 148 79 201 57 148 70 65 33 21 21 33 19 65 34 70 201 191 16 2 148 148 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1401-1412	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1501-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1401-1412	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1501-	●	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1401-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1401-1412		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1501-		●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1401-1412		●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1501-		●	●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1401-1412		●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1501-		●	●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1401-1412		●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1501-		●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1401-1412		●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1501-		●	●
65	BRACKET; CENTER BRG (C)	8-97614-125-0	02	1	1501-			●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	1401-		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1401-		●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1401-	●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1401-1412		●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1501-		●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1501-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1401-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1401-		●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1401-	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1401-1412		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1501-		●	●
130	MEMBER; CROSS,END	8-98103-326-1	01	1	1401-1412		●
130	MEMBER; CROSS,END	8-98103-326-1	01	1	1501-		●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1401-1412		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1501-		●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1401-1412		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1501-		●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1401-	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1401-1412	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1501-	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1401-1412	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1501-	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1401-1412		●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1501-		●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1401-1412	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1501-	●	●	●
201	GUSSET; C/MBR	8-98296-235-0	02	1	1501-			●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1401-	●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1401-		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1401-1412		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1501-		●	●

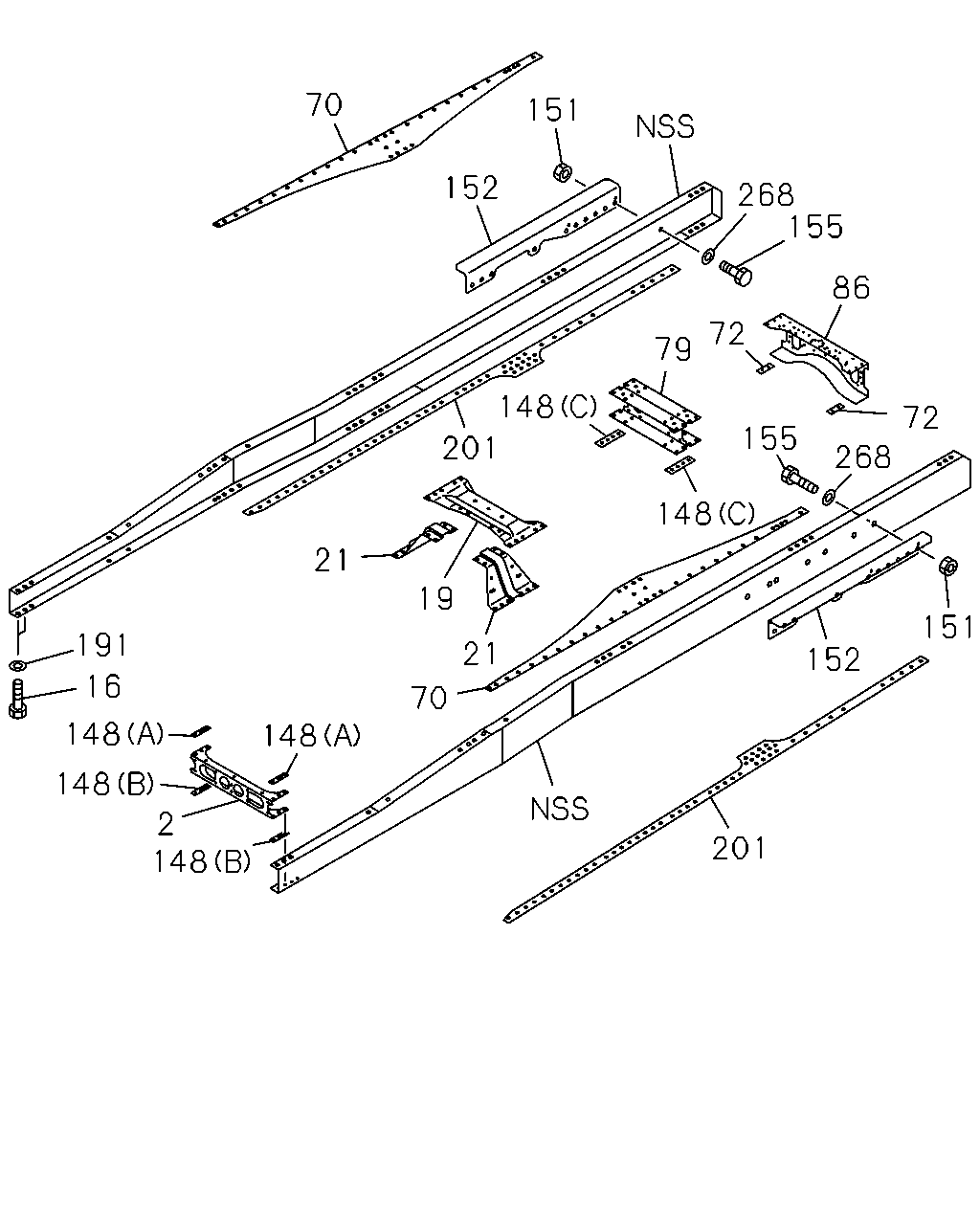

70 152 151 268 86 155 72 72 79 148 201 19 21 70 21 148 191 16 148 148 2 148 152 151 148 155 268 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1401-1412	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1501-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1401-1412	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1501-	●	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1401-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1401-1412		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1501-		●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1401-1412		●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1501-		●	●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1401-	●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1401-1412		●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1501-		●	●
72	SPACER; TRUNNION	8-98098-261-0	02	1	1401-	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1501-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1401-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1401-		●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1401-	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1401-1412		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1501-		●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1401-	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1401-1412	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1501-	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1401-1412	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1501-	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1401-1412		●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1501-		●	●
151	NUT; OUTRIGGER M16	0-91110-516-0	28	1	1401-	●
152	OUTRIGGER	8-98231-858-0	01	1	1401-	●
152	OUTRIGGER	8-98231-859-0	01	1	1401-	●
155	BOLT; OUTRIGGER M16X40	0-20951-640-0	28	1	1401-	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1401-1412	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1501-	●	●	●
201	GUSSET; C/MBR	8-98296-235-0	02	1	1501-			●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1401-	●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1401-		●
268	WASHER; PL,OUTRIGGER ID=17 OD=30	9-09851-935-0	28	1	1401-	●

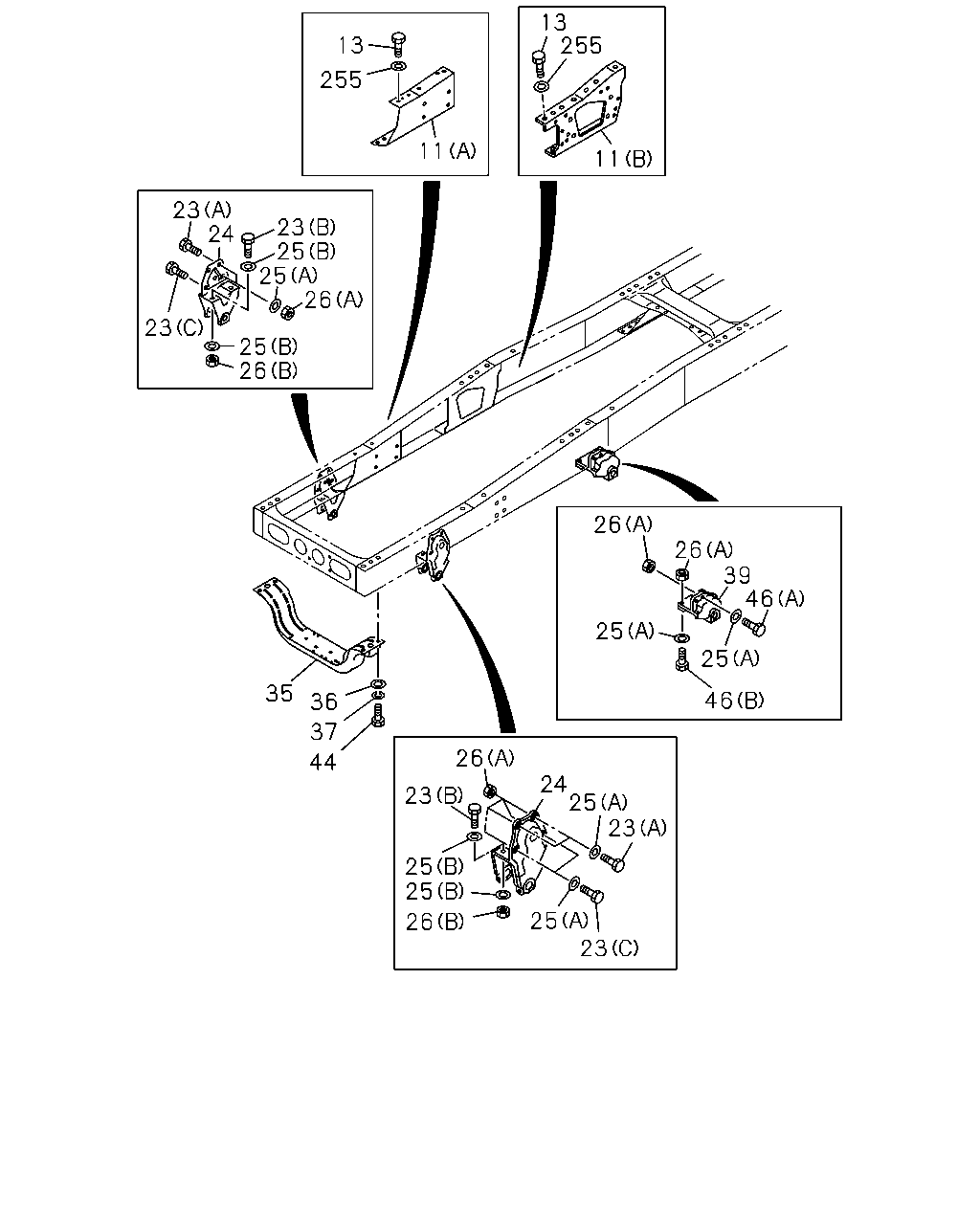

13 255 11 13 255 11 23 23 24 25 25 26 25 26 23 35 36 37 44 26 24 25 23 23 25 23 25 25 26 26 25 26 39 46 25 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1401-	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1401-	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1401-1412	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1501-	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1401-1412	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1501-	●	●	●
11	BRACKET; ENG MTG (B)	8-98084-524-0	01	1	1401-1412		●
11	BRACKET; ENG MTG (B)	8-98084-524-0	01	1	1501-		●	●
11	BRACKET; ENG MTG (B)	8-98084-525-0	01	1	1401-1412		●
11	BRACKET; ENG MTG (B)	8-98084-525-0	01	1	1501-		●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1401-1412	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1501-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1401-1412	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1501-	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1401-1412	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1501-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1401-1412	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1501-	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1401-1412	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1501-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1401-1412	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1501-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1401-1412	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1501-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1401-1412	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1501-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1401-1412	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1501-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1401-1412	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1501-	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1401-1412	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1501-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1401-1412	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1501-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1401-1412	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1501-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1401-1412	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1501-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1401-1412	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1501-	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1401-1412	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1501-	●	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1401-1412	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1501-	●	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1401-1412	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1501-	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1401-1412	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1501-	●	●	●

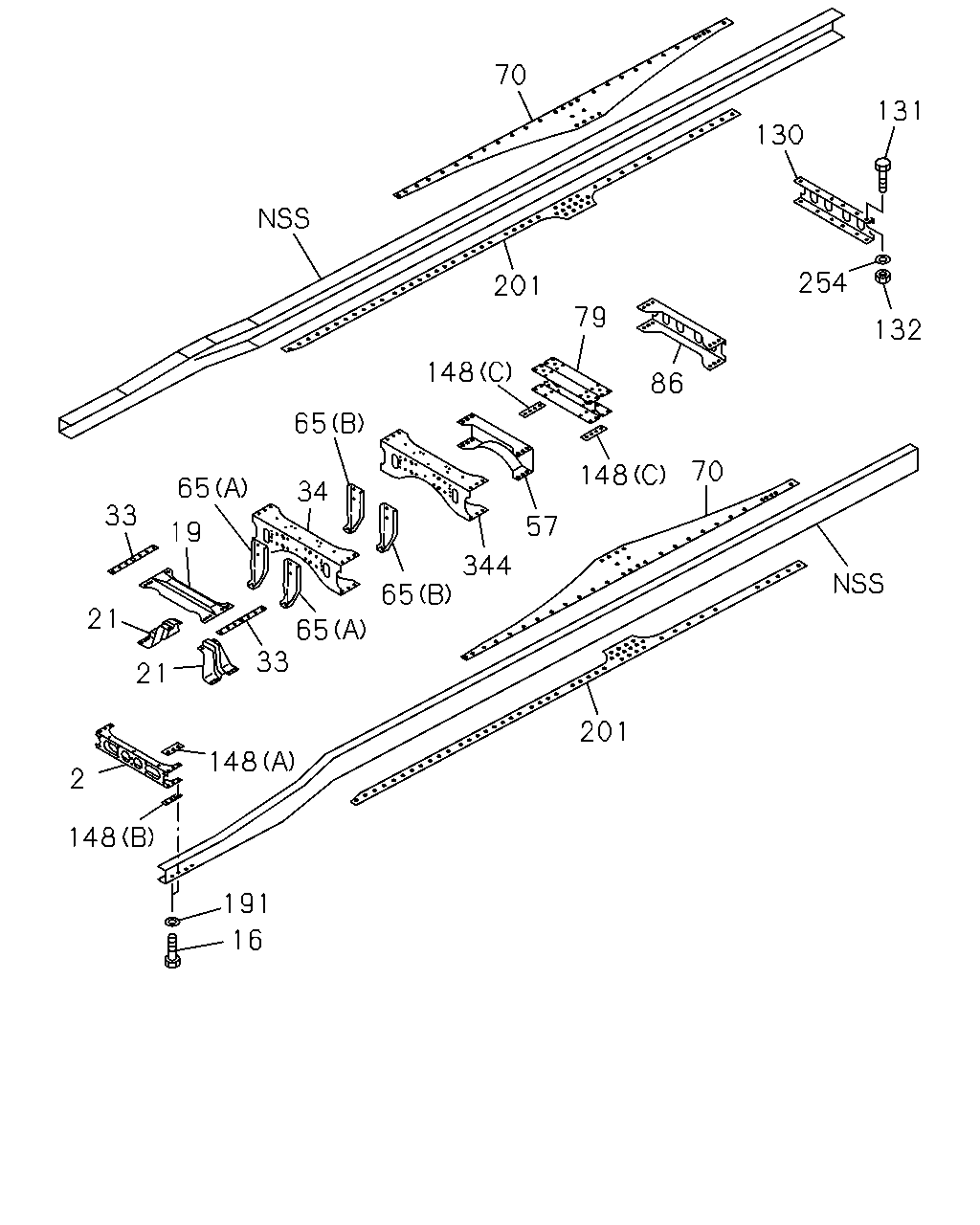

131 130 254 132 70 201 148 191 16 148 2 21 21 33 65 19 34 65 148 201 148 57 344 65 65 33 86 79 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1401-1412	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1501-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1401-1412	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1501-	●	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1401-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1401-1412		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1501-		●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1401-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1401-1412		●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1501-		●	●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1401-1412		●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1501-		●	●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1401-1412		●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1501-		●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1401-1412		●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1501-		●	●
65	BRACKET; CENTER BRG (C)	8-97614-125-0	02	1	1501-			●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	1401-		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1401-		●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1401-	●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1401-1412		●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1501-		●	●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1501-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1401-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1401-		●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1401-	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1401-1412		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1501-		●	●
130	MEMBER; CROSS,END	8-98103-326-1	01	1	1401-1412		●
130	MEMBER; CROSS,END	8-98103-326-1	01	1	1501-		●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1401-1412		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1501-		●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1401-1412		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1501-		●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1401-	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1401-1412	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1501-	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1401-1412	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1501-	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1401-1412		●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1501-		●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1401-1412	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1501-	●	●	●
201	GUSSET; C/MBR	8-98296-235-0	02	1	1501-			●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1401-	●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1401-		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1401-1412		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1501-		●	●
344	MEMBER; CROSS,4TH	8-98105-873-0	01	1	1401-		●

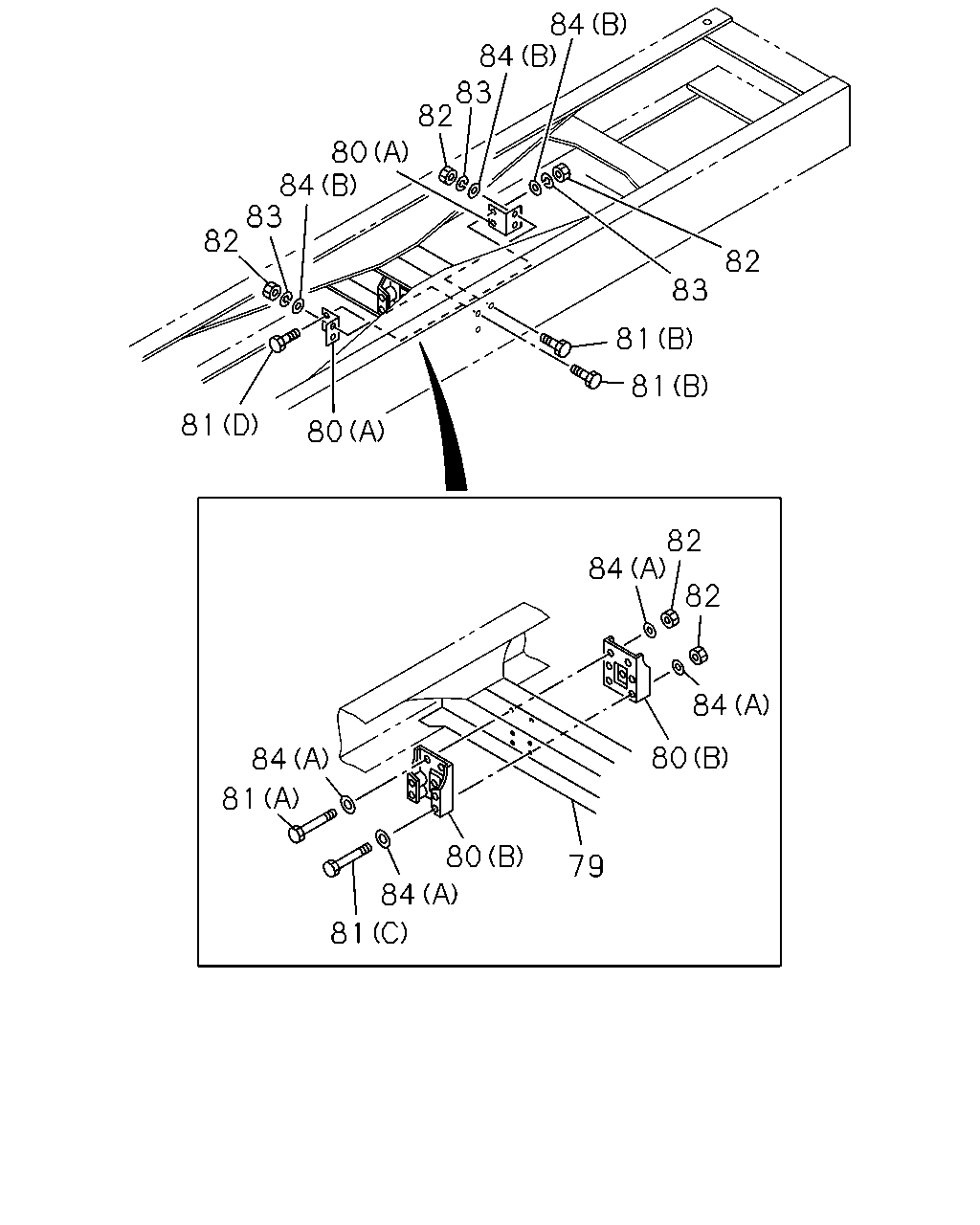

84 84 83 82 80 84 83 82 81 80 81 81 83 82 82 82 84 84 80 79 80 84 81 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM	8-98226-879-0	01	1	1501-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1401-	●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1401-		●
80	BRACKET; C/MBR (A)	1-53167-610-0	04	1	1401-	●
80	BRACKET; C/MBR (B)	1-53363-031-2	02	1	1401-1412	●	●
80	BRACKET; C/MBR (B)	1-53363-031-2	02	1	1501-	●	●	●
81	BOLT; BRKT (B) M14X40	0-20951-440-0	08	1	1401-	●
81	BOLT; BRKT (D) M14X55	0-20951-455-0	04	1	1401-	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1401-1412	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1501-	●	●	●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	1401-1412	●	●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	1501-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1401-	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1401-1412	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1501-	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1401-	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1401-	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1401-1412	●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1501-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
