◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#132401) — 43 parça

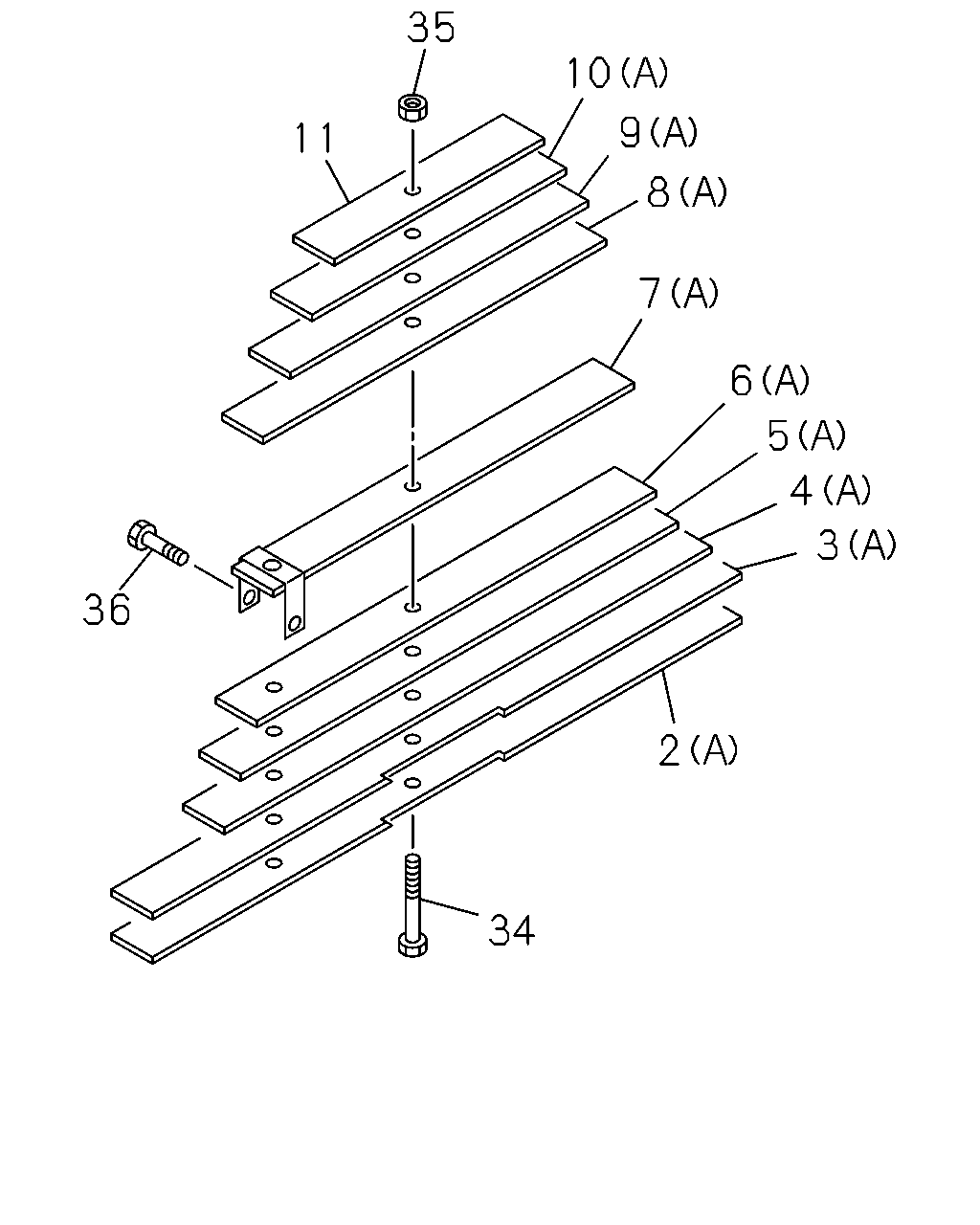

çizim 401616
10 9 8 35 11 36 7 6 5 3 4 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51411-150-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-120-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51412-150-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-121-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51413-150-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-122-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51414-150-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-123-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51415-150-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-124-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51416-150-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-125-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51417-150-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-126-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51418-150-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-127-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51419-150-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-128-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 1-51410-150-0 		1-51421-150-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-51356-120-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-09000-326-0 01 1 -
çizim 401617
35 10 9 8 36 7 6 5 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51411-150-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-120-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51412-150-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-121-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51413-150-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-122-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51414-150-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-123-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51415-150-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-124-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51416-150-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-125-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51417-150-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-126-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51418-150-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-127-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
(A) ASM PART: A = 1-51410-150-0 		1-51419-150-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
(B) ASM PART: B = 8-98236-926-0 		8-98242-128-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-51356-120-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51410-150-0, B = 8-98236-926-0 		1-09000-326-0 01 1 -
