8-10 — WIRING HARNESS AND FUSE (#1324) — 84 parça

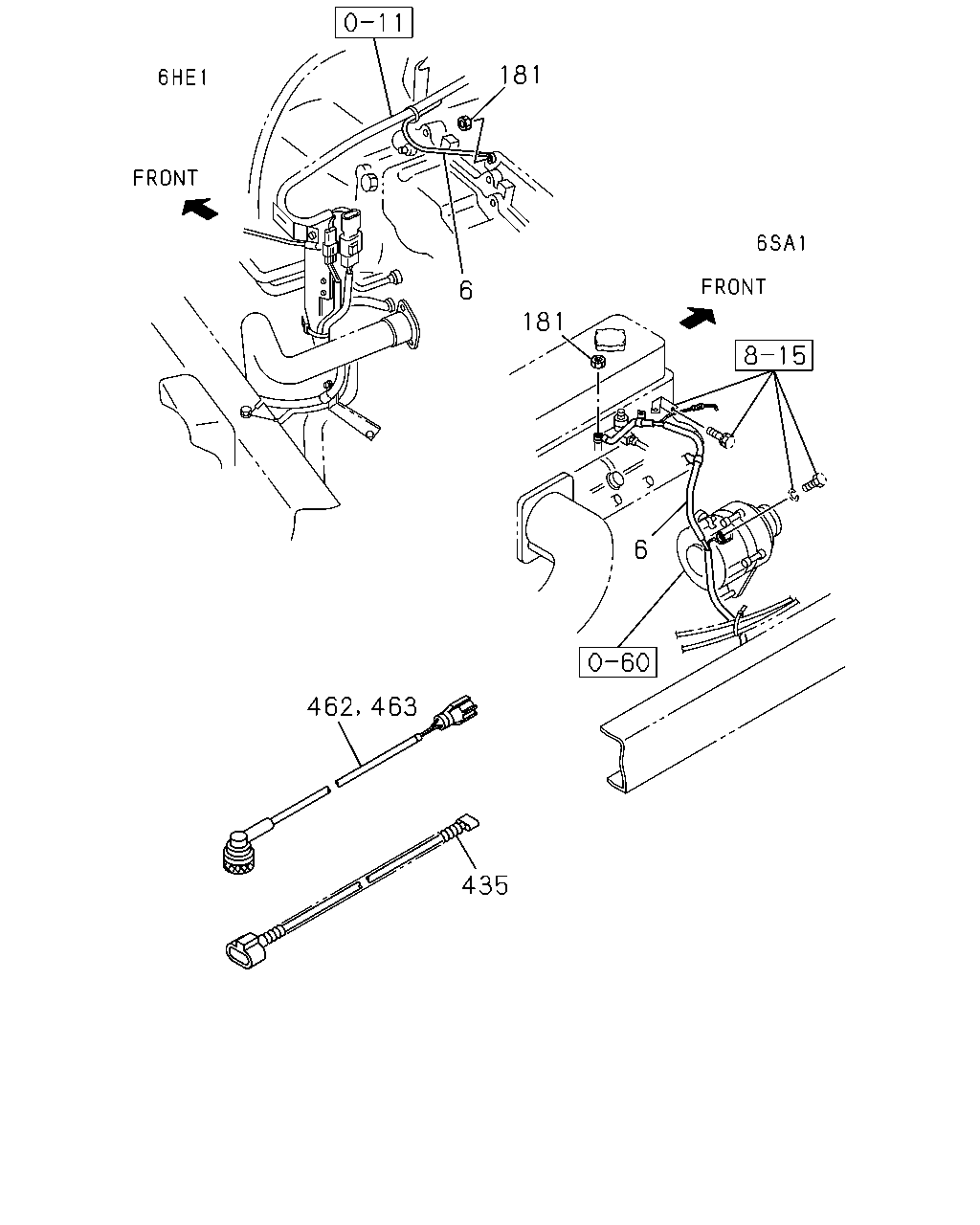

çizim 27716
181 6 181 6 462 435 463
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) 		1-82637-720-4 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-719-3 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-713-4 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-714-4 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-711-3 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-712-3 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-715-5 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CON MANUAL CONTROL(C60) 		1-82637-716-6 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-718-4 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-717-3 01 1 9202- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR CON MANUAL CONTROL(C60) 		1-82638-321-2 01 1 9305- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CON MANUAL CONTROL(C60) 		1-82638-322-2 01 1 9305- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82638-879-0 01 1 9410- ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9202- ● ●
435 HARNESS; AIR DRYER
6HE1 STD ENG(46L) AIR DRYER<PS7> 		1-82636-868-1 01 1 9202- ●
462 HARNESS; SW,RANGE
ZF 9S75 DD M/T(Y1H) L=700 		1-82659-136-1 01 1 9306- ●
463 HARNESS; SW,BACK UP
ZF 9S75 DD M/T(Y1H) L=580 		1-82659-135-1 01 1 9306- ●

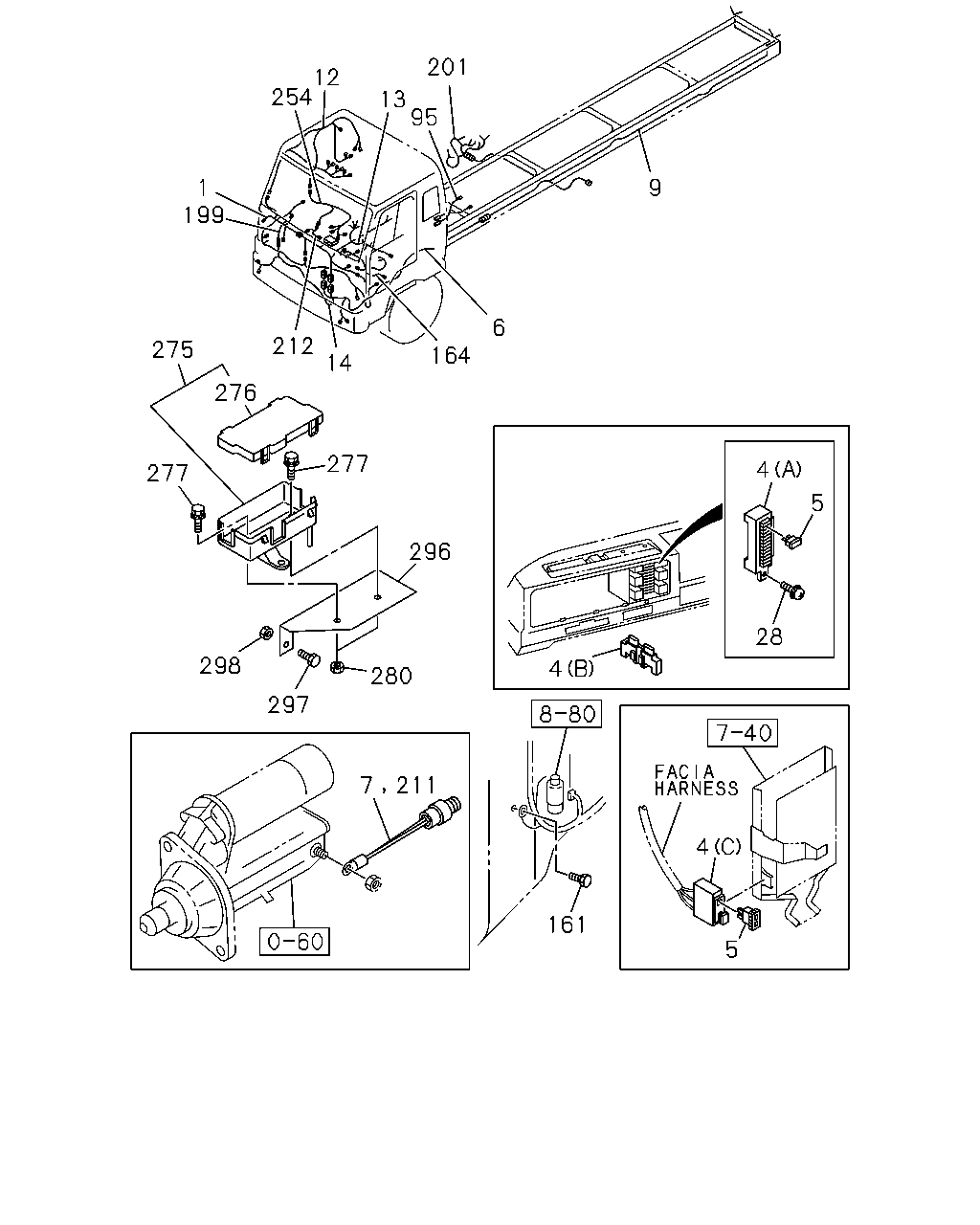

çizim 92408
201 12 254 13 95 9 1 199 6 212 275 164 14 276 277 4 277 5 296 28 298 4 280 297 211 4 161 5 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR CON MANUAL CONTROL(C60) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-870-3 01 1 9202- ● ●
1 HARNESS; CAB
EXC. AIR CON MANUAL CONTROL(C60),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-869-3 01 1 9202- ● ●
1 HARNESS; CAB
AIR CON MANUAL CONTROL(C60) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-875-3 01 1 9202- ●
1 HARNESS; CAB
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. AIR CON MANUAL CONTROL(C60) 		1-82624-874-3 01 1 9202- ●
4 BOX ASM; FUSE,HARNESS
(A) 10AX10 15AX9 		1-82510-214-1 01 1 9202- ● ●
4 BOX ASM; FUSE,HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) 10AX2 		1-82510-212-0 01 1 9202- ● ●
4 BOX ASM; FUSE,HARNESS
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) 10AX1 		1-82510-335-0 01 1 9202- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 09 1 9202- ● ●
5 FUSE; FACIA HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 10A RED 		5-82516-002-0 12 1 9202- ● ●
5 FUSE; FACIA HARNESS
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 10A RED 		5-82516-002-0 11 1 9202- ● ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) 		1-82637-720-4 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-719-3 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-713-4 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-714-4 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-711-3 01 1 9202- ●
6 HARNESS; FRAME
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-712-3 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-715-5 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CON MANUAL CONTROL(C60) 		1-82637-716-6 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR CON MANUAL CONTROL(C60) 		1-82637-718-4 01 1 9202- ●
6 HARNESS; FRAME
6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82637-717-3 01 1 9202- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR CON MANUAL CONTROL(C60) 		1-82638-321-2 01 1 9305- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CON MANUAL CONTROL(C60) 		1-82638-322-2 01 1 9305- ●
6 HARNESS; FRAME
6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR CON MANUAL CONTROL(C60) 		1-82638-879-0 01 1 9410- ●
7 LINK ASM; FUSIBLE
L=150 BLACK 		1-82659-108-0 01 1 9202- ●
7 LINK ASM; FUSIBLE
6SA1 STD ENG(06L),6SA1TC ENG(28L) L=150 BLACK 		1-82659-108-0 01 1 9202- ●
7 LINK ASM; FUSIBLE
WHITE 		1-82659-124-0 01 1 9202- ●
7 LINK ASM; FUSIBLE
6SA1 STD ENG(06L),6SA1TC ENG(28L) WHITE 		1-82659-124-0 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		1-82636-910-5 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		1-82636-911-5 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		1-82636-912-6 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82636-905-5 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82636-907-4 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82636-914-5 01 1 9202- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82636-915-5 01 1 9202- ●
9 HARNESS; FRAME,RR
6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82636-867-4 01 1 9202- ●
9 HARNESS; FRAME,RR
6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82636-913-5 01 1 9202- ●
12 HARNESS; ROOF
RADIO AM & TAPE PLAYER(UM1) 		1-82622-551-0 01 1 9202- ● ●
12 HARNESS; ROOF
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-549-0 01 1 9202- ● ●
13 HARNESS; ENG
6HE1 STD ENG(46L) 		1-82640-577-4 01 1 9202- ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82622-566-4 01 1 9202- ● ●
14 HARNESS; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82622-761-2 01 1 9202- ● ●
28 SCREW; FUSE BOX
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9202- ● ●
95 HARNESS; NEUTRAL SW
ZF 9S75 DD M/T(Y1H) L=250 		1-82659-134-1 01 1 9306- ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9202-9303 ● ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9304- ● ●
164 HARNESS; ELEC
SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-376-0 01 1 9202- ● ●
164 HARNESS; ELEC
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82624-375-0 01 1 9202- ● ●
199 HARNESS; STARTER
6HE1 STD ENG(46L) W/FUSIBLE LINK 		1-82640-526-1 01 1 9202-9305 ●
199 HARNESS; STARTER
6HE1 STD ENG(46L) 		1-82640-649-0 01 1 9306- ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82637-067-1 01 1 9202-9206 ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82637-952-0 01 1 9207- ●
211 WIRE; FUSIBLE LINK,STARTER
6HE1 STD ENG(46L) L=150 BLACK 		1-82659-108-0 01 1 9202- ●
211 WIRE; FUSIBLE LINK,STARTER
6HE1 STD ENG(46L) WHITE 		1-82659-124-0 01 1 9202- ●
212 HARNESS; STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-82622-737-0 01 1 9202- ● ●
254 HARNESS; CAB FLOOR
RADIO AM & TAPE PLAYER(UM1) 		1-82622-557-0 01 1 9202- ● ●
254 HARNESS; CAB FLOOR
EXC. RADIO AM & TAPE PLAYER(UM1),SAUDI ARABIA EQUIPMENT(WH1) 		1-82622-555-1 01 1 9202- ● ●
254 HARNESS; CAB FLOOR
SAUDI ARABIA EQUIPMENT(WH1) 		1-82622-853-1 01 1 9202- ●
275 BOX ASM; FRAME HARNESS 1-82699-147-2 01 1 9202- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-181-1 01 1 9202- ● ●
277 BOLT; BOX ASM FIX
M8X25 FLANGE 		0-28080-825-0 02 1 9202-9211 ● ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9212-9303 ● ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09980-479-0 02 1 9304- ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 9202- ● ●
296 BRACKET; HARNESS BOX 1-82699-586-0 01 1 9202- ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9202-9206 ● ●
297 BOLT; BOX BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
298 NUT; BOX BRKT
M8 		9-09110-408-0 02 1 9202- ● ●
