◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11569 - FXZ/GXZ MALAYSIA EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#132398) — 34 parça

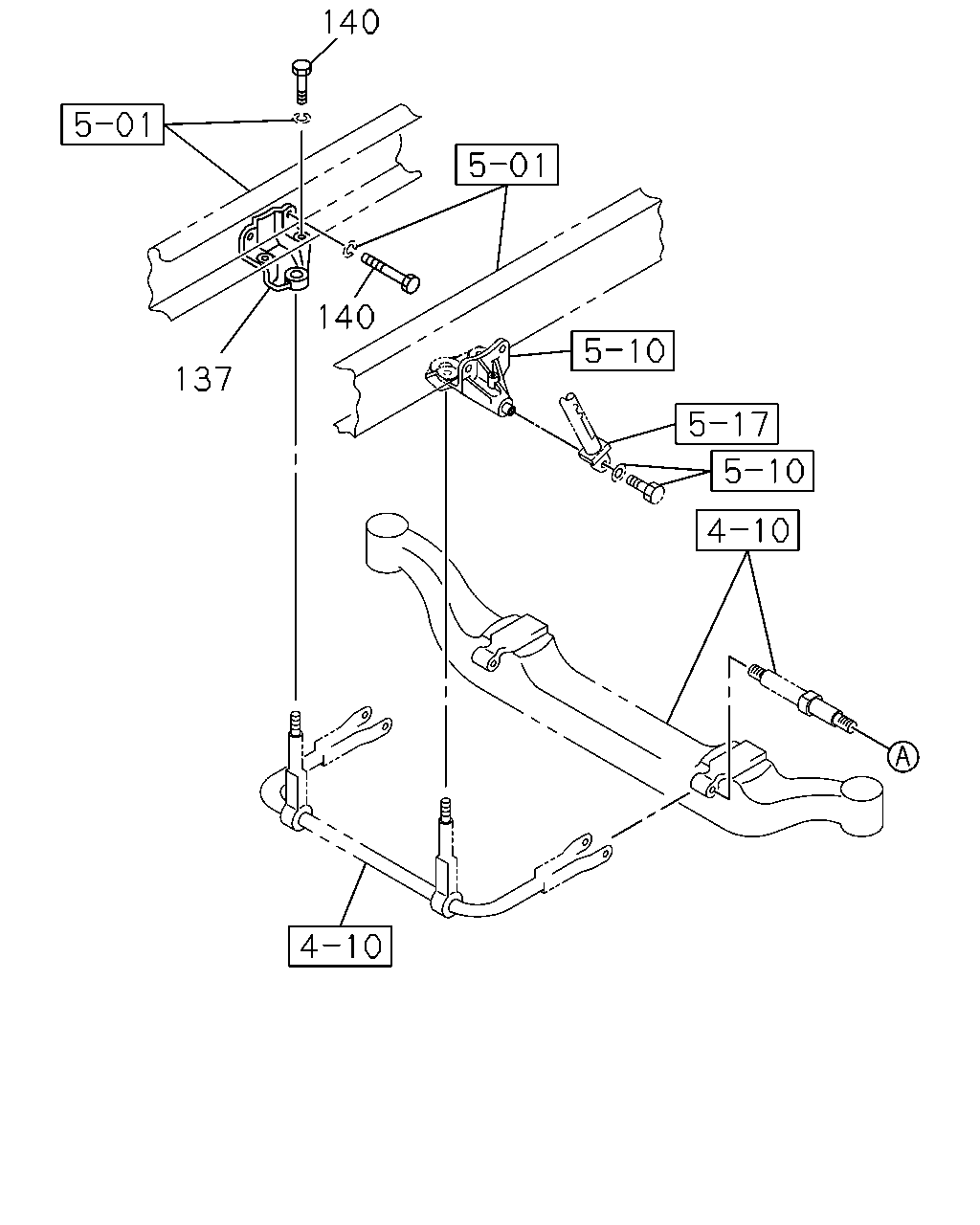

çizim 401815
140 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1401- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1401- ● ●

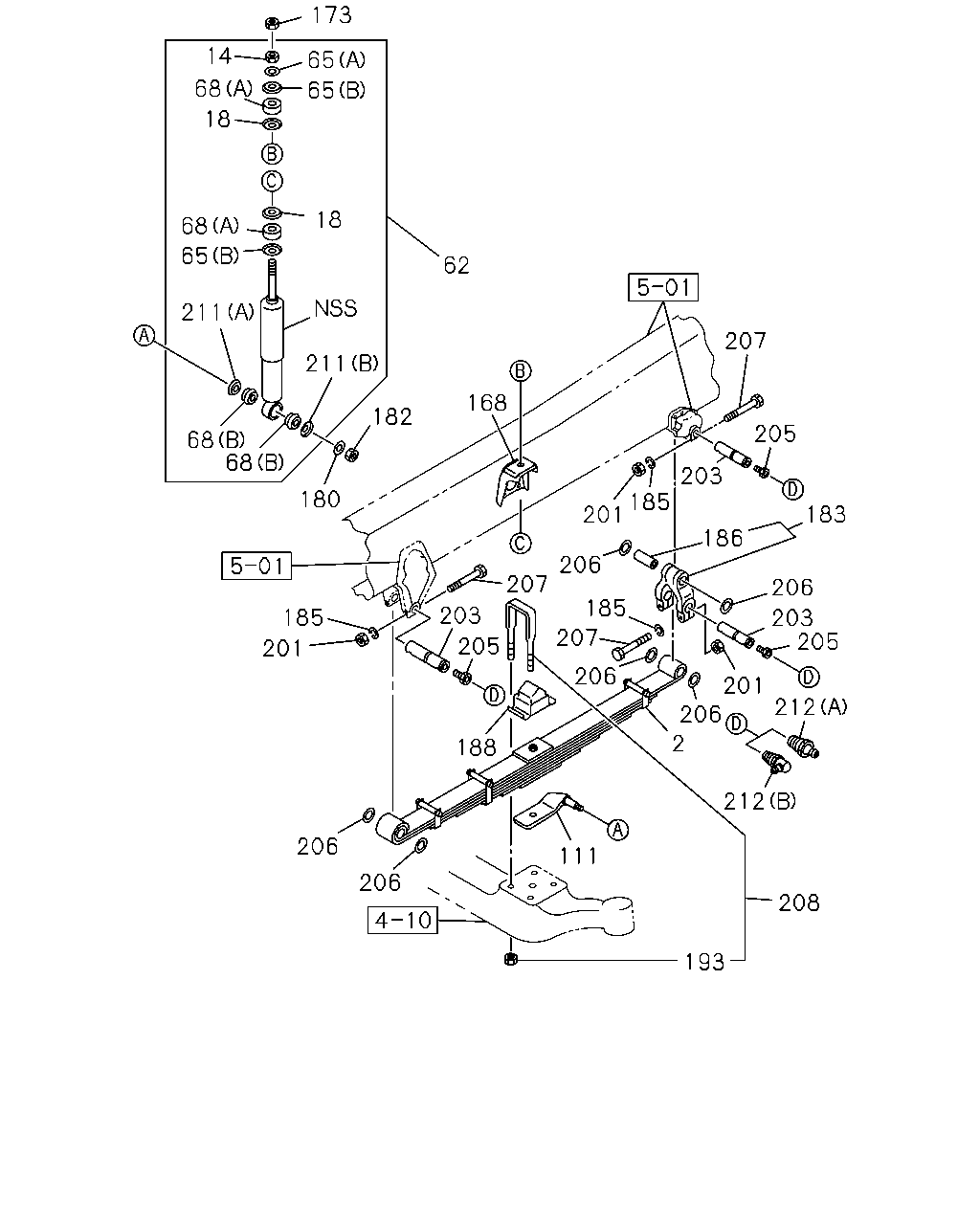

çizim 402000
173 65 65 14 18 68 68 65 211 18 62 211 182 168 207 205 203 185 201 206 207 203 205 185 201 188 206 207 185 186 183 206 203 205 212 201 206 2 212 111 206 206 193 208 68 68 180
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98162-076-0 02 1 1401- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98236-924-0 02 1 1401- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1401- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1401- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1401- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-154-0 02 1 1401- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1401- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1401- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1401- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1401- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1401- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1401- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1401- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1401- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1401- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1401- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1401- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1401- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1401- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1401- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-097-1 02 1 1401- ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1401- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1401- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1401- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1401- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1401- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1401- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1401- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1401- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1401- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1401- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1401- ● ●
