4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#132394) — 72 parça

266 111 257 256 195 157 41 280 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1401-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1401-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1401-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1401-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1401-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1401-	●	●

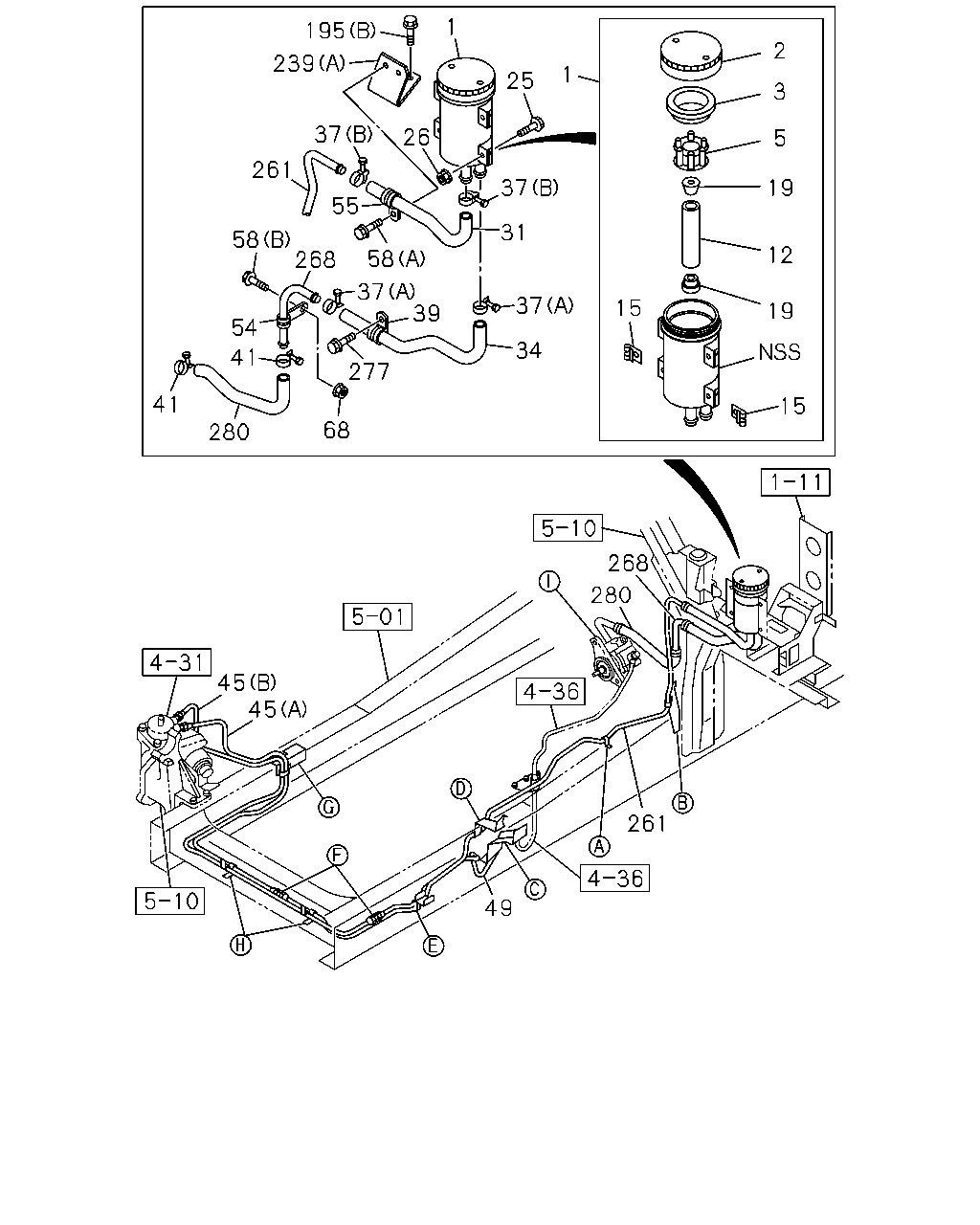

37 268 58 261 37 239 195 26 37 31 37 34 39 58 55 1 25 1 2 3 5 19 12 19 15 15 68 277 41 54 280 41 45 45 49 261 268 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1401-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1401-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1401-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1401-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1401-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1401-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1401-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1401-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1401-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1401-	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1401-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1401-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1401-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1401-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1401-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98191-965-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1401-	●	●

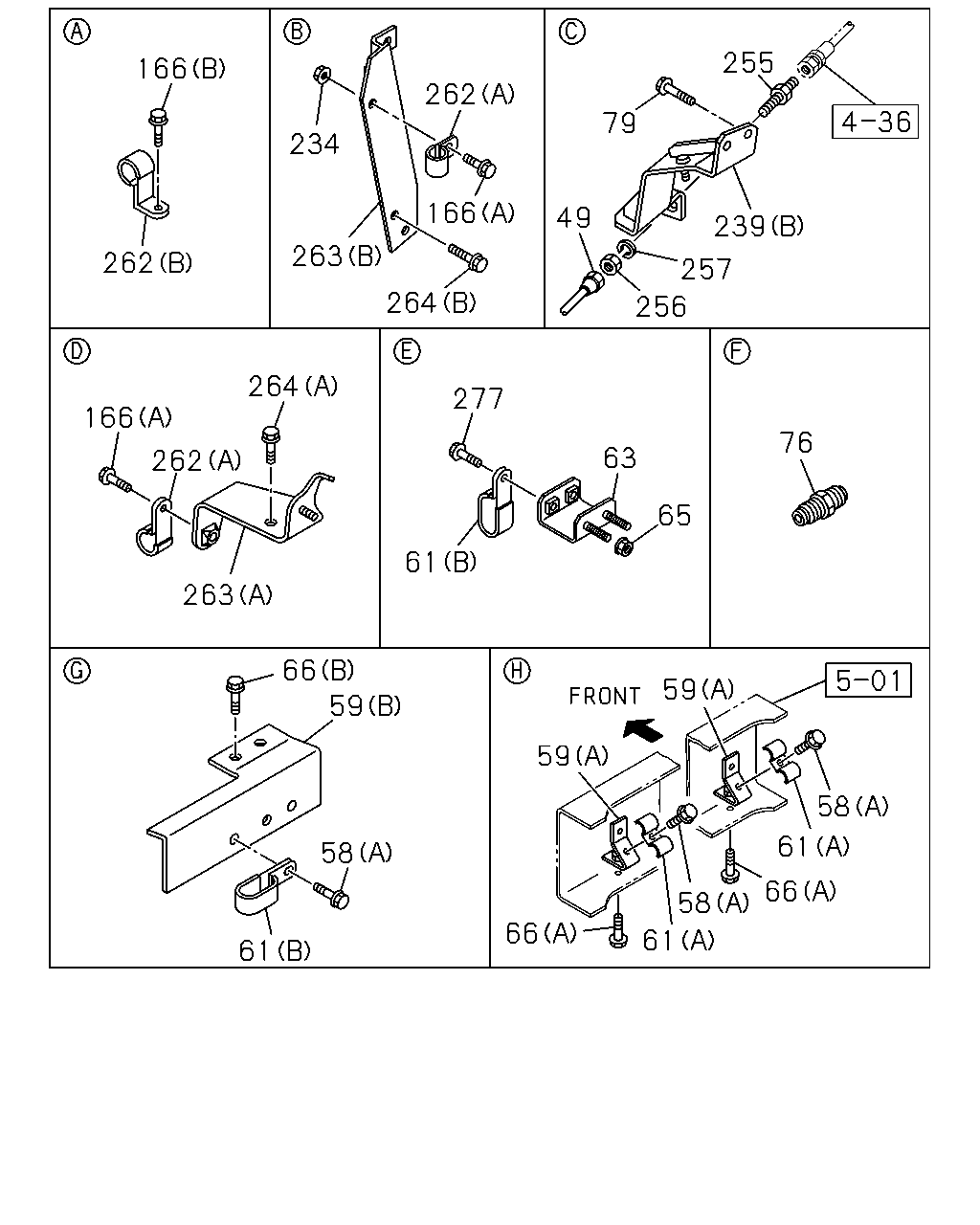

264 263 166 262 234 166 262 166 264 262 263 66 59 58 61 66 61 61 66 58 59 59 58 61 63 65 76 256 257 239 255 79 49 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1401-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1401-	●	●
63	BRACKET; CLIP,P/S	8-98191-966-0	01	1	1401-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1401-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1401-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1401-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1401-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1401-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1401-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1401-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1401-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1401-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-	●	●
263	BRACKET; P/S PIPE (A)	8-98089-895-2	01	1	1401-	●	●
263	BRACKET; P/S PIPE (B)	8-98090-366-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
264	BOLT; PIPE BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
