4-25 — REAR FINAL DRIVE (#132390) — 354 parça

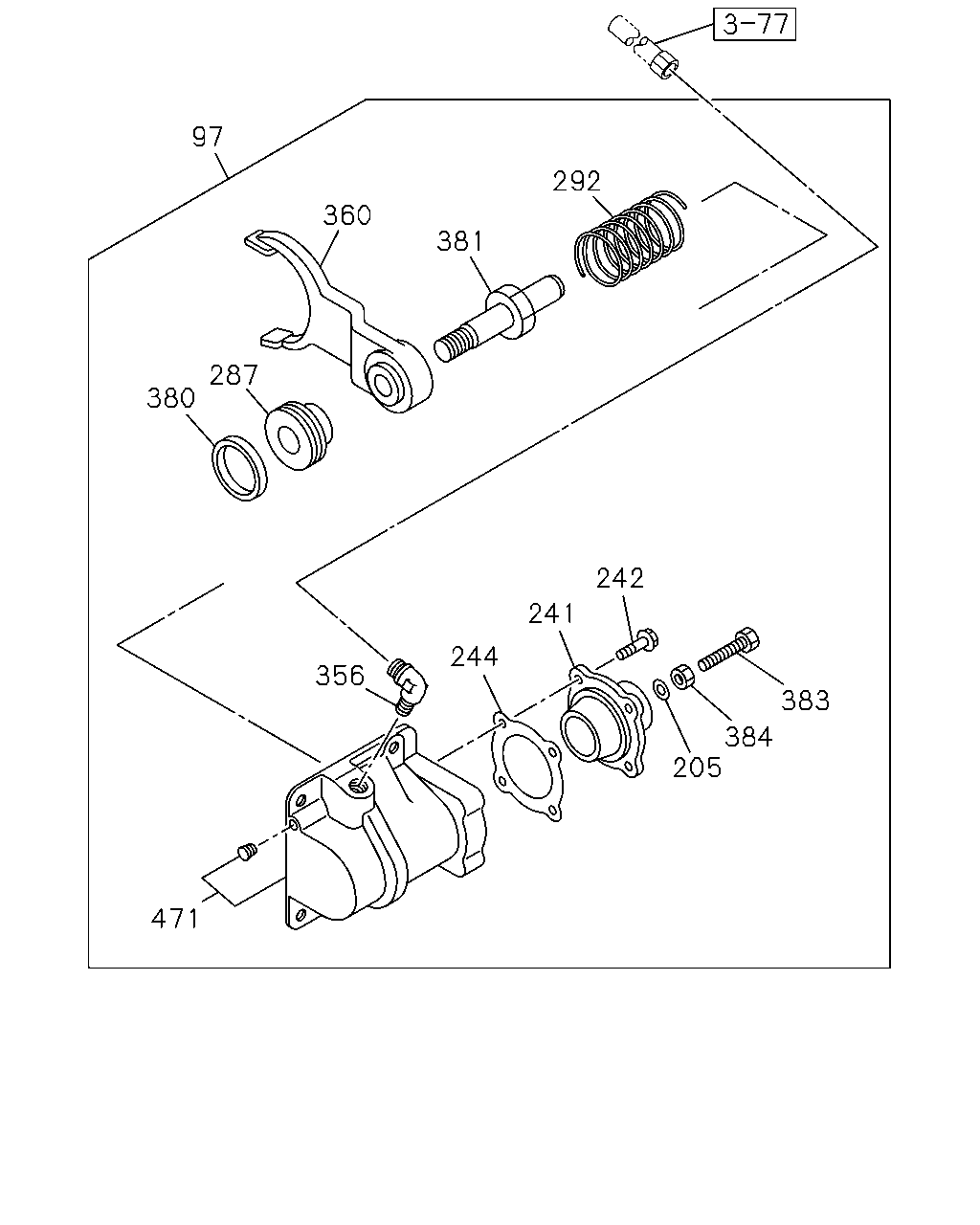

çizim 401541
97 292 381 360 287 380 242 241 244 356 383 384 205 471
BalonParca AdiParca NoAdetTipApplied Date A B
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1401- ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1401- ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1401- ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1401- ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1401- ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1401- ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1401- ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1401- ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1401- ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1401- ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1401- ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1401- ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1401- ● ●

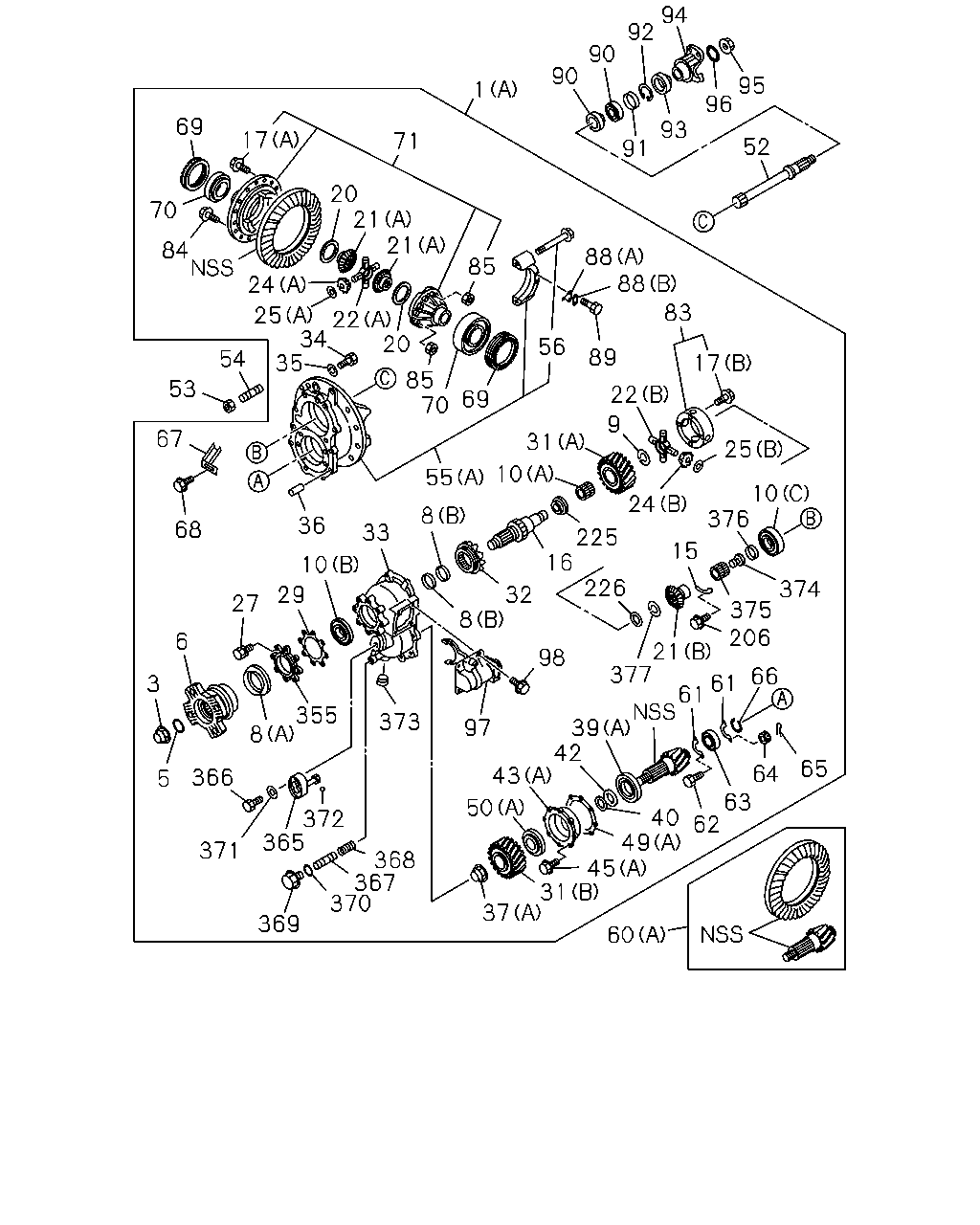

çizim 401692
94 92 90 90 1 91 93 96 95 52 71 20 21 21 85 56 89 83 88 88 70 69 85 20 22 34 35 25 24 84 70 69 17 54 53 67 68 22 17 9 31 10 55 8 33 36 10 29 27 6 3 5 366 8 355 373 97 368 367 370 369 372 365 371 8 98 32 16 226 225 24 15 25 10 376 374 375 206 66 61 61 21 377 65 64 63 62 40 49 39 42 43 50 45 31 37 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
(B) 39/7 		1-41001-393-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41002-443-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(B) 41/8 		1-41001-394-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(A) 41/8 		1-41002-761-0 01 1 1401- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1401- ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1401- ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1401- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1401- ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1401- ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1401- ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1401- ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1401- ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1401- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1401- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1401- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 1401- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1401- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1401- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 1401- ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1401- ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1401- ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1401- ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1401- ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1401- ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1401- ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1401- ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1401- ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1401- ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1401- ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1401- ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1401- ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1401- ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1401- ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1401- ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1401- ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1401- ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1401- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1401- ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1401- ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1401- ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1401- ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1401- ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1401- ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1401- ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1401- ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1401- ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1401- ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1401- ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1401- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1401- ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1401- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1401- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1401- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-476-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-604-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/8 		1-41210-477-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/8 		1-41210-605-0 01 1 1401- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1401- ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1401- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1401- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1401- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1401- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1401- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1401- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1401- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1401- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1401- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1401- ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1401- ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1401- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1401- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1401- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1401- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1401- ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1401- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1401- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1401- ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1401- ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1401- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1401- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1401- ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1401- ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1401- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1401- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1401- ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1401- ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1401- ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1401- ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1401- ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1401- ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1401- ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1401- ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1401- ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1401- ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1401- ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1401- ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1401- ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1401- ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1401- ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1401- ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1401- ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1401- ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1401- ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1401- ● ●
372 BALL; CASE 9-00097-517-0 01 1 1401- ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1401- ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1401- ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1401- ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1401- ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1401- ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1401- ● ●

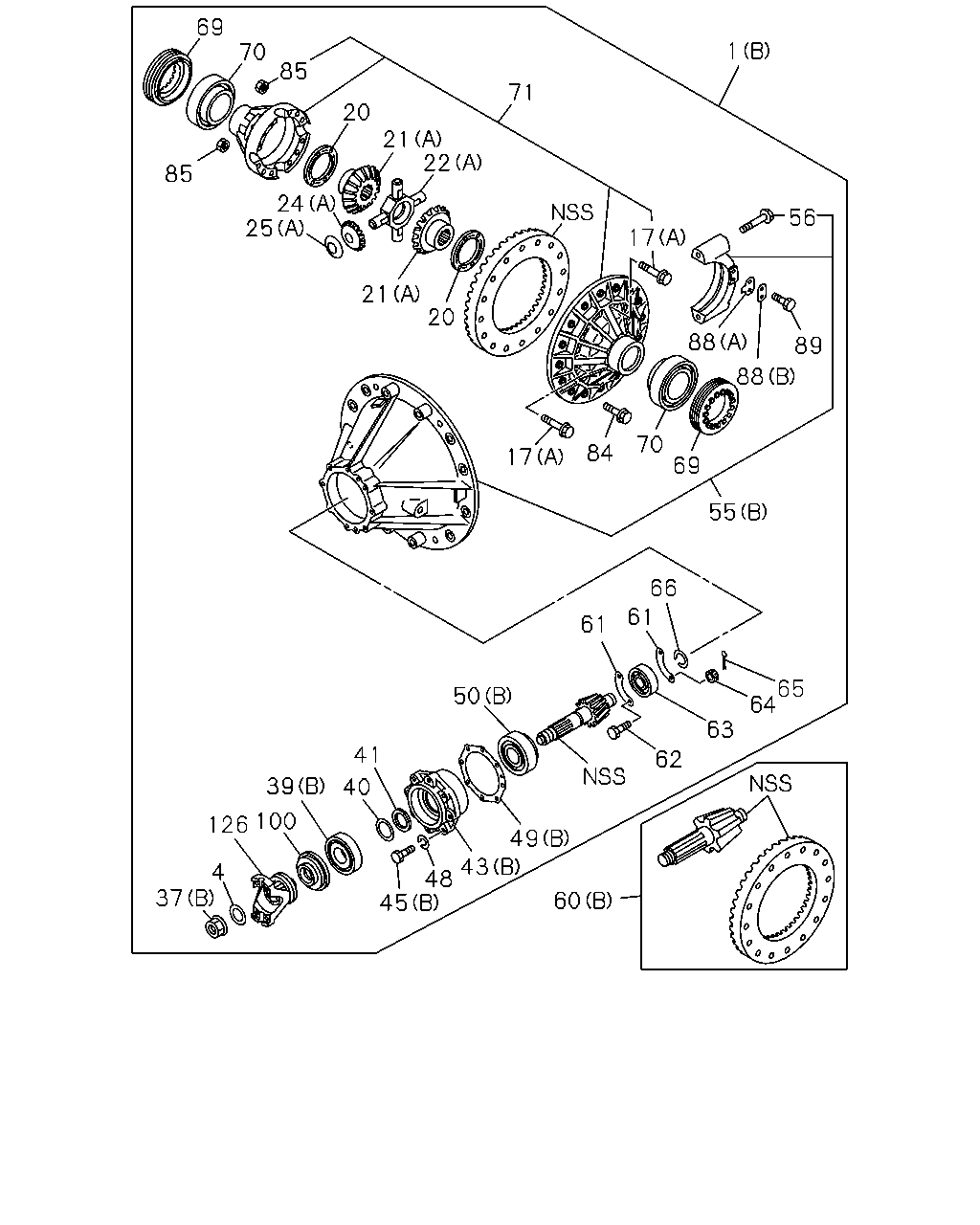

çizim 402168
71 1 56 89 88 88 17 69 55 70 84 17 20 21 22 21 20 85 70 69 24 25 85 65 64 63 62 66 61 61 60 49 43 48 45 50 41 40 39 126 100 37 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
(B) 39/7 		1-41001-393-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41002-443-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(B) 41/8 		1-41001-394-0 01 1 1401- ●
1 DRIVE ASM; FINAL,RR
(A) 41/8 		1-41002-761-0 01 1 1401- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1401- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1401- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1401- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1401- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1401- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1401- ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 1401- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1401- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1401- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1401- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 1401- ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1401- ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1401- ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1401- ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1401- ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1401- ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1401- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1401- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1401- ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1401- ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1401- ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1401- ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1401- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1401- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1401- ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1401- ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1401- ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1401- ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1401- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1401- ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1401- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1401- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1401- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-476-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-604-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/8 		1-41210-477-0 01 1 1401- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/8 		1-41210-605-0 01 1 1401- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1401- ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1401- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1401- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1401- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1401- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1401- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1401- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1401- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1401- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1401- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1401- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1401- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1401- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1401- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1401- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1401- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1401- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1401- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1401- ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1401- ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1401- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1401- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1401- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1401- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1401- ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
