11569 - FXZ/GXZ MALAYSIA EURO3
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶

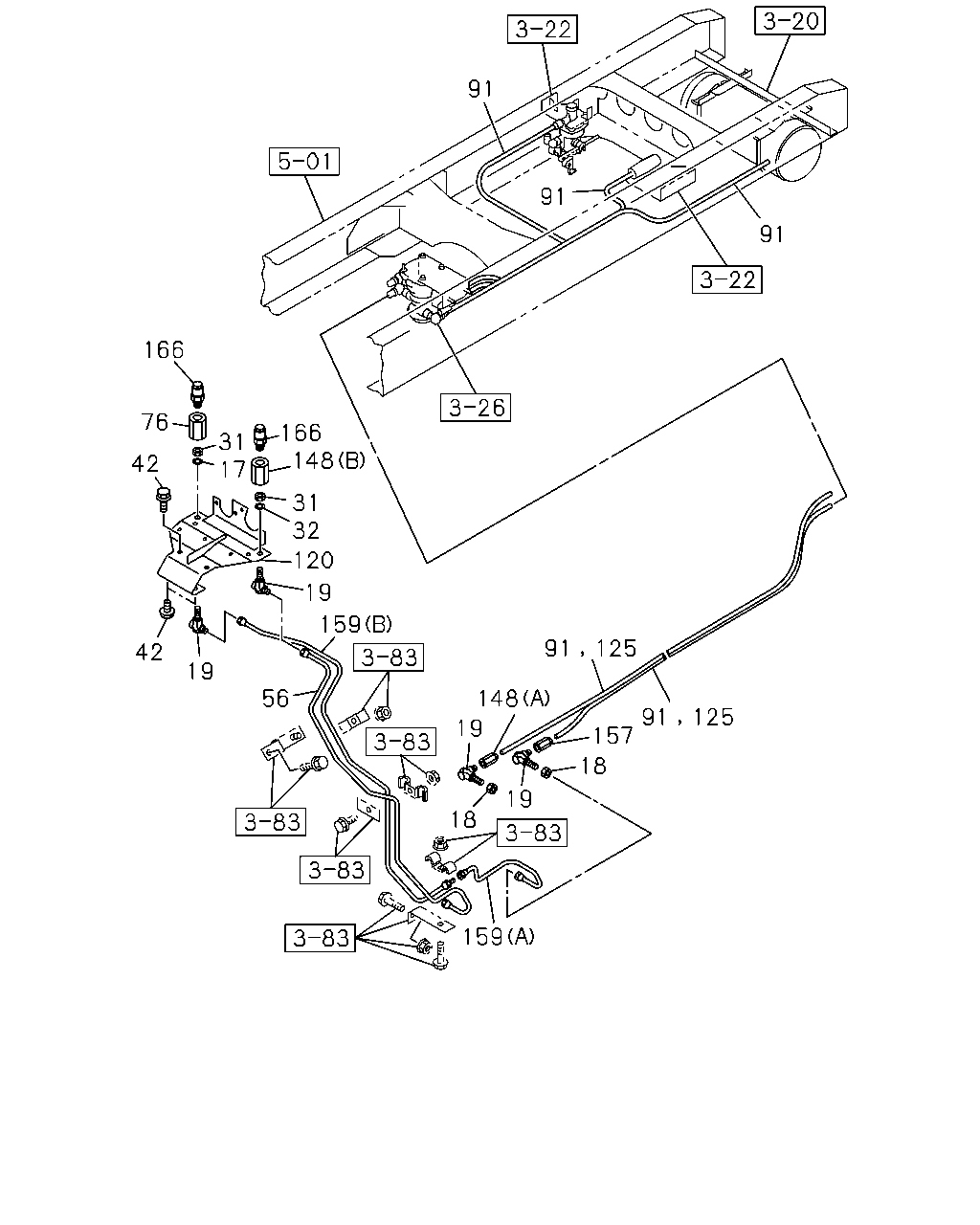

3-80 — BRAKE PIPING; TRAILER
(#132384) — 20 parça
Tümü
A - GGZ5MX
B - FGZ5MX
166
76
42
31
166
31
148
120
32
19
159
17
19
42
56
19
91
125
148
91
125
157
18
19
18
159
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1401-
●
18
NUT; UNION
M16
0-91111-516-0
02
1
1401-
●
19
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
04
1
1401-
●
31
NUT; UNION
M16
0-91111-516-0
02
1
1401-
●
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1401-
●
42
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1401-
●
56
PIPE; AIR,UNION TO COCK
L=1309
8-98100-125-0
01
1
1401-
●
76
NIPPLE; AIR PIPE
M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
●
●
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
●
●
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
●
●
120
BRACKET; COCK
8-98118-861-0
01
1
1401-
●
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
●
●
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1401-
●
●
148
ADAPTER; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1401-
●
148
ADAPTER; NYLON TUBE
(B) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
●
157
ADAPTER
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1401-
●
159
PIPE; AIR,UNION TO CONNECTOR
(A)
8-98119-479-0
01
1
1401-
●
159
PIPE; AIR,UNION TO CONNECTOR
(B) L=1379
8-98119-480-0
01
1
1401-
●
166
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1401-
●
