3-78 — FIXING PARTS; AIR PIPING (#132383) — 181 parça

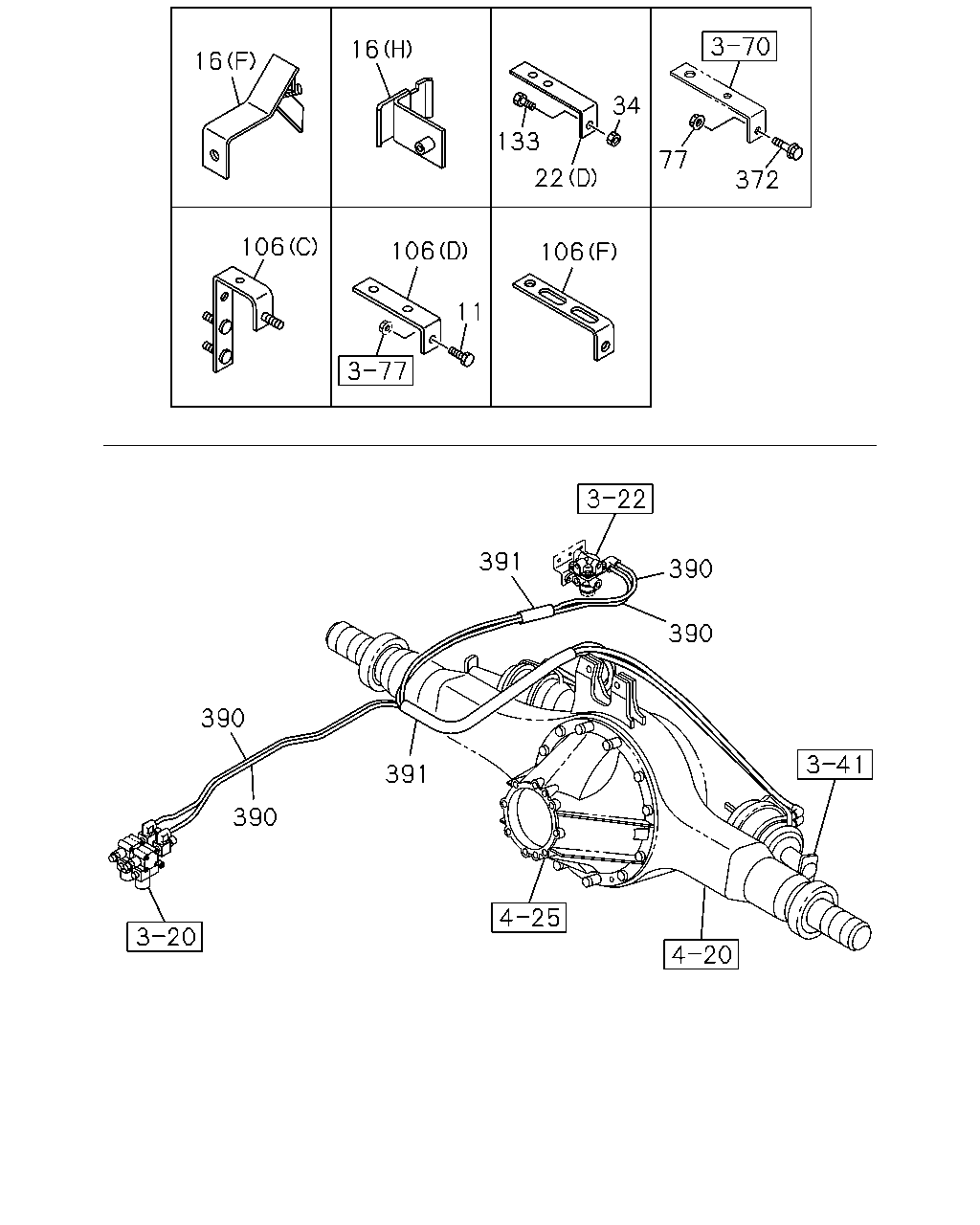

çizim 401526
16 16 133 34 22 77 372 106 106 11 106 390 390 391 391 390 390
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1401- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1401- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1401- ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1401- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1401- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1401- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
106 BRACKET; TUBE CLIP
(D) L=90 		1-47477-755-1 02 1 1401- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-598-0 02 1 1401- ● ●
106 BRACKET; TUBE CLIP
(B) L=150 		1-47471-217-0 03 1 1401- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1401- ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-329-0 01 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ●
390 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1401- ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1401- ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1401- ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1401- ●

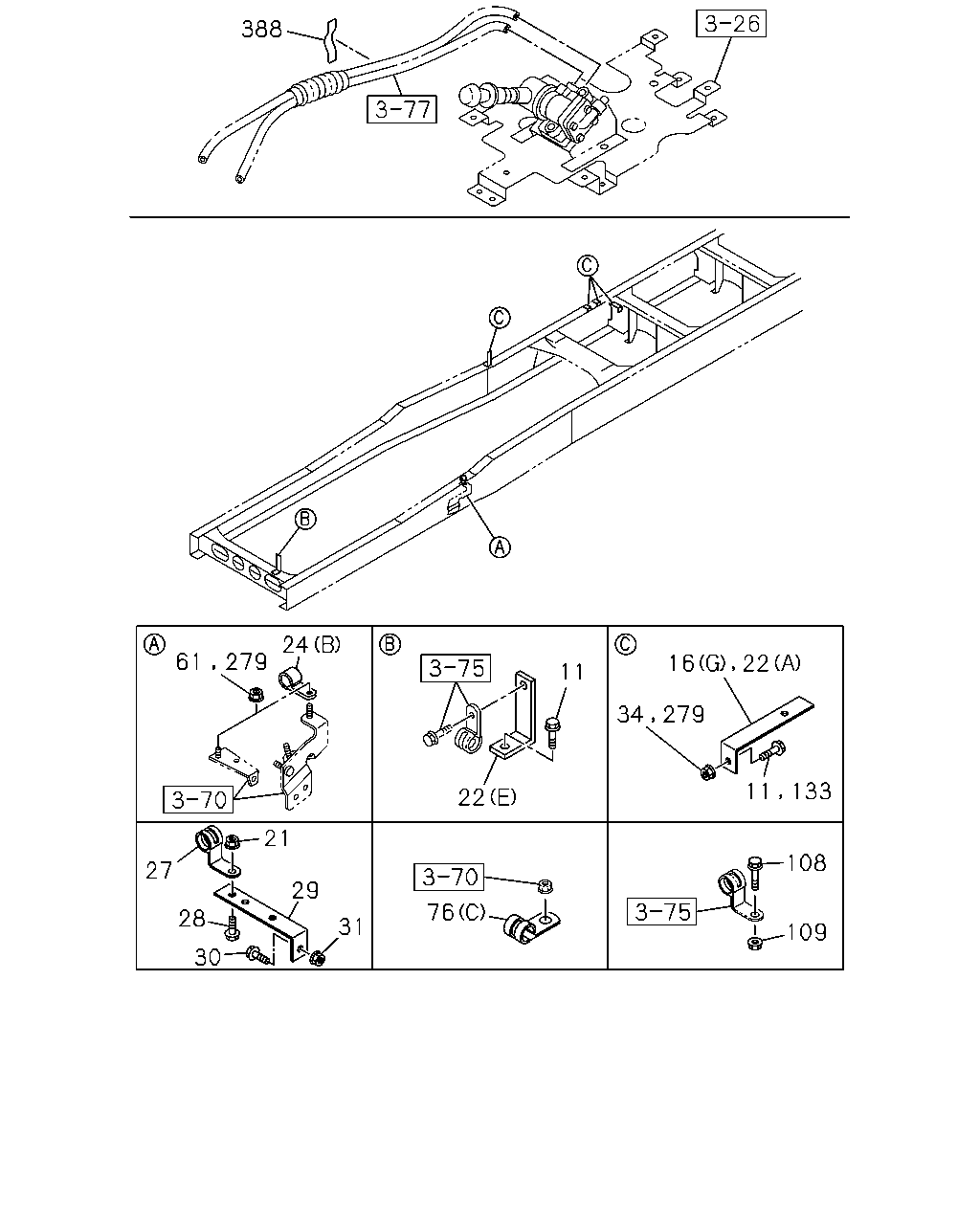

çizim 401533
388 24 61 279 21 29 31 27 28 30 22 11 76 16 22 34 279 11 133 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1401- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1401- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1401- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1401- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1401- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1401- ● ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1401- ● ●
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1> M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1> L=145 B=25 		1-47479-123-0 01 1 1401- ● ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1> M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1> M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1401- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1401- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1401- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1401- ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1401- ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 03 1 1401- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1401- ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1401- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1401- ●
388 SEAL
100X40 		1-72498-022-1 03 1 1401- ●
388 SEAL
100X40 		1-72498-022-1 04 1 1401- ●

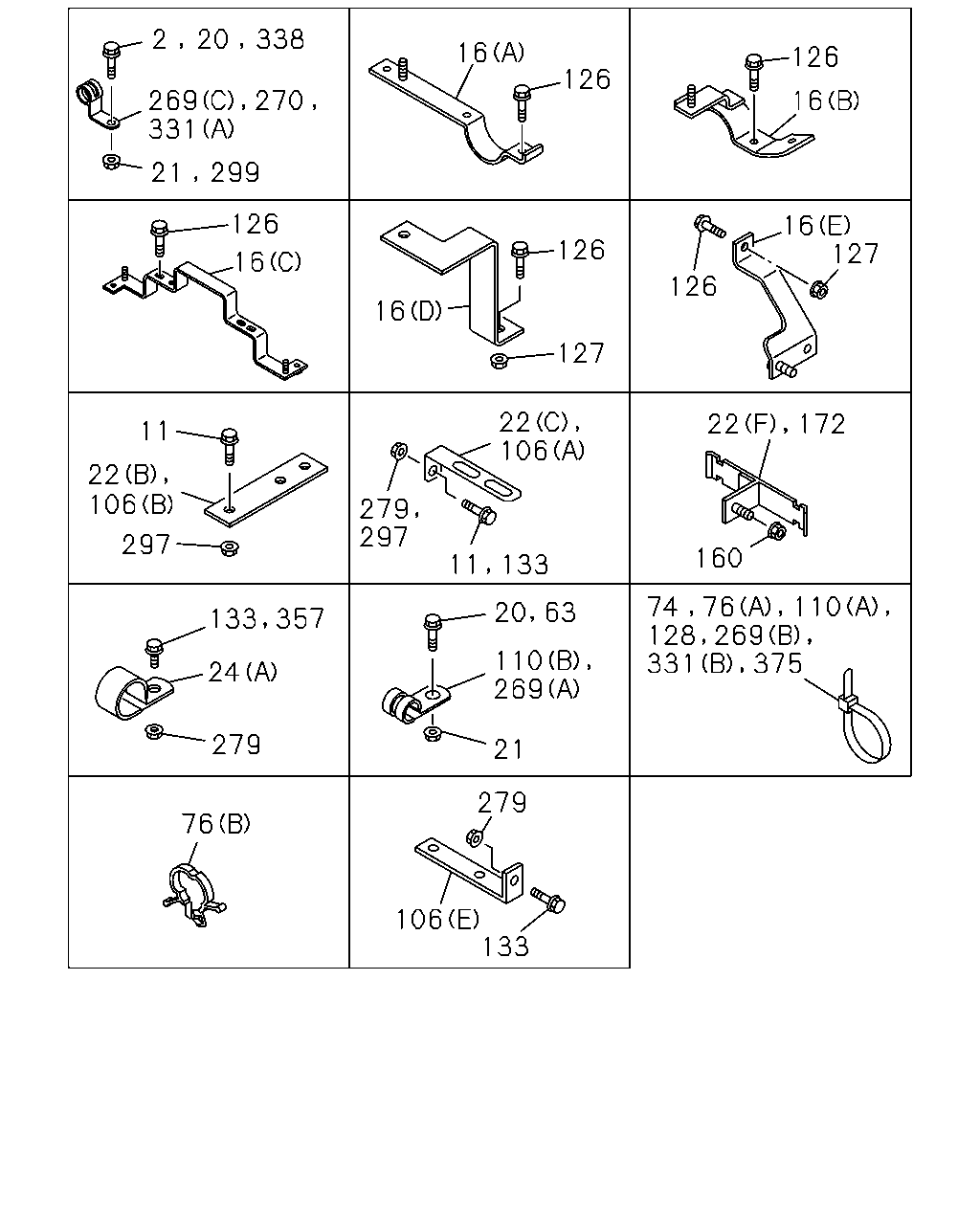

çizim 402164
2 20 338 269 270 331 21 299 126 16 16 126 126 127 16 22 106 11 133 279 297 11 22 106 297 133 357 24 279 76 20 63 110 269 21 279 106 133 126 16 16 126 127 22 172 160 74 76 110 128 269 331 375
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 03 1 1401- ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1401- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1401- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1401- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1401- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1401- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1401- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1401- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1401- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1401- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1401- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 1401- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1401- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1401- ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1401- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1401- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1401- ● ●
106 BRACKET; TUBE CLIP
(D) L=90 		1-47477-755-1 02 1 1401- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-598-0 02 1 1401- ● ●
106 BRACKET; TUBE CLIP
(B) L=150 		1-47471-217-0 03 1 1401- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1401- ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-329-0 01 1 1401- ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1401- ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 1401- ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1401- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1401- ● ●
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1401- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1401- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 11 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1401- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
172 BRACKET; TUBE CLIP 1-47479-554-0 01 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 12 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 1401- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1401- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1401- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1401- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 01 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 1401- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 22 1 1401- ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1401- ●
270 CLIP; NYLON TUBE
ID=16 H=45 L=20 		1-09701-161-0 02 1 1401- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1401- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1401- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1401- ● ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1401- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1401- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
