Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11569 - FXZ/GXZ MALAYSIA EURO3
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#132381) — 112 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

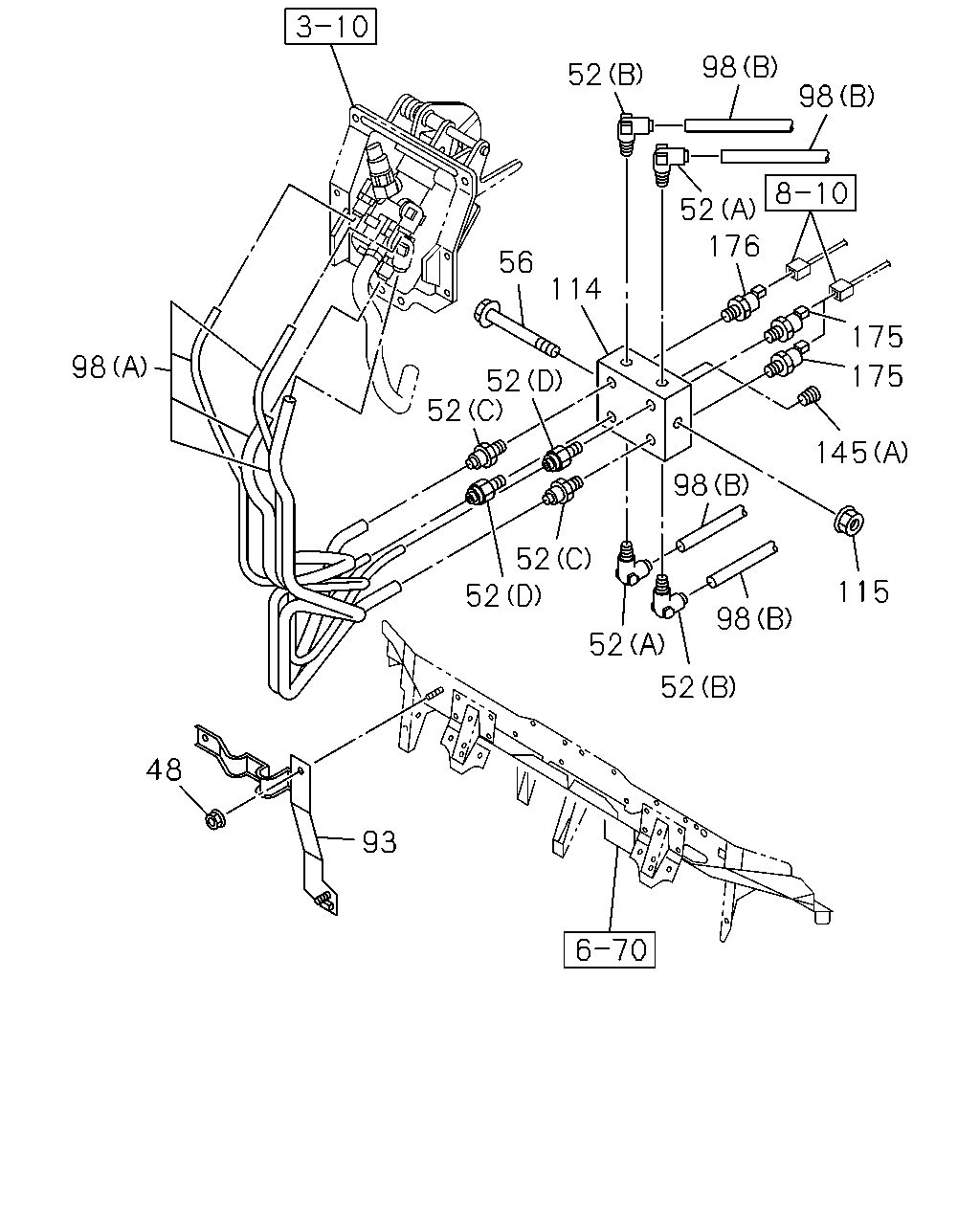

[375A] CAB UNDER;GXZ (28 parça)

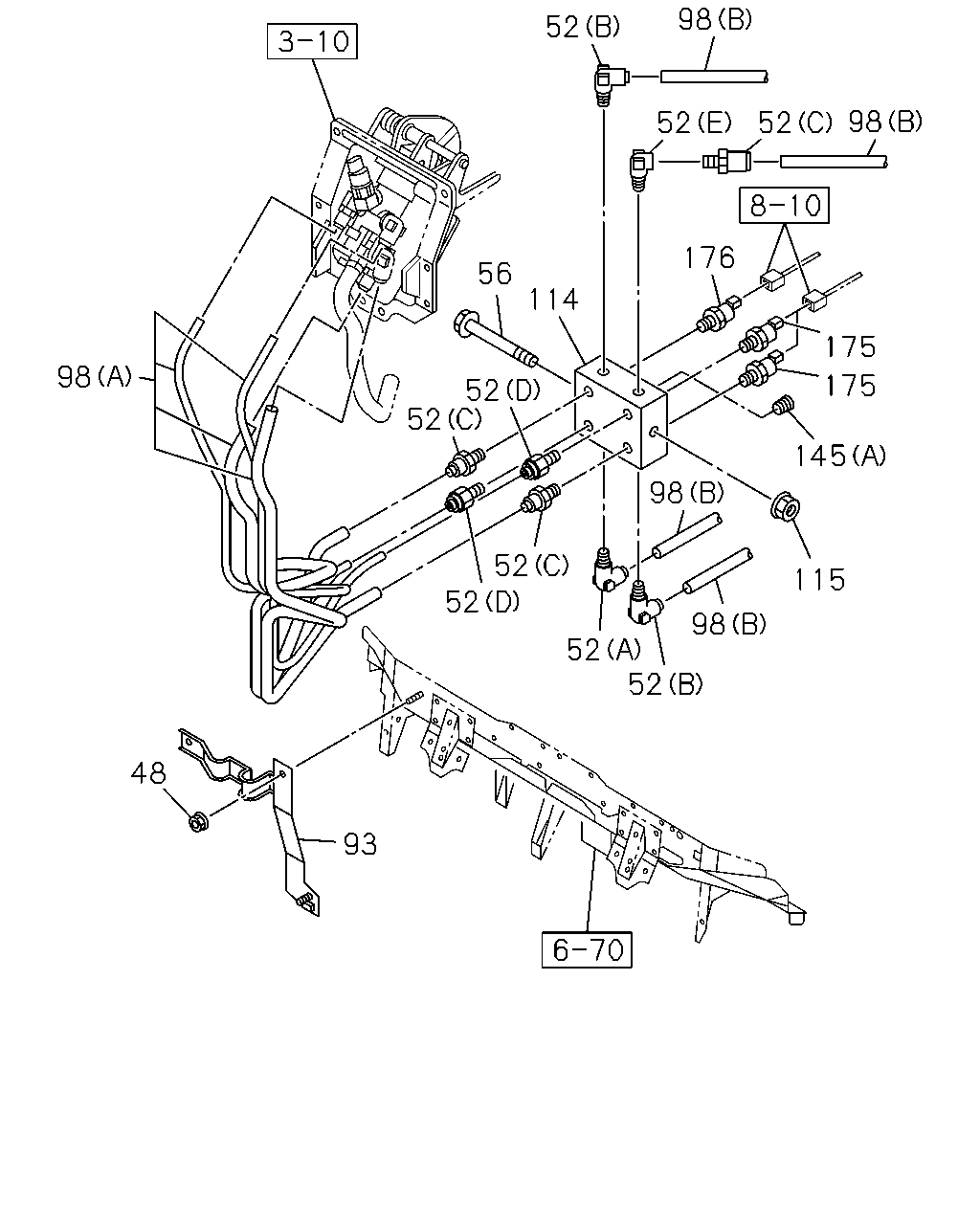

[375A] CAB UNDER;FXZ (28 parça)

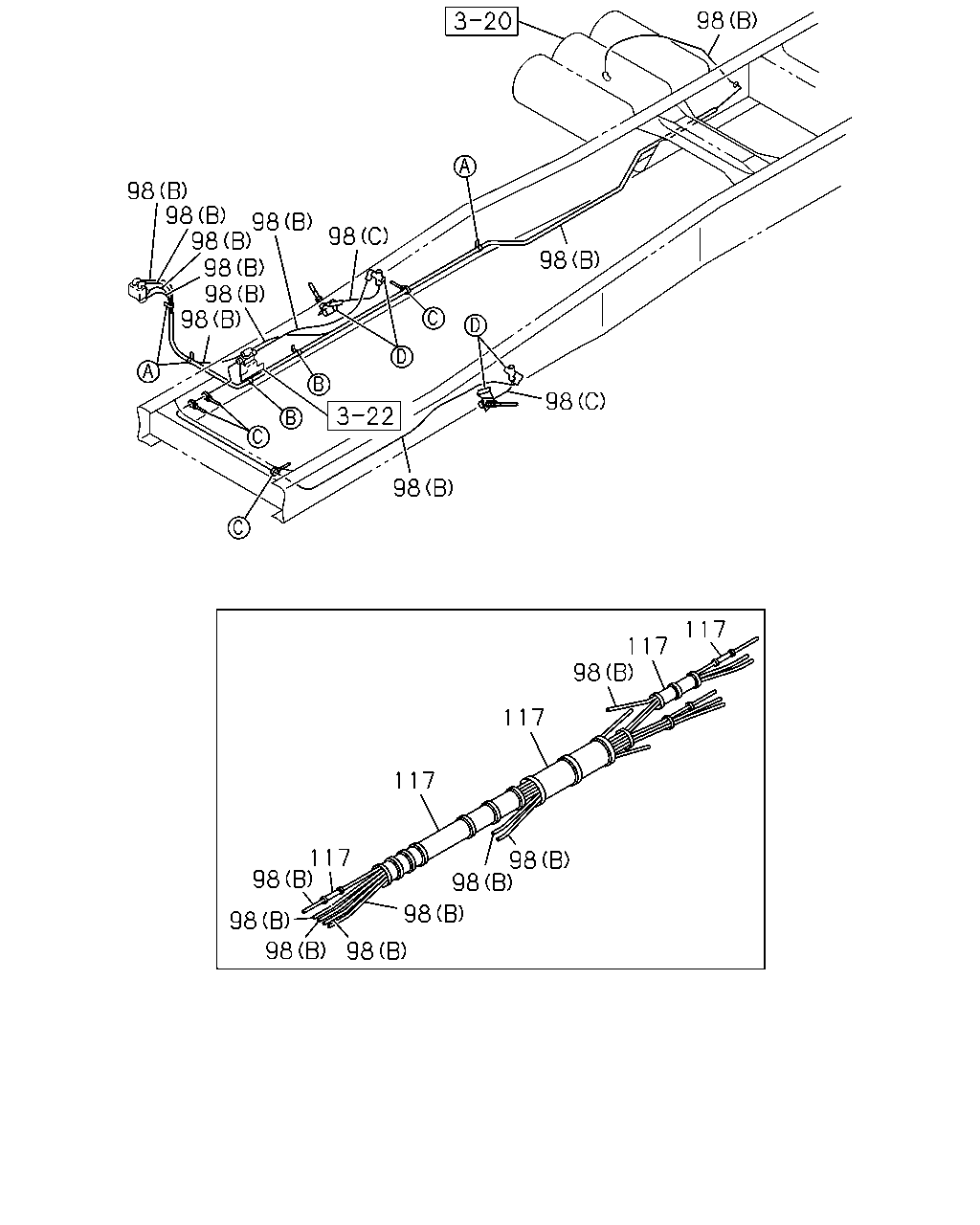

[375A] FRAME SIDE NO.2 (37 parça)
[375A] FRAME SIDE NO.1 (19 parça)
▶
98
56
52
98
52
52
176
98
175
145
175
115
98
98
52
52
52
52
52
52
114
48
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
NUT; UNION BRKT
M6 FLANGE
0-91180-106-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1401-
●
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1401-
●
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1401-
●
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
03
1
1401-
●
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1401-
●
●
93
BRACKET; UNION,TUBE
8-98186-924-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=240
1-49222-113-0
02
1
1401-
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=170 OD=12
1-49222-063-0
02
1
1401-1504
●
98
TUBE; NYLON
(C)
8-98302-565-0
02
1
1505-
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1401-
●
●
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1401-
●
●
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1401-
●
●
145
PLUG
(B) OD=12
1-09661-617-0
02
1
1401-
●
145
PLUG
(A) PT1/4
9-99204-513-0
01
1
1401-
●
●
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1401-
●
●
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1401-
●
●
52
98
98
52
176
175
175
145
115
98
98
52
52
52
52
52
52
56
114
98
48
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
NUT; UNION BRKT
M6 FLANGE
0-91180-106-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1401-
●
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1401-
●
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1401-
●
●
52
CONNECTOR; NYLON TUBE
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1401-
●
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
03
1
1401-
●
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1401-
●
●
93
BRACKET; UNION,TUBE
8-98186-924-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=240
1-49222-113-0
02
1
1401-
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=170 OD=12
1-49222-063-0
02
1
1401-1504
●
98
TUBE; NYLON
(C)
8-98302-565-0
02
1
1505-
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1401-
●
●
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1401-
●
●
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1401-
●
●
145
PLUG
(B) OD=12
1-09661-617-0
02
1
1401-
●
145
PLUG
(A) PT1/4
9-99204-513-0
01
1
1401-
●
●
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1401-
●
●
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1401-
●
●
159
159
159
98
98
66
35
68
80
75
170
144
32
35
122
145
177
178
149
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
HOSE; FLEX,FRT
0-87847-430-1
02
1
1401-
●
●
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
1401-
●
●
66
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1401-
●
●
68
NUT; UNION
M20
0-91111-520-0
02
1
1401-
●
●
75
BRACKET; UNION
8-98094-075-0
01
1
1401-
●
●
75
BRACKET; UNION
8-98094-074-0
01
1
1401-
●
●
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
02
1
1401-
●
●
98
TUBE; NYLON
(C) L=240
1-49222-113-0
02
1
1401-
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=170 OD=12
1-49222-063-0
02
1
1401-1504
●
98
TUBE; NYLON
(C)
8-98302-565-0
02
1
1505-
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1401-
●
●
122
CONNECTOR; FLEX HOSE
M20 & PT3/8
1-09660-731-1
02
1
1401-
●
●
144
ADAPTER
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
1401-
●
●
145
PLUG
(B) OD=12
1-09661-617-0
02
1
1401-
●
145
PLUG
(A) PT1/4
9-99204-513-0
01
1
1401-
●
●
149
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
02
1
1401-
●
159
CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (C) L=350
1-09707-183-0
22
1
1501-
●
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
02
1
1401-
●
159
CLIP; NYLON TUBE
(B) ID=26 L=26
1-09701-236-0
01
1
1401-
●
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
26
1
1401-1412
●
159
CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (C) L=350
1-09707-183-0
26
1
1501-
●
159
CLIP; NYLON TUBE
(B) ID=29 L=35
5-09700-293-1
01
1
1401-
●
159
CLIP; NYLON TUBE
(B) ID=39 L=33
8-98009-359-0
01
1
1401-
●
●
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
03
1
1401-
●
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
20
1
1401-
●
159
CLIP; NYLON TUBE
(B) ID=29 L=35
5-09700-293-1
02
1
1401-
●
170
UNION; FLARE
M20 & M20 ELBOW
1-09654-128-1
02
1
1401-
●
●
177
CONNECTOR
DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1401-
●
178
UNION
DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
1401-
●
98
98
98
98
98
98
98
98
98
98
98
98
117
117
98
117
117
117
98
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
98
TUBE; NYLON
(C) L=240
1-49222-113-0
02
1
1401-
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1401-
●
●
98
TUBE; NYLON
(C) L=170 OD=12
1-49222-063-0
02
1
1401-1504
●
98
TUBE; NYLON
(C)
8-98302-565-0
02
1
1505-
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1401-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1401-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1401-
●
●
