3-70 — BRAKE PIPING; AIR,AIR MASTER (#132380) — 71 parça
çizim 401505
34 12 18 189 1 98 377 91 421 98 377 421 98 377 341 264 72 304 180 179 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1401- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1> 		1-09363-940-0 01 1 1401- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1401- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1401- ● ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1401-1412 ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 		8-97620-985-0 01 1 1501- ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1401-1412 ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 		8-97618-580-0 01 1 1501- ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1501- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1401- ● ●
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 01 1 1401- ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1401- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1401- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1401- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1401- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1401- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1401- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1401- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
çizim 401509
90 435 436 444 444 296 80 296 367 84 258 306 296 367 258 80 229 296 434 444 80 297 258 297 273
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1401- ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1401- ● ●
84 UNION; NYLON TUBE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1401- ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1401- ● ●
229 ADAPTER; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1401- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1401- ● ●
306 PLUG; NYLON TUBE
OD=12 		1-09661-617-0 01 1 1401- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1401- ● ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●

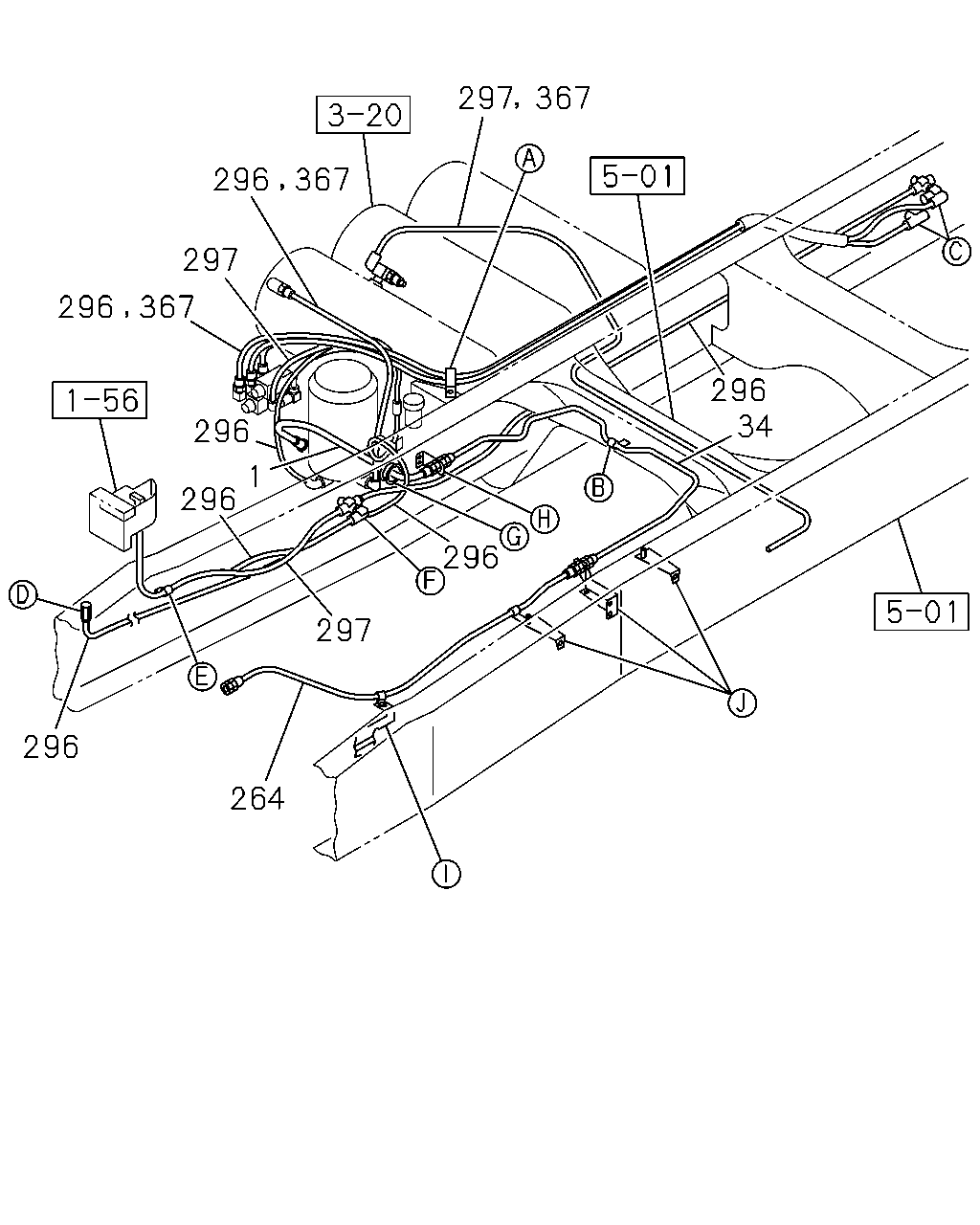

çizim 401513
297 367 296 367 297 296 367 296 296 1 296 297 264 296 34 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
BATTERY 115E41L<8MA> 		8-98100-332-0 01 1 1401- ● ●
1 HOSE; FLEX,AIR TANK
BATTERY 80D26L<TM1> 		1-09363-940-0 01 1 1401- ● ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1401-1412 ●
34 PIPE; AIR
FRAME EQUIPMENT HEAVY DUTY<F01> L=1287 		8-97620-985-0 01 1 1501- ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1401-1412 ●
34 PIPE; AIR
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258 		8-97618-580-0 01 1 1501- ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1501- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1401- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1401- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1401- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1401- ● ●
