Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10877 - EXZ LHD FUEL TANK 200L+200L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25A - SPEEDOMETER DRIVEN GEAR
▶

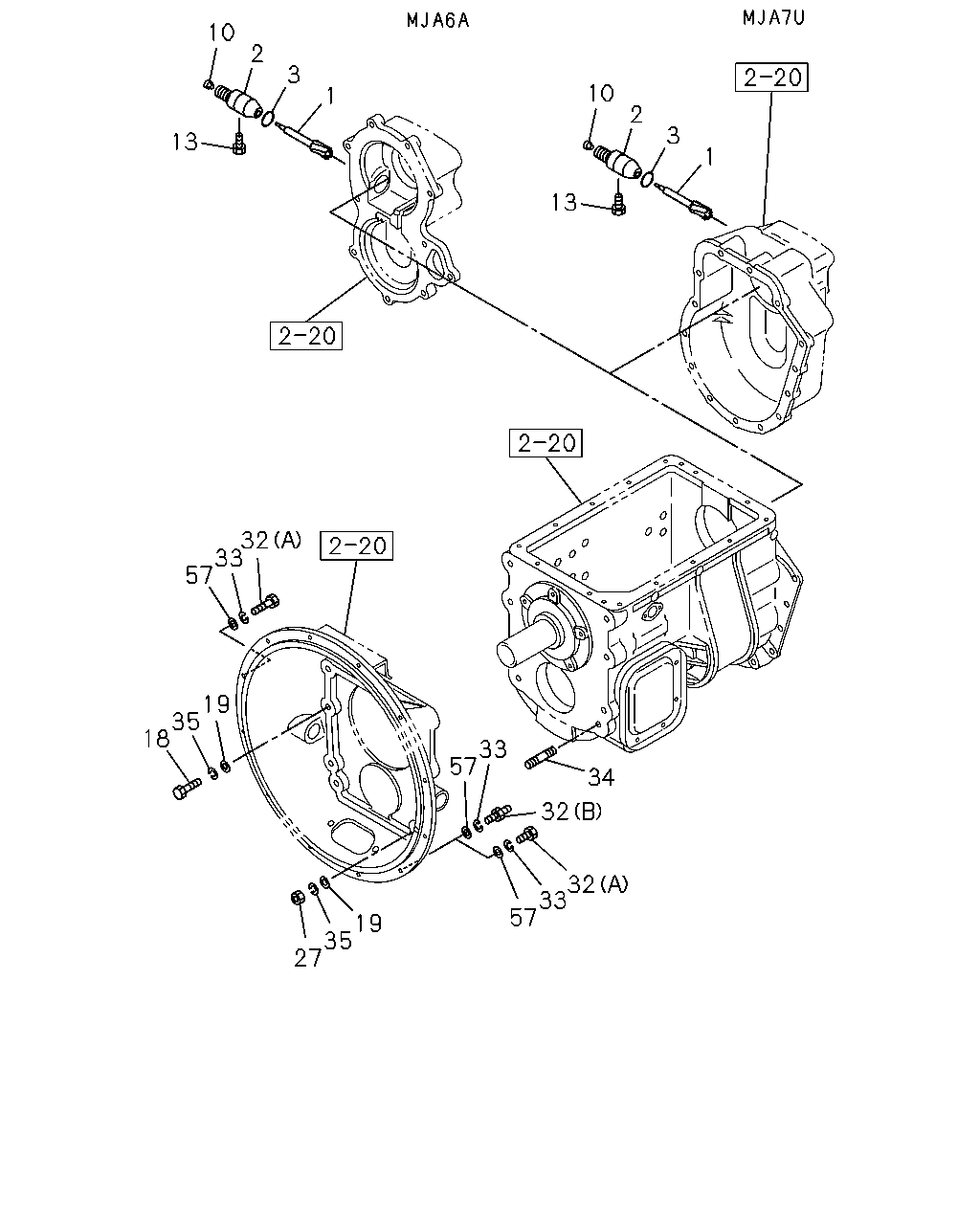

2-25A — SPEEDOMETER DRIVEN GEAR
(#13238) — 16 parça
Tümü
A - MJA7U M/T
B - MJA6A M/T
10
2
3
10
2
1
3
13
1
13
32
33
57
19
35
18
33
57
34
32
32
33
57
19
35
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0105-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0105-
●
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0105-
●
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0105-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0105-
●
●
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50151-650-0
06
1
0105-
●
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
0105-
●
●
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
0105-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60
0-28181-260-0
08
1
0105-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91
1-09029-043-1
04
1
0105-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X35 FLANGE
0-28781-235-0
08
1
0105-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X35 L=59
1-09029-031-1
04
1
0105-
●
●
33
WASHER; LK,CLU HSG
ID=12.2
9-09150-612-0
04
1
0105-
●
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0105-
●
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
0105-
●
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
04
1
0105-
●
●
