3-45 — LOAD SENSING PROPORTIONING VALVE
(#132376) — 45 parça
◀

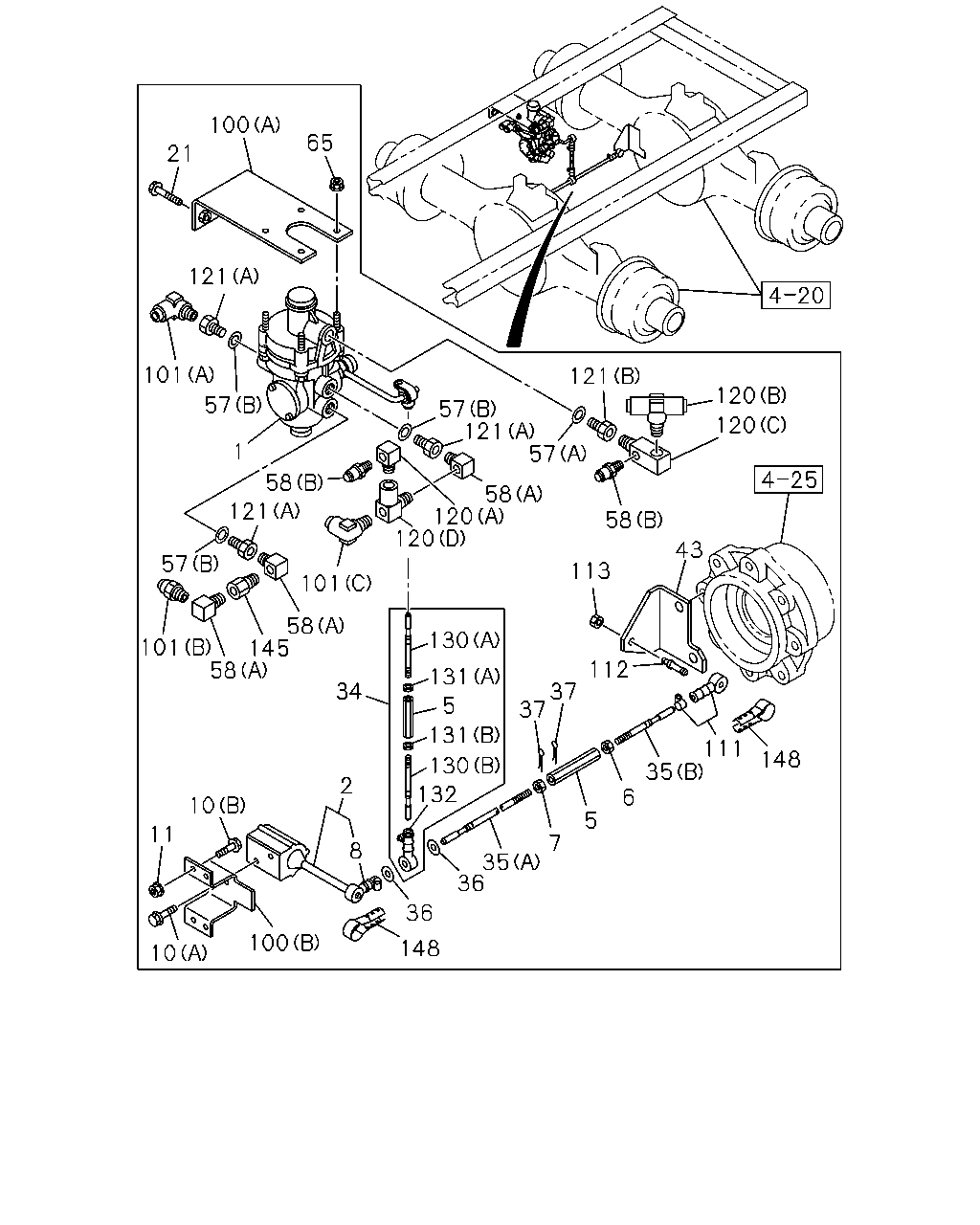

[345A] FIXING (42 parça)

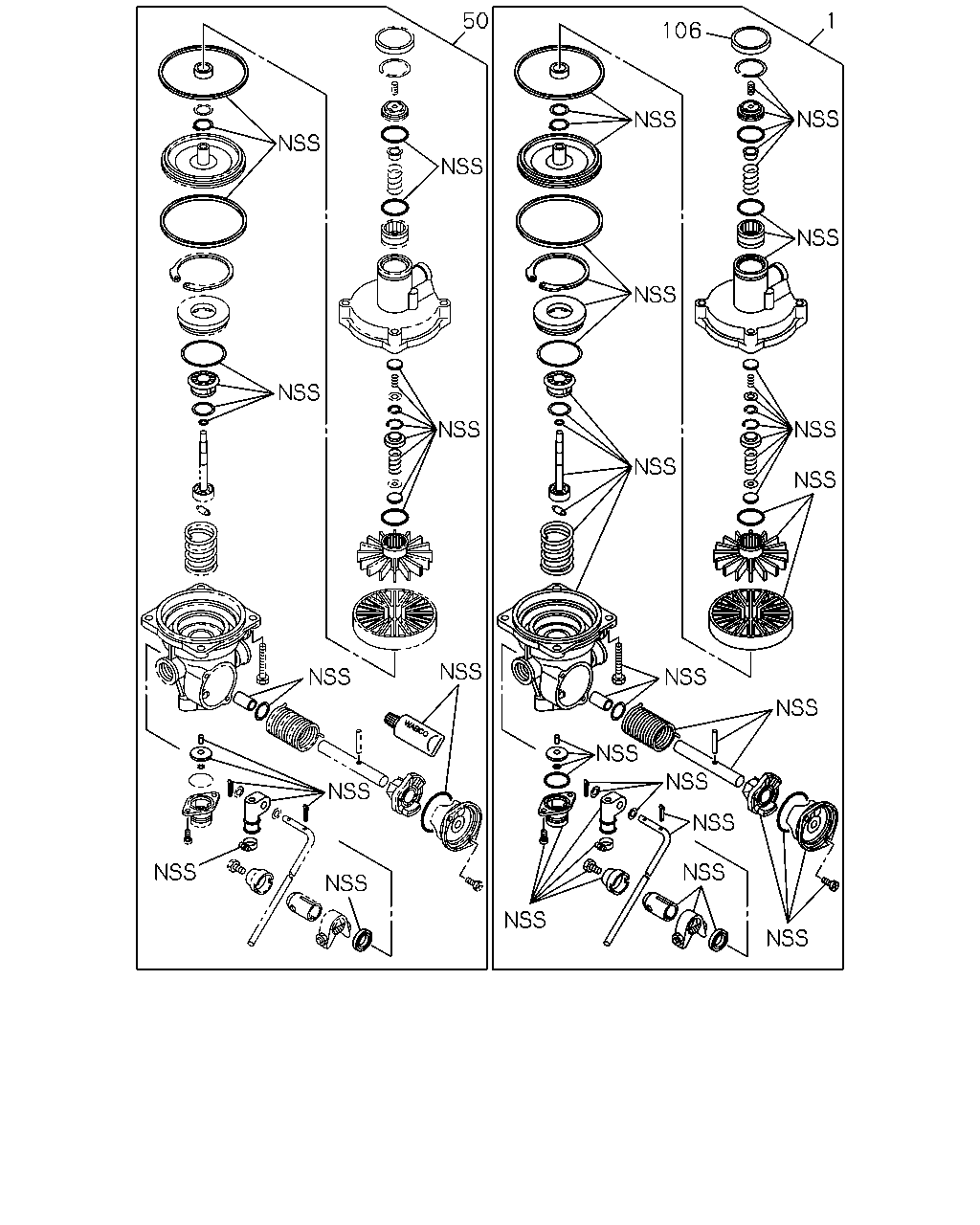

[345A] COMPONENT AND REPAIR KIT (3 parça)
▶
100
21
65
121
101
121
57
57
120
120
57
121
120
58
120
58
58
1
121
101
58
145
58
101
57
34
10
11
10
100
148
36
36
7
35
37
5
37
6
112
113
35
43
111
148
132
130
131
5
131
130
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-150-0
01
1
1401-
2
DAMPER
1-47725-047-0
01
1
1401-
5
JOINT
1-09768-091-0
02
1
1401-
6
NUT; LK,UPR
M8
0-91111-508-0
01
1
1401-
7
NUT; LK,LWR
LH THREAD
1-09409-002-0
01
1
1401-
8
ROD END
1-47723-001-0
01
1
1401-
10
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1401-
10
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
04
1
1401-
11
NUT; BRKT
M8 FLANGE
0-91180-208-0
04
1
1401-
21
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1401-
34
ROD; LEVER TO ROD,LSPV
1-47725-046-0
01
1
1401-
35
ROD; LINK,LSPV
(B)
1-09765-282-0
01
1
1401-
35
ROD; LINK,LSPV
(A)
1-09765-318-0
01
1
1401-
36
WASHER; PL,ROD
ID=8.4 OD=16
0-91610-508-0
02
1
1401-
37
PIN; SPLIT,ROD
OD=1.8 L=25
0-81122-025-0
02
1
1401-
43
BRACKET; DAMPER TO AXLE
1-42129-517-0
01
1
1401-
57
GASKET; CONNECTOR
(A) ID=16.2 OD=24
9-09571-416-0
01
1
1401-
57
GASKET; CONNECTOR
(B) ID=22.5
9-09571-422-0
03
1
1401-
58
CONNECTOR; LSPV
(A) PT3/8 ELBOW
1-09660-696-0
03
1
1401-
58
CONNECTOR; LSPV
(B) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1401-
65
NUT; LSPV
M8 FLANGE
0-91180-108-0
04
1
1401-
100
BRACKET; LSPV
(B)
1-42129-511-0
01
1
1401-
100
BRACKET; LSPV
(A)
1-47471-208-0
01
1
1401-
101
CONNECTOR; LSPV
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1401-
101
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1401-
101
CONNECTOR; LSPV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1401-
111
RUBBER; JOINT,LSPV
1-47723-001-0
01
1
1401-
112
PIN; JOINT RUBBER
1-09744-123-0
01
1
1401-
113
NUT; JOINT RUBBER
M8 FLANGE
0-91180-108-0
01
1
1401-
120
CONNECTOR
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1401-
120
CONNECTOR
(B) DIN8X2 & R1/4 3WAY
1-09661-004-0
01
1
1401-
120
CONNECTOR
(C) DIN14 & R1/4 & RC1/4
1-09661-729-0
01
1
1401-
120
CONNECTOR
(D) DIN9 & RC3/8 ELBOW
8-98203-578-0
01
1
1401-
121
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
03
1
1401-
121
ADAPTER
(B)
1-09661-821-0
01
1
1401-
130
ROD; JOINT
(B)
1-09765-283-0
01
1
1401-
130
ROD; JOINT
(A)
1-09765-290-0
01
1
1401-
131
NUT; JOINT
(B) LH THREAD
1-09409-002-0
01
1
1401-
131
NUT; JOINT
(A)
1-48119-089-0
01
1
1401-
132
RUBBER ASM; CONN
1-47723-001-0
02
1
1401-
145
UNION
PT3/8
1-09664-210-0
01
1
1401-
148
COVER; JOINT RUBBER
1-47729-058-0
02
1
1401-
1
106
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-150-0
01
1
1401-
50
REPAIR KIT; LSPV
1-85576-393-0
01
1
1401-
106
COVER; PISTON
1-47729-001-0
01
1
1401-
