11569 - FXZ/GXZ MALAYSIA EURO3
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#132375) — 34 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

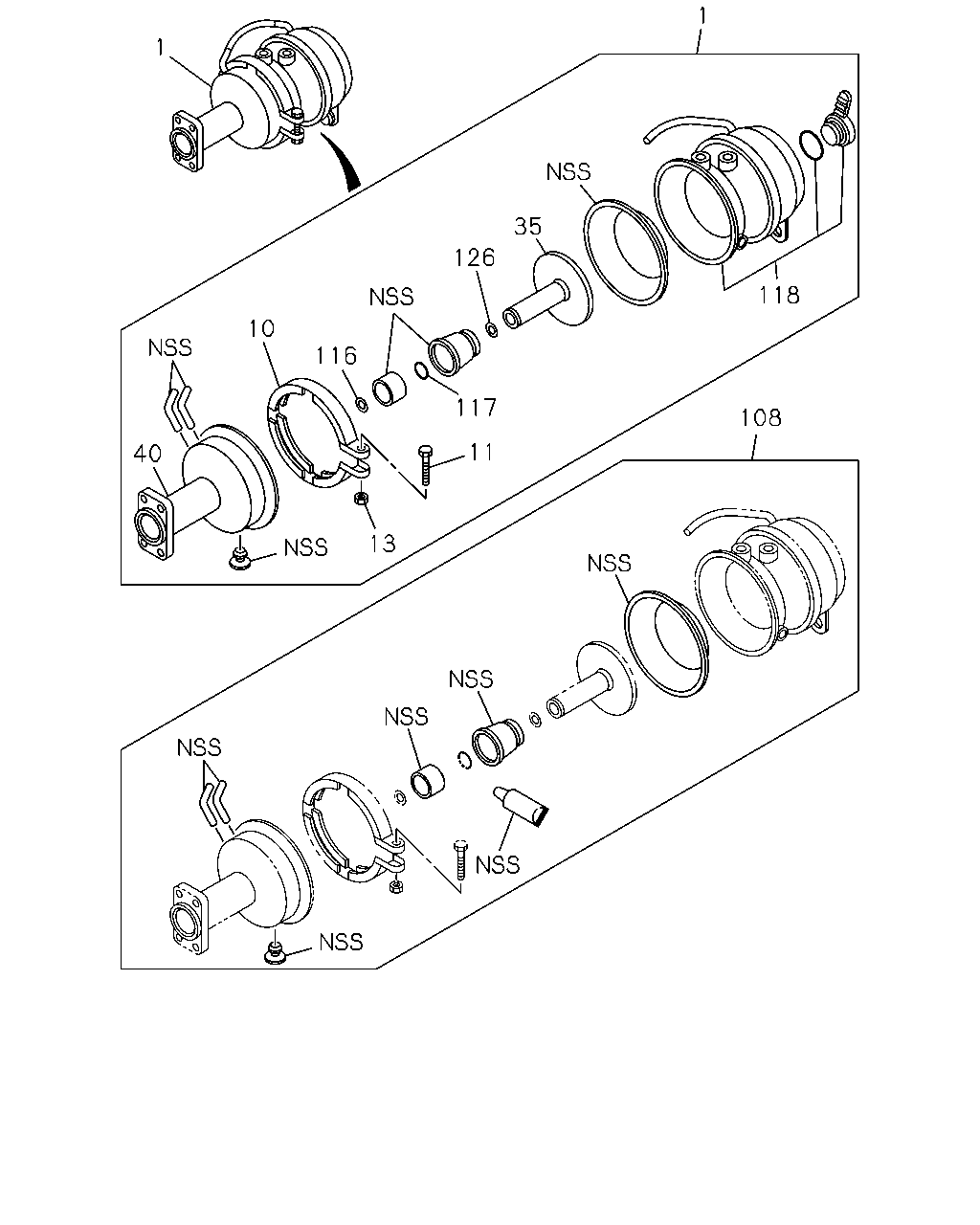

[341A] COMPONENT,REPAIR KIT (28 parça)
[341A] CONNECTOR;NYLON TUBE (6 parça)
▶
1
1
118
108
117
11
13
116
10
40
126
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
01
1
1401-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1401-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1401-
●
●
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1401-
●
●
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1401-
●
●
13
NUT; CLAMP RING
1-48269-147-0
02
1
1401-
●
●
13
NUT; CLAMP RING
1-48269-147-0
02
1
1401-
●
●
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1401-
●
●
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1401-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH
1-48251-140-1
01
1
1401-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH
1-48251-140-1
01
1
1401-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH
1-48251-141-1
01
1
1401-
●
●
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH
1-48251-141-1
01
1
1401-
●
●
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1401-
●
●
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1401-
●
●
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1401-
●
●
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1401-
●
●
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1401-
●
●
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1401-
●
●
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH
1-87412-113-0
01
1
1401-
●
●
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH
1-87412-113-0
01
1
1401-
●
●
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH
1-87412-114-0
01
1
1401-
●
●
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH
1-87412-114-0
01
1
1401-
●
●
126
SHIM
8-98146-965-0
AR
1
1401-
●
●
126
SHIM
8-98146-965-0
AR
1
1401-
●
●
1
32
1
32
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
01
1
1401-
●
●
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
01
1
1401-
●
●
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1401-
●
●
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1401-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
