Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11569 - FXZ/GXZ MALAYSIA EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#132372) — 124 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[326A] CONT VALVE;FXZ (15 parça)
[326A] COMPONENT AND REPAIR KIT;FXZ (34 parça)
[326A] CONT VALVE;GXZ (18 parça)
[326A] VALVE;TRAILER CONT (17 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
[326A] HAND CONT VALVE;GXZ (37 parça)
[326A] REPAIR KIT,HAND CONT VALVE,GXZ (2 parça)
▶

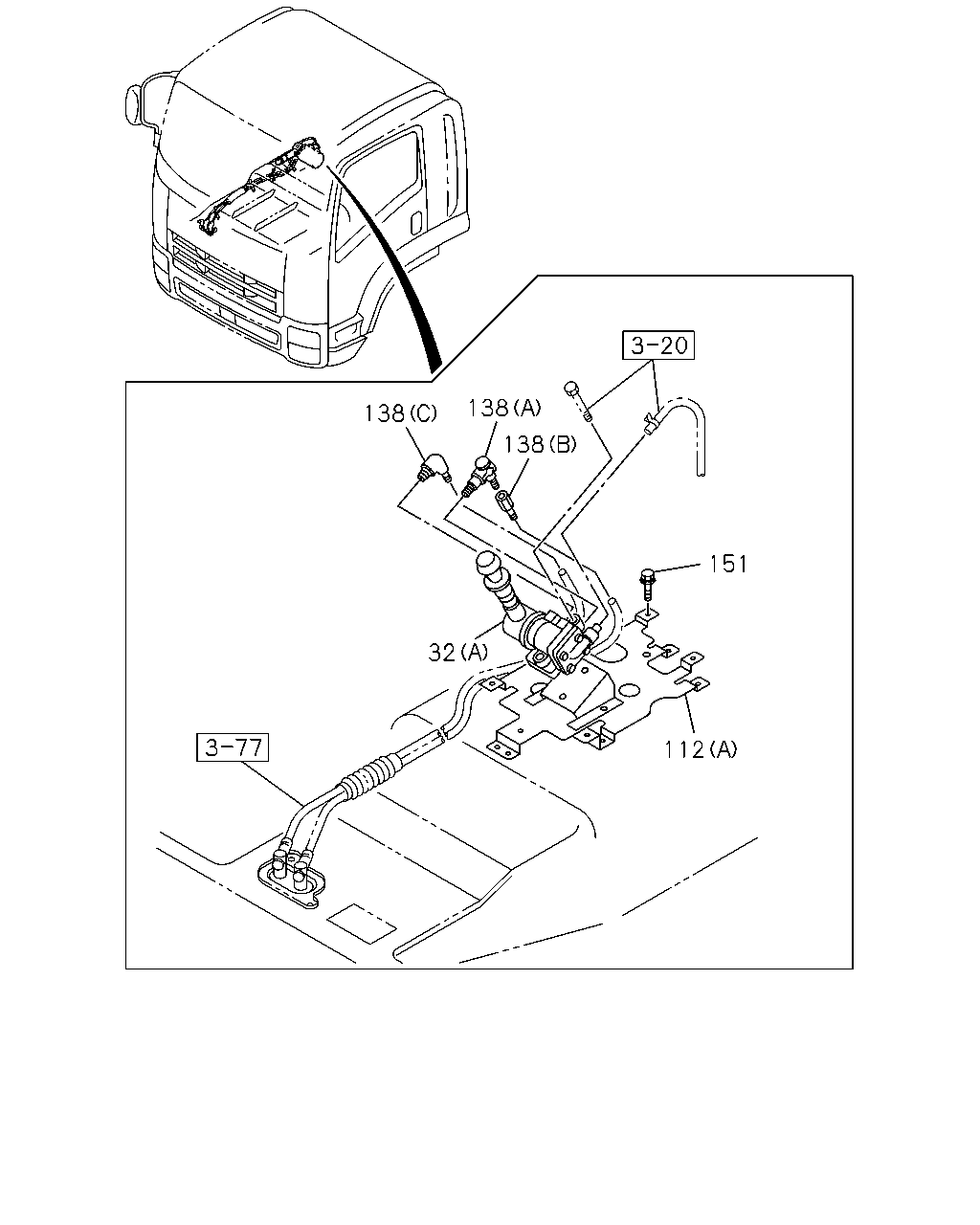

138
138
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1401-
●
32
VALVE; BRK,HAND CONT
(B)
1-48460-316-0
01
1
1401-
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
1401-
●
112
BRACKET; CONT VLV
(B)
1-73908-294-2
01
1
1401-
●
112
BRACKET; CONT VLV
(C)
1-73908-295-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(D) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
1401-
●
138
CONNECTOR; DELIVERY
(F) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(G) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(H) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1401-
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1401-
●
●

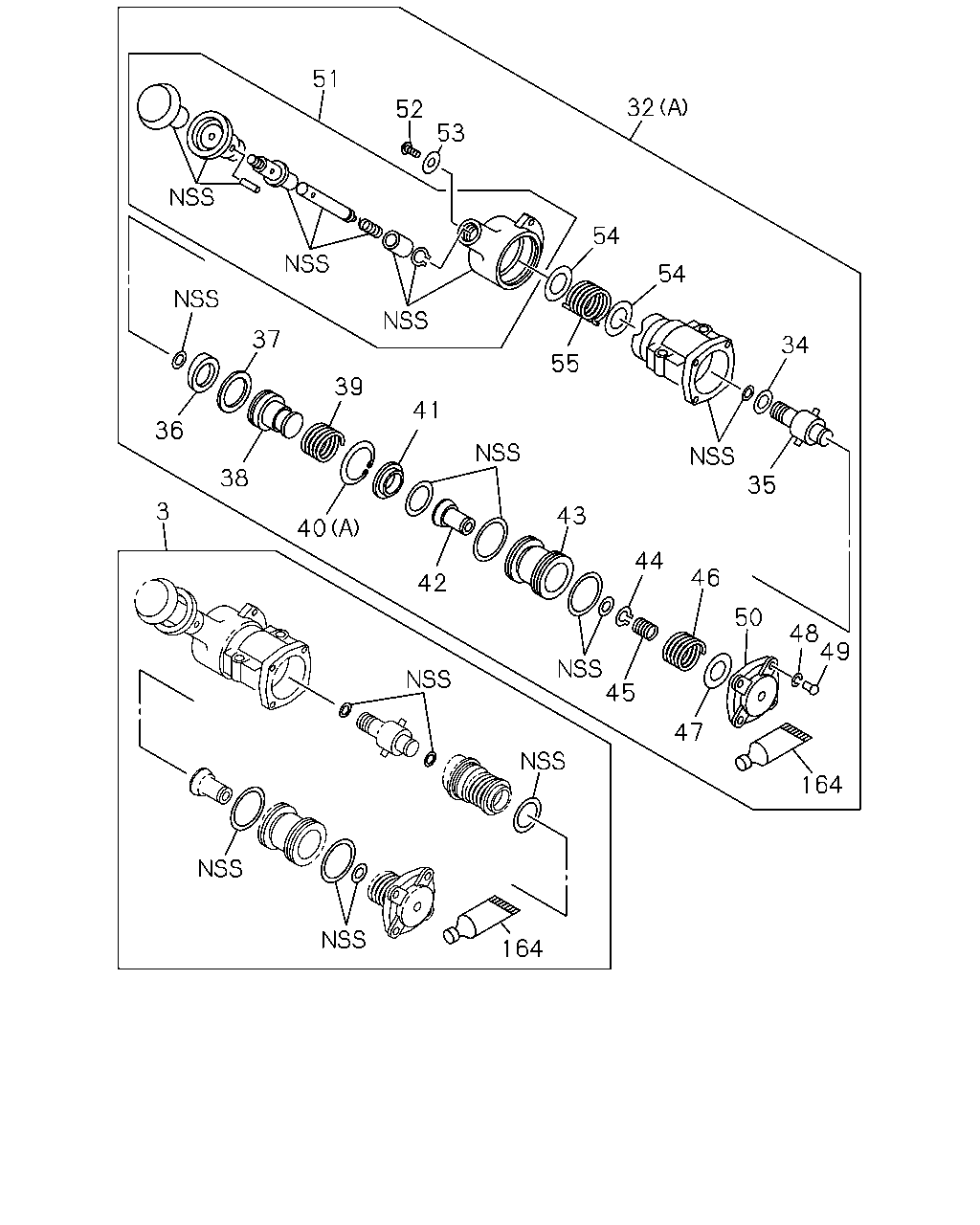

51
52
53
32
54
54
34
35
55
43
44
46
50
48
49
164
47
45
37
39
41
38
40
42
36
3
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-096-0
01
1
1401-
●
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-083-0
01
1
1401-
●
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1401-
●
32
VALVE; BRK,HAND CONT
(B)
1-48460-316-0
01
1
1401-
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1401-
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
1401-
●
●
36
RING; CAM
1-48469-056-0
01
1
1401-
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
1401-
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
1401-
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1401-
●
●
40
RING; SNAP
(A)
1-48469-067-0
01
1
1401-
●
●
40
RING; SNAP
(B)
1-48469-079-0
01
1
1401-
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
1401-
●
●
42
VALVE; FEED
1-48469-065-0
01
1
1401-
●
42
VALVE; FEED
1-48469-065-0
02
1
1401-
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1401-
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1401-
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
1401-
●
45
SPRING; FEED VLV
1-48469-070-0
02
1
1401-
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1401-
●
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
1401-
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1401-
●
●
48
WASHER; COVER
1-48469-091-0
04
1
1401-
●
49
SCREW; COVER
1-48469-092-0
04
1
1401-
●
49
SCREW; COVER
1-48469-120-0
04
1
1401-
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1401-
●
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
1401-
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1401-
●
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
1401-
●
52
SCREW; HANDLE
1-48469-062-0
01
1
1401-
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
1401-
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
1401-
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1401-
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1401-
●
●

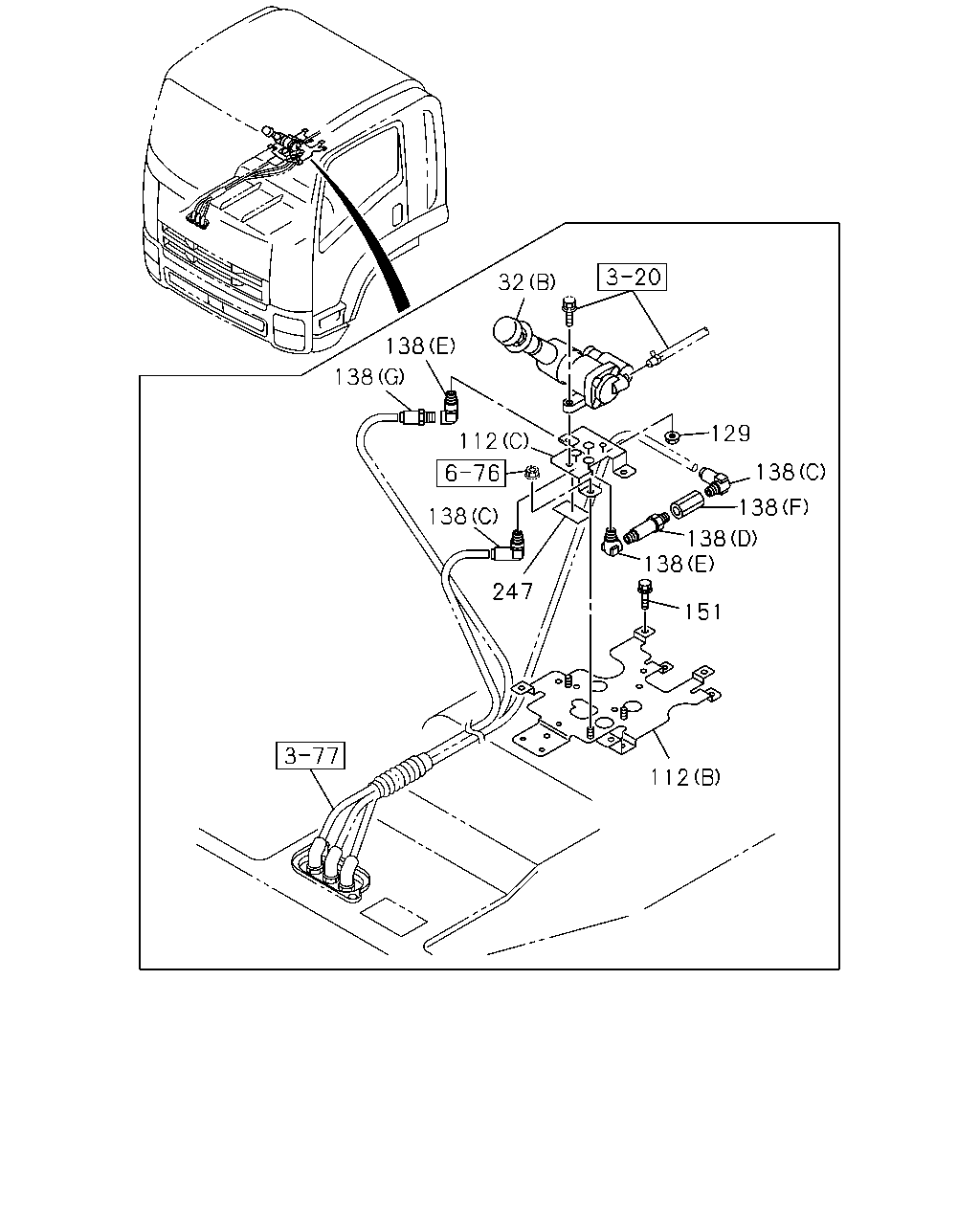

32
138
138
112
138
247
138
151
138
138
138
129
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1401-
●
32
VALVE; BRK,HAND CONT
(B)
1-48460-316-0
01
1
1401-
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
1401-
●
112
BRACKET; CONT VLV
(B)
1-73908-294-2
01
1
1401-
●
112
BRACKET; CONT VLV
(C)
1-73908-295-0
01
1
1401-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1401-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
04
1
1401-
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(D) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
1401-
●
138
CONNECTOR; DELIVERY
(F) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(G) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(H) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1401-
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1401-
●
●
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
1401-
●
129
106
65
258
143
137
215
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
1401-
●
106
BRACKET; VLV
8-97618-638-0
01
1
1401-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1401-
●
129
NUT; VLV
M8 FLANGE
0-91180-108-0
04
1
1401-
●
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(D) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1401-
●
138
CONNECTOR; DELIVERY
(E) PT1/4 & PT1/4 2WAY
1-09660-693-0
02
1
1401-
●
138
CONNECTOR; DELIVERY
(F) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(G) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
●
138
CONNECTOR; DELIVERY
(H) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1401-
●
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
1401-
●
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1401-
●
258
CONNECTOR; 3 WAY
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1401-
●

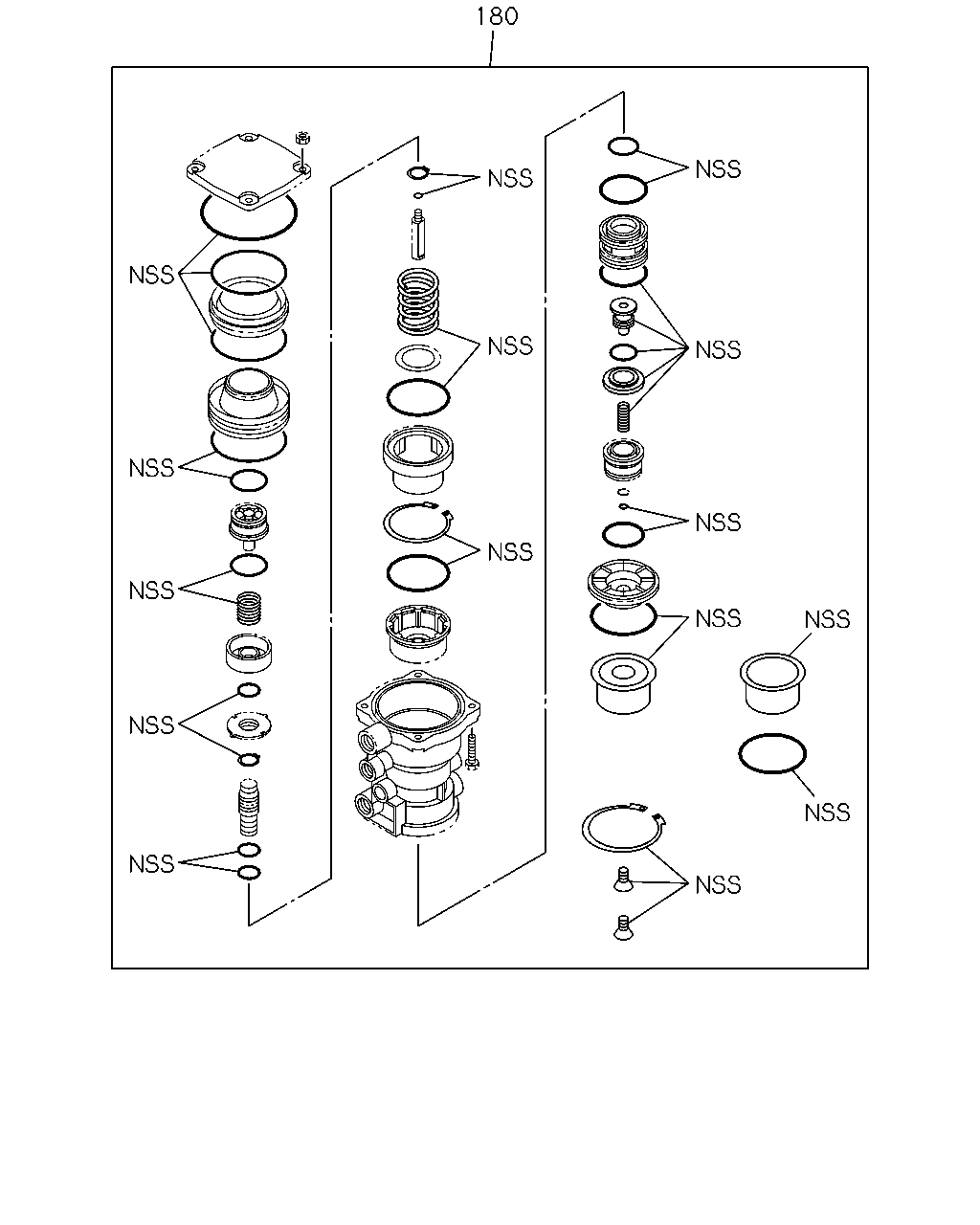

180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1401-
●

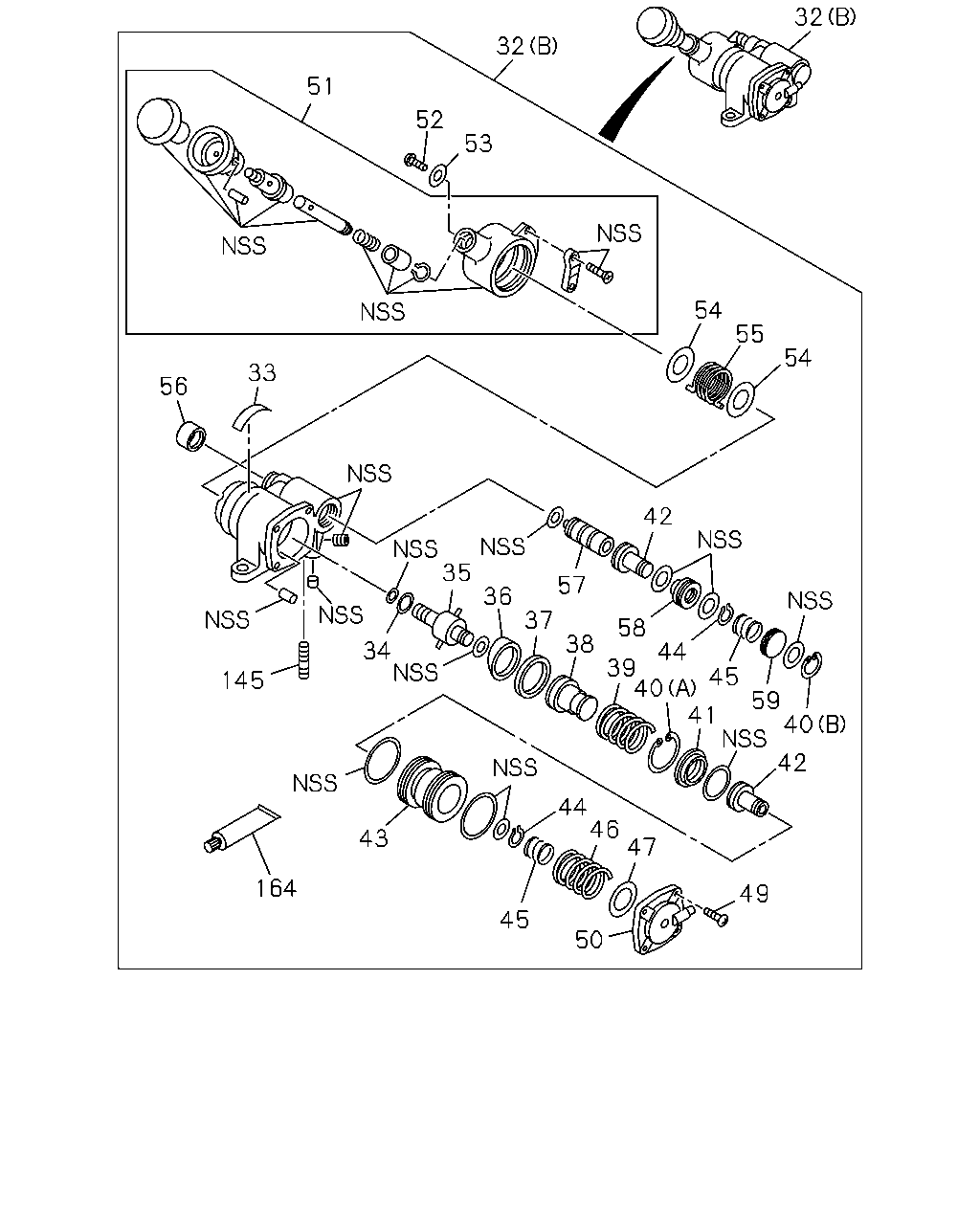

51
52
32
53
54
55
54
42
57
37
36
35
58
44
45
59
40
42
41
40
39
38
145
34
44
46
47
49
50
45
43
164
33
56
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1401-
●
32
VALVE; BRK,HAND CONT
(B)
1-48460-316-0
01
1
1401-
●
33
PLATE; CAUTION
1-48469-121-0
01
1
1401-
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1401-
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
1401-
●
●
36
RING; CAM
1-48469-056-0
01
1
1401-
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
1401-
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
1401-
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1401-
●
●
40
RING; SNAP
(A)
1-48469-067-0
01
1
1401-
●
●
40
RING; SNAP
(B)
1-48469-079-0
01
1
1401-
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
1401-
●
●
42
VALVE; FEED
1-48469-065-0
01
1
1401-
●
42
VALVE; FEED
1-48469-065-0
02
1
1401-
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1401-
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1401-
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
1401-
●
45
SPRING; FEED VLV
1-48469-070-0
02
1
1401-
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1401-
●
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
1401-
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1401-
●
●
49
SCREW; COVER
1-48469-092-0
04
1
1401-
●
49
SCREW; COVER
1-48469-120-0
04
1
1401-
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1401-
●
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
1401-
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1401-
●
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
1401-
●
52
SCREW; HANDLE
1-48469-062-0
01
1
1401-
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
1401-
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
1401-
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1401-
●
●
56
BOOT; PLUNGER
1-48469-080-0
01
1
1401-
●
57
PLUNGER; HAND BRK VLV
1-48469-076-0
01
1
1401-
●
58
HOLDER; FEED VLV
1-48469-077-0
01
1
1401-
●
59
HOLDER; SPRING
1-48469-078-0
01
1
1401-
●
145
STUD; HAND BRK VLV
1-48469-069-0
01
1
1401-
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1401-
●
●

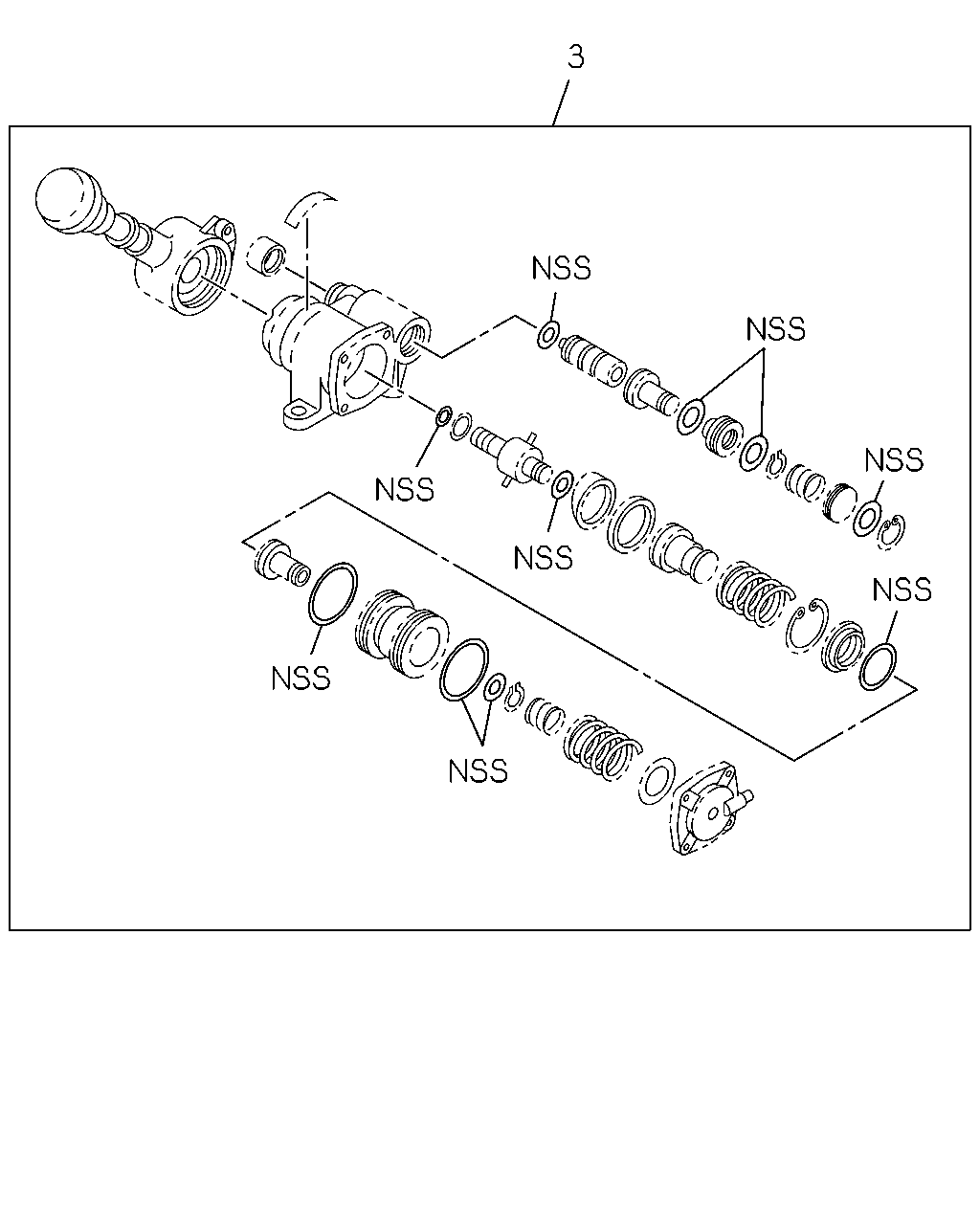

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-096-0
01
1
1401-
●
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-083-0
01
1
1401-
●
