3-20 — AIR TANK (#132370) — 377 parça

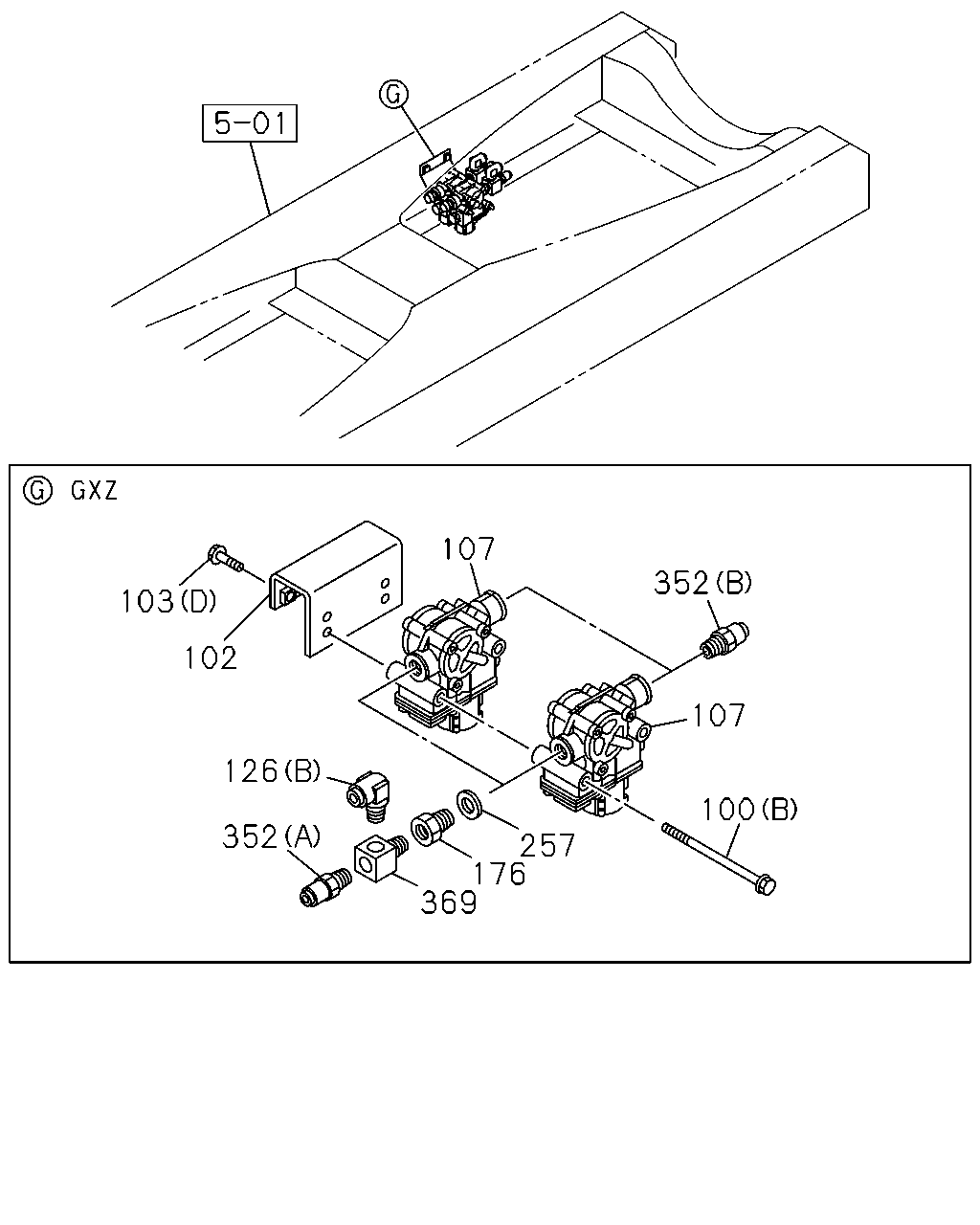

çizim 401451
103 102 126 352 369 257 176 107 352 107 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1401- ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1401- ●
102 BRACKET; MODULATOR 1-47471-372-0 01 1 1401-1504 ●
102 BRACKET; MODULATOR 8-98300-012-0 01 1 1505- ●
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1401- ● ●
103 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1401- ●
107 MODULATOR; RR 1-48240-115-0 02 1 1401-1504 ●
107 MODULATOR; RR 8-98215-454-0 02 1 1505- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1401- ●
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1401- ●
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 02 1 1401- ●
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1401- ●
352 CONNECTOR; STRAIGHT
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1401- ●
369 CONNECTOR; 3WAY
PT3/8 3WAY 		1-09661-300-0 02 1 1401- ●

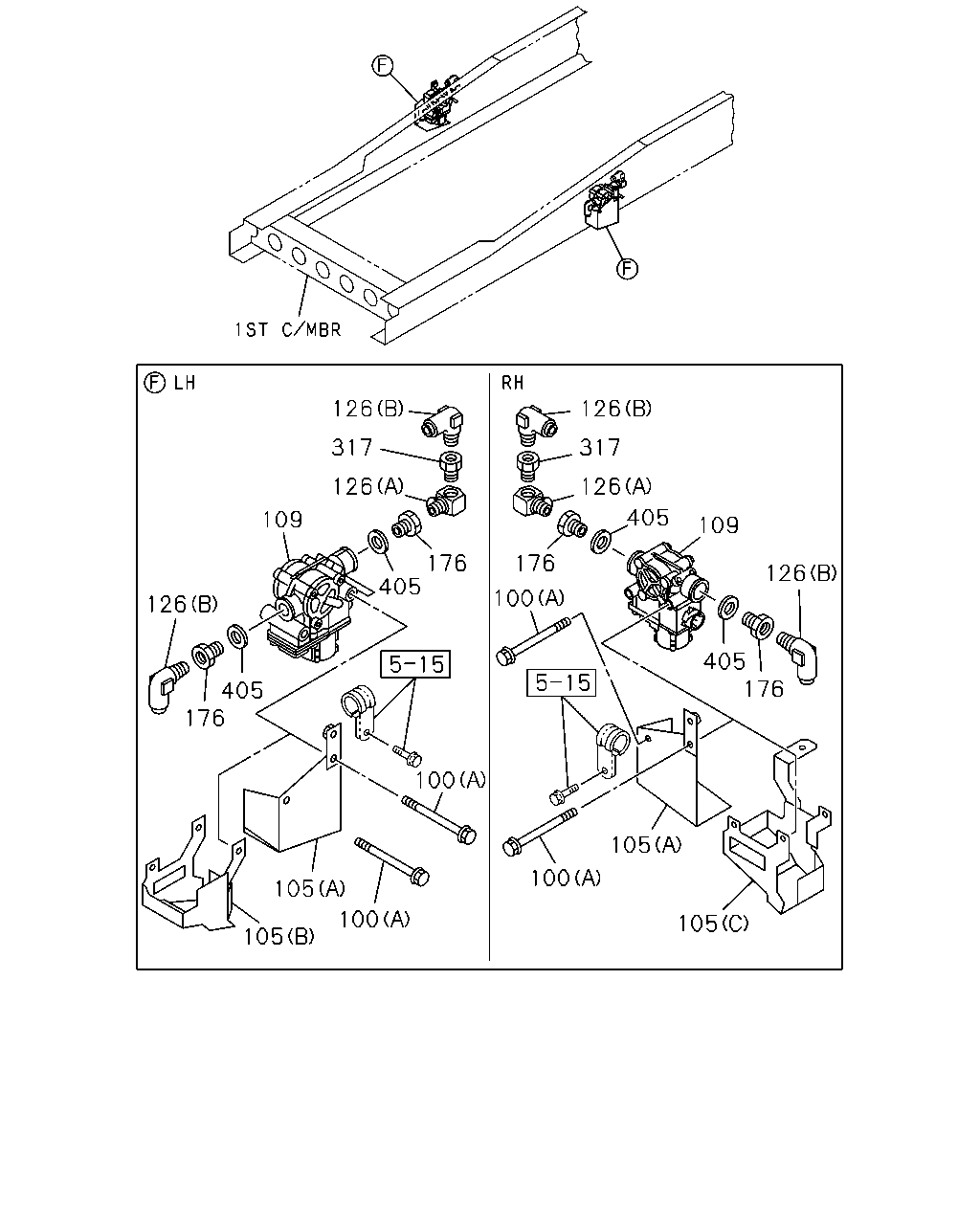

çizim 401452
126 317 405 126 176 100 109 126 405 176 105 100 105 100 100 105 105 176 126 405 109 317 126 126 176 405
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1401- ●
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1401- ●
105 COVER; MODULATOR
(A) 		8-98061-815-0 01 1 1401-1504 ●
105 COVER; MODULATOR
(B) 		8-98300-152-0 01 1 1505- ●
105 COVER; MODULATOR
(A) 		8-98164-196-0 01 1 1401-1504 ●
105 COVER; MODULATOR
(C) 		8-98300-155-0 01 1 1505- ●
109 MODULATOR; FRT 1-48240-115-0 02 1 1401-1504 ●
109 MODULATOR; FRT 8-98215-454-0 02 1 1505- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1401- ●
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1401- ●
317 CONNECTOR; MODULATOR
PT3/8 		1-09664-210-0 01 1 1401- ●
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1401- ●

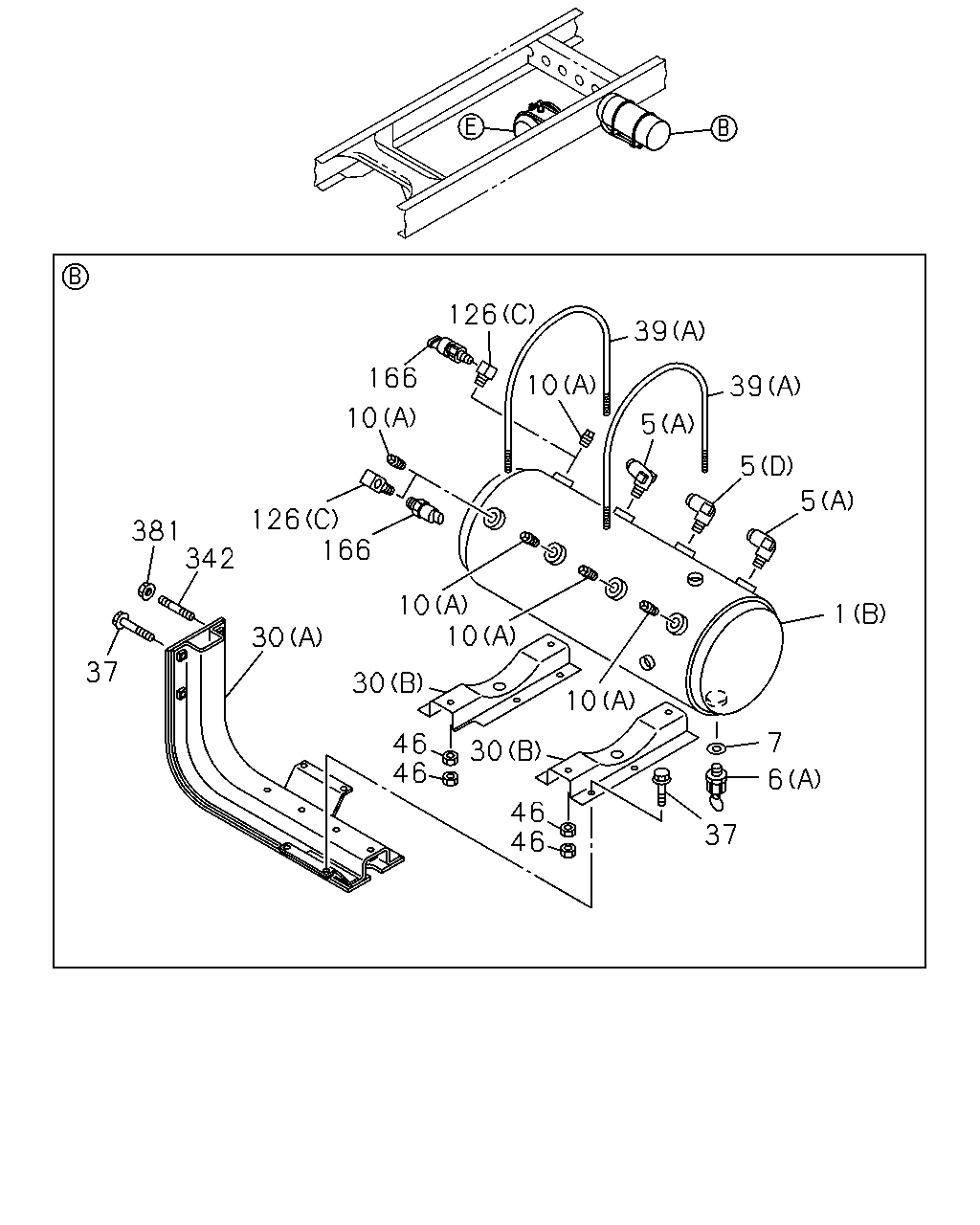

çizim 401460
126 10 166 10 126 381 342 37 30 166 10 30 10 46 46 30 46 46 10 37 6 7 1 5 5 39 5 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1401- ●
5 UNION; AIR TANK
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1401- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1401- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-393-0 01 1 1401- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-394-0 02 1 1401- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-98234-793-0 01 1 1401- ●
37 BOLT; AIR TANK
M10X25 FLANGE 		0-28651-025-0 08 1 1401- ●
37 BOLT; AIR TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ●
37 BOLT; AIR TANK
M12X35 FLANGE 		0-28651-235-0 02 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1401- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ●
342 STUD
M10X30 L=45 		8-98035-675-0 02 1 1401- ●
342 STUD
M12X30,M12X16 L=56 		8-98144-947-0 02 1 1401- ●
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 1401- ●
381 NUT; SUB TANK
M12 FLANGE 		0-91180-212-0 02 1 1401- ●

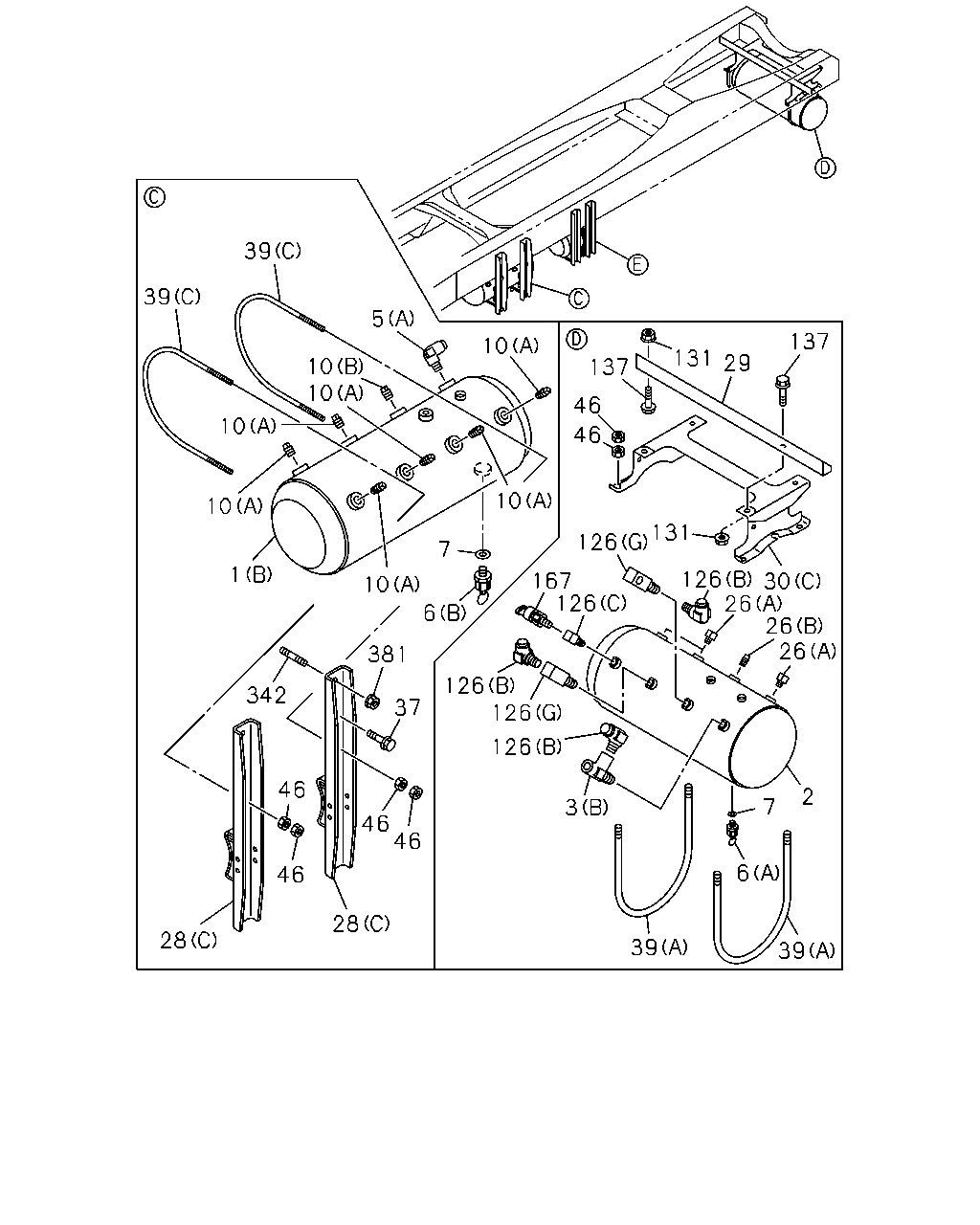

çizim 401862
39 39 5 10 10 10 10 1 342 46 46 28 28 46 46 37 381 6 10 7 10 46 46 10 137 131 29 137 126 131 126 26 30 26 26 2 7 6 39 39 3 126 126 126 126 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1401- ●
2 TANK; AIR 8-98187-713-0 01 1 1401- ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1401- ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1401- ●
5 UNION; AIR TANK
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1401- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1401- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1401- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1401- ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1401- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(G) 		8-98093-562-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(E) 		8-98112-257-0 01 1 1401- ● ●
28 BRACKET; AIR TANK
(B) 		8-98100-973-1 02 1 1401- ●
28 BRACKET; AIR TANK
(C) 		8-98237-155-1 02 1 1401- ●
29 BRACKET; AIR TANK 8-97619-245-1 01 1 1401- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-393-0 01 1 1401- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-394-0 02 1 1401- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-98234-793-0 01 1 1401- ●
37 BOLT; AIR TANK
M10X25 FLANGE 		0-28651-025-0 08 1 1401- ●
37 BOLT; AIR TANK
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ●
37 BOLT; AIR TANK
M12X35 FLANGE 		0-28651-235-0 02 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1401- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 05 1 1401- ●
137 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 06 1 1401- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 1401- ●
342 STUD
M10X30 L=45 		8-98035-675-0 02 1 1401- ●
342 STUD
M12X30,M12X16 L=56 		8-98144-947-0 02 1 1401- ●
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 1401- ●
381 NUT; SUB TANK
M12 FLANGE 		0-91180-212-0 02 1 1401- ●

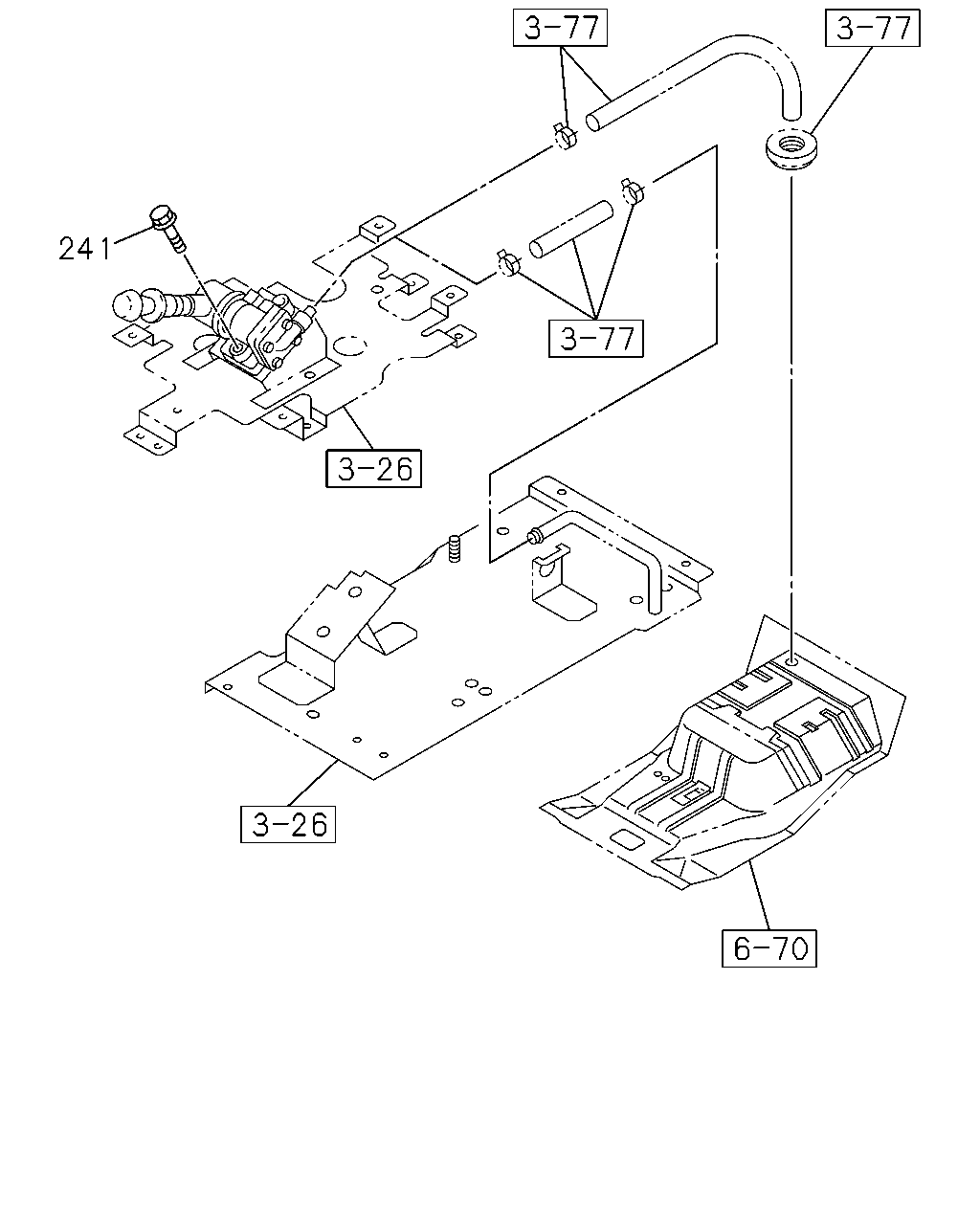

çizim 401971
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ●
241 BOLT; SET,CONT VLV
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 1401- ●

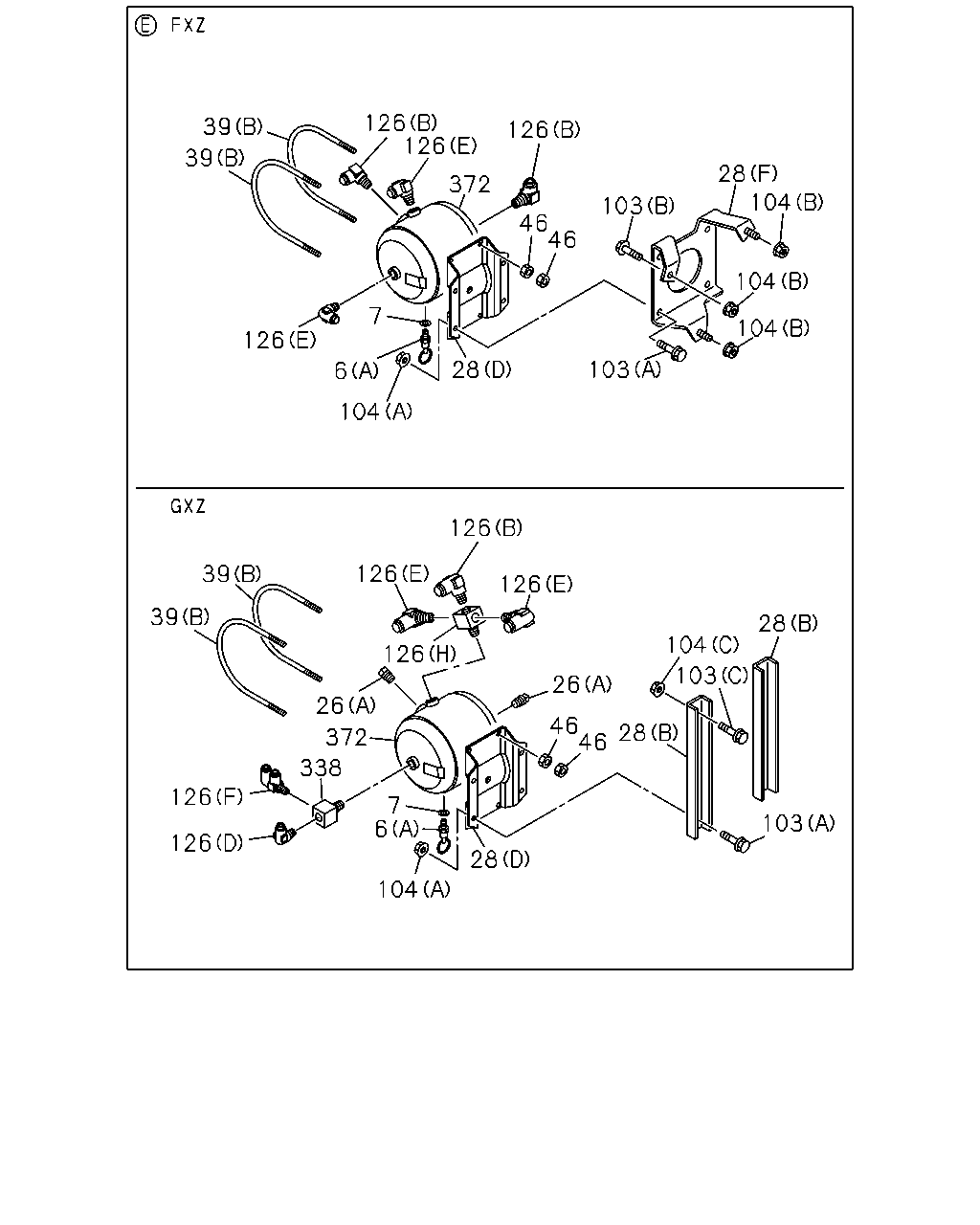

çizim 402044
39 39 126 104 6 7 126 126 372 126 46 46 103 28 104 104 104 103 28 39 39 126 126 338 372 26 126 126 126 126 26 46 46 28 104 103 28 103 28 104 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1401- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1401- ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1401- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(G) 		8-98093-562-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(E) 		8-98112-257-0 01 1 1401- ● ●
28 BRACKET; AIR TANK
(B) 		8-98100-973-1 02 1 1401- ●
28 BRACKET; AIR TANK
(C) 		8-98237-155-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1401- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1401- ●
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
103 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1401- ● ●
103 BOLT; BRKT
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1401- ●
104 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1401- ●
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1401- ● ●
104 NUT; BRKT
(D) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
338 CONNECTOR; 3WAY VLV
PT3/8 3WAY 		1-09661-300-0 01 1 1401- ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1401- ● ●

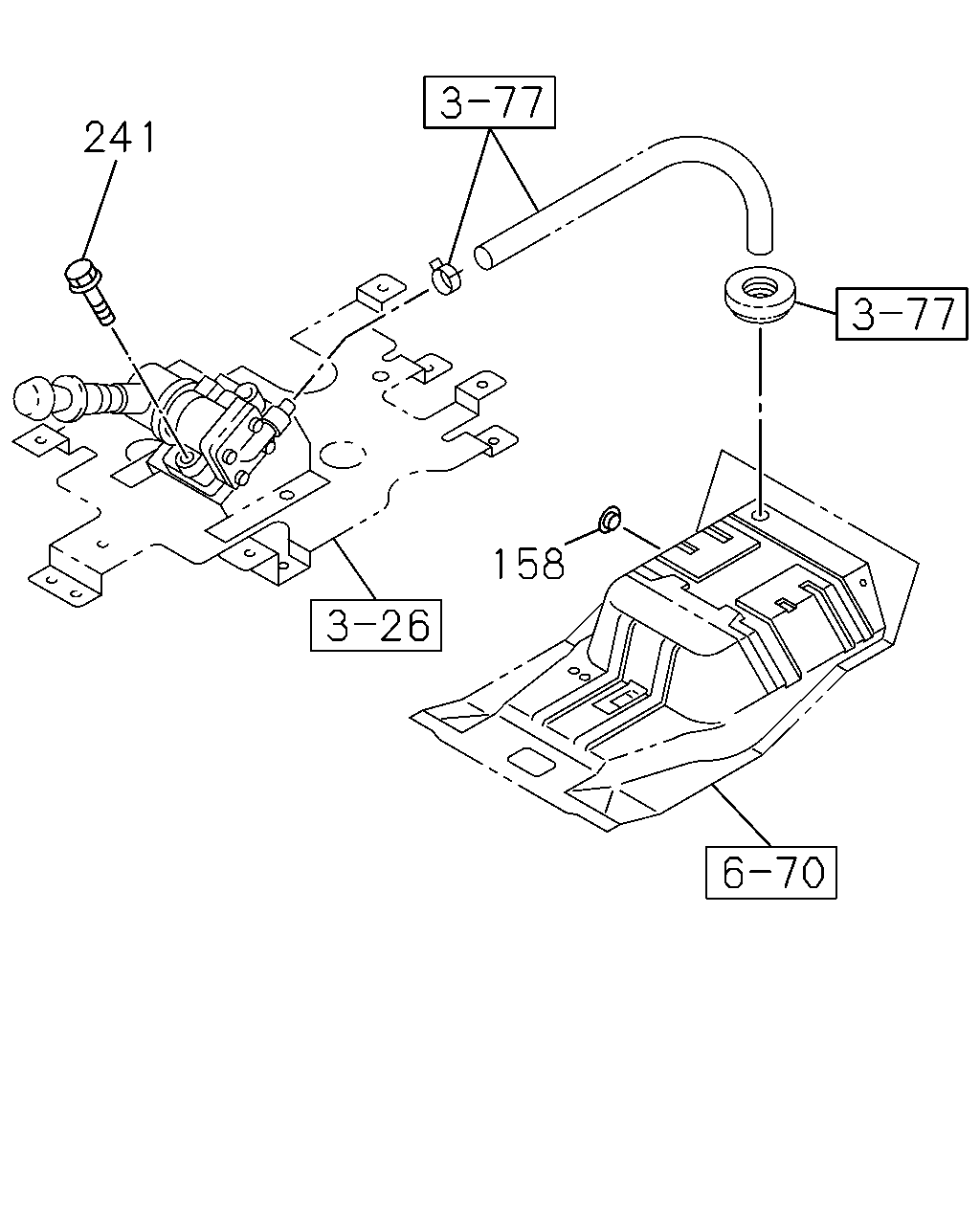

çizim 402106
241 158
BalonParca AdiParca NoAdetTipApplied Date A B
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1401- ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ●
241 BOLT; SET,CONT VLV
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 1401- ●

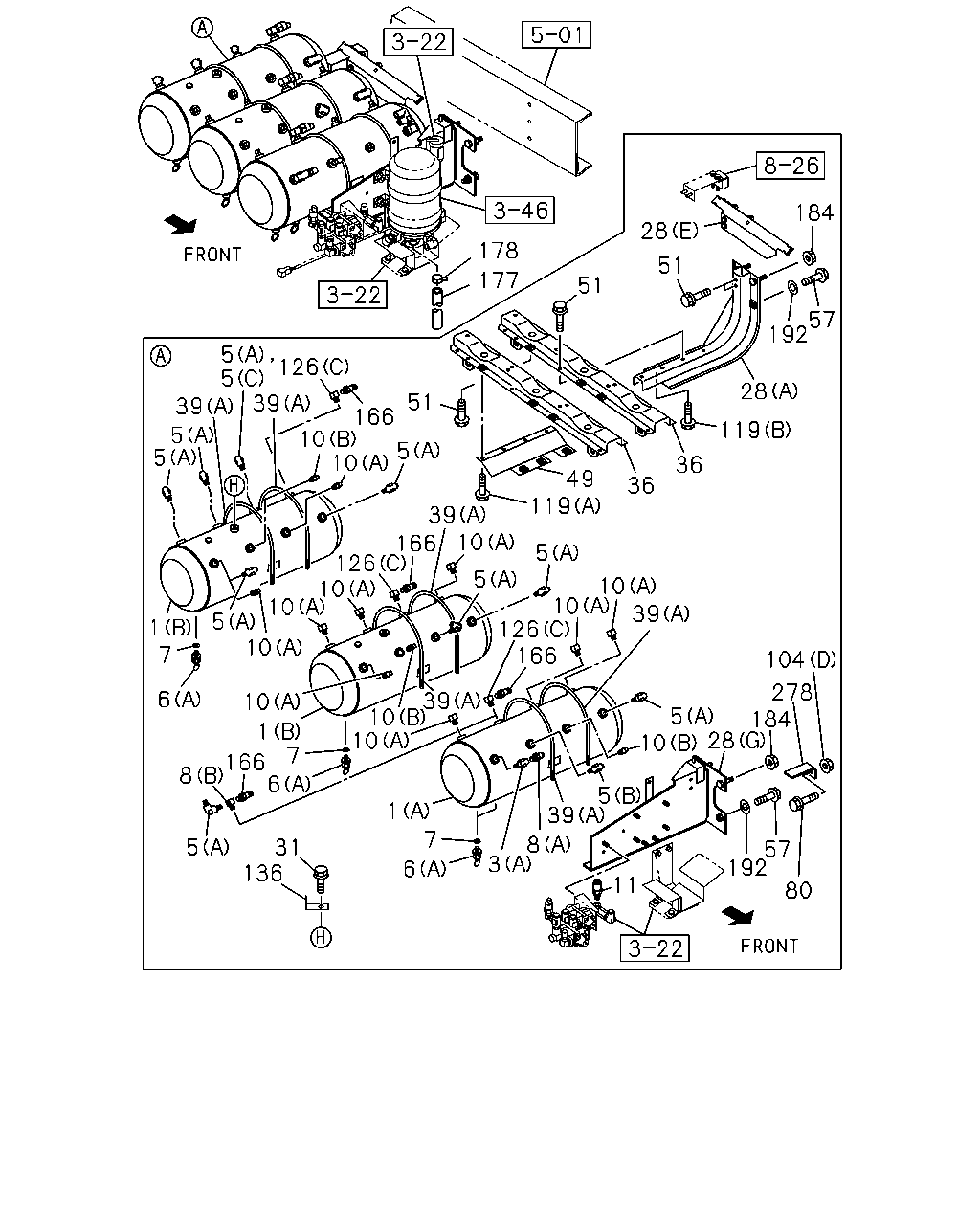

çizim 402162
178 177 51 51 166 126 5 5 39 10 10 39 5 5 5 1 7 6 10 10 1 7 166 8 6 5 31 136 6 7 1 10 10 39 10 10 126 166 39 10 5 126 166 10 5 119 49 36 36 119 28 192 57 184 28 51 10 39 104 278 184 5 10 28 57 192 80 5 39 8 3 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1401- ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1401- ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1401- ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1401- ●
5 UNION; AIR TANK
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1401- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1401- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1401- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1401- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1401- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1401- ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1401- ● ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1401- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(G) 		8-98093-562-1 01 1 1401- ● ●
28 BRACKET; AIR TANK
(E) 		8-98112-257-0 01 1 1401- ● ●
28 BRACKET; AIR TANK
(B) 		8-98100-973-1 02 1 1401- ●
28 BRACKET; AIR TANK
(C) 		8-98237-155-1 02 1 1401- ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1401- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1401- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 04 1 1401- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1401- ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1401- ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1401- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1401- ● ●
80 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
104 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1401- ●
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1401- ● ●
104 NUT; BRKT
(D) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
104 NUT; BRKT
(C) M12 FLANGE 		0-91180-212-0 02 1 1401- ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1401- ● ●
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1401- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1401- ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1401- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1401- ●
126 CONNECTOR; ELBOW
(F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1401- ●
126 CONNECTOR; ELBOW
(H) PT3/8 4WAY 		1-09661-489-0 01 1 1401- ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1401- ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1401- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1401- ● ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1401- ● ●
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1401- ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
