2-20B — MANUAL TRANSMISSION ASM AND CASE (#13237) — 193 parça

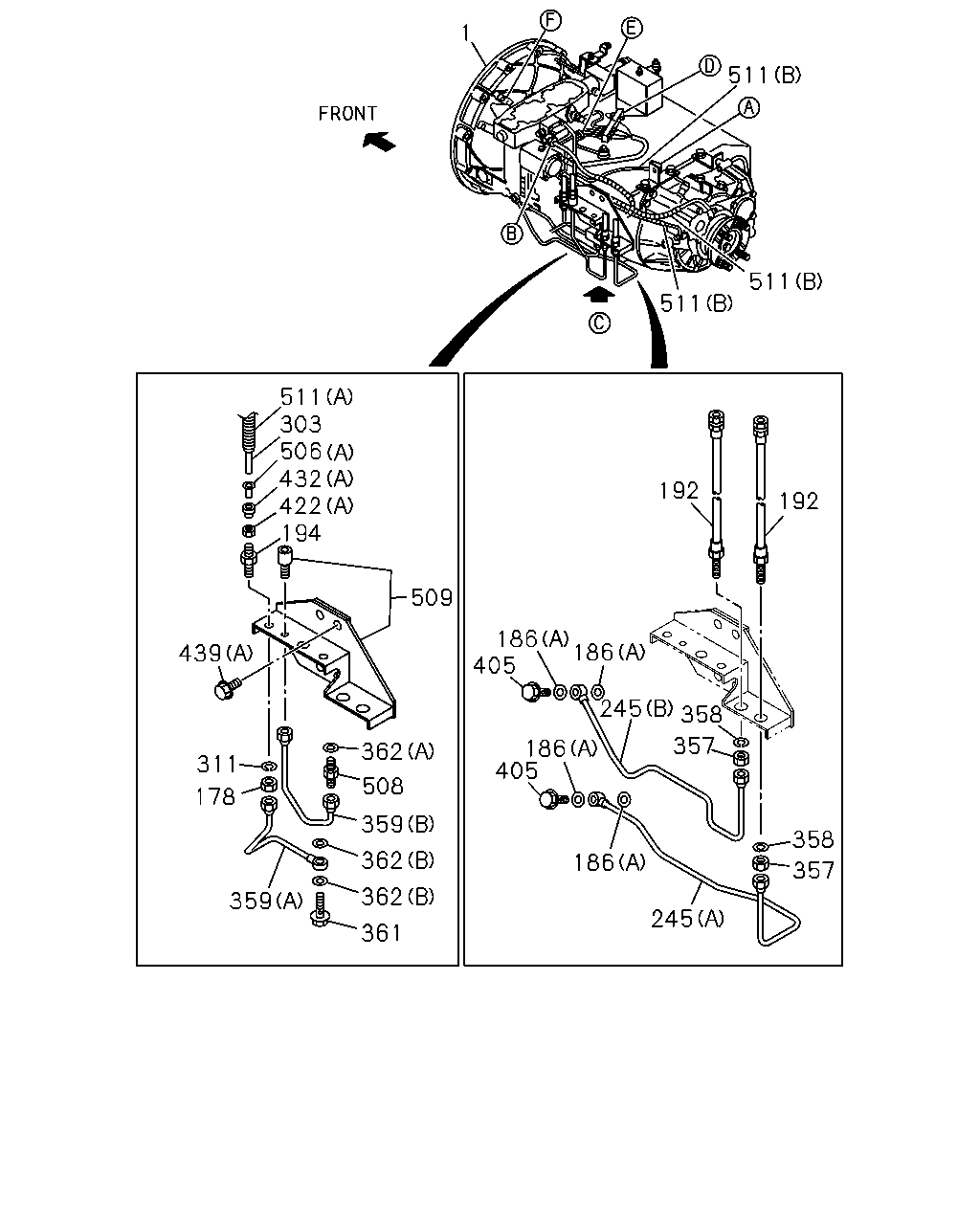

çizim 22622
1 511 511 511 511 303 506 432 422 194 192 192 245 358 357 509 439 186 186 405 186 405 362 311 178 508 359 358 357 359 362 186 362 245 361
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110-
178 NUT; UNION
M14 		9-99111-414-0 01 1 0105-
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0105-
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0105-
192 HOSE; FLEX,TRANS
OUTLET L=400 		1-09364-913-0 01 1 0105-
192 HOSE; FLEX,TRANS
INLET L=500 		1-09364-914-0 01 1 0105-
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0105-
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105-
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0105-0105
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0105-
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0105-
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110-
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110-
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0105-
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0105-
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105-
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105-
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105-
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106-
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105-
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105-
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105-
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105-
506 INSERT
(B) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0105-
509 BRACKET; PIPE 1-47478-215-2 01 1 0105-
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-

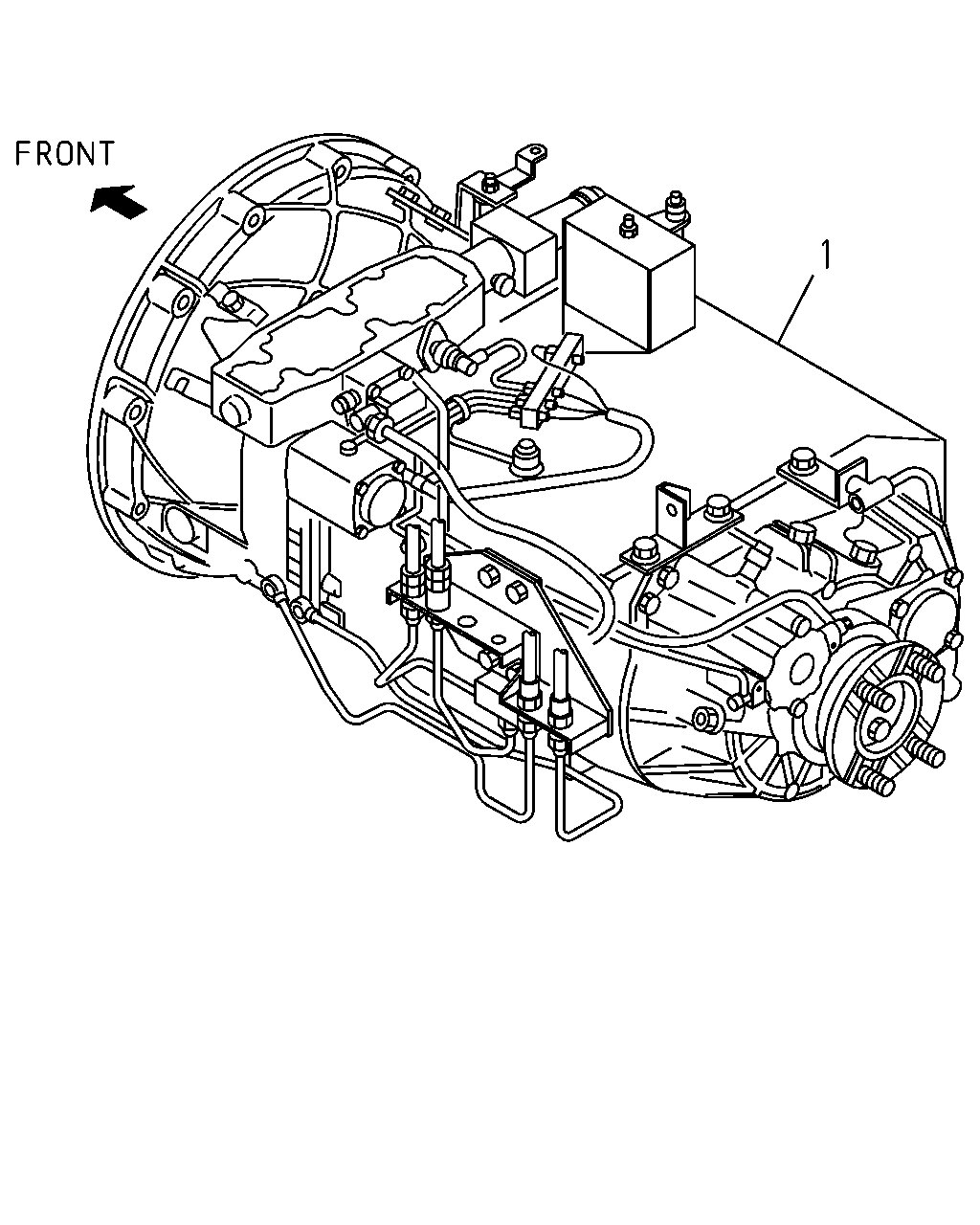

çizim 22623
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110-
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0105-0109
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110-

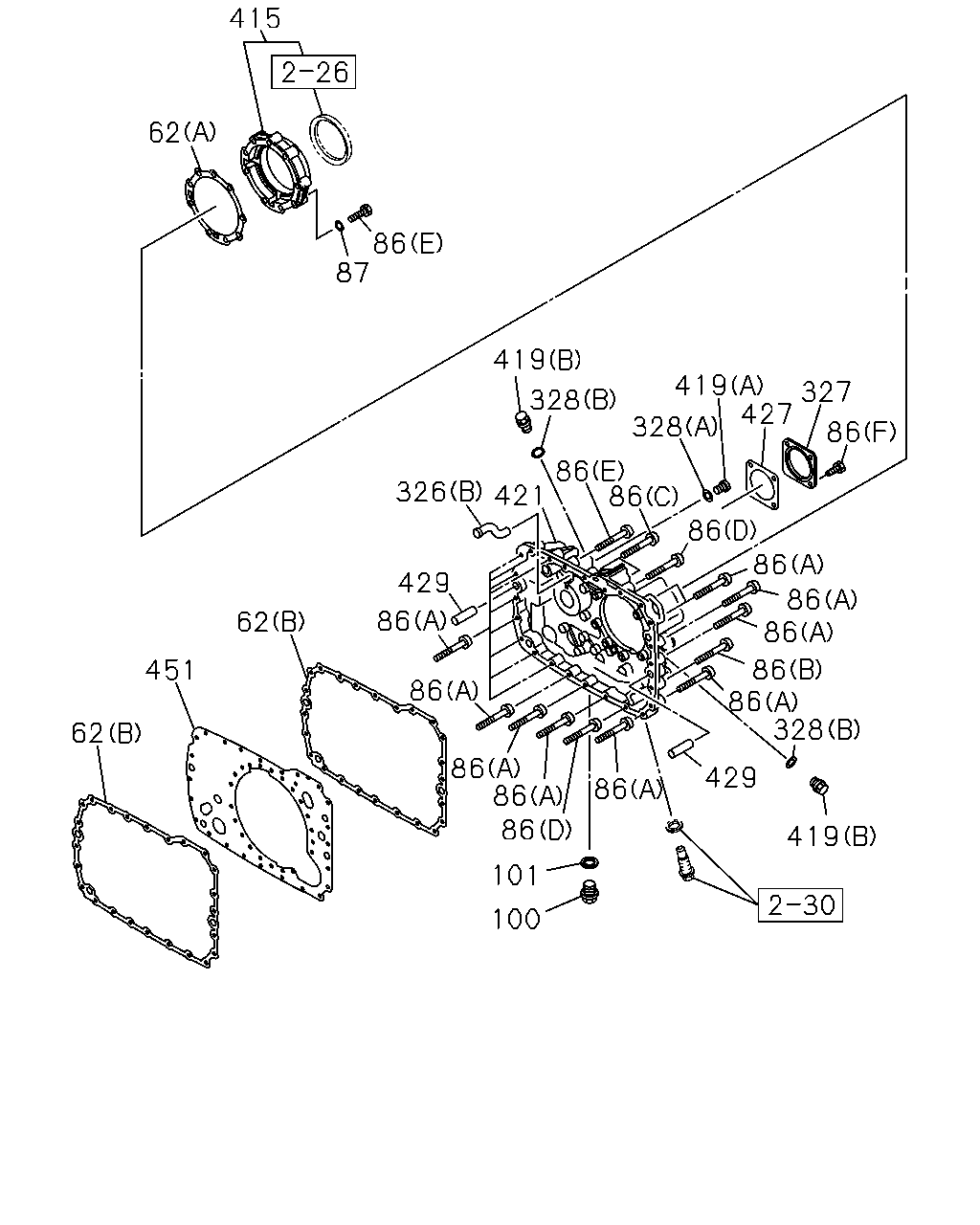

çizim 22626
415 62 86 87 327 427 328 86 86 86 86 421 429 86 86 86 62 328 451 86 86 429 419 101 100 419 328 419 326 62 86 86 86 86 86
BalonParca AdiParca NoAdetTipApplied Date
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0105-
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0105-
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0105-
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0105-
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0105-
86 BOLT; RR COVER
(C) 		1-33139-057-0 02 1 0105-
86 BOLT; RR COVER
(D) 		1-33139-058-0 02 1 0105-
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (F) 		1-33119-400-0 04 1 0105-
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0105-
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0105-
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105-
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105-
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105-
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33131-165-0 01 1 0105-
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105-
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105-
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105-
415 COVER; BRG 1-33159-039-0 01 1 0105-
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0105-
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0105-
421 COVER; RR,TRANS 1-33131-244-0 01 1 0105-
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33132-054-0 01 1 0105-
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105-
451 PLATE; RR COVER 1-33139-055-0 01 1 0105-

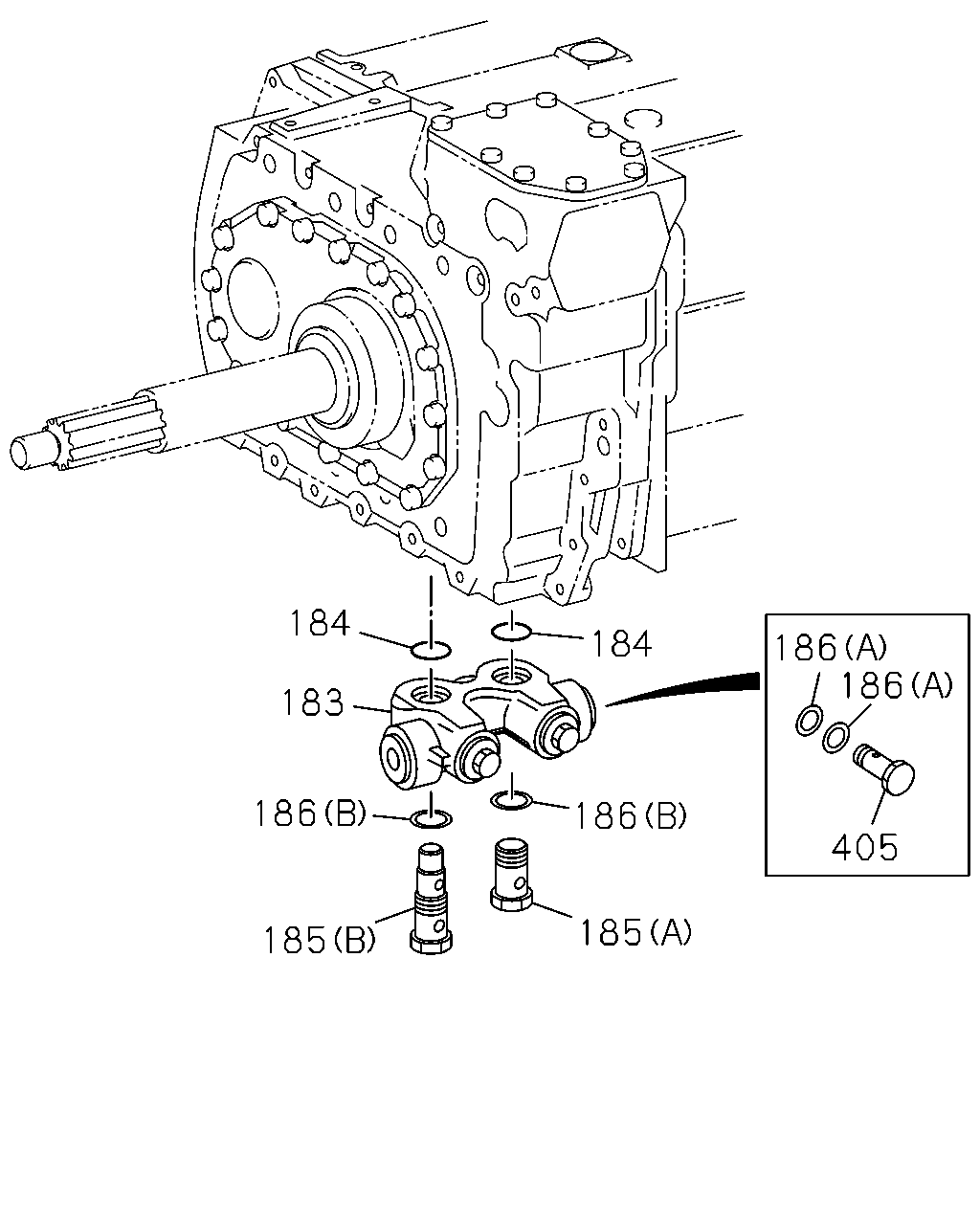

çizim 79600
184 184 186 186 183 186 186 405 185 185
BalonParca AdiParca NoAdetTipApplied Date
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0105-
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0105-
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0105-
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0105-
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0105-
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0105-
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105-

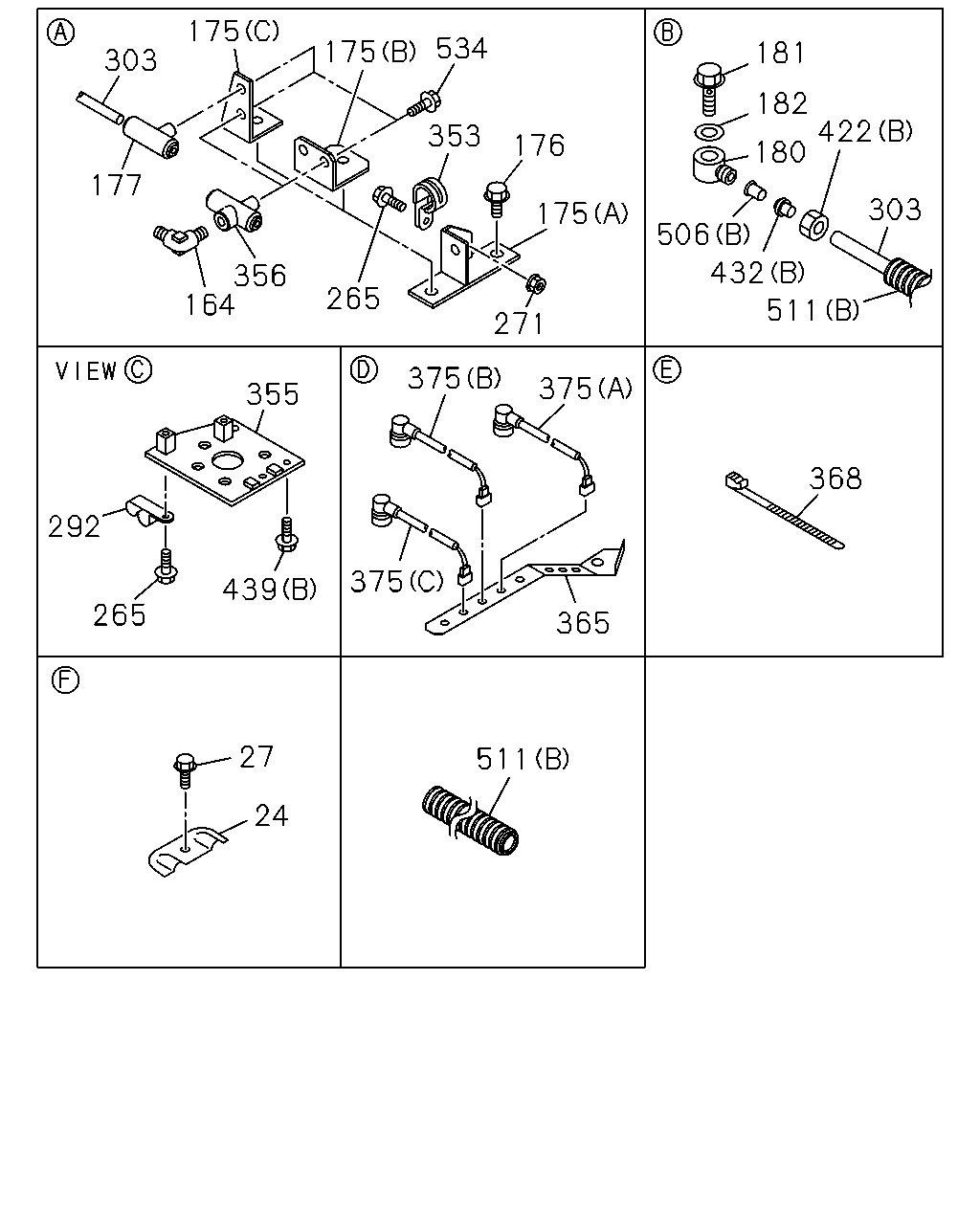

çizim 81039
175 534 175 181 303 182 422 180 353 176 177 303 175 506 432 356 164 265 511 271 375 375 355 368 292 375 439 265 365 27 511 24
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0105-
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0105-
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0105-
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107-
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0105-
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107-
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0105-
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0105-
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0105-
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0105-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0105
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0105-0105
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106-0106
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0105-
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-
365 BRACKET; HARNESS 1-82699-490-2 01 1 0105-
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 0105-0105
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106-
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0105-
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0105-
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0105-
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105-
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105-
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106-
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105-
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105-
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106-
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105-
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105-
506 INSERT
(B) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106-
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105
511 TUBE; CORRUGATE
(A) L=800 		1-83129-031-1 01 1 0106-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0106
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106-
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-

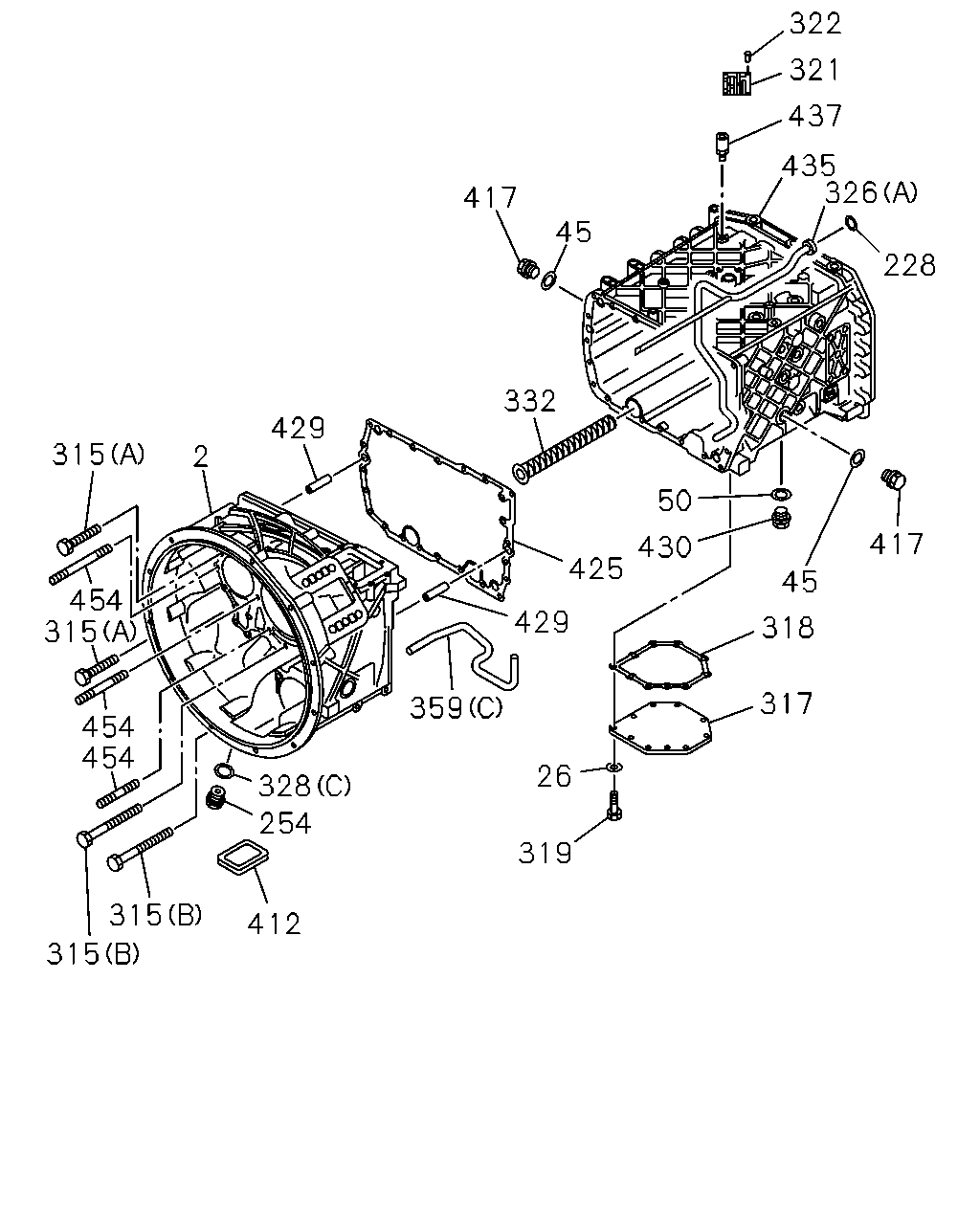

çizim 81141
322 321 437 435 326 417 45 228 332 429 315 2 50 430 425 417 429 45 454 315 318 359 317 454 454 26 328 254 319 315 315 412
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 1-31111-194-0 01 1 0105-
26 WASHER; PL,COVER 1-09469-010-0 10 1 0105-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0105-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105-
228 GASKET; NOZZLE 1-33119-273-0 01 1 0105-
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0105-
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0105-
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0105-
317 COVER; CASE 1-33119-274-0 01 1 0105-
318 GASKET; COVER 1-33119-409-0 01 1 0105-
319 BOLT; COVER 1-33119-276-0 10 1 0105-
321 PLATE; NAME 1-33119-277-0 01 1 0105-
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0105-
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105-
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105-
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105-
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105-
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105-
332 FILTER; OIL 1-33119-370-0 01 1 0105-
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105-
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110-
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110-
412 CAP; CLU HSG 1-31119-022-0 01 1 0105-
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0105-
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0105-
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105-
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0105-
435 CASE; TRANS 1-33111-286-0 01 1 0105-
437 BREATHER; TRANS 1-36122-004-0 01 1 0105-
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0105-
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0105-
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0105-

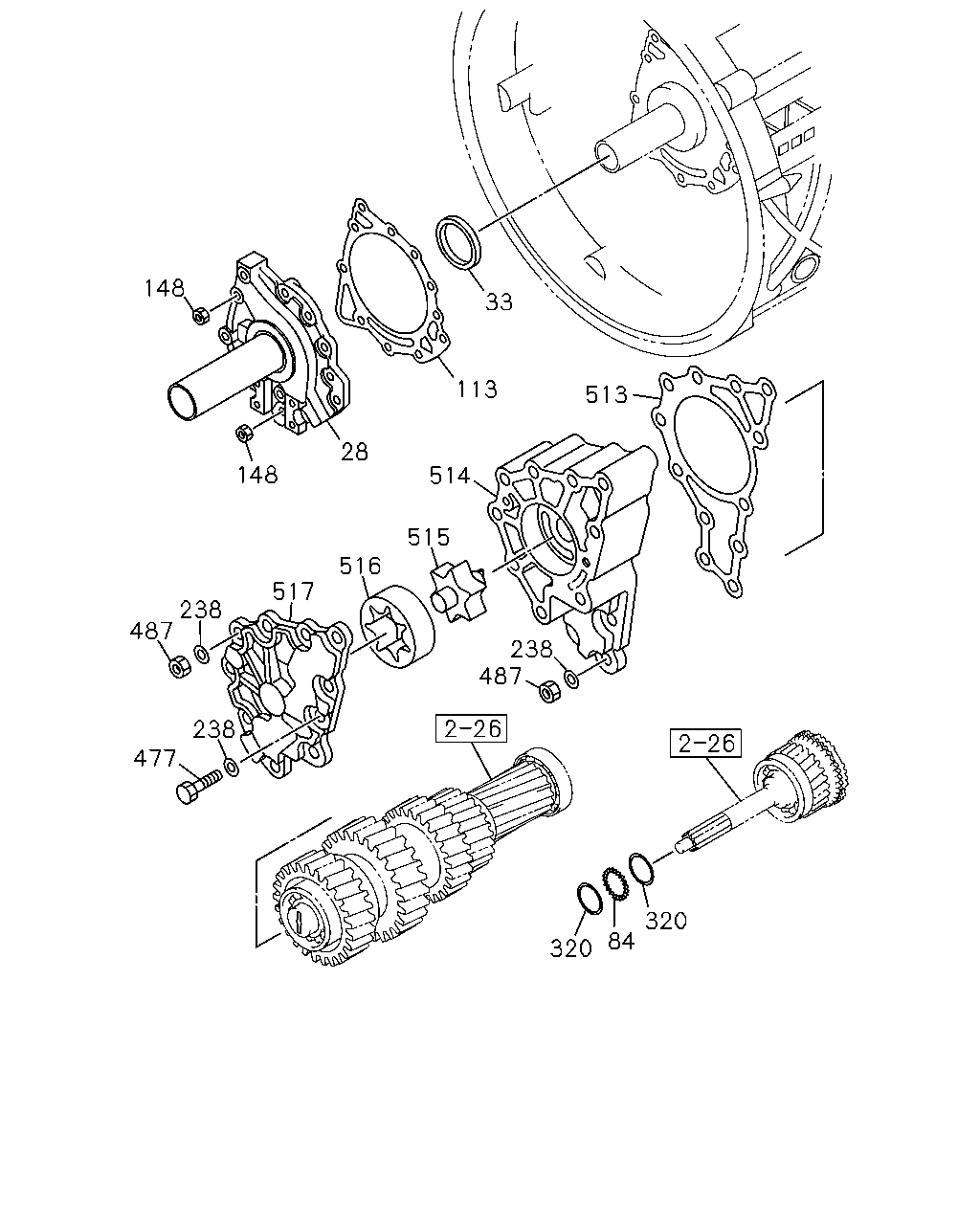

çizim 83216
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320
BalonParca AdiParca NoAdetTipApplied Date
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0105-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0105-
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0105-
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0105-
148 NUT 1-33529-056-0 11 1 0105-
238 WASHER; PL 1-09469-010-0 14 1 0105-
320 WASHER; COVER 1-33129-007-0 02 1 0105-
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0105-
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0105-
513 GASKET; HOUSING 1-34159-058-0 01 1 0105-
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0105-
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0105-
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0105-
517 COVER; OIL PUMP 1-34159-071-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
